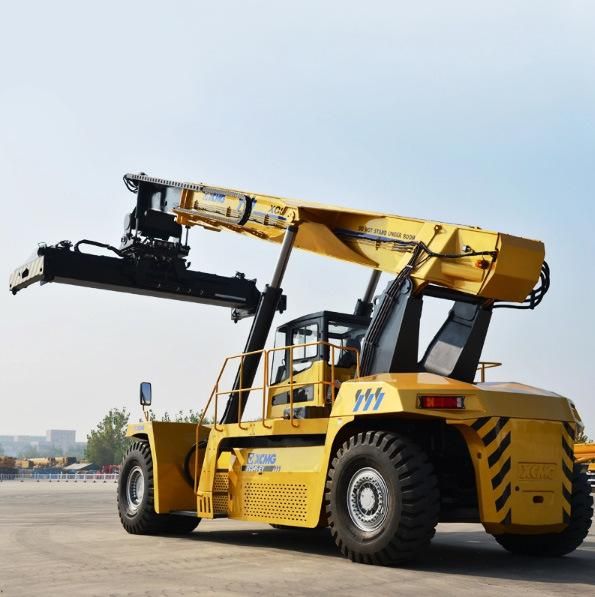

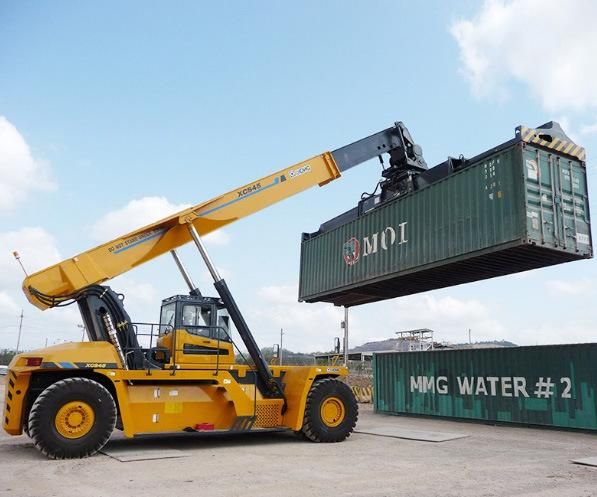

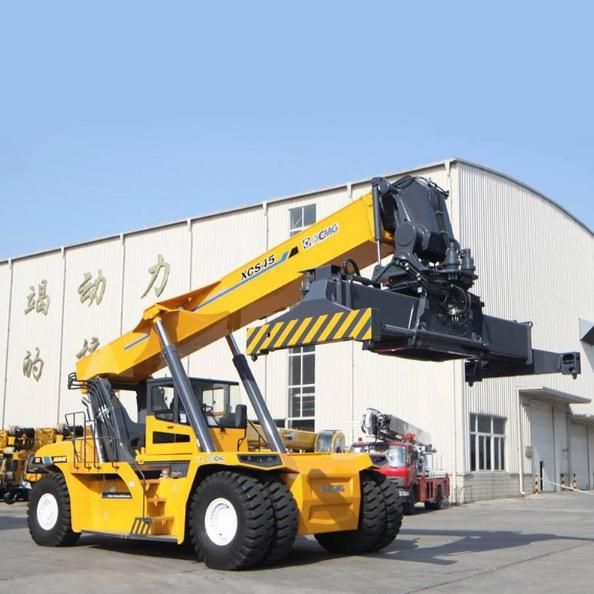

China Brand 45 Ton Port Container Reach Stacker Xcs45

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：One-Year Warranty
  • Type：Self-propelled
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Emission Standard：Euro 3
  • Hoesrpower：251-350hp

Base Info

  • Model NO.：XCS45
  • Payload：20T
  • Fuel：Diesel
  • Transmission Type：Manual
  • Drive Wheel：4x2
  • Condition：New
  • Max  Lifting  Height：14850mm
  • Lifting  Speed：380mm,S
  • Max.   Spread：6800mm
  • Service  Weight：73t
  • Transport Package：Nude
  • Specification：3857*1250*2150mm
  • Trademark：newindu
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：100

Description

ItemUnitParametersMax.lifting capacitykg45000Stacking capacity of container--5-5-4Max. hoisting speed (no/full load)mm/s420/250Max. lowering speed (no/full load)mm/s360/360Max. lifting heightmm15100Max. travel speed (no/full load)km/h27/23Max. grade-ability%30%Min. turning radiusm7.9Curb masskg69800Outline dimension (L×W×H)mm11295×6208×4500Wheel basemm6000Track (front wheel/rear wheel)mm3030/2750Min. ground clearancemm400Approach angle/Departure angle°17.5/26.5Engine power/rotation speedkW/r/min250/2100Transmission--5-Forward, 3-Reverse
