• Model NO.：HQ400
• Payload：10.5ton
• Fuel：Diesel
• Drive Mode：4*4
• Maximum Horsepower：<200hp
• Condition：New
• Operating Weight：7780 Kgs
• Engine：Yto, Yuchai or Cummins for Option
• Transport Package：by Container
• Specification：7500MM*2700MM*3380MM
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：87054000
• Production Capacity：8000 Units , Year

Basic Info.

Model NO. HQ400 Payload 10.5ton Fuel Diesel Drive Mode 4*4 Maximum Horsepower <200hp Condition New Operating Weight 7780 Kgs Engine Yto, Yuchai or Cummins for Option Transport Package by Container Specification 7500MM*2700MM*3380MM Trademark Haiqin Origin Shandong, China HS Code 87054000 Production Capacity 8000 Units / Year

Product Description

1.Advantages Of Our Concrete Mixer :

1).Excellent After-sale Service and Customization Service.
2).High Efficiency
    *Capacity: 14 cubic meters(18.31 cubic yards)/hour;
                       110 cubic meters (143.87 cubic yards)/day;
                       33000 cubic meters(43,162.44 cubic yards)/year
 3)   *Labor-saving
 4)    *4 wheel drive, 4 wheels steering
  5) *Accurate Electric Weighing System
  6)  *The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides          of the vehicle
  7) *Combined the fountions of Loading, Weighing, Pumping, Mixing, Delivering and Discharging

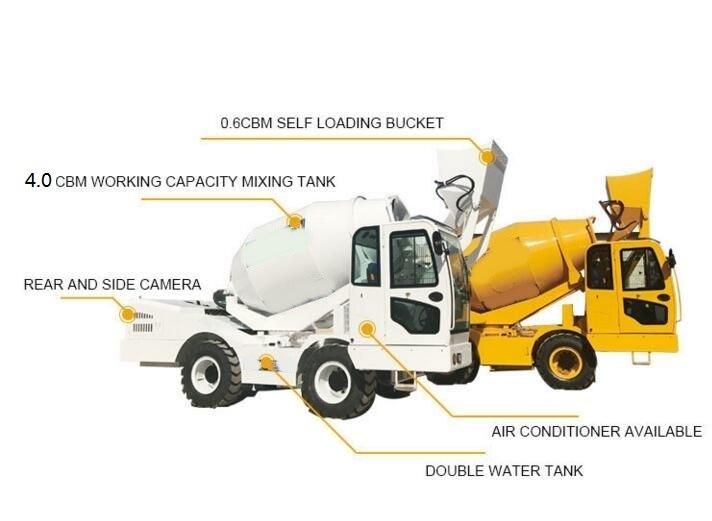

2.Product Description :

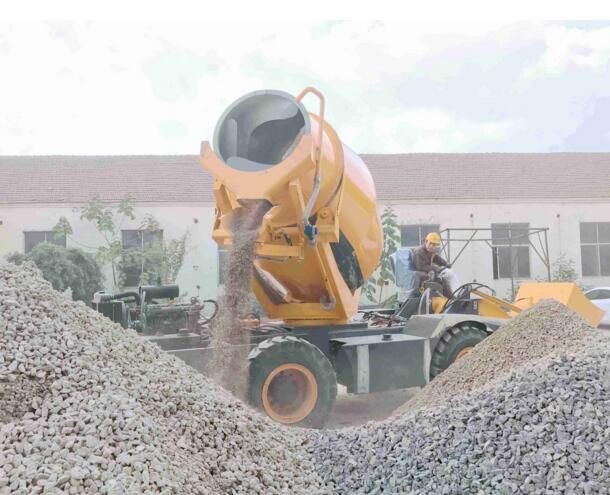

Haiqin Brand Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with
a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete
mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.


3.Main Features :

1) The self mixing concrete truck can automatic feeding, measuring, mixing and discharging
concrete.
2) The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3) It has independent water supply system, which can ensure the high quality of concrete.
4) It just need one operator to drive, load, and mix raw material while moving it.


4, Specifications :


Drum capacity	5.5m³
Concrete output	4m³.
Loading ratio	76%
Rotary drum	Discharge mouth height 1.8 meters.Level turn 300 ° (options)
Production capacity	4 batches in an hour.16 cubic meters per hour
ENGINE	YTO 85KW or Yuchai 95KW or Cummins
transmission way	Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4.
Climbing ability	30%
speed	Low speed 0-25 km/h, high speed 0-45 km/h.
CAB	Ultra wide deluxe cab . ROPS type.
hydraulic system	Open feed, two gear pump participate in action.
joystick	A four-way hydraulic pilot with an electric control button controls the bucket.
bucket	650L, hydraulic gate.
chute	Equipped with two removable shaft pins to increase the discharge length.
Water supply system	Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional).
brake	inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub.
Turn	Hydraulic steering, rear wheel steering.
tyre	16/70-20 wire tires
power system	24V
OIL TANK/water tank	2 x210L water tank. Diesel tank: 125 litres.Hydraulic tank: 130 litres.
weight	7600KG
L*W*H	7500MM*2700MM*3380MM
wheelbase	2.35M
metering	Electronic weighing system (optional).
