• Model NO.：ZZ1257N3847
• Fuel：Diesel
• Tank Volume：160000L
• Drive Wheel：6x4
• Hoesrpower：251-350hp
• Condition：New
• Color：Red, Yellow, Green, White, Blue.etc
• Driver Seat：Air Suspension Seat
• Transport Package：Nude Packing After Painted Wax
• Specification：SGS, CCC, ISO
• Trademark：SINOTRUK
• Origin：China
• HS Code：8705909990
• Production Capacity：3000units,Year

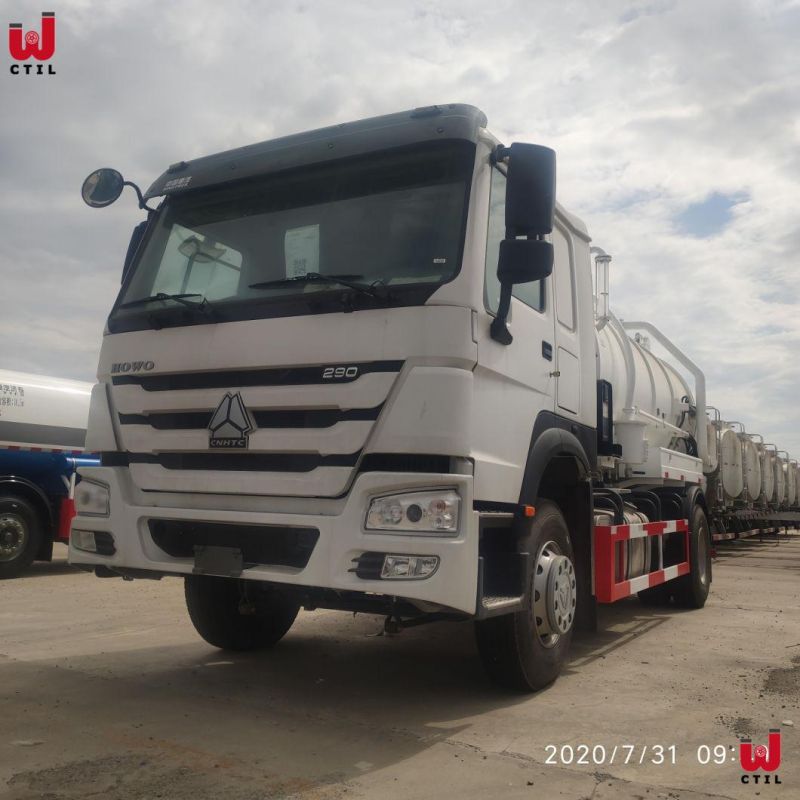

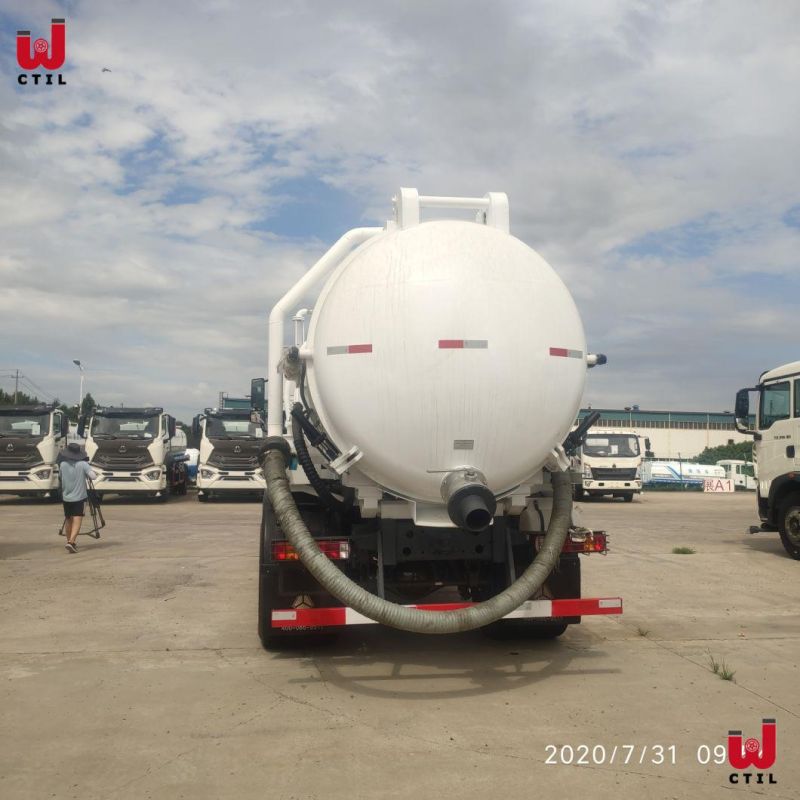

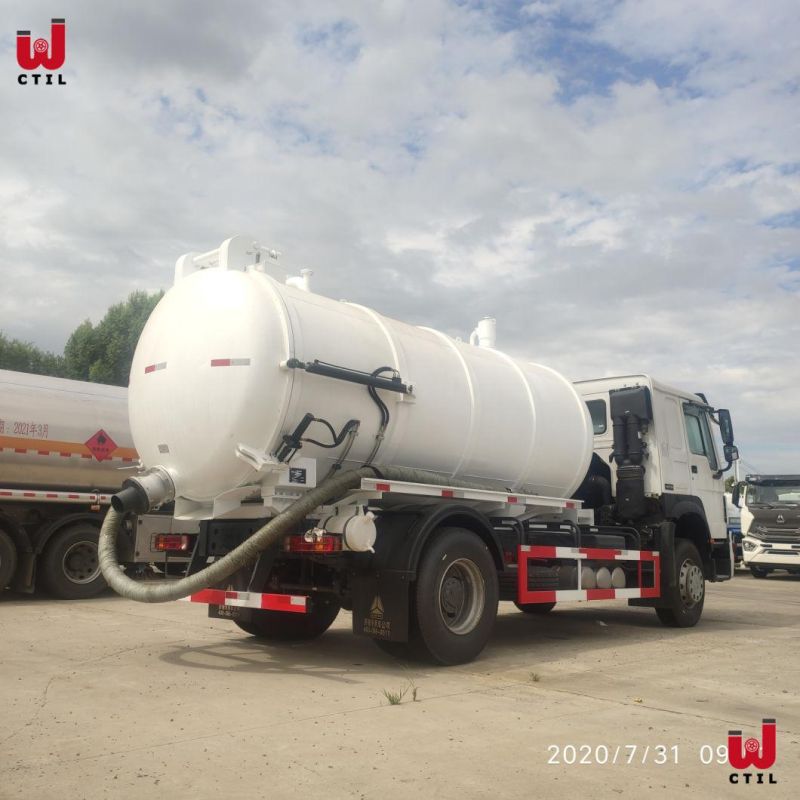

Sewage Suction Vacuum Truck Technical SpecificationProduct NameSino howo
SEWAGE SUCTION TRUCKChassis ModelZZ1250Fuel typeDieselEmission StandardEuro 2Cabin HW16Whole Vehicle
main dimensions (mm)Overall dimensions (LxWxH)9500*2400*3300Wheel baseoptionalMin. ground clearance 480Weight data (kg)G.V.W25000Curb weight1200Max payload16000Whole vehicle
main performanceMax. speed (km/h)95Max. slope of climb (%)30Engine


 ModelWD615 47Maximum power336HPNumber of cylinders6Displacement (ml)9.726Gear boxModel9Number of gears9 forward gears &1 reverse  Axle Front Load capacity (ton)7Rear Load capacity (ton)18Steering Wheelleft/right hand driveLHD,RHDBrake systemService brake Air brakingElectric deviceRated voltage24VTyres&Quantity 10.00-20& 6+1Sewage Suction Vacuum Truck Special Tank DescriptionTank

 Material:high quality carbon steel
Structure:welding,vacuum tank,Cylindricalcapacity(L)16000thickness of material6mmpump

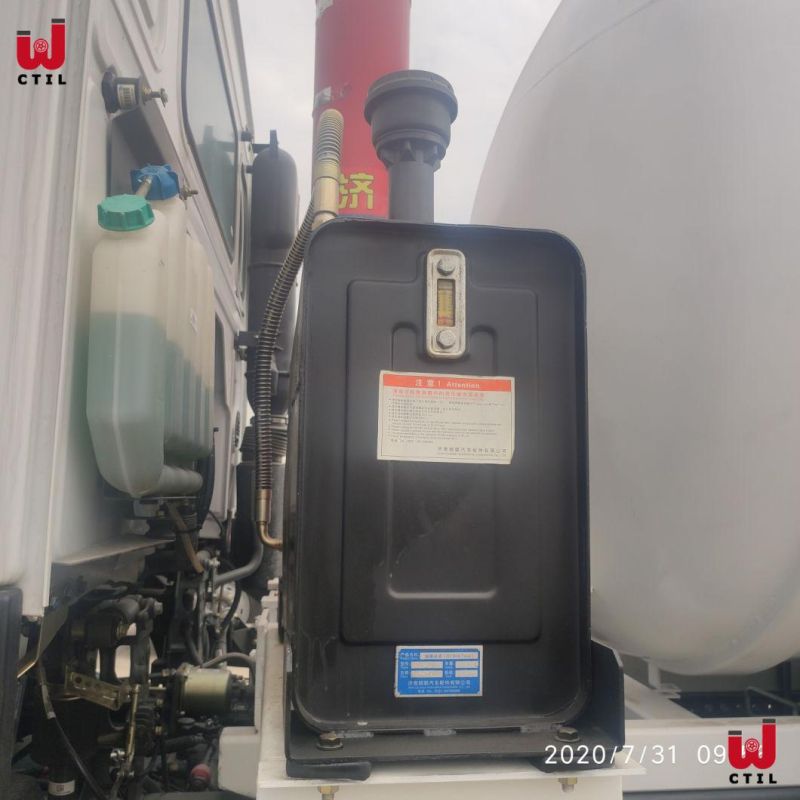

 typevacuum pumpmodel65QZ-40/45Nflux(L/S)65rating speed(r/min)500shaft power(kw)4featuresLow speed,low fuel consumption,low noise,high vacuum,high efficiencymanufactureHangzhou Weilong Pump Co.,Ltd,(Famous in China)pipe65-100mm suction and discharge pipespecial functionsuction time ≤ 5min,
effective suction range ≥ 8,
 max vacuum degree ≤ 15 Kpa,

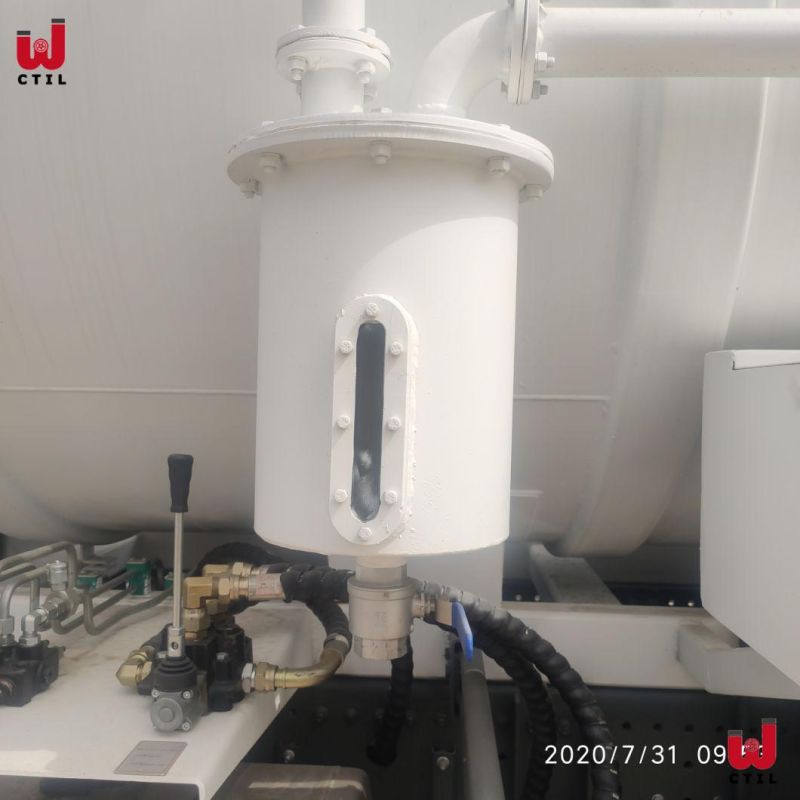

dump angle ≥ 45equipmentEquipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment
Time for full suction less than 5minhydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc


Spare parts- Service & Maintenance


6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

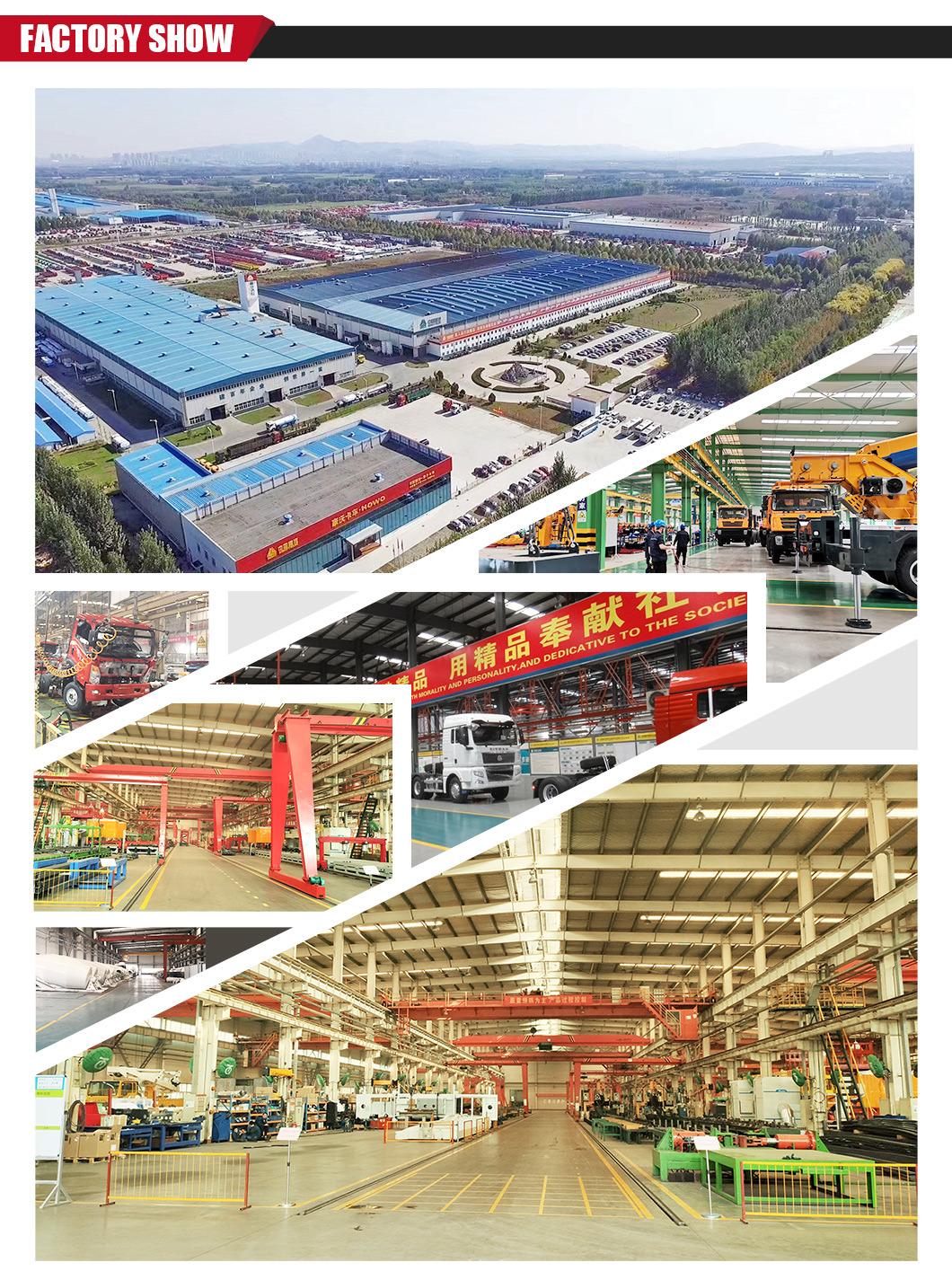

7. Company information
