• Model NO.：howo
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New

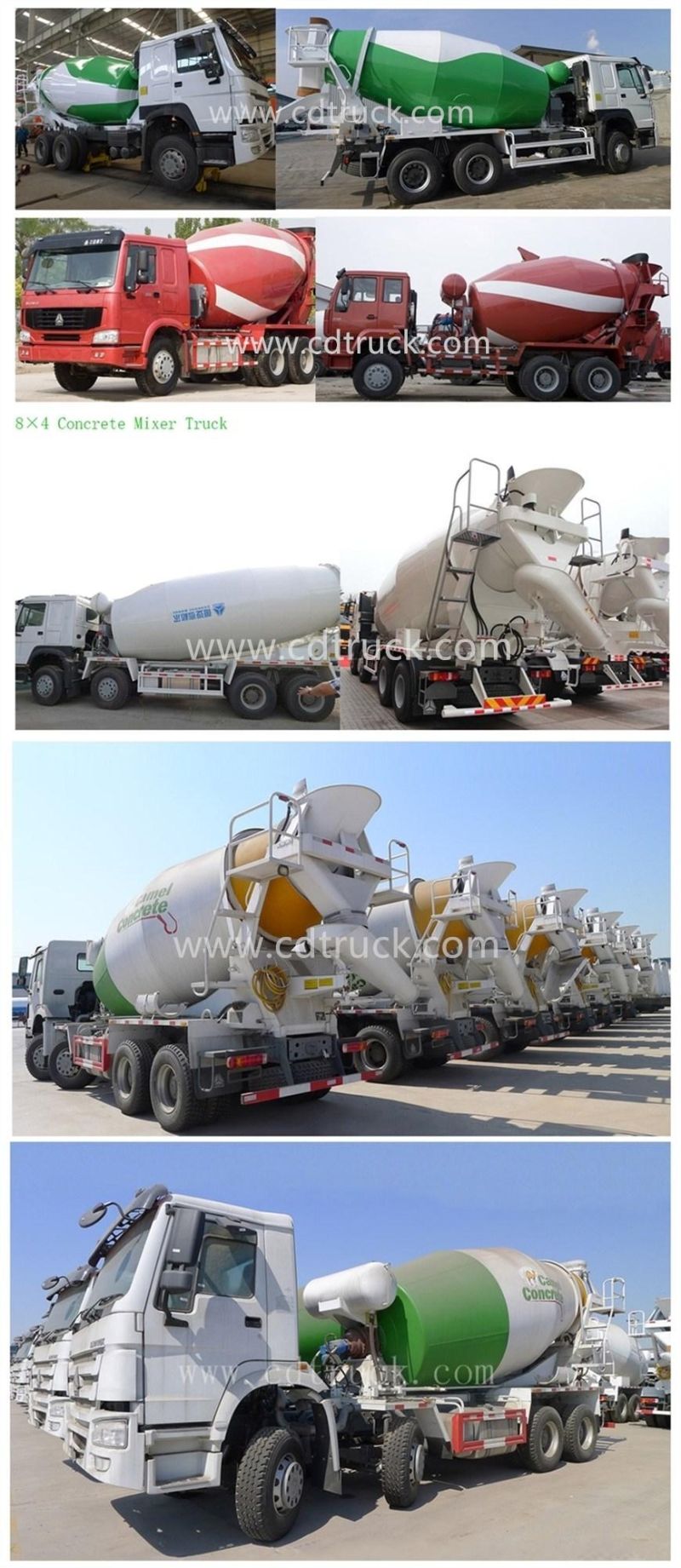

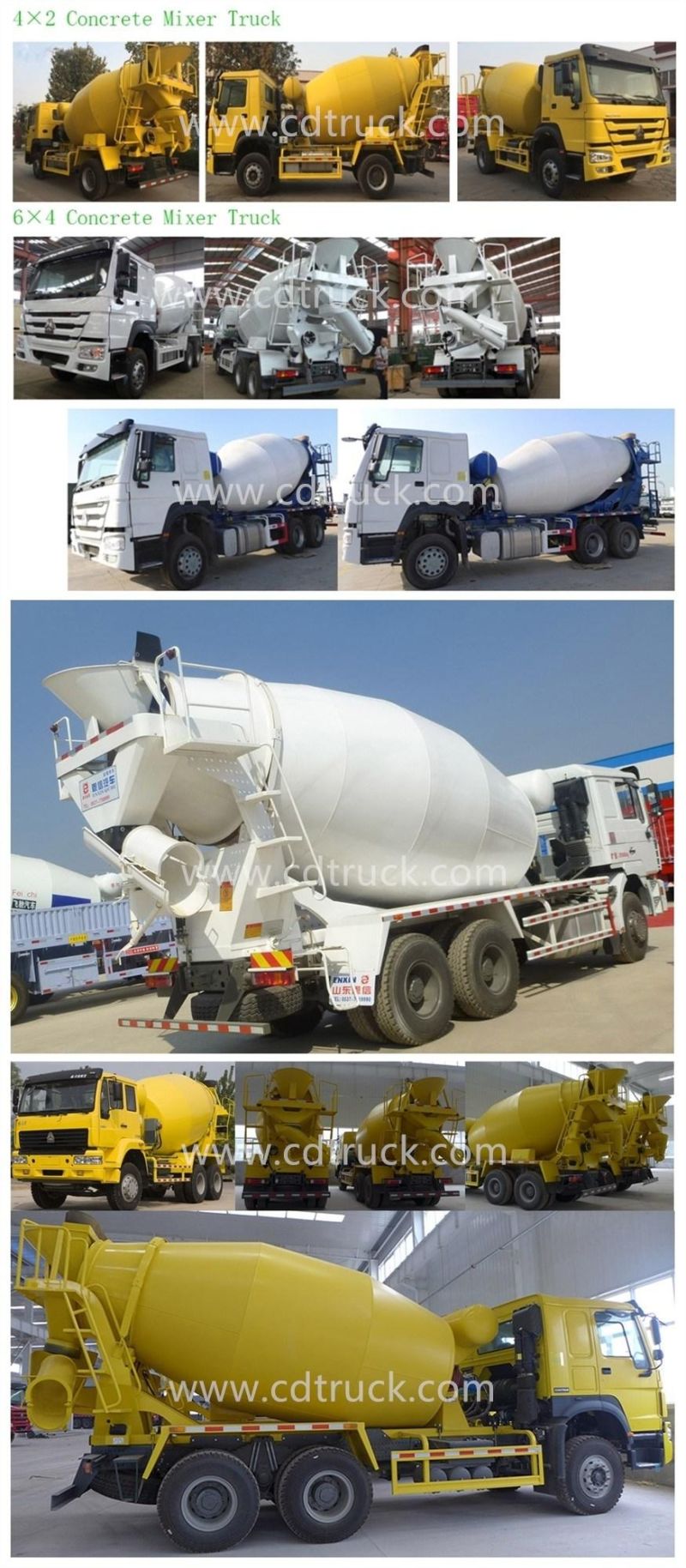

• Truck：8m3 Concrete Mixer Truck
• Model Type：Zz1257m3247
• Driving Type：6X4 (Left Hand Driving)
• Engine：Wd615.93c
• Emission：Euro III
• Fuel Type：Diesel
• Front Axle：Hf9
• Rear Axle：Hc16
• Tire：1200-20 10PCS
• Color：Any Color Is Ok
• Transport Package：Nude
• Specification：SGS
• Trademark：HOWO
• Origin：Jinan
• HS Code：8601101100
• Production Capacity：1000000

Product Specifications
Engine model
WD615.93C
Engine Power
290HP
Displacement
9726ml
Fuel Type
Diesel
Emission standard
Euro III
Overall dimension
(L*W*H)
8375*2496*3950mm
Wheelbase
3200+1350mm
Minimum turning circle
20
Curb weight(kg)
12300
Max speed(km/h)
90
Fuel tank capacity(L)
300
Fuel type
Diesel
Transmission model
HW15710
Steering system
ZF8098
Front axle
HF9
Rear axle
HC16
Tyre
12.00-20(10+1spare)
Brake system
Service
Dual circuit compressed air brake
Parking
Spring energy, compressed air operating on rear wheels
Auxiliary
Engine exhaust brake
Electrical system
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Cab
HW76 cab, (one sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
Geometric Volume
13.5m3
Agitating Capacity
8m3
Drum rotating
14°
Agitator rotaion speed
0-14r/min
Feeding speed
>3.5m3/min
Water Tank Volume
400L
Discharge remain ratio
<0.2%


                                                                          -Packaging & Shipping-

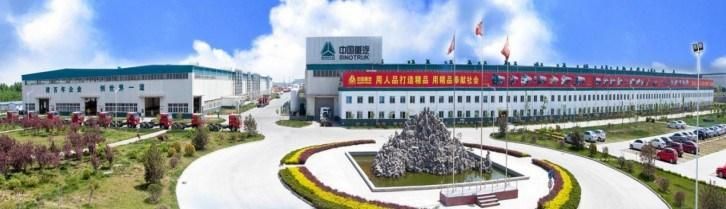

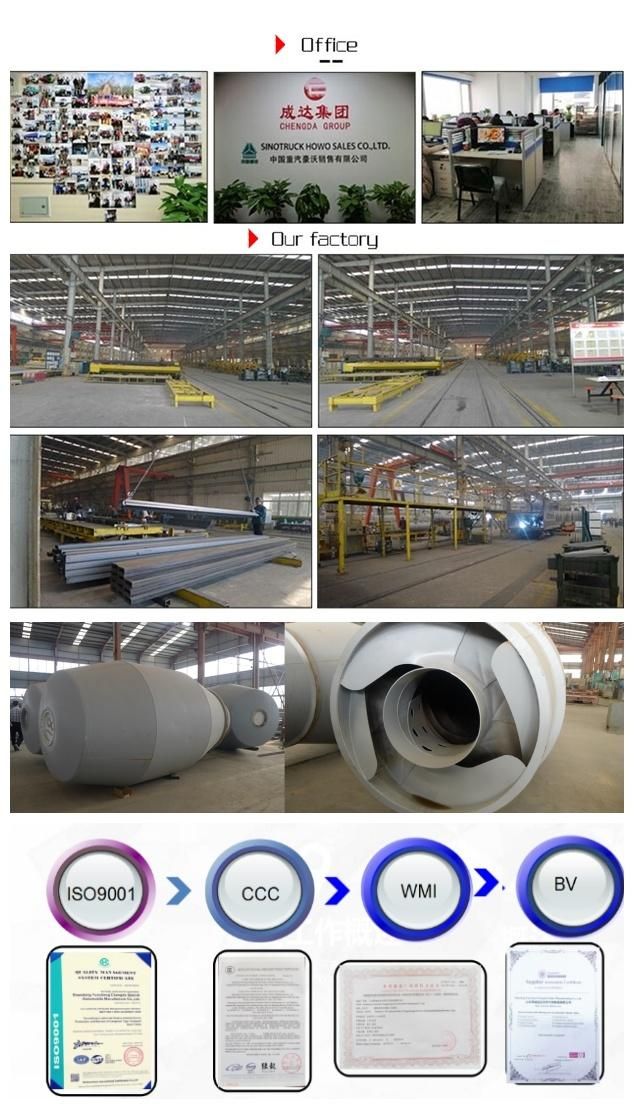

                                                 -Company Information-

                                              SINOTRUCK HOWO SALES CO.,LTD

SINOTRUCK HOWO SALES CO.,LTD.is located in Jinan city, Shandong Province, P. R. China. It is the cradle and leading production
base of the heavy-duty truck industry in China. It is famous for developing and manufacturing SINOTRUK HOWO tractor trucks, dump
trucks, fuel tanker trucks and concrete mixer truck, water spraying trucks etc.

Contact Me:

Sale Manager: Yolanda Lee
