• Model NO.：CLW5086YGC
• Payload：6 Ton
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Swing Arm Type
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk, etc.
• Hopper Size：8cbm, Ground Type
• Loading Capacity：6ton
• Hopper Thickness：5mm, Carbon Steel Q235B
• Protective Material：Q235A Carbon Steel
• Hopper Quantity：as Per Customer′s Request
• Dump Type：Hydraulic Cylinder Lifting and Self-Loading
• Controlling Way：Three-Way Hydraulic Control Valve
• Color：as Per Customer′s Request
• Transport Package：Naked Pack with Wax
• Specification：7370*2470*3330 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension7370X2470X3330 (mm)Gross Vehicle Weight12490(Kg)Curb Weight6295(Kg)Chassis SpecificationChassis BrandDongfeng145Drive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModelB170-33/170HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power125KW/170HPEmission standardEURO 3Displacement5900(ml)Fuel typeDieselGearboxFast 8JS85E, 6Forwards & 2Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3950mmFront/Rear Axle Loading4990/7500(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire9.00-20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 8CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration

1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

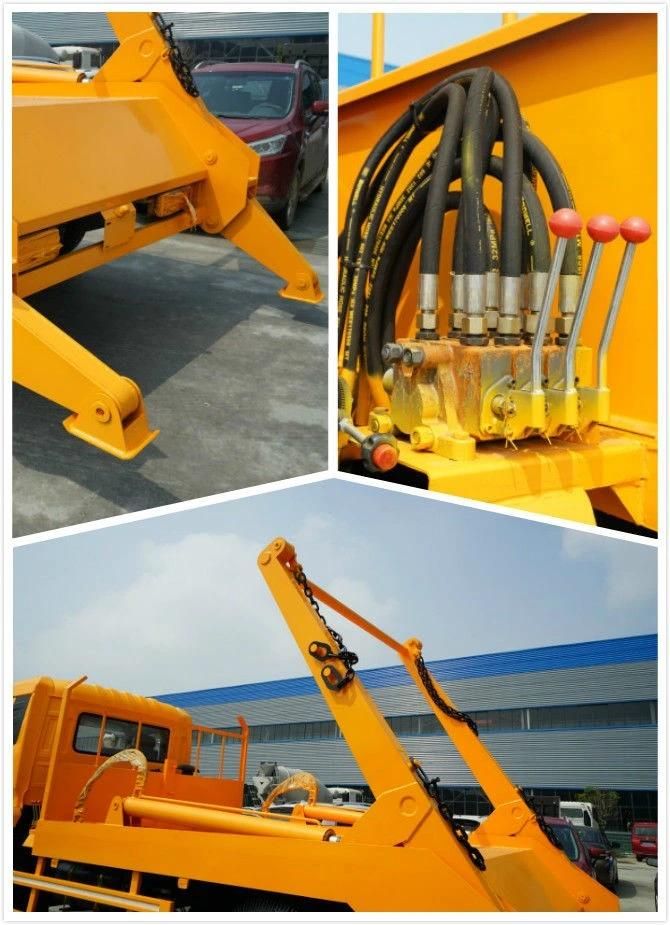

   Reference Photos

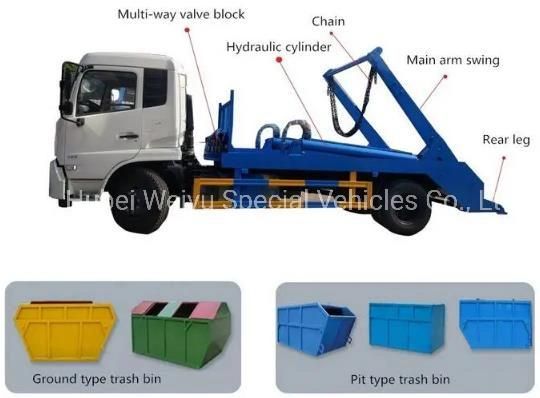

   Main Structure and details
