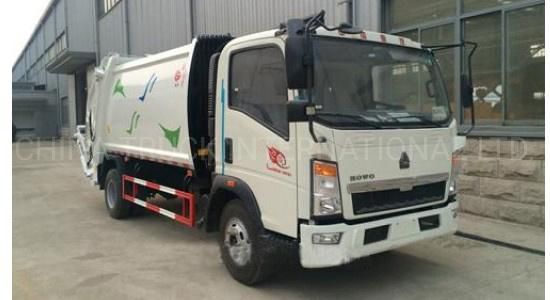

HOWO 8 to 10m3 4X2 Compaction Garbage Truck
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- After-sales Service：24 Hours Online Service
- Warranty：a Year or 60,000 Kilometers
- Type：Compactor
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Volume：8-10
- Emission Standard：Euro 2
Base Info
- Model NO.：garbage truck
- Transmission Type：Manual
- Payload：20T
- Fuel：Diesel
- Drive Wheel：4×2
- Brand：HOWO
- Models：Small
- Usage：Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
- Condition：New
- Color：Customized
- ABS：Customized
- Transport Package：Nude Packing
- Specification：standard size
- Trademark：SINOTRUK
- Origin：China
- HS Code：8601101100
- Production Capacity：5000pieces,Month
Description
Products Technical Specification
Type
4*2 Garbage Compactor Truck
Brand
HOWO
Cab
Single row
Vehicle Description
Overall dimensions(mm)
7200*2280*2680
G.V.W (kg)
8280
Curb weight(vehicle) (kg)
6205
Loading capacity (kg)
5000-8000
Max speed (Km/h)
95
Engine Description
Engine model
CY4102-CE40
Maximum power
83kw/113hp
Displacement (lit)
3856
Chassis Description
Chassis Model
CSC5087ZYSZ
Wheel base(mm)
3800
F/R track base(mm)
1750/1640
F/R overhang(mm)
1180/2170
Approach/Departure angle(°)
20/10
Spring plate
11/9+7
Front axle / rear axle load capacity(t)
2.2/5
Type of fuel
Diesel
Gear box
5-speed with over drive
Brake system
Air braking
Operation control system
Power steering wheel
Electric system
24V
Tires&Tire quantity
7.50-16 & 6+1
Compactor Description
Effective dustbin volume(m3)
8
Dustbin material
Q235 Carbon Steel
Thickness(mm)
Side plate:4mm;Bottom plate:5mm
Precompressor capacity(m3)
1
Rated pressure of hydraulic system(Mpa)
16
The loading device mouth height from the ground(mm)
900
Precompressor working period(s)
6-8
Precompressor lifting period(s)
15
Pushing the board to unloading garbage period(s)
30
Pushing board from
Hydraulic
Effluent tank capacity(L)
8
Dustbin tank capacity(L)
250
Hydraulic oil tank capacity(L)
80
Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
FAQ
| Q1: I don't want this configuration |
| A: The configuration can be changed according to your needs |
| Q2: Minimum order quantity? |
| A: MOQ is 1 unit. |
| Q3: Production period? |
| A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment |
| Q4: Payment term? |
| A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery |
| Q5: Shipping? |
| A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea |
| Q6: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
Who Are We?
Our company is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), and spare parts for them.
At the same time, we are always glad to provide professional suggestion for your orders,
related technical support, and perfect after-sales services.
Staff of our company can provide the trucks meeting the requirement of customers at the best price.
We have many years of experience in exporting trucks. We have not only the certificate and license of truck export
and also strict quality management,fast and convenient channel of goods delivery, strict examination in quality
and quantity of products, professional packing, professional and reliable loading goods,on-time delivery
and competitive prices.if you want to buy tractor truck,please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Our strength:
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Products can be custom-made according to your design, or diversified needs.
Contact Person: Chris
