• Model NO.：MT5050
• Passenger Number：3
• Fuel Type：Diesel Oil
• LED Tube Core Type：IV
• Self-powered：Self-powered
• LED Screen Type：PH31.25
• Power Supply Mode：Own Generator-powered
• Screen Type：P3, P4, P5, P6, P8, P10
• Truck Brand：Isuz U, Foton, Sinotruk HOWO, etc
• Drive Model：4X2
• Steering：LHD and Rhd
• Wheel Base：2456mm, 3300mm, 3800mm
• LED Lifting：Available, One Side Lifting or Two Sides
• Stage：Corporate Events, Concerts, Fashion Party
• Stage Size：16m2
• Transport Package：Suitable for Ocean Transportation
• Specification：5995mm*2190mm*2970mm
• Trademark：Fuya Vehicle
• Origin：Hubei, China
• HS Code：8705909990
• Production Capacity：10units,Month

Overall dimension5995mm * 2190mm * 2970mmLED screen box Container size4200 mm * 2190 mm * 2100 mmSide screen size3840mm * 1728mm = 6.62m2The standard configuration is led outdoor high-definition LED color screen on the driver's side and toughened glass light box on the right side of the container; The rear of the container is a monochrome subtitle screen, with the size of 1280 mm * 1440 mm; Configuration in the container: engine (optional gasoline engine, diesel engine, battery power supply), console, industrial computer, LCD, power amplifier, audio, exhaust skylight, powerful exhaust fan, aluminum decorative plate interior, wooden floor, screen waterproof box, roller, etc.

Users can choose different configurations according to their needs: 1. 3sides roller glass light box
2. One side color screen, other side glass light box.
3. One side color screen, and the other side truck is unfolded.
4. Double sided color screen.
5. Hydraulic lifting of left LED screen.

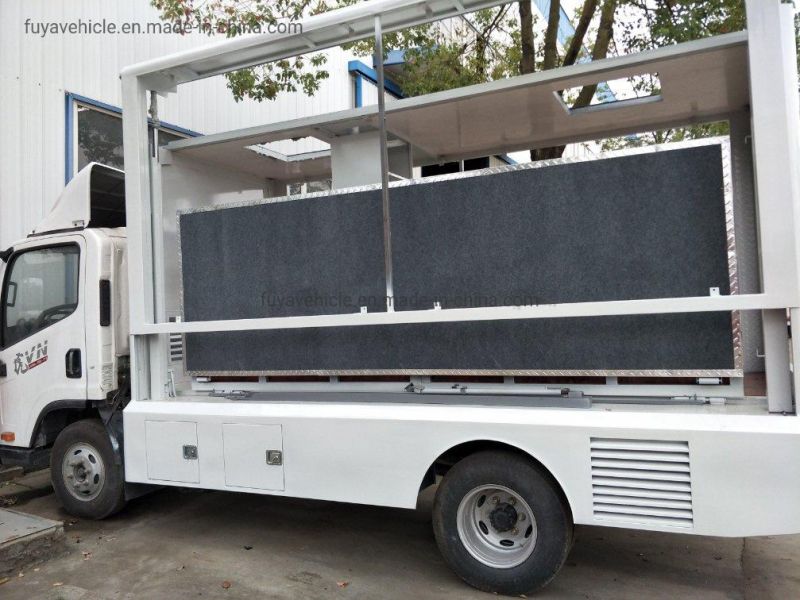

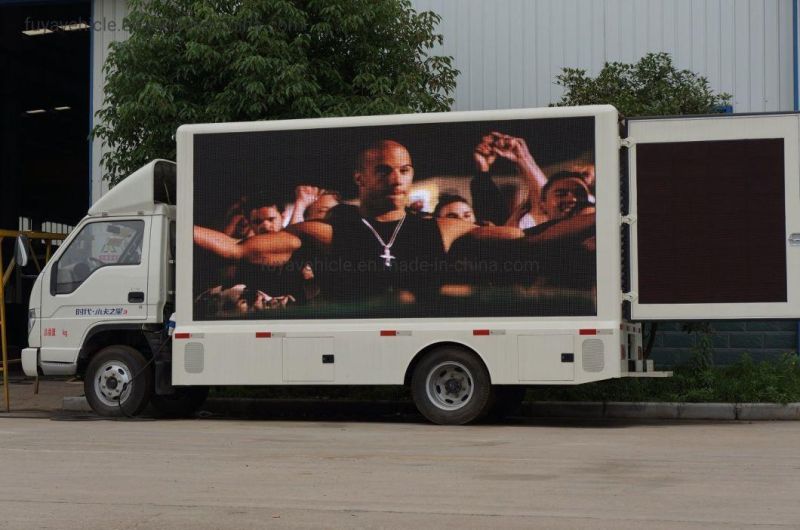

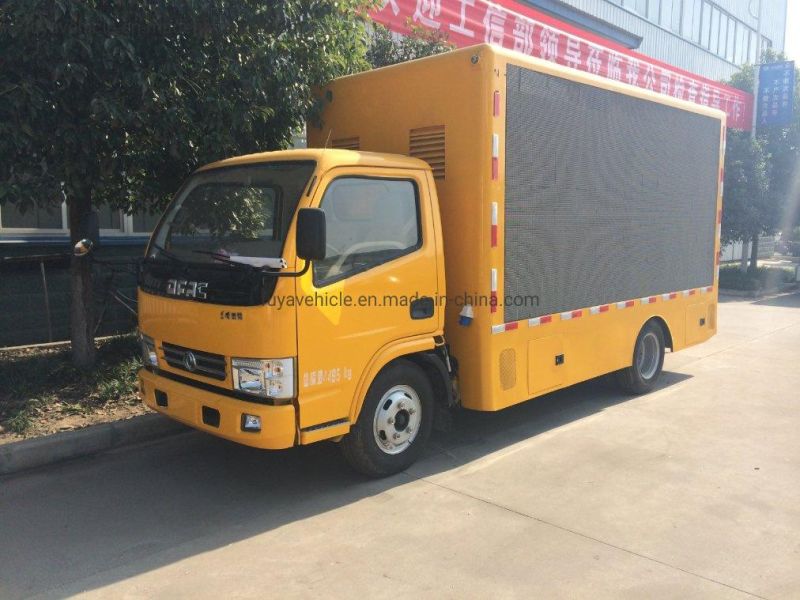

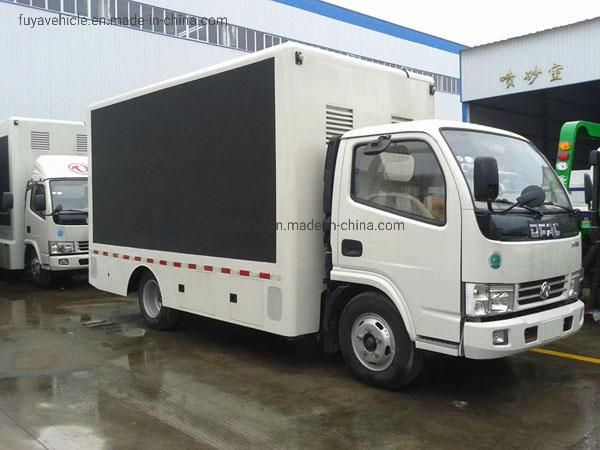

6. Stage.Truck Picture for reference

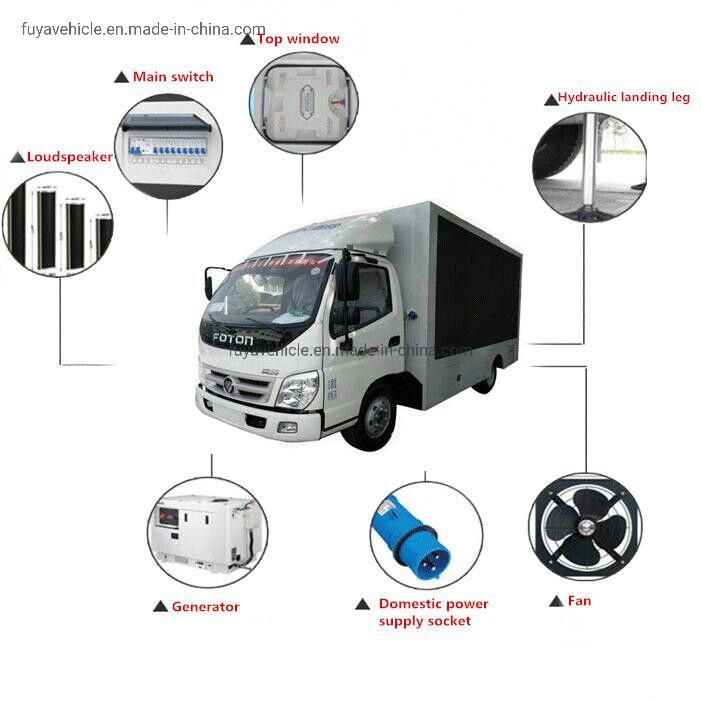

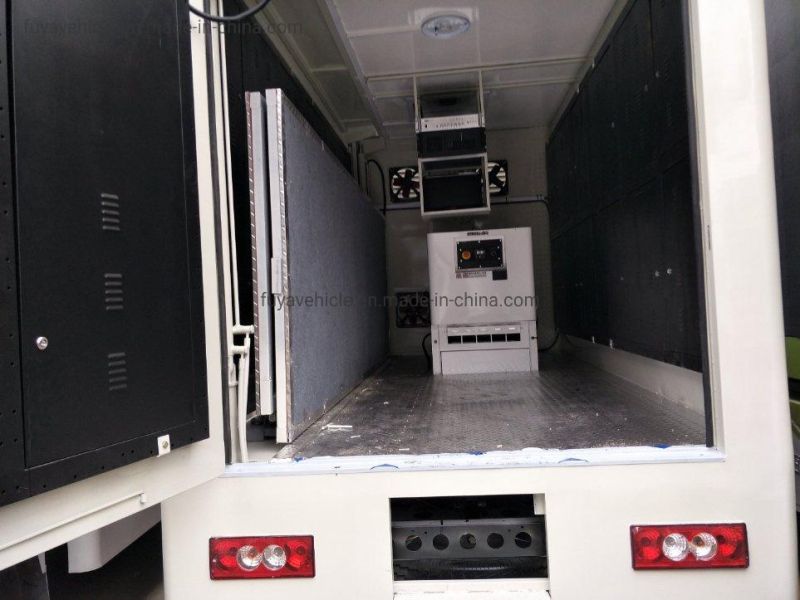

Details structure of LED screen Truck
Q&A
 Q:How many type of screens LED advertising truck have?
A: The LED advertising car can use single-sided full-color screen, double-sided full-color screen, three sided full-color screen, left single-sided full-color screen, right tempered glass roller plus spray painting, and back monochrome subtitle screen.Q:What are the configuration parameters of the waterproof advertising truck?
A:The advertising truck uses a silent generator, or you can choose a battery. It is recommended to use a generator, because the battery has been used for a long time, there is a lack of electricity and insufficient charging, which greatly reduces the efficiency of advertising, delays the time, and the generator voltage is stable and durable, which can ensure the normal operation and improve the work efficiency.Q:What are the color screen specifications of advertising vehicles?
A:Our company adopts P6, P5, P4 screen (the smaller the value, the higher the definition and the more expensive the price) and other common specifications, imported wick, two-yearS warranty.Q:What are the components of the LED screen waterproof advertising truck?
A:The chassis, color screen and carriage are 5cm composite steel frame box, wooden floor, internal and external power distribution box, circulating energy wind cooling system, silent generator, 1 industrial control computer with system, 4 waterproof speakers, 1 power amplifier, 1 set, optional screen lifting, stage, complete vehicle By the Ministry of industry and information technology approval advertising vehicle announcement and advertising vehicle manufacturers issued vehicle certificate! Make sure the quality of the truck.Q:Which models are the advertising vehicles divided into?
A: first of all, small advertising vehicles are Foton Xiangling's and Chang'an's (screen size: 2304L* 1536H(mm), 3.6 square meters of side screen and 1.22 square meters of tail screen), small and medium-sized advertising vehicles are Dongfeng tuyi's, (screen size: 2884x long, 1660mm high, 4.6 square meters of side screen and 1.64 square meters of tail screen), medium-sized advertising vehicles are Foton Kangrui, FAW Jiefang, Dongfeng frica Isuz u, etc. (screen size: side screen length 3840mm x height 1760mm, tail screen 1.8m2)Q:How to deal with the operation of advertising car?
A:Our factory has professional and technical personnel for free VIDEO guidance and training.

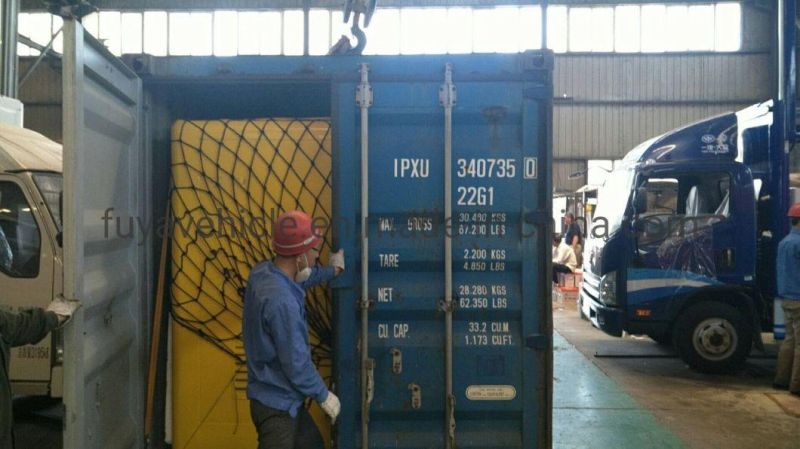

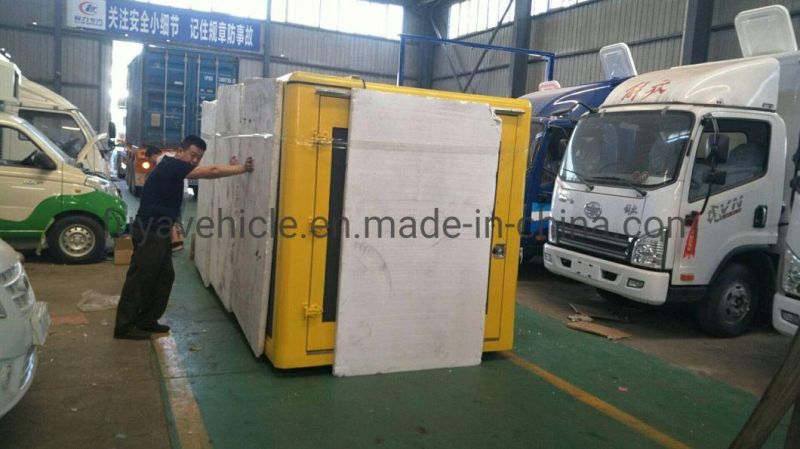

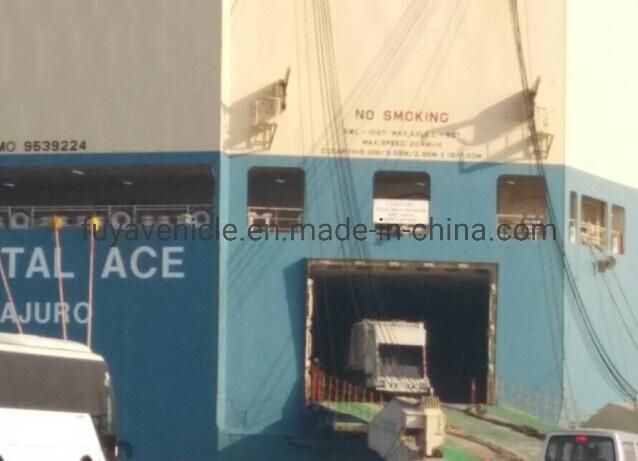

Package and Shipping

Factory InformationCLW Group-Fuya vehicle Co., Ltd. is mainly engaged in the production and manufacture of all kinds of special purpose vehicles, as well as the sales of complete vehicles and accessories. The company has its own export rights, and its products occupy the foreign market. The leading varieties are 5-ton sprinkler, 10 ton sprinkler, 5-ton tank truck, 5-ton refueling truck, garbage truck, manure suction truck, sewage suction truck, dump truck, van type truck, semi-trailer, obstacle removal truck, truck mounted crane, aerial work truck, coach truck, bulk cement truck, chemical truck, cement mixer truck Tractor and other eight series of more than 100 varieties.
Related Products for reference


Welcome to visit our factory and cooperate with us.
