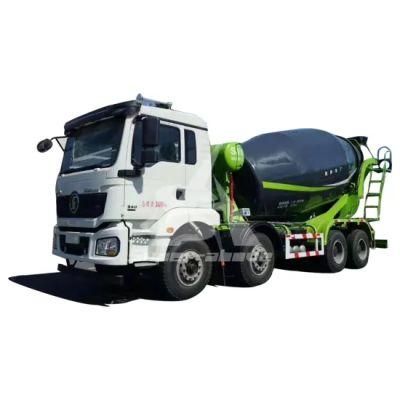

• Model NO.：10 Cbm Concrete Mixer Truck
• Machining Process：Hydraulic
• Structure：Cylinder Type
• Productivity：10
• Feeding Height：1370mm
• Volume (M3)：10m³
• Power(Kw)：273
• Transport Package：Container
• Specification：11060x2550x4080
• Trademark：Huaxing
• Origin：China
• HS Code：8705400000
• Production Capacity：200units,Year

ModelZZ1317N3261WCabLengthen cabEngine(Hp)371Power(Kw)273EngineModelWD615.47(Euro II)Horsepower371Max. output273/2200Max.torque1460/1300-1600Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injectionBore x Stroke126×130mmValve2Displacement9.726LSINOTRUCK (CNHTC), Thermostat with 80ºC opening begin, Rigid fanCabSINOTRUK HW76 Lengthen cab,single bunk,adjustable steering wheel, EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverseFront AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakesSteeringGerman ZF8118 Steering Gear Box ,hydraulic steering with power assistance,Rear AxlesHC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle,ratio:4.8 ;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition,heavy impact and overloading,which is the best choice for heavy construction vehicle customers.Brake SystemService brake:dual circuit compressed air brake.
Parking brake (emergency brake):spring energy,compressed air operating on rear wheelsTyres Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.ElectricsOperating voltage:24V,negative grounded
24V,7.5KW.Starter:24V,7.5 Kw
28V,1500W.Alternator:3-phase,28V,1500 W
2x12V,165Ah.Batteries:2x12 V,165 Ah
Horn,headlamps,fog lights,brake lights,indicators and reverse light.Oil TankSquare type-300L Aluminum alloy fuel tankVolume (m3)10m³Stuffing Volume (%)59.63Feeding Speed (m3/min)≥3Discharging Speed (m3/min)≤3Discharge Residue(%)≤0.2Slump Scope(mm)50~220Drum Speed (min)0~16Obliquity(°)10Water supply System1000L/PneumaticDrum MaterialSteel plate, thickness: 3mm, 4mm, 5mmDimensionsOverall length x Overall width x Overall height                      11060x2550x4080
Wheel base                                                              1800+3200+1350Weight  Kerb weight                                                                    14600
Gross vehicle weight                                                           35000
Front axle loading capacity                                                   2x9000
Rear axles loading capacity                                                  2x16000PerformanceMax.driving speed (km/h)                                                       90
Fuel consumption (1/100 km)                                                    38PackingNude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.Pump(SAUER T90P75) + Motor (SAUER M75) + Reducer (BONFIJLIOLI 577)

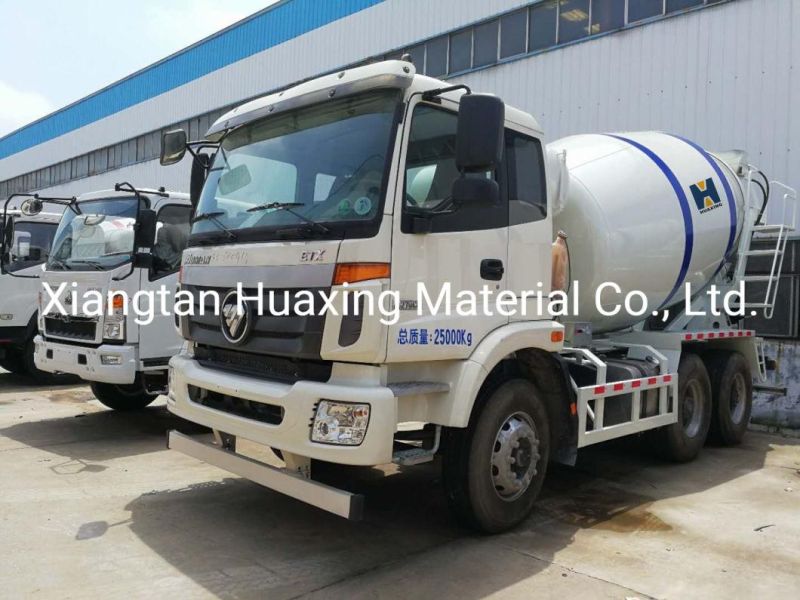

 >>> Photo details



>>> Company Information
Xiangtan Huaxing Material Co., Ltd, started business since 1991, and was formally established as a registered company in 2002, with 5.3million RMB registered capital.
Before 2015, Huaxing focused on the domestic market, and is a qualified supplier of Jianglu group and XEMC in the military and mechanical products.
In 2015, Huaxing set up the international marketing department, specializing in exporting concrete construction machinery, mining Roadheaders, and the related spare parts and accessories. With manufacturing bases in Shenyang, Suizhou and Changsha cities.
Huaxing owns branches "Cahi "in Kiev Ukraine, and "Speedlane Trade Limited" overseas company. Mainly export to Pakistan, Ukraine, Russia, and other EU countries and Southeast Asian countries under our own brands "Speedlane" and '' HUAXING''.
Huaxing has got the CE certificate, and Ukraine's Coal Mining Safety certificate and permission. Cooperated with Ukraine largest energy company, DTEK group, the world top 500, and established a long term and friendly partnership.
Huaxing's enterprise value: Striving, Loyalty, Honesty and Altruism;
Huaxing's work concept: Tomorrow never comes; Never slug; Deliver positive energy!
Huaxing's mission:
One Stop Shop in engineering construction machinery;
China Machinery, Global Services!



>>> Logistics and payment

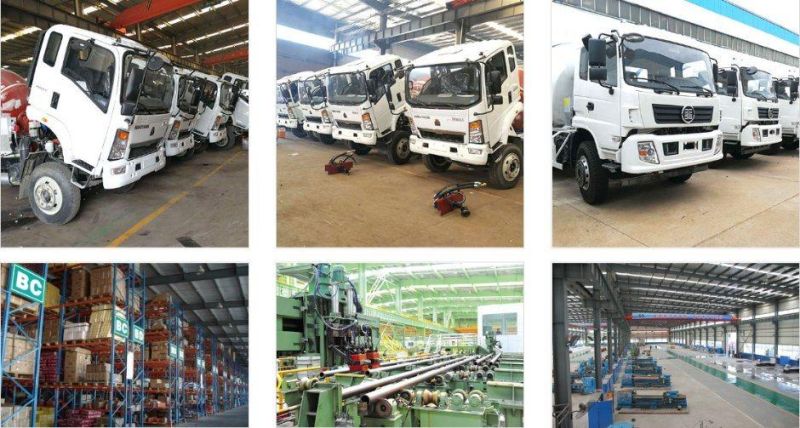

>>> Our Factory



>>> Company Certificates

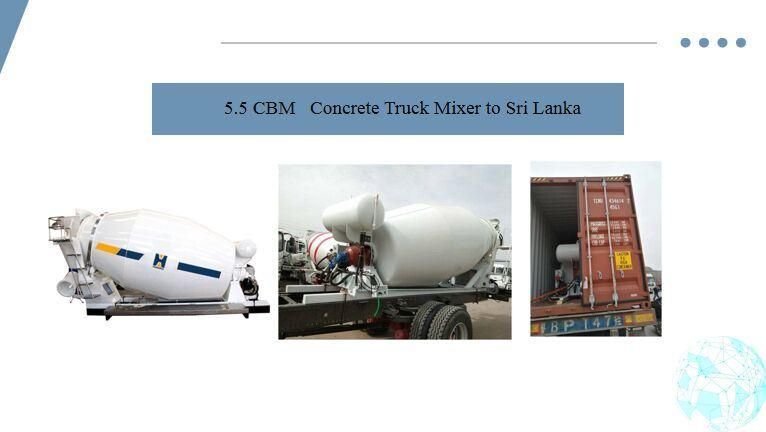

>>> Successful cases
