• Model NO.：Tilt Tray Recovery Vehicle
• Emission Standard：Euro 3,4,5,6
• Transmission Type：Manual
• Towing Tonnage：5T
• Fuel：Diesel
• Bearing Capacity：Medium
• Brand：Beiben
• Condition：New
• Tire：7.00r16 14pr
• Emission Standards：Euro 2, Euro 3, Euro 5-6
• Wheelbase：3300, 3800, 4400
• Hydraulic Winch：40m
• Winch Power：100kn;150kn;250kn
• Original Lifting Mass：5000-6000kg
• Transport Package：Nil
• Specification：Wrecker Truck
• Trademark：Dong Run Ze
• Origin：China
• HS Code：8705909990
• Production Capacity：10000
• Package size per unit product：850.00cm * 250.00cm * 300.00cm
• Gross weight per unit product：6800.000kg

Basic Info.

Model NO. Tilt Tray Recovery Vehicle Emission Standard Euro 3/4/5/6 Transmission Type Manual Towing Tonnage 5T Fuel Diesel Bearing Capacity Medium Brand Beiben Condition New Tire 7.00r16 14pr Emission Standards Euro 2, Euro 3, Euro 5-6 Wheelbase 3300, 3800, 4400 Hydraulic Winch 40m Winch Power 100kn;150kn;250kn Original Lifting Mass 5000-6000kg Transport Package Nil Specification Wrecker Truck Trademark Dong Run Ze Origin China HS Code 8705909990 Production Capacity 10000

Packaging & Delivery

Package size per unit product 850.00cm * 250.00cm * 300.00cm Gross weight per unit product 6800.000kg

Product Description

 5Ton Tilt Tray Recovery Vehicle (Euro 6 Flatbed Car Carrier Tow Truck)


 Ask for better price




The pictures are for your reference only.





 Specification of vehicle:

Model:	DRZ5120
Overall dimension (mm):	8430X 2400X2520
Curb vehicle weight(kg):	6520
Gross vehicle weight(kg):	12459
Max speed(km/h):	103
Wheelbase(mm):	4400
Approaching/Departure Angle(°):	21.5/11
Axle Capacity(FR/RR)(kg):	4370/8125
Minimum ground clearance(mm):	200
Maximum gradeability(%):	30
Minimum turning radius(m):	18
Mileage(km):	700
Tire size:	8.25R20

 Engine parameter:

Model:	ISF3.8s5154
Type:	Turbocharged
Displacement (cc):	3760
Type Of Fuel:	Diesel
Max. Power (hp/rmp):	154/2600
Max. Torque (N.m/rmp):	491/1900
Emission:	Euro V -6

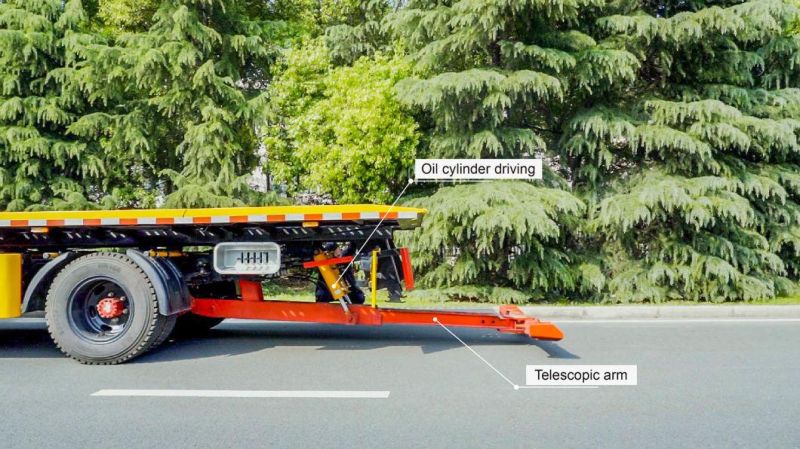

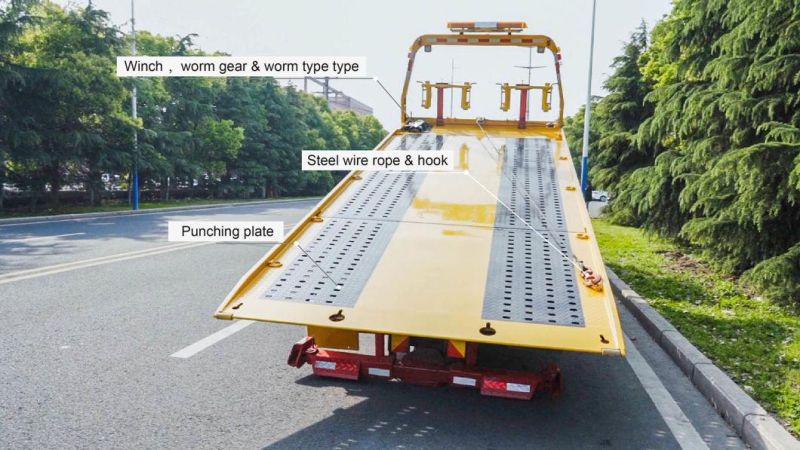

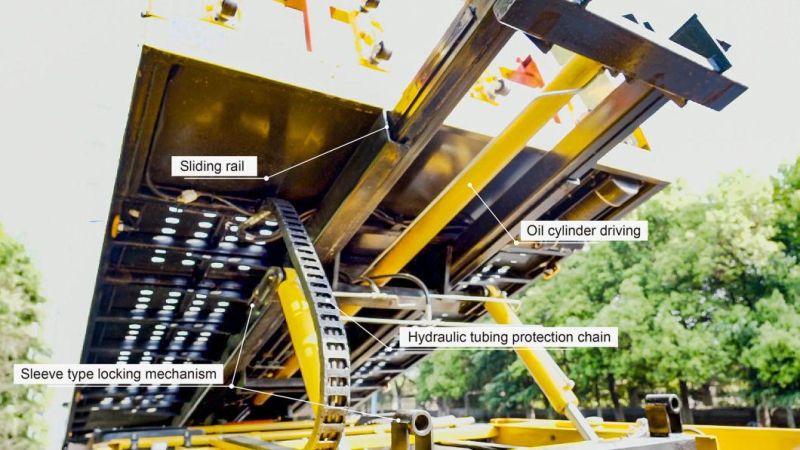

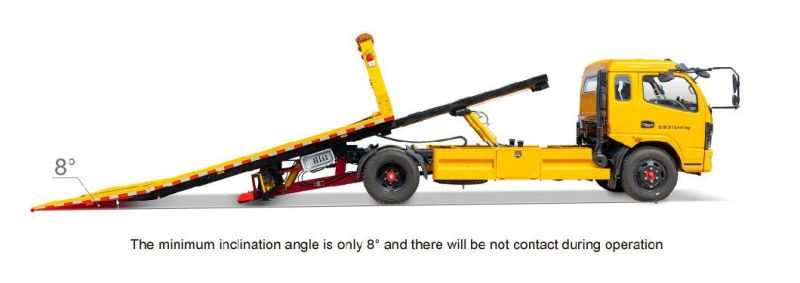

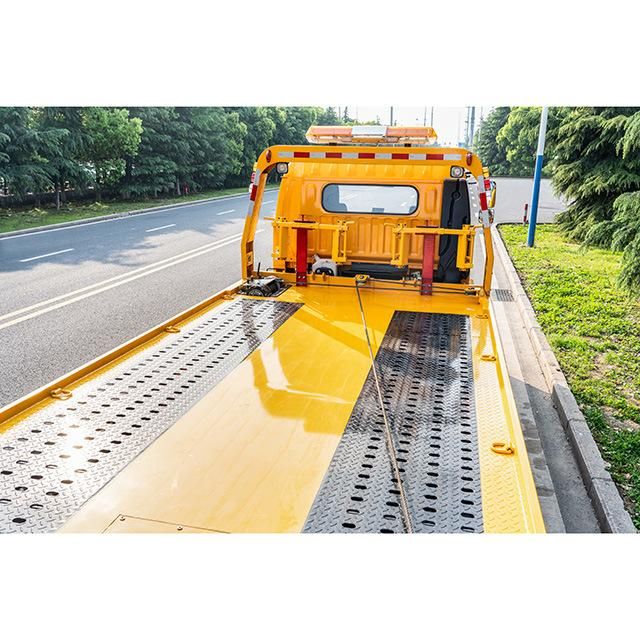

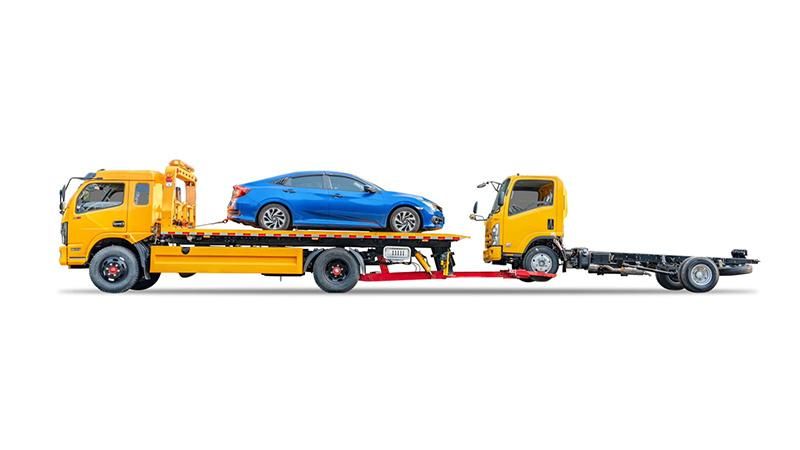

 I. Flatbed Platform mechanism descriptionThe platform is sliding rail type and it is driven by oil cyinders. It is made of Q345 high strength steel plate with reasonable structure.The surface of the platform adopted not only reduces dead weight but also facilitates the use of tools like bangdageThe minimum inclination angle is of 8 degree when the platform is fully extended, and the slope is relatively gentle to make sure there is no contact with vehicle bottom during the whole loading & unloading process.II.  Lifting systemLifting system is driven by internal & external sleeve sliding type oil cylinder made of Q345. And it has advantages like large lifting force and stability under the condition of strength. The working model is as follows: When the cylinder low down the lifting arm, the telescopic arm extends until the front bracket of the swinging arm reaches the lifting position of vehicle. An then place the rear bracket and insert the plug, tie up the lifting arm with towed vehicle with bandage. And with the contraction of oil cylinder, the vehicle is lifted.III. Operation mechanismThe operation mechanism is an auxiliary joint operation mechanism, which allows the operator operate at both sides of the vehicle. And it allows the operator operate at the side far from the lane and improves the convenience and safey.IV. Hydraulic systemThe towing truck is mainly controlled by the hydraulic system,and torque is transferred by the PTO, connects with gear pump, and finally connects to each pipeline. And it is controlled through multiple directional valve. Also balancing valves and hydraulic locks is provided in the hydraulic pipelines. 1.Description of chassis

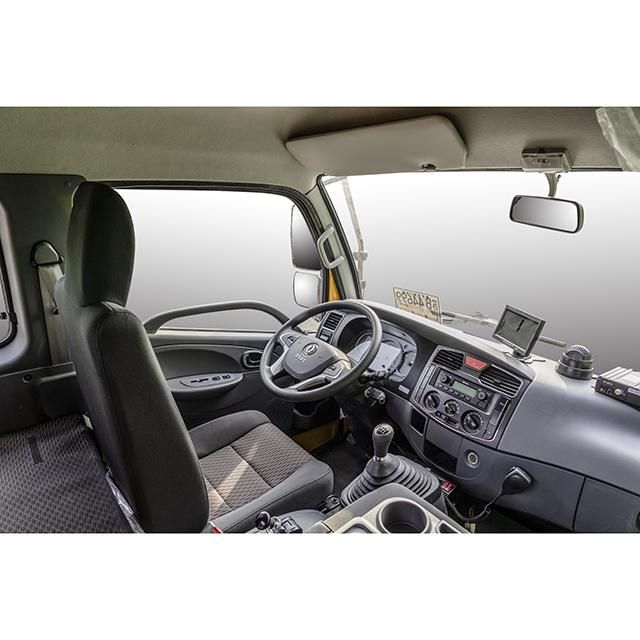

The cabin & chassis adopted for this towing truck is Captain model from DongFeng,whose driving type is 4X2,and emission standard is national IV phase. It adopts a flat head with 2-door and 3-seat layout, and is provided with all metal enclosed cab and air conditioner.
Sun shield is installed at the front of the cabin, which provides a good driving vision for the driver. And wide front windshield provides the best driving condition. 3 points fixing for rear view mirror bracket ensures the stability of rear view mirror driving. Larger size of front mirror offers wider visual range. The pendulum mirror effectively reduces the blind area of view.
2:Power system:strong power & high economy This captain model is equipped with Foton Cummins engine ISF3.8s5154 engine, with a max power 154 hp and max torque 419 N.m.  It is of strong power and good quality.
3.Gold combination between FAST gearbox & DANA axle.FAST 6 speed gearbox with all-aluminum gearbox housing, smooth power transmission and reduced dead-weight.

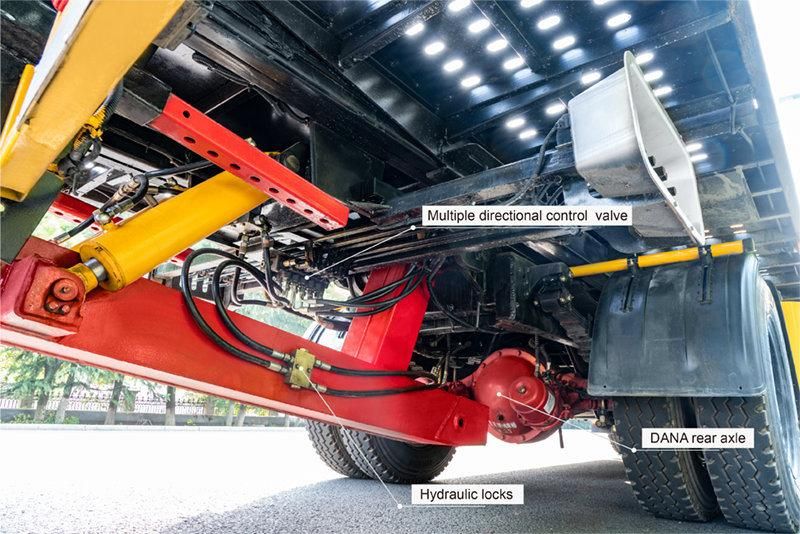

DANA axle enjoys advantages like new alloy steel axle housing, three-axis dry cutting technology for spiral bevel gear and high density tooth. These features make this model a dazzling display of strength.
 4.Long-term and Reliable Quality Guarantee

1. 2 years or 50000 kilometers, which occurs first; Guarantee covers engine, transmission, air conditioner, and front and rear axles.
2. Free fast moving parts presented along with the vehicle to ensure the safety of driving;
3. For other warranty parts or details, please kindly see the operation manual.
Upper part  1.Platform mechanism description


Net length of fiat plate(mm):	6140
Net width of flat plate(mm):	2320
Height of the center of mass(mm):	750/1085
Brake distance when unladed (initial speed:30km/h)(m):	6.8
No-lade static side tumbing atabiity(°)	35.15
Front axle loading/G.V.W under max lifting capacity(%):	15.8
Loading time(min):	2
Unloading time(min):	2
Fastening time(min):	5
Max load capacity(kg):	5780
Minimum angle(°):	8
Max winch tension(kN):	50
Max towing weight(kg):	12000
Max lifting weight under ful extension condition(kg):	3000
Effective length of lifting arm(mm):	1600

As for platform,it adopts oil cylinders driving sliding rail type.It is made of Q345 high strength steel plate with reasonable structure.The surface of the platform adopts not only reduces dead weight bus also facilitates the use of tools like bangdage.
Chassis

EQ1033SJ15QC	LJ4A15Q	3,,
EQ1035SJ15QCWXP	LJ4A15Q	2.6,,
		2.8,,
EQ1070SJ3BDF	CY4BK551	3308 ABS
EQ1070SJ3BDFWXP	CY4BK551	3308 ABS()
EQ1041SJ3BDC	4A2-88C50	2600 ABS
EQ1070SJ3BDF	4B2-115C50	3308 ABS
EQ1070SJ3BDF	YC4FA115-50	3308 ABS
EQ1070DJ3BDF	YC4FA115-50 85KW	3308
EQ1070DJ3BDF	ZD30D13-5N  96KW	3308 ABS
EQ1070DJ3BDF()	4B2-115C50  85KW	3308 ABS
JX1061TSG25	JX493ZLQ5()	3360 (1041:7.9)
QL1070A5HWY	4KH1CN5HS(96)	3815  3360:13.4
EQ1080SJ8BDC(750)	CY4SK251	3800 6ABS
EQ1080SJ8BDC(750)	YC4FA130-50	3800 6ABS
EQ1110SJ8BDC(825R16)	YC4S150-50	3800 6ABS
EQ1110SJ8BDC(825R16)	CY4SK251	3800 6ABS
EQ1110SJ8BDC(825R20)	CY4SK251/	3800 6ABS
EQ1090SJ8BDE(825R16)	CY4SK251	4400 6ABS
EQ1090LJ8BDE(825R16)	CY4SK251	4400 6ABS
EQ1090SJ8BDE(825R16)	150	4400 6ABS
EQ1090LJ8BDE(825R16)	150	4400 6ABS
EQ1070SJ3BDF (700-16)	4DW93-84E5 (64)	3308 5ABS,
EQ1070SJ3BDF (700-16)	YN33CRE1  (85)	3308 5ABS,
EQ1110SJ8BDC(825R20)	4DX23-140E5(105)	3800 6ABS
EQ1110SJ8BDC(825R20)	YN38CRE1(95)	3800 6ABS
EQ1165LJ9BDE	YC4S160-50	3950,ABS,,
EQ1165LJ9BDE	YC4EG170-50	3950,ABS,,
EQ1165LJ9BDE	YC4EG185-50	4500,ABS,,
EQ1161LJ9BDE(,900)	YC4EG170-50	5200,ABS,,
EQ1161LJ9BDE(,900)	YC4EG170-50	5600,ABS,,
EQ1161LJ9BDE(6900)	ISB180 50	3950,ABS,,
EQ1161LJ9BDE(1000)	ISB180 50	4500,ABS,,
	ISB180 50()	4700
EQ1161LJ9BDE(,275/80)	ISB180 50	5200,ABS,,
EQ1161LJ9BDE(,275/80)	ISB180 50	5600,ABS,,
EQ1035SJ16QC	LJ4A15Q6(83)	2600
EQ1035SJ16QC	LJ4A15Q6(83)	3000
EQ1045/1075SJ3CDF	CY4BK461(96)	3308,700R16,5
EQ1045/1075SJ3CDF	YCY24140-60(103)	3308,700R16,6
EQ1045/1075SJ3CDF	CA4DB1-11E6(81)	3308,700R16,5
EQ1045/1075SJ3CDF	D20TCIF1(93)	3308,700R16,5
EQ1125SJ8CDC	CY4SK361(125)	3800,245,6
EQ1095SJ8CD2	YCY24140-60(103)	3800,750R16,6
EQ1125SJ8CDC	D25TCIF1(110)	3800,825R20,6
EQ1125SJ8CDC	NV30-C6D(120)	3800,825R20,6
EQ1165/1185LJ9CDE	B6.2NS6B210(154)	3950,295,6
EQ1165/1185LJ9CDE	B6.2NS6B210(154)	4500,295,6
EQ1165/1185LJ9CDE	YCS04200-68(147)	3950,295,6
EQ1165/1185LJ9CDE	YCS04200-68(147)	4500,1000R20,6

 EURO6
