Specialized Vehicle

Home > Product > Medical Vehicle

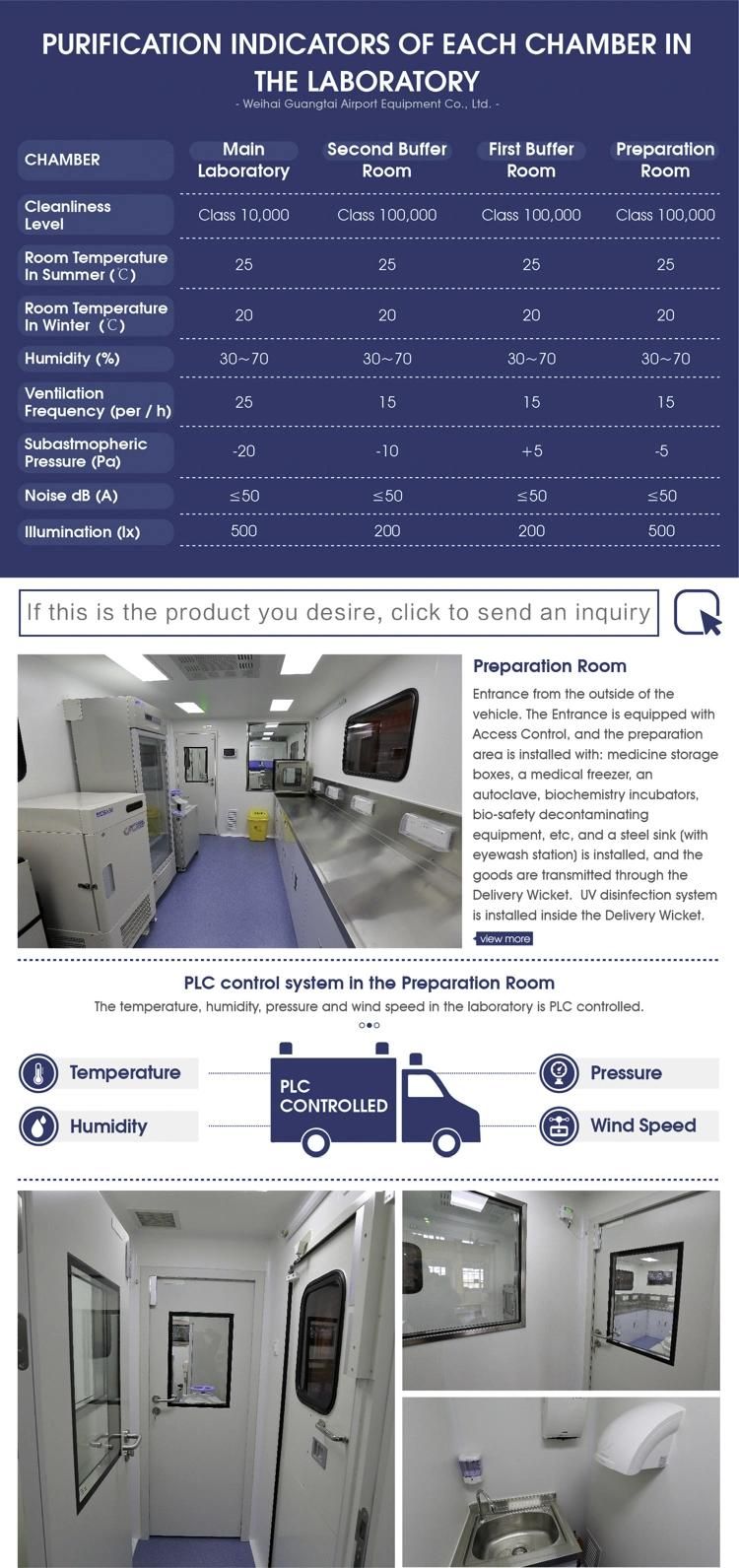

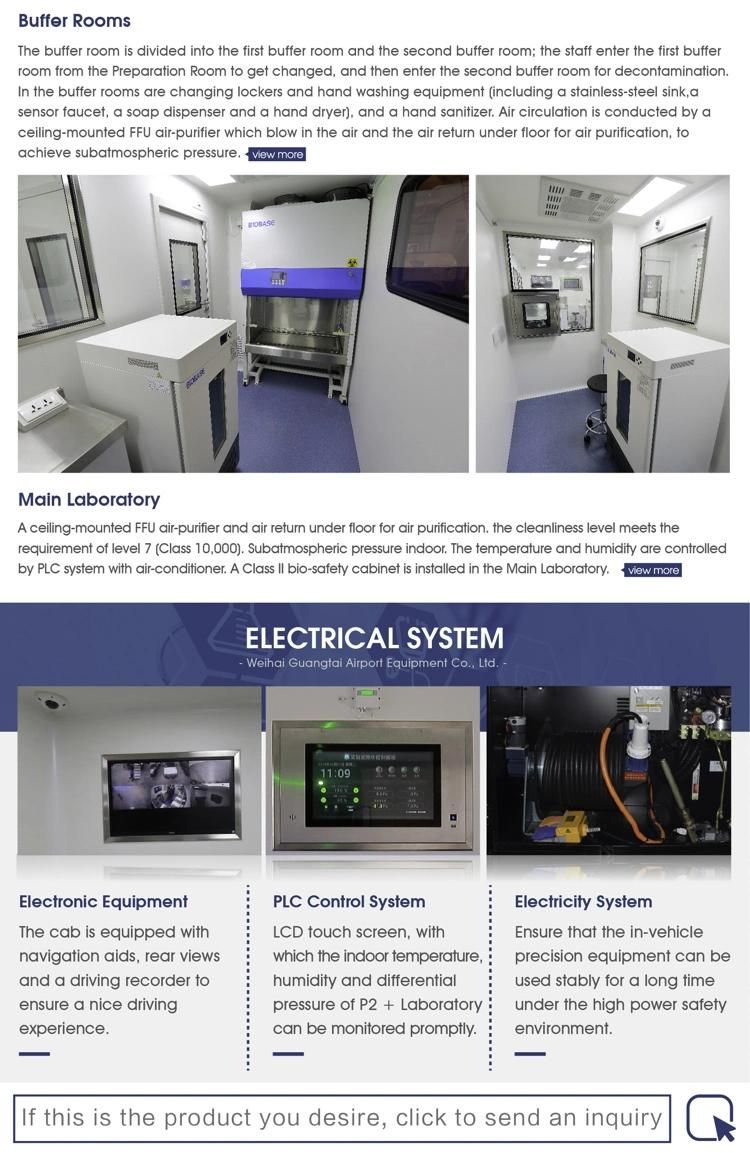

Immunofluorescence Analyzer and Biogical Safety Cabinet Medical Laboratory

WEIHAI GUANGTAI AIRPORT EQUIPMENT CO., LTD.
  • Certification：CCC
  • Transmission Type：Manual
  • Fuel：Diesel
  • Emission Standard：Euro 6
  • Length：8-15m
  • Medical Equipment：Optional

Base Info

  • Model NO.：WGT5180XJC
  • Horsepower：210-260hp
  • Axle：Single
  • Condition：New
  • Origin：China

Description

Chassis Selection

Overall Dimensions(L×W×H): 11980 x 2500 x 3930

Van Dimensions(L×W×H): 9400 x 2500 x 2100

Model Specifications

Model: HOWO ZZ1257M56CGE1

Rated total weight: 25 t

Wheelbase(mm): 1800 + 5600

Sizes

Front/Rear suspensions(mm): 1430/2960

Overall length of chassis(mm): 11790

Overall width of chassis(mm): 2496 (approximately)

Overall height of chassis(mm): 3335 (no load, approximately)

Performance

Maximum speed: 110 km/h

Approaching angle: 19° (approximately)

Departure angle: 17° degrees (approximately)

Engine

Model: MC07.31-50

Power: 228kW
