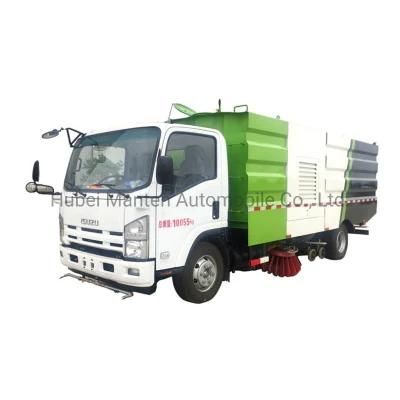

Isuzu 4cbm Water Tank 5cbm Garbage Tank High Pressure Road Washing Truck Isuzu 130HP Euro 5 Road Sweeper Truck
Hubei Manten Automobile Co., Ltd.- After-sales Service：24 Hours on Line
- Warranty：12months After Delivery
- Type：Sweep and Suck Type
- Certification：ISO9000, CCC
- Transmission Type：Manual
- Emission Standard：Euro 2,3,4,5
Base Info
- Model NO.：MT507WTT
- Fuel：Diesel
- Payload：5ton
- Condition：New
- Truck Model：Isuzu Road Sweeper Truck
- Horsepower：95HP 120HP 170HP 160HP 190HP
- Transmission：5 Gears Frowards and 1 Reverse.
- Tyre：7.00-16 with One Spare Tyre
- Max Speed：99km,H
- Operation：PLC Automatic Operation, with Manual Operation
- Delivery：Within 40 Days
- Warrenty：1 Year
- Transport Package：Roro, Bulk Vessel or Frame Container
- Specification：Dongfeng water tank truck
- Trademark：ISUZU
- Origin：China
- HS Code：8704223000
- Production Capacity：1000 Units Per Year
Description
according to the customer's design
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee termRoad sweepers are mainly divided into: power system, suction and sweeping system and garbage cleaning system.
The power system of the sweeper is divided into diesel /, liquid propane gas and battery. The driving system of the sweeper is selected according to the nature of the garden, area, type of garbage, operation time and other factors to meet the clean needs of different customers. The utilization of Diesel / gasoline driving mode depends on the necessary clean environment and the type of garbage. As usual, For example, diesel / gasoline type can be used for large-area outdoor cleaning with more garbage and low requirements for silence and environment.
Suction system of sanitation sweeper: it is necessary to equip with high-power fan, so that the garbage can be completely sucked into the shell filter dust container. The filter container continuously shakes and vibrates when things happen, which can make the machine just stay in things forever, but will not produce signs such as blockage.
Garbage dumping system of road sweeper: the garbage dumping of road sweeper is completed by the decision control panel. Before dumping, the cover of the dustbin is closed. Pull the control lever from the future to lift the dustbin for dumping. When the dustbin is put down, push the control lever forward to the same position
The removal system and garbage dumping system of sanitation sweepers can be commonly referred to as garbage cleaning system. It is mainly composed of main brush, side brush and dustbin. The side brush is required to be made of dense high-grade materials and equipped with springs, which can effectively bear the blow and further cover the side wheel of the brush plate.
The volume of the road sweeper is determined according to the wheelbase of the chassis. The shorter the wheelbase, the smaller the volume, and the cheaper the corresponding price. It is very important to choose the appropriate model according to your own working radius.
Standard configuration of road sweeper:
1. Equipped with four sweeping brushes, half of which are steel wire clamped, so as to improve the brushing capacity, and the sweeping plate is reinforced to improve the service life.
2. Equipped with Jiangling Isuzu 57 kW auxiliary engine and Cummins 140 HP auxiliary engine for models above 145, it has strong power and guaranteed suction.
3. Hydraulic motor, control switch and vtoz solenoid valve group are well-known brand accessories with ultra-low failure rate.
4. Xiamen South super release clutch (warranty 2 years), Taiwan Beibo maintenance free fan has a long service life.
5. Stainless steel dustbin and water tank, tail led arrow light, manual emergency system.
6. The maximum cleaning width is 3.2-3.5m, and the maximum suction particle size is 12cm.

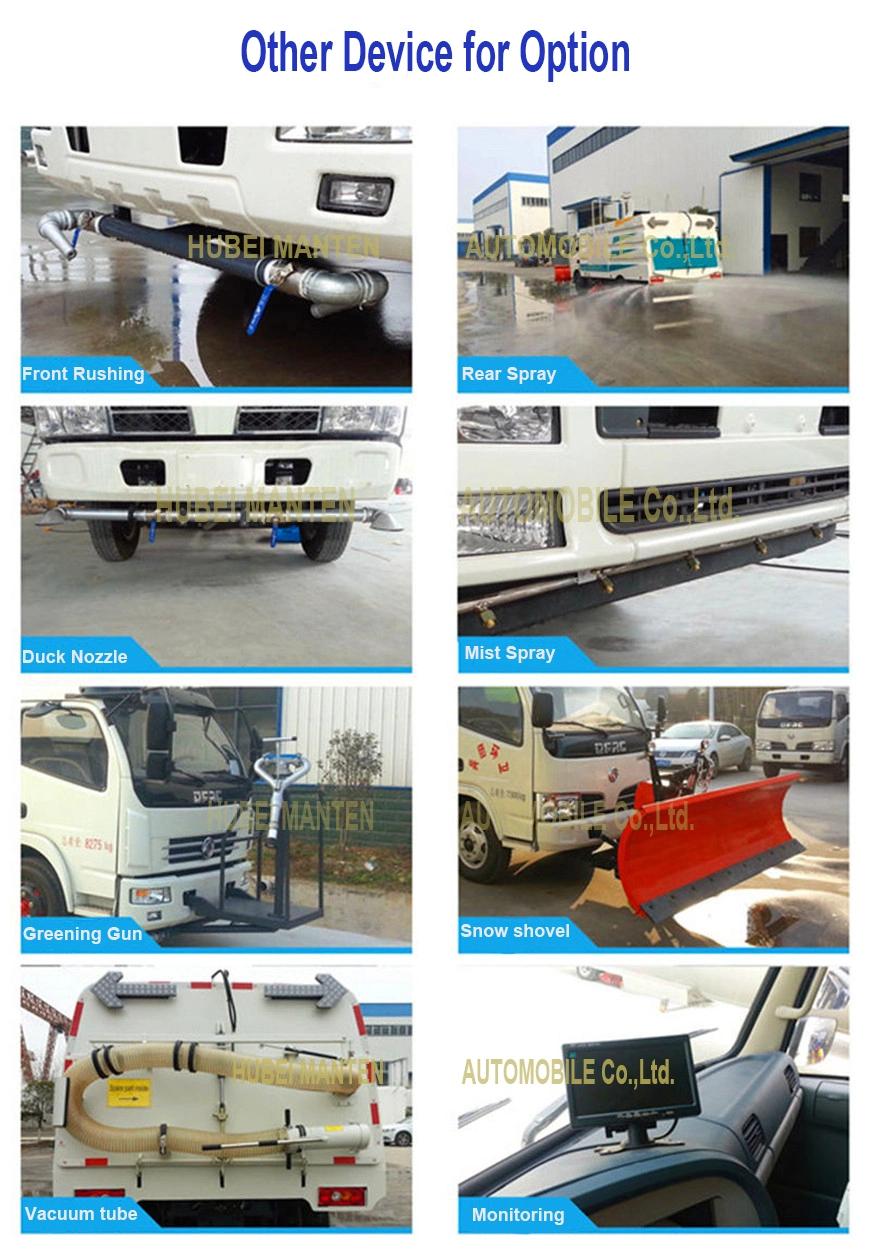

Sweeper options:
1. The optional monitoring system can see the cleaning and reversing image in the cab in real time
2. All the trucks could be equipped with the optional watering function, with the front flushing and rear spraying functions of the sprinkler.
3. Voice alarm function, multi voice reminder alarm, more assured to use.
4. The dustbin self-cleaning device uses a high-pressure nozzle to carry out self-cleaning operation on the dustbin.
Working principle of road sweeper
The road sweeper truck is generally in the structure of four central sweeping discs and rear suction cups, and the box is designed with dustbin and clean water tank. The lifting and lowering of the sweeping disc and suction cup is a hydraulic structure, and the power is provided by the upper auxiliary engine to drive the hydraulic oil pump. The suction cup suction function is that the upper mounted fan extracts the air in the dustbin to form a negative pressure for suction. The fan rotation is also powered by the auxiliary engine. The dustfall nozzle above the sweeping plate of the road sweeper sprays water, which is directly extracted from the water tank by the electronic water pump, which is similar to the water spraying principle of the car wiper. The road sweeper is equipped with sprinkler function, which is the same as the principle of sprinkler. The power take-off is installed at the gearbox, and the power take-off is connected with the sprinkler pump. The sprinkler pump extracts the clean water from the clean water tank, so as to realize the function of front flushing and rear spraying.
V. PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VI. COMPANY INFO
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
The power system of the sweeper is divided into diesel /, liquid propane gas and battery. The driving system of the sweeper is selected according to the nature of the garden, area, type of garbage, operation time and other factors to meet the clean needs of different customers. The utilization of Diesel / gasoline driving mode depends on the necessary clean environment and the type of garbage. As usual, For example, diesel / gasoline type can be used for large-area outdoor cleaning with more garbage and low requirements for silence and environment.
Suction system of sanitation sweeper: it is necessary to equip with high-power fan, so that the garbage can be completely sucked into the shell filter dust container. The filter container continuously shakes and vibrates when things happen, which can make the machine just stay in things forever, but will not produce signs such as blockage.
Garbage dumping system of road sweeper: the garbage dumping of road sweeper is completed by the decision control panel. Before dumping, the cover of the dustbin is closed. Pull the control lever from the future to lift the dustbin for dumping. When the dustbin is put down, push the control lever forward to the same position
The removal system and garbage dumping system of sanitation sweepers can be commonly referred to as garbage cleaning system. It is mainly composed of main brush, side brush and dustbin. The side brush is required to be made of dense high-grade materials and equipped with springs, which can effectively bear the blow and further cover the side wheel of the brush plate.
The volume of the road sweeper is determined according to the wheelbase of the chassis. The shorter the wheelbase, the smaller the volume, and the cheaper the corresponding price. It is very important to choose the appropriate model according to your own working radius.
Standard configuration of road sweeper:
1. Equipped with four sweeping brushes, half of which are steel wire clamped, so as to improve the brushing capacity, and the sweeping plate is reinforced to improve the service life.
2. Equipped with Jiangling Isuzu 57 kW auxiliary engine and Cummins 140 HP auxiliary engine for models above 145, it has strong power and guaranteed suction.
3. Hydraulic motor, control switch and vtoz solenoid valve group are well-known brand accessories with ultra-low failure rate.
4. Xiamen South super release clutch (warranty 2 years), Taiwan Beibo maintenance free fan has a long service life.
5. Stainless steel dustbin and water tank, tail led arrow light, manual emergency system.
6. The maximum cleaning width is 3.2-3.5m, and the maximum suction particle size is 12cm.
Sweeper options:
1. The optional monitoring system can see the cleaning and reversing image in the cab in real time
2. All the trucks could be equipped with the optional watering function, with the front flushing and rear spraying functions of the sprinkler.
3. Voice alarm function, multi voice reminder alarm, more assured to use.
4. The dustbin self-cleaning device uses a high-pressure nozzle to carry out self-cleaning operation on the dustbin.
The road sweeper truck is generally in the structure of four central sweeping discs and rear suction cups, and the box is designed with dustbin and clean water tank. The lifting and lowering of the sweeping disc and suction cup is a hydraulic structure, and the power is provided by the upper auxiliary engine to drive the hydraulic oil pump. The suction cup suction function is that the upper mounted fan extracts the air in the dustbin to form a negative pressure for suction. The fan rotation is also powered by the auxiliary engine. The dustfall nozzle above the sweeping plate of the road sweeper sprays water, which is directly extracted from the water tank by the electronic water pump, which is similar to the water spraying principle of the car wiper. The road sweeper is equipped with sprinkler function, which is the same as the principle of sprinkler. The power take-off is installed at the gearbox, and the power take-off is connected with the sprinkler pump. The sprinkler pump extracts the clean water from the clean water tank, so as to realize the function of front flushing and rear spraying.

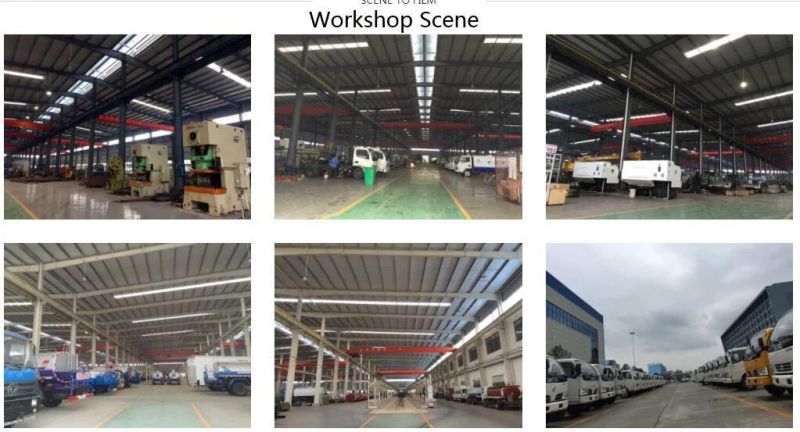

IV. Production workshop
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.
V. PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VI. COMPANY INFO
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales
and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck ,
refrigerated truck and etc. Main info as below:
Welcome to contact with us for more info. We will offer you the best truck as we can .
Sales manager : Ms Scarlett
