Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks

Hubei Weiyu Special Vehicles Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Type：Compactor
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Volume：10001-15000L
  • Emission Standard：Euro V

Base Info

  • Model NO.：CLW5537
  • Transmission Type：Manual
  • Payload：10-14tons
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Dongfeng
  • Models：Medium
  • Usage：Compression Type
  • Condition：New
  • Chassis Brand：Isuzu, Dongfeng, Foton, Sinotruk, JAC, etc.
  • Campacting Ratio：0.8-0.9 Ton,M3
  • Compression Ratio：3-4
  • Compression Cycle Time：No More Than 15s
  • Unload Garbage Time：No More Than 23s
  • Hydraulic Pressure：16MPa
  • Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
  • Garbage Box Volume：10cbm, 12cbm, 14cbm
  • Garbage Box Capacity：8ton, 10ton, 12ton, 15ton, 16ton, etc.
  • Dirty Water Tank Volume：0.2cbm
  • Hopper Volume：0.8cbm
  • Controlling Way：Manual and Electrical Control
  • Color：as Per Customer′s Request
  • Transport Package：Naked, Container, RO-RO, Bulk
  • Specification：14cbm, 14m3, 14000Liters, 10ton, 12ton, 14ton
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

Upp structure configurationGarbage capacity(m3):10-14Filled mouth along the ground clearance (mm):860Filling cycle time(s:)30Once unloading garbage working time (s):40Filled once loaded garbage time (s):12Max crushing compression force (T):16Max unloading force (T):18Filled Lifting time (S):15

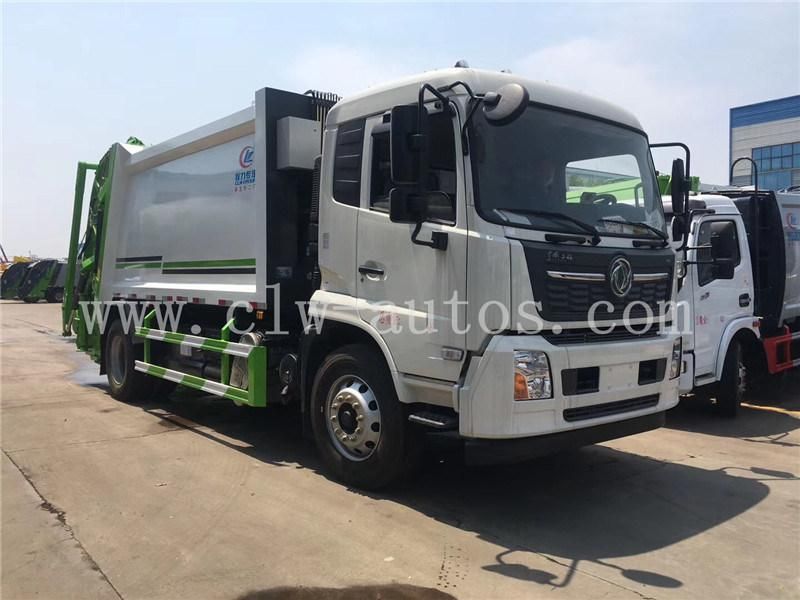

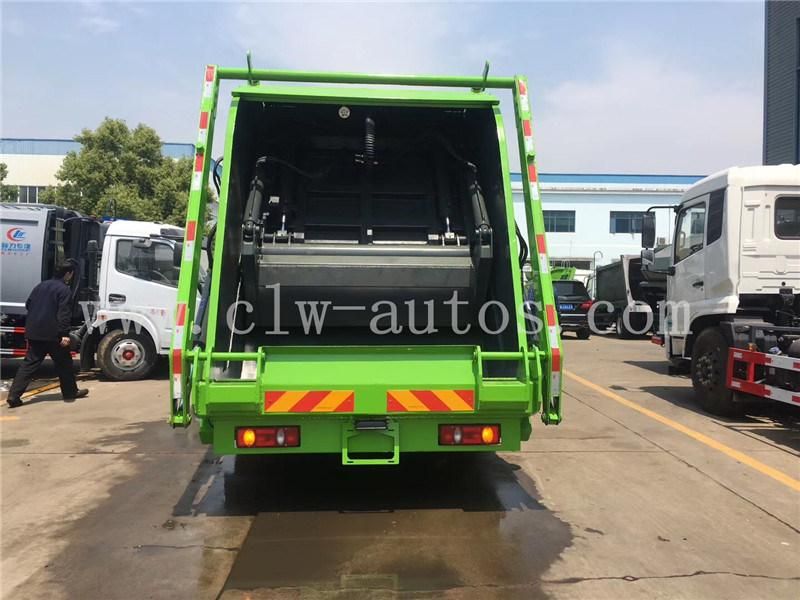

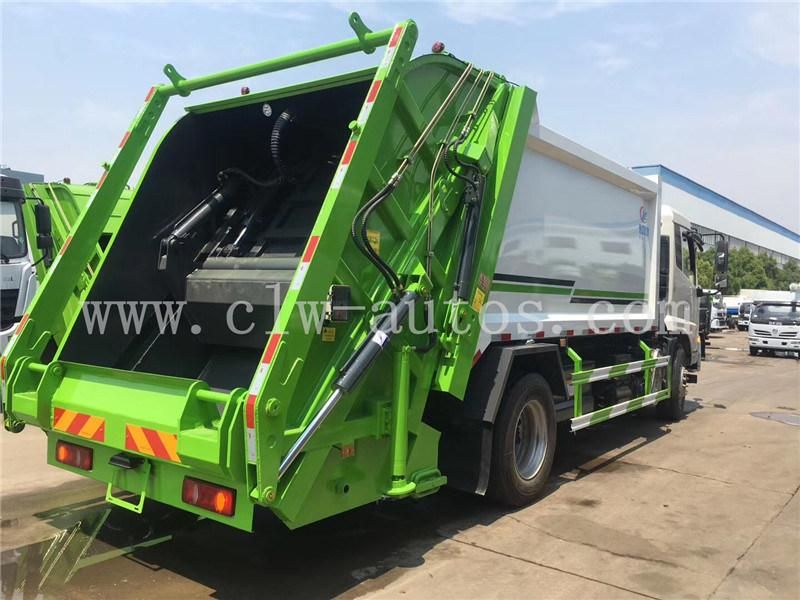

Reference Photos
Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation TrucksDongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation TrucksDongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation TrucksDongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks

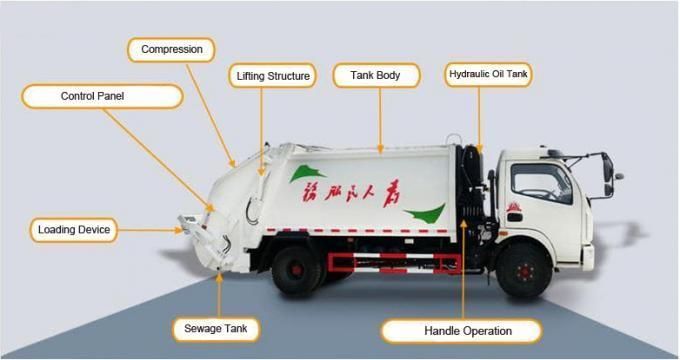

Truck diagram
Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks

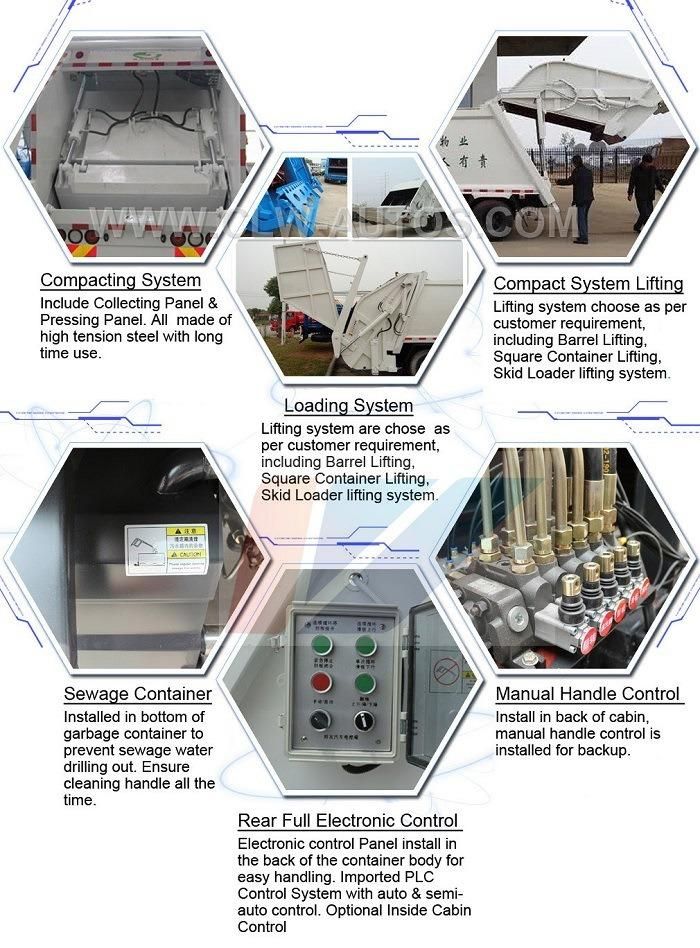

Main Parts
Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks

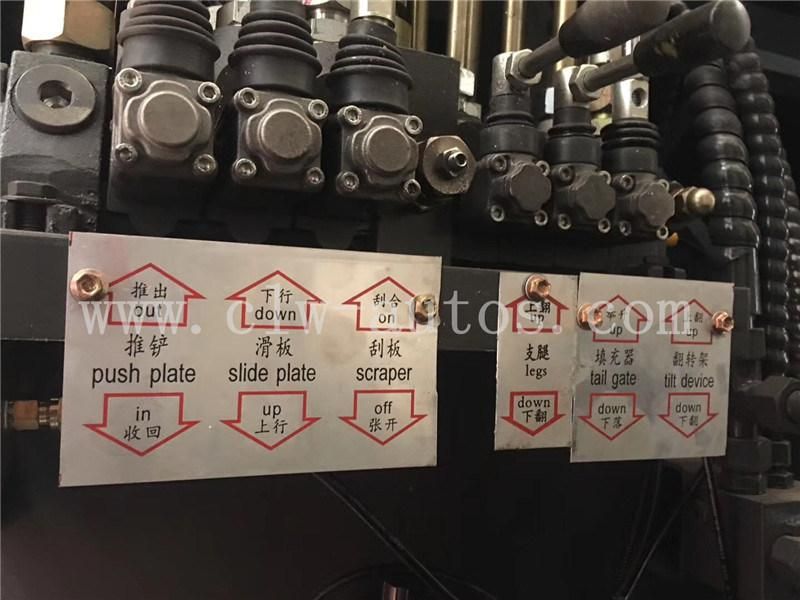

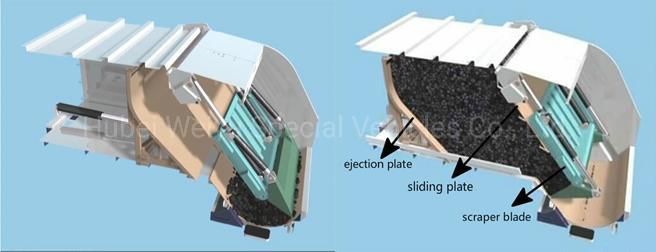

Main Working System
Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks

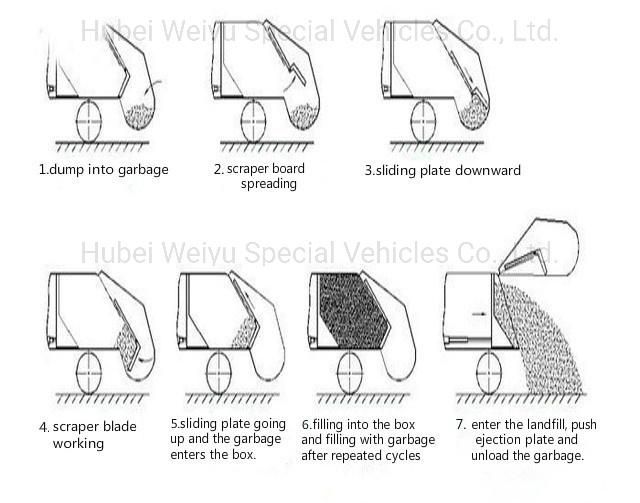

Garbage Loading and Unloading Process

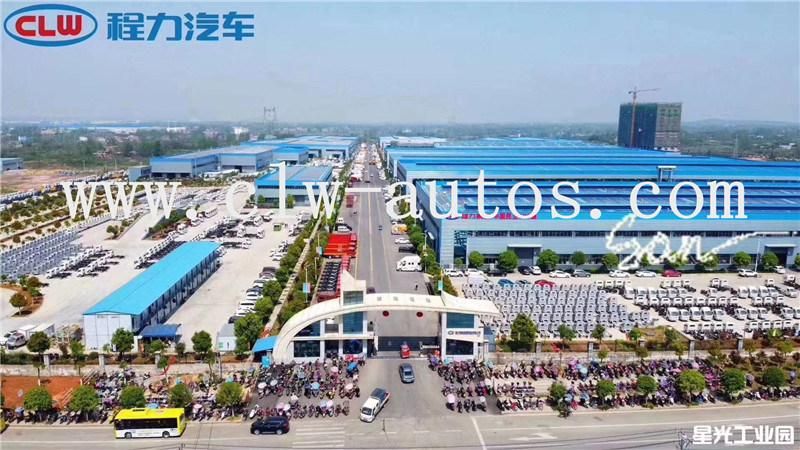

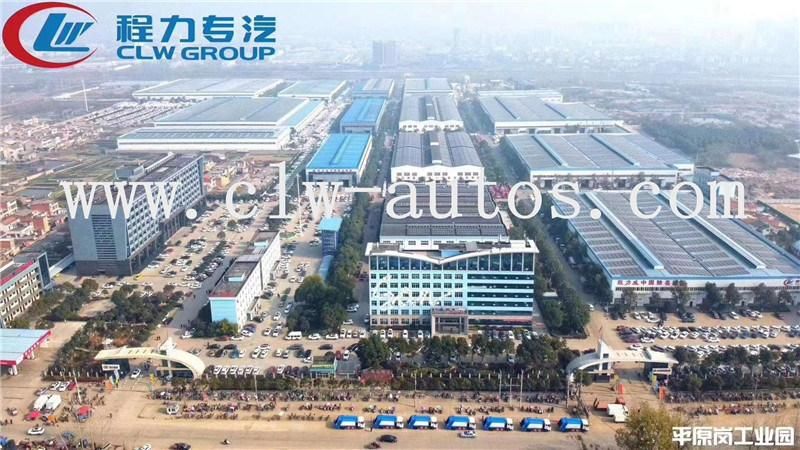

Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation TrucksCompany Introduction
Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation TrucksDongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Certificates
Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks
Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks
After-sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
