• Tank Dimensions：4300X1350X1200mm
• Rated Power：130HP
• Tank Volume：6m3
• Tank Material：Q235B Carbon Steel
• Dispenserar：2PCS, with 15m Rotary Refuel Reel
• Compartments：2
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6000x2100&x2850mm
• Trademark：MANTEN
• Origin：Hubei, China
• HS Code：8704223000
• Production Capacity：500 Unit,Month

Basic Info.

Tank Dimensions 4300X1350X1200mm Rated Power 130HP Tank Volume 6m3 Tank Material Q235B Carbon Steel Dispenserar 2PCS, with 15m Rotary Refuel Reel Compartments 2 Transport Package Naked, Waxed, Bulk Ship, RO-RO Specification 6000x2100&x2850mm Trademark MANTEN Origin Hubei, China HS Code 8704223000 Production Capacity 500 Unit/Month

Product Description

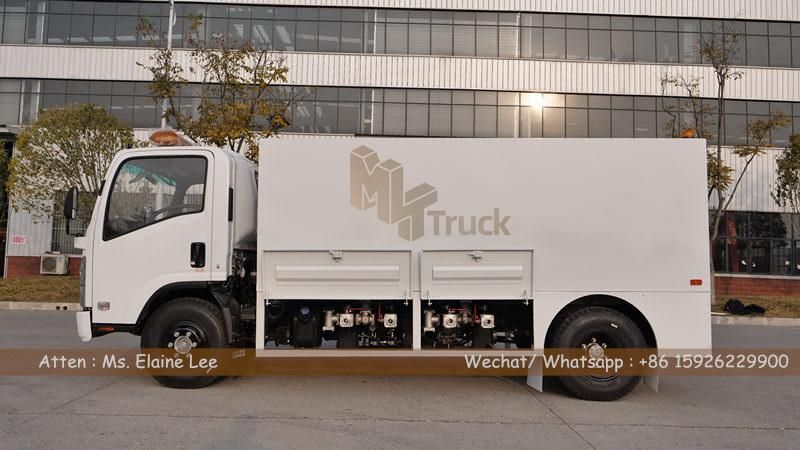

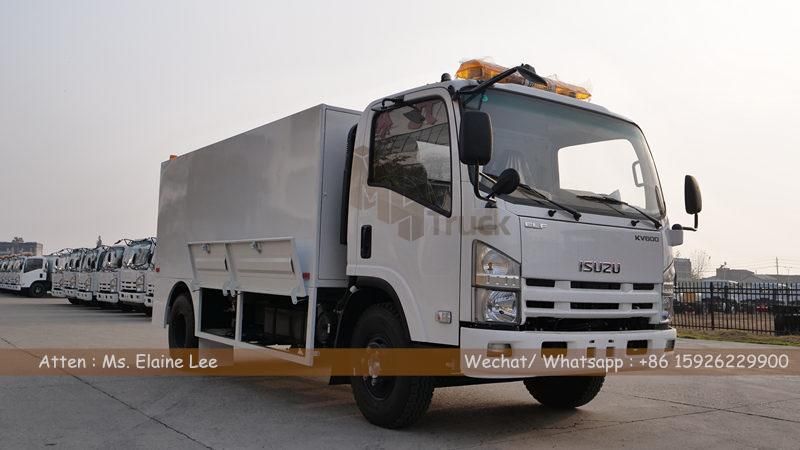

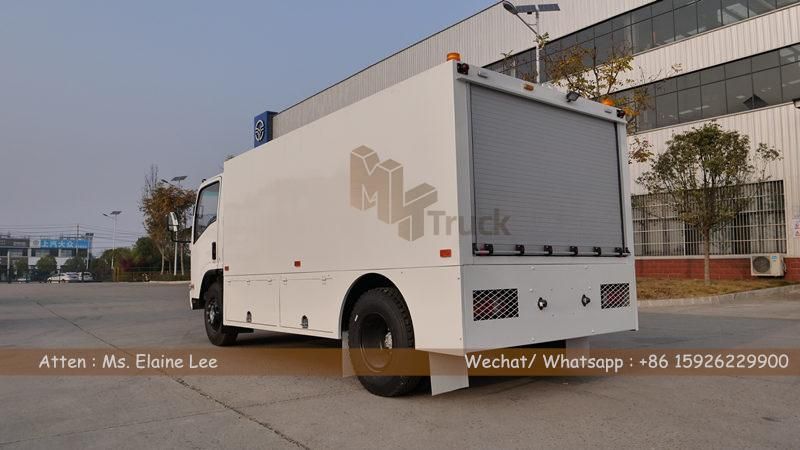

*Isuzu 7cbm for two kinds oil mobile fuel truck with filling machine *

--------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» I.Product Describution:

Manufacturer: Hubei Manten Automobile Co.,Ltd.

Features:
1.Tank material : 4-6mm thick carbon steel with high quality .
                           carbon steel and stainless steel or aluminum alloy can be choose.

2.Tank shape: square-round, oval, round;

3. Pump : can be choose self-priming pump, gear pump or double pump;
                 the pump can help the oil pump in and out or self-flow.

4.Special design: can be designed to an independent sub-warehouse to transport different oil with the same time.
                               15 meters refueling reel (can automatically return to position),
                               the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity,
                               delivery safety and other characteristics in the transportation.


» II.Product Parameter:


Chassis Specification
Chassis brand	ISUZU
Chassis Model	NPR
Drive type	4x2
Engine Model	4KH1CN5HS
Engine horse power	130HP
Emission standard	Euro 5
Gear box	ISUZU MSB 5-speed ,Manual .
Front Axle Load capacity	3T
Rear Axle Load capacity	6T
Tyres Model	8.25R16
Upper body specification
Tank Capacity	6000L
Compartment	2
Tank Material	Q235 Carbon steel
Thickness of tank materail	tank shell : 5mm, end cover :5mm.
Manhole Cover	2 pcs, europ standard aluminum manhole cover
Bottom valve	2 pcs ,aluminum pneumatic valve.
Loading and Discharge Valve	2 pcs
Discharge hosepipe	2 pcs
Electrostatic prevention	Anti-static Tape,Electrostatic earthing device
Pump	Aluminum Pump
Fuel dispenser	2 pcs  Fuel dispenser
Reel	15M fuel pipe reel and refueling gun.

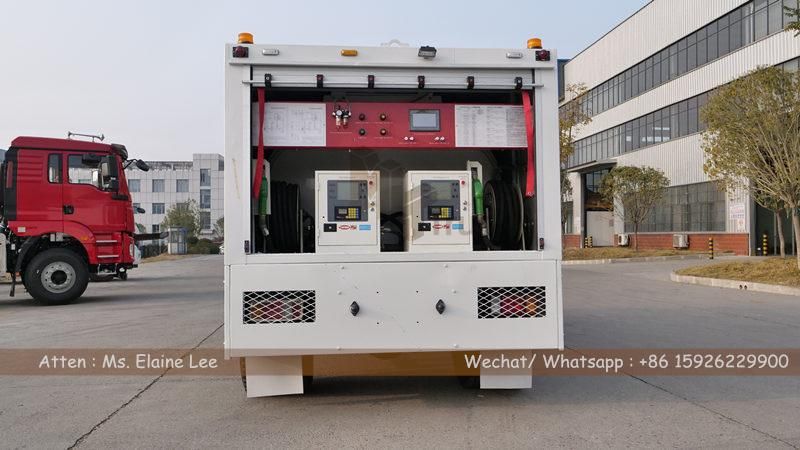

Operation box	At rear of fuel tank , 2 fuel dispensers and 2 reels refuelling gun .with rolling shutter doors.
Special function	show the fuel remaining volume on electronic screen

-----Tanker material:Carbon steel, stainless steel, lined with rubber, aluminum tank-----Compartment : single or several compartments to contain different kinds of oil or chemicals.-----Optional:Fuel pump, flow meter (back to zero), single count, double count, tax control tanker

» III.Product Details:

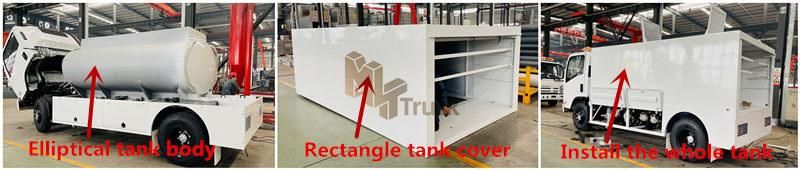

1.Fuel tank body shape:
Rectangle tank is more beautiful, and it is also convenient to enter and exit the community and living places.

2.It can fuel two different kinds of oil.


3.Rear operating bin is more convenient and beautiful.

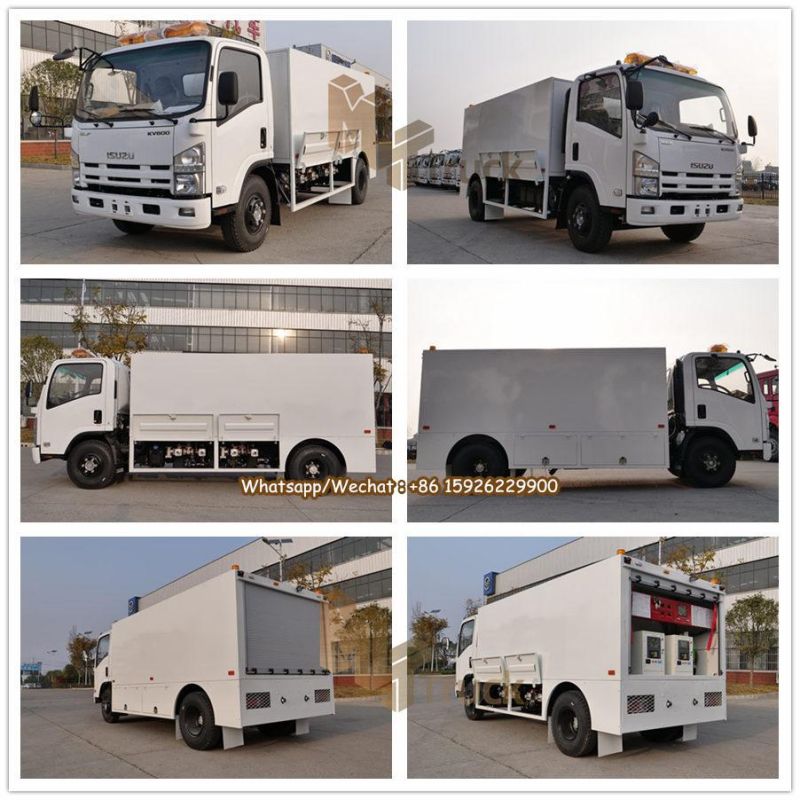

4. More pictures:



Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!




1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a good after-sell service

4.we have strong professinal design team

5.promptly delivery. any order is welcome.



We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

» IV.Company Intorduce:



» V. Professional packing and transprotation:


•
• Thick wax polished on products before shipping to protect.
• Use container, RORO/bulk ship or others as your requirement.
• We provide transportation insurance to guarantee the new and great condition of products for customers.

 YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
