Hino Concrete Mixer Truck 8X4

Shanghai CIMC J.T Vehicle Manufacturer Co., Ltd.
  • Certification:ISO9000, TS16949
  • Transmission Type:Manual
  • Emission Standard:Euro 4
  • Displacement:9
  • Payload:40T
  • Fuel:Diesel

Base Info

  • Model NO.:FY2PUUM-MQZ
  • Drive Mode:8x4
  • Maximum Horsepower:300-400hp
  • Condition:New
  • Mixer:14 Cbm
  • Concrete Mixer:12 Cbm
  • Hino Mixer:12 Cbm
  • Hino Concrete Mixer Truck:12 Cbm
  • Transport Package:Nude
  • Specification:EMARK, GCC, VCA
  • Trademark:HINO
  • Origin:China
  • HS Code:8705400000
  • Production Capacity:20000 Unit Year

Description

Basic Info.

Model NO. FY2PUUM-MQZ Drive Mode 8x4 Maximum Horsepower 300-400hp Condition New Mixer 14 Cbm Concrete Mixer 12 Cbm Hino Mixer 12 Cbm Hino Concrete Mixer Truck 12 Cbm Transport Package Nude Specification EMARK, GCC, VCA Trademark HINO Origin China HS Code 8705400000 Production Capacity 20000 Unit Year

Product Description

Hino engine reach both EURO III and EURO IV emission, mixer tank from 12 to 14 CMB for customer needs.

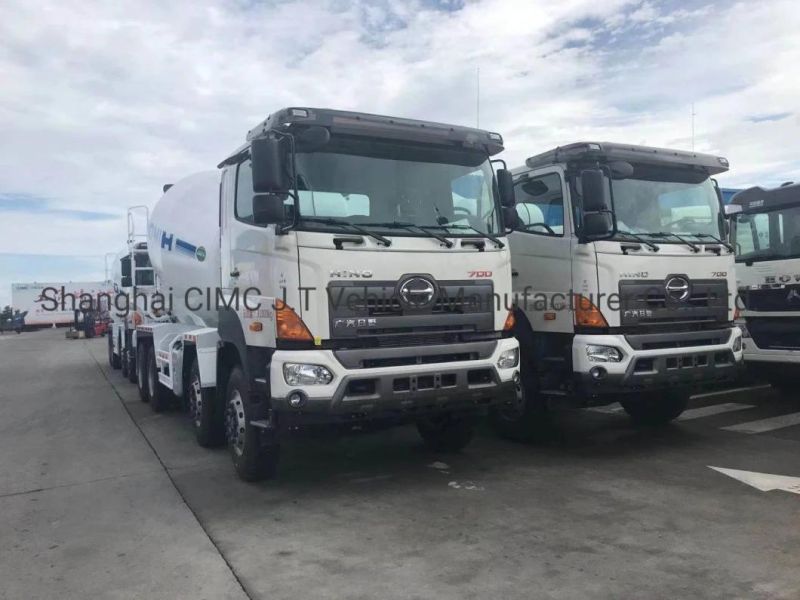

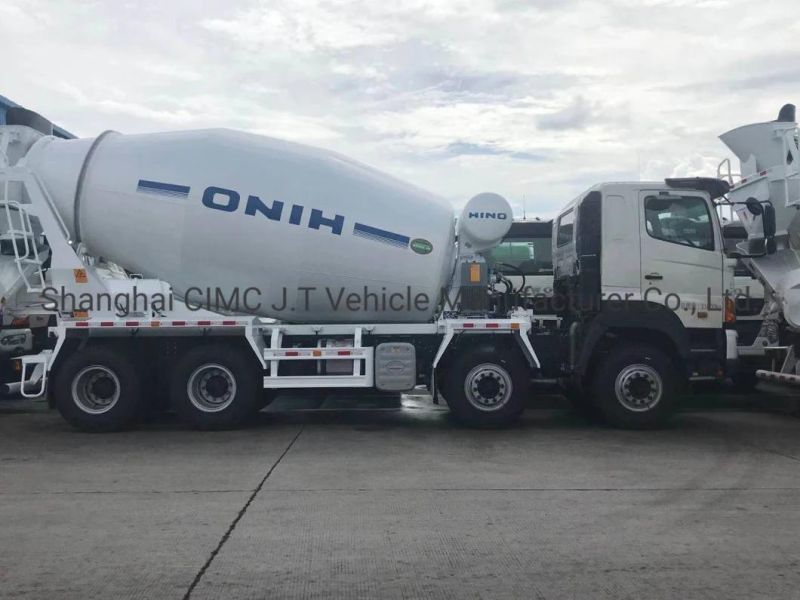

Hino Concrete Mixer Truck 8X4
Hino Concrete Mixer Truck 8X4Hino Concrete Mixer Truck 8X4
Engine Make: HINO P11C-VA
Diesel 4-stroke direct injection diesel engine, Electronic control, SCR
Engine model: P11C-VA , Euro III or Euro IV emission standard
6-cylinder in-line, turbo-charging and intercooling
Maximum output: 350 hp (259 Kw) at 2100 rpm
Maximum torque: 1483 Nm at 1100-1300r/min
Number of cylinder: 6
Displacement: 10.52 L
Bore: 122 mm
Stroke: 150 mm
Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compressor
Rigid fan
Transmission EATON FULLER RT-11509C, 9 forwards and 1 reverse, 1490N.m, 2600rpm
Ratio: 12.42   8.26  6.08  4.53   3.36  2.47   1.81   1.35  1   12.99 (R)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle Steering with doubleT-cross section beam
Rear Axle HINO, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
Ratio:4.625
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members, Manganese steel
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:13 leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Wheels & Tyres Tire: 11.00R20, all steel radial tyre
Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,
24V USB, air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats
