• Model NO.：V550F
• HS Code：84186090
• Production Capacity：500sets,Month

Basic Info.

Model NO. V550F HS Code 84186090 Production Capacity 500sets/Month

Product Description

Model: V550F
For midtrucks from 18-30m³
Original QP, TM compressor, Danfoss valves, etc
Applying for: 3 to 8tons refrigerated trucks, chiller trucks, food trucks etc


Corunclima V550F is a front mounted truck freezer unit, it is driven by the engine of the truck especially for the truck box volume range from 18m3 to 30m3, or the payload from 2.5 to 6 tons , its temperature range is +5ºC to -20ºC which can be used on refrigerated trucks, chiller trucks, food trucks etc.

Benefit

1. Corunclima truck freezer unit V550F use the copper tube condenser which is more stronger than aluminum parallel flow, it's more durable, so it has a long life than PF condenser.

2. There are 4 fans on model V550F, life time of fans is above 5000hrs,

3. The evaporator also using the copper tube and hydrophilic aluminum foil, it can make the water droplets flow out more easily from the surface of condenser core, and guaranteed cooling performance, it can provide more cooling air to the foods, and it's cooling fast.

4. It adopts environmentally friendly refrigerant R404A, high and low pressure protection for cooling system, sturdy evaporator cover protect core body from damage.

5. Hot gas defrosting system help the transport refrigeration units work better.

6. Separate design, the condenser is installed in the front of the box, easy to install.



Technical Data

Controller.  Digital, Easy operation. Put on dashboard

Plug-in:  220V, 380V, (Electric Standby) is Optional

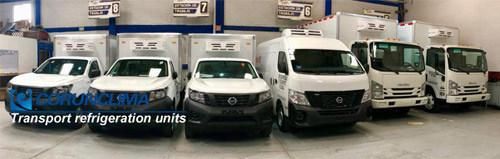

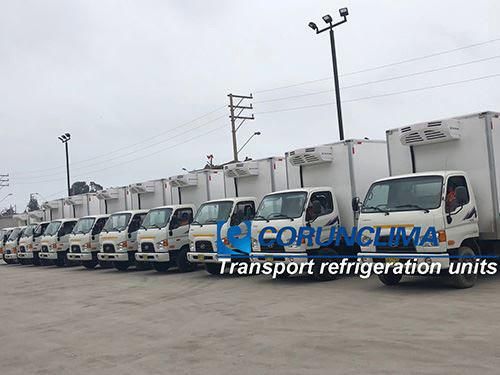

Successful Cases of truck transport refrigeration units

Corunclima truck transport refrigeration units have already been installed in South africa,Mexico, Chile, UAE, Qatar, Thailand, Australia, etc.
