• Model NO.：CLW9351K3YJL
• Bearing Capacity：Large
• Car Type：Van
• Condition：New
• Box Material：Fiberglass or Stainless Steel
• Material：Fiberglass
• Insulating Layer：10cm Polyurethane Foam
• Truck Refrigeration Unit：Thermoking, Carrier or Chinese Alternative
• Applicable Temperature：-18~0
• Inside：Fiberglass or Stainless Steel
• Middle：8mm PE Foam
• Outside：Fiberglass Material
• Floor：Aluminum Channel
• Refrigerator：Thermo King, Carrier
• Refrigerator Type：Separated Power with Diesel Engine
• Axle Quantiy：3 Axles
• Warranty：1 Year
• Delivery Time：25 Days
• Optional Part：Meat Hook, Air Trunking, Side Door, Rear Platform
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：13820*2340*2410mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Units Per Month

Complete Refrigerated Semi Trailer Parameter

Refrigerated body size (mm)

13820*2340*2410

Gross Vehicle Weight (kg)

Appro × 49530

Net weight (kg)

Appro × 10400

Loading (kg)

Appro × 39000

Wheel base (mm)

7350+1310+1310

Front/Rear overhang (mm)

- / 2030

Approach/departure angle (°)

- / 12

Standard configuration

1) Equipped with America CARRIER brand independent refrigeration unit,keep the refrigerated body -18ºC .

2) Refrigerated body inner and outer material are FRP(fiber reinforced plastic).

3) Single side open door.

4) Inner aluminum alloy rail paving.

5) Inner wall with anti-collision strip.

6) Tail double open doors.

7) Protective material: Q235A carbon steel.

8) Connection method: the left and right sides and the lower part of the protection are welded.

9) Rear protection height from ground 450mm.

Semi Trailer Parameter

Main beam

Heavy duty and extra durability design,opting high tensile steel A345B,welded by automatic submerged-arc processes

Axle

FUWA axle,

Axle load capacity 13 ton/axle

Landing gear

China famous brand JOST brand 28T

King pin

50#

Suspension

FUWA brand mechanical tandem suspension

Lights and wire

- 24V 7-pin socket

- Well-known brand standard rear lights

- orange turning lights,red rear reflectors

- 3 orange side lights and 3 orange side reflectors (each side 6)

- standard cable.

Tire model

11.00R20

No.of tires

12pcs

• Certificate: ASM, ISO, BV, SGS, CCC etc.

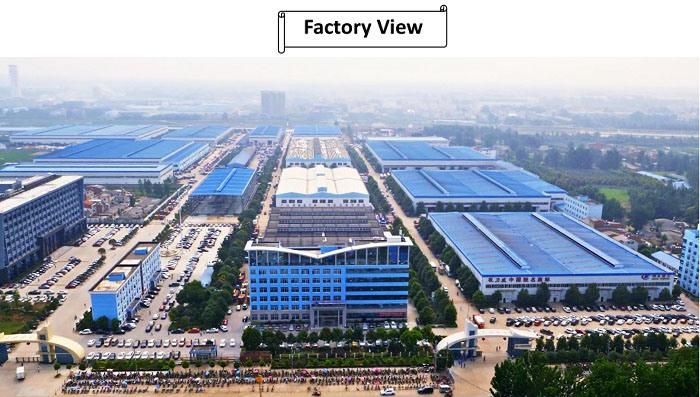

• 12 independents workshops.
• 1000 sets of equipment, 25 assemble lines.
• 300 senior engineers and technicians. About 8000 workers.
• 800kinds of LPG, trucks and semi-trailers.
• 20 years wholesale experience
• Turnover 250 million and Export 20million annually
• Turnover 2 billion trucks and semi-trailers annually.
• LPG/Truck Sold to 90 countries
• Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
