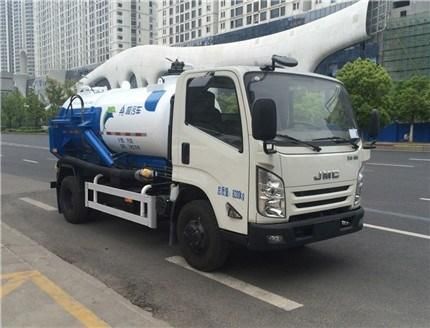

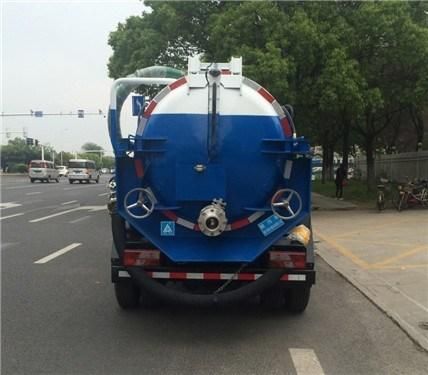

Aerosun High-Performance 3.8cbm Jmc Cgj5080gxwe5 Sewerage Collector/Vacuum Truck
Aerosun Corporation- Certification：ISO9000, CCC
- Emission Standard：Euro 5
- Transmission Type：Automatic
- Fuel：Diesel
- Condition：New
- Trademark：Aerosun SanLi
Base Info
- Model NO.：CGJ5080GXWE5
- Origin：China
Description

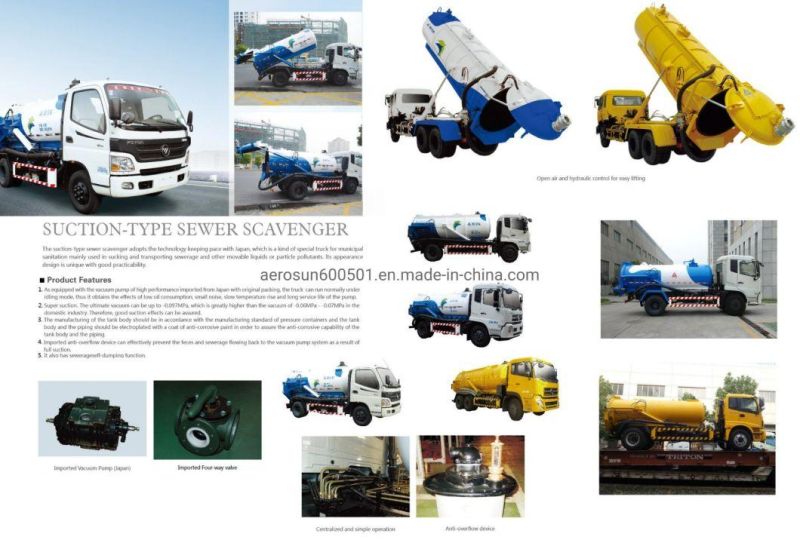

Type of CGJ5080GXWE5 Self-discharging Sewerage Collector is changed on refit chassis of JX1083TGA25 custom. It is same not only with sewerage and liquid waste which density is around 1.2 and temperature is between 0 to 50 ºC but also the pumping transporting and letting of sewerage and oiliness slurry. The vehicle may act according to different medium lining corresponding rubber, It has very strong anticorrosion function. Controlling vacuum pump to obtain a certain vacuum degree, thus will sucking sewerage,It has two modes- pressure-addition let and flow automatically let.
There is a floating-ball equipment in Container of Sewerage Collector in order to prevent overfall, which make sure the process will be more safe and reliable.
1 Technical Performance Specifications
TruckChassisModel JX1083TGA25
Engine Model JX4D30A5H
Rated Power (KW/r.p.m) 112/2892
Overall Dimensions (L*W*H) (mm) 6310×2005×2610
Pass Capability
Angle of approach 23°
Angle of departure 29°
Quality Specifications
Rated Max.Load (Kg) 2915
Gross Mass (Kg) 8200
Gross Loading Mass(Kg) 5090
Special-purpose Equipment Specifications
Container Volume (L) 3800
Cage Farthest Elevate the angle ≥45°
Cage Uplifted the time ≤25s
Heel elevate Open up angle ≥75°
Heel open time ≤25s
Heel close time ≤25s
Maximum Hydraulic Pressure ≤17Mpa
Time of Filling Up the Container ≤5Min
Pump Depth ≥4M
Vacuum Pump (absolute pressure)(MPa) ≥0.07
Maximum Pressure (MPa) ≥0.06
2 Structure Instruction
Type of CGJ5080GXWE5 Self-discharging Sewerage Collector is make up of chassis refit, tank, hydraulic pressure system and pail upgrade wheel.
2·1 Container
The container is made of soldered iron and the sectional plane is circularity. It is made up of main tank, aft closure, interval controller, locking device, and finder of liquid level etc. The container is well rotproof because of the anticorrosive paint on both outside and inside the surface.
2·1·1 The tank is horizontal type of strait cylinder. The inner diameter of which is 1212mm, the strait cylinder is 3340mm in length, and the wall thickness is 5mm. It has a lead-end in shape of a butterfly and a flange weld in the back-end. And there are also iron circles on the external surface of the tank to strengthen the intensity.
2·1·2 There are reinforcement bars in the end socket of the aft closure to strengthen the intensity of the container and relieve the impinged on the tank and the end socket while running.
2·1·3 The interval controller between the tank and the aft closure can adjust the distance between them to assure the available leakproof.
2·1·4 The locking device has convenience operating and credible capability because it is drove by hydraulic.
PS: The locking apparatus must be opened up before open the aft closure.
2·1·5 There is an observation window in the end socket in aft closure to show liquid level in the container. There is a red line on the window which shows the safe bound and there is also a light for night works.
2·2 The pipeline system
The pipeline system is made up of vacuum pump, moisture separator, oil-gas separator, strainer, four way valve, vacuum meter for gas pressure and connecting pipelines etc.
2·2·1 Vacuum pump
a) Main technical capabilities
Direction of rotation: Left handed Rotation(inverse time)
Rated Speed: 600r/min
Pump Speed (on Rated Speed): 4.3L/rev
