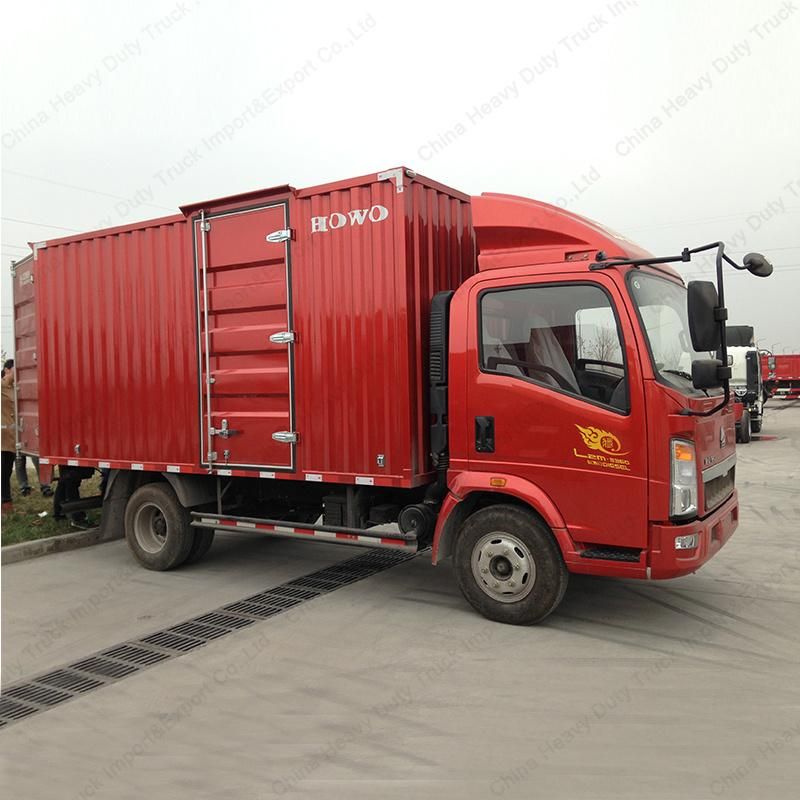

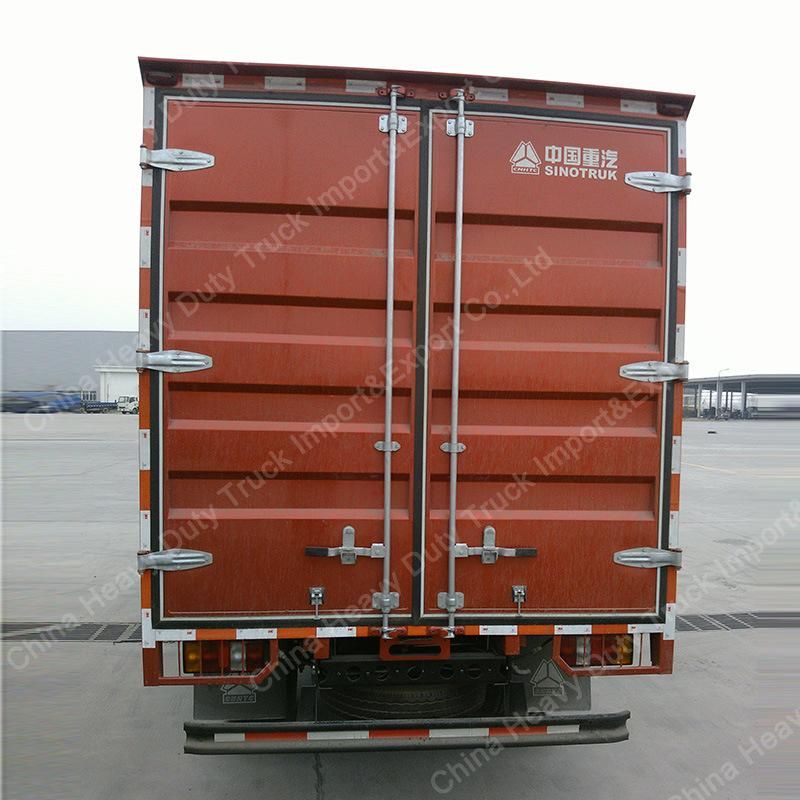

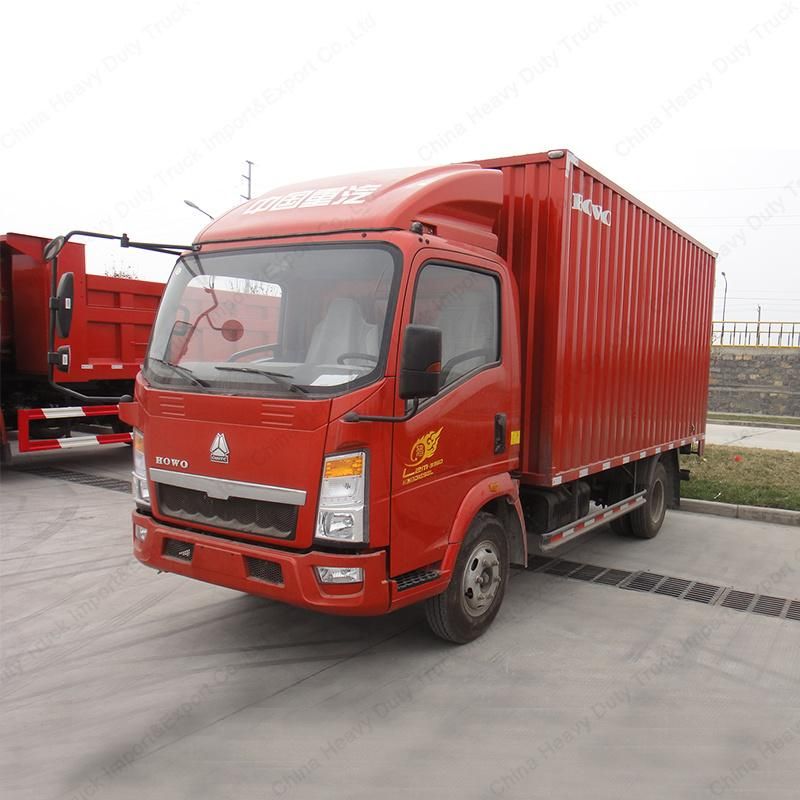

Sinotruk HOWO 4X2 4.5t Euro3/4/5 Diesel Van Type Box Light Truck Cargo Box Truck
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- Type：Rear Loader
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Volume：10001-15000L
- Emission Standard：Euro 2
- Transmission Type：Manual
- Payload：10t
Base Info
- Model NO.：ZZ
- Fuel：Diesel
- Drive Wheel：4×2
- Brand：Sinotruk
- Models：Large
- Usage：Dump, Compression Type
- Condition：New
- Loading Material：for Transporting Household Garbage
- Color：as You Like
- Suspension：Air Suspension Seat
- Warranty：One Year or 100000km Which Comes First
- Transport Package：Nude Packing After Painted Wax
- Specification：heavy duty truck
- Trademark：SINOTRUK
- Origin：China
- HS Code：870423
- Production Capacity：3000pieces,Month
Description
Engine
Maker: YUCHAI
Diesel: 4-stroke direct injection diesel engine
Engine model: YC4E140-33, Euro III emission standard
4-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 4.257L
Power horse:140hp
Clutch
Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance
Transmission
QJ transmission, model 6S-120, synchromesh, 6 forward & 1 reverse
Ratio: 9.01 5.24 3.22 2.290 1.50 1.00 8.30®
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle
Steering with double T-cross section beam
Rear Axles
Pressed axle housing, single reduction with hub reduction and differential lock
Ratio: 4.42
Chassis
Frame: U-profile parallel ladder frame with section of 300x80x8 mm, all cold riveted cross members
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers
Aluminum fuel tank: 350 I capacity with locking fuel cap, fitted to the off side of the chassis
Spare wheel
Steering
hydraulic steering with power assistance
Ratio: 26.2
Brakes
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Wheels & Tyres
Rims: 8.5-20, 10 hole-steel
Tyres: 12.00-20 tube
Option: 12R20 tube, 12.00-24 tube, 12R24 tube, 12R22.5 tubeless
Driver's Cab
Standard cab, all-steel forward control, 70°hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated
windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and
ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn,
with 4-point support fully floating suspension and shock absorbers with tranverse stabilizer
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 28 V, 1000 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel
Active check control with indicators, with this instrument the daily manual checks on the vehicle and combined indicators of compressed air
pressure, coolant temperature, engine oil pressure and battery charging
Company information
China Heavy Duty Truck Import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks.
If you want to buy any truck, trailer or truck parts,please contact us!
We sincerely hope to cooperate with you to expand market in your country!
