• Model NO.：CLW5251JUL
• Fuel：Diesel
• Tank Volume：8000L~1000L
• Drive Wheel：6x6
• Hoesrpower：371HP
• Condition：New
• Fuel Type：Diesel
• Drive Model：Left Hand Drive
• Gearbox：5 Forwards & 1 Reverse
• Tank Material：5mm Carbon Steel
• Vacuum Pump：Chinese Brand, Italy Brand or Other Imported Brand
• Sewage Suction Pipe：8m
• Suction Time：<5min
• Effective Suction Range：>8m
• Chassis Brand：Dongfeng, Isuzu, Forland, Foton, JAC, etc.
• Tire：6 Tires with One Spare
• Painting：Customized
• Delivery Time：30 Days
• Wheelbase：4600mm
• Volume：10000L 10000liters 10000litres Gallons
• Transport Package：Naked, RO-RO, Bulk
• Specification：8t, 8ton, 8tons, 10t, 10ton, 10tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Units,Month

Basic Info.

Model NO. CLW5251JUL Fuel Diesel Tank Volume 8000L~1000L Drive Wheel 6x6 Hoesrpower 371HP Condition New Fuel Type Diesel Drive Model Left Hand Drive Gearbox 5 Forwards & 1 Reverse Tank Material 5mm Carbon Steel Vacuum Pump Chinese Brand, Italy Brand or Other Imported Brand Sewage Suction Pipe 8m Suction Time <5min Effective Suction Range >8m Chassis Brand Dongfeng, Isuzu, Forland, Foton, JAC, etc. Tire 6 Tires with One Spare Painting Customized Delivery Time 30 Days Wheelbase 4600mm Volume 10000L 10000liters 10000litres Gallons Transport Package Naked, RO-RO, Bulk Specification 8t, 8ton, 8tons, 10t, 10ton, 10tons Trademark CLW Origin Suizhou, China HS Code 87059099 Production Capacity 500 Units/Month

Product Description

RHD Howo 6X6 Sewage Suction Truck 10000Liters Vacuum Septic Tanker Truck off Road for Brunei


Description:

1. Chassis of 6X6 Sewage Suction Truck  :Dongfeng,FAW,Sinotruk Howo,ISUZU,FOTON,SHACMAN,JMC,JAC,CAMC
2. Drive type of 6X6 Sewage Suction Truck : 4x2, 4x4, 6x4, 8x4 etc.
3. Tanker body of 6X6 Sewage Suction Truck :From 2cbm to 25 cbm capacity.
4. Accessory of 6X6 Sewage Suction Truck : Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system

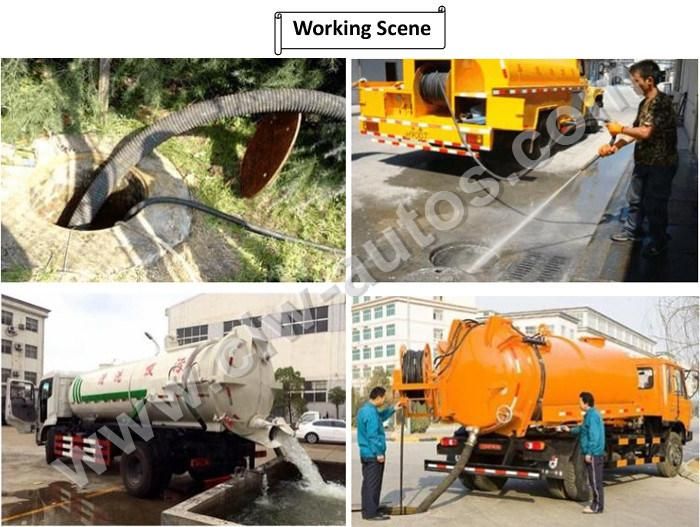

5. Application of 6X6 Sewage Suction Truck : Vacuum Sewer Truck is used to collect,transport and discharge liquid such as dirty water,septic,crude oil and soild stuff such as small stones,bricks. It is suitable for cleaning sewer,cesspit,cesspool,gully etc.It is widely used in environment and sanitation field.


Specifications of 6X6 Sewage Suction Truck

Item No.	Parameters
Overall Dimension	8600x2500x3530 mm
Gross Vehicle Weight	25000 kg
Curb Weight	12500 kg
Loading Weight	12500 Kg
Wheel Base	3800+1400mm
Front/rear Tread	1430/2200 mm
Approach/Departure Angle	19/20 degree
Front Axle	HF7 Drum, 7 Tons
Rear Axle	ST16, 16 tons, Ratio 5.73
Engine	SINO Truck Diesel WD615.47, Watering Cooling, Four Stroke, 6 Sylinder in Line, Direct Injection
Engine horsepower	371 HP Euro II
Displacement	9.726 L(Diesel)
Full loading Fuel Consumption Rate	Maximum 193 g/kW.h
Max Driving Speed	80 km/h
Gear Box	HW19710 Transmission,10 Forward Gear & 2 Reverse Gear
Steering Gear	ZF8118, hydraulic steering with power assistance
Power Divider	#2000
Cabin	HW76 Standard Cabin, RHD, 1 Sleeper, Air Conditioner, 3 Passengers,
Fuel Tank	400 Liters
Tire	12.00-20 (10 pieces with one spare)
Tank  Capacity	10 cubic meters
Tank Material	Material: Q235 high tension steel, 6mm Tank body and End Plate, With Hydraulic Controlled Rear Door and Middle lifting.
Vacuum Suction Pump	Italian Made Jurop Pump PN84D, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mp

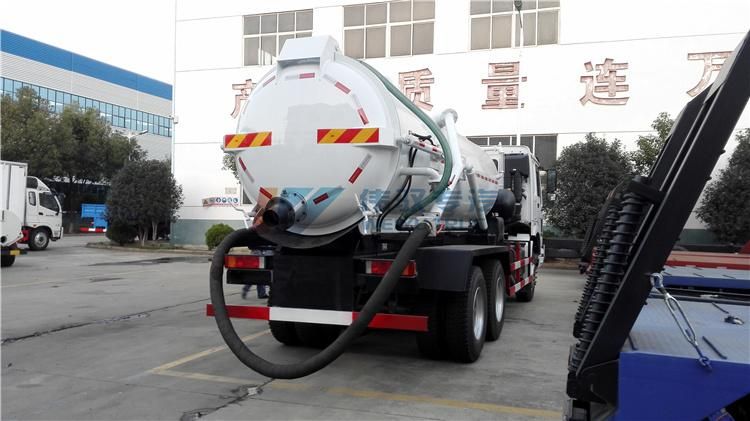

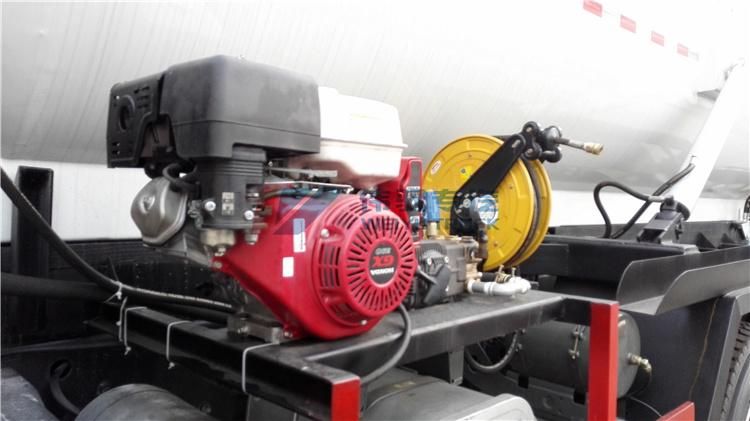

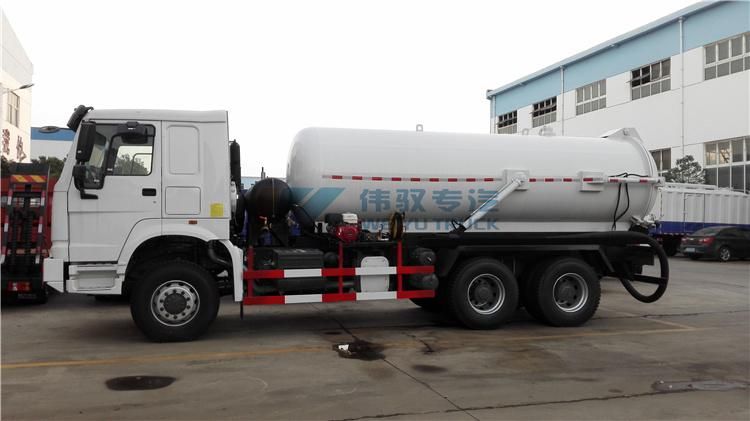

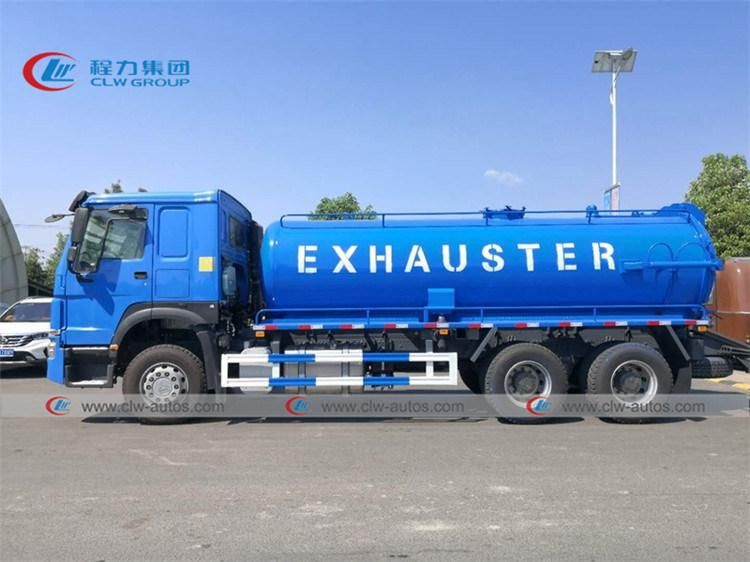

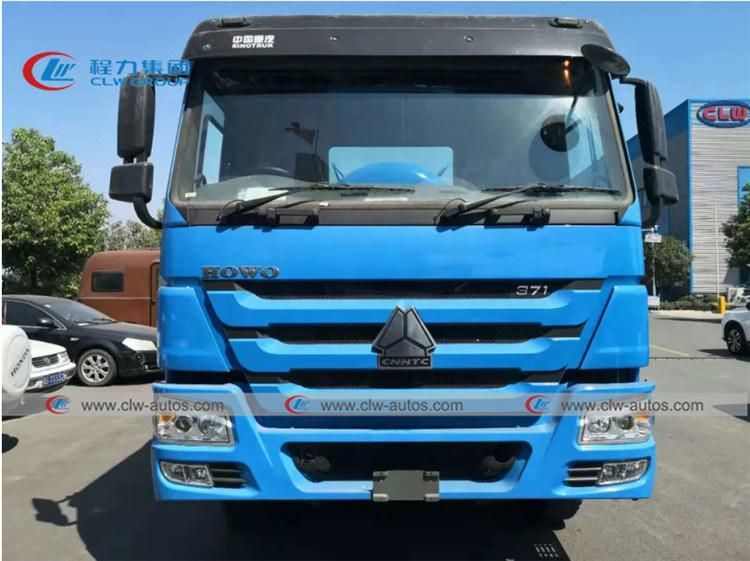

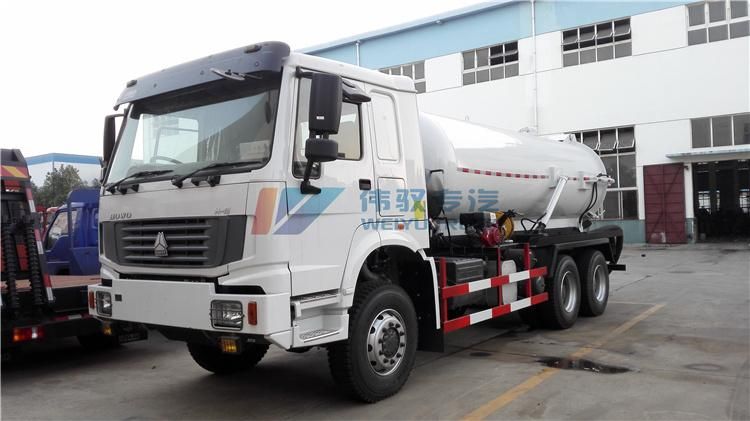

Reference pictures of 6X6 Sewage Suction Truck

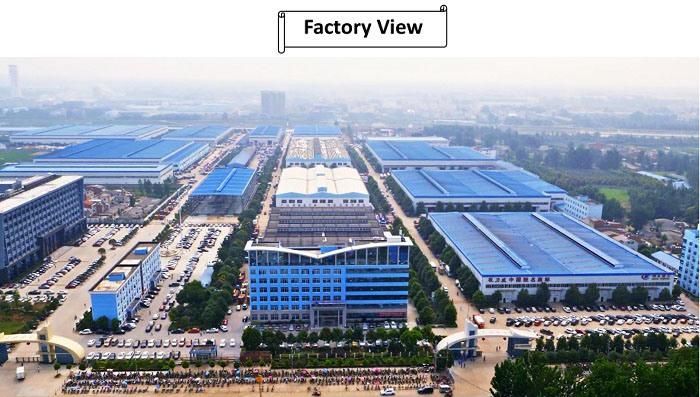

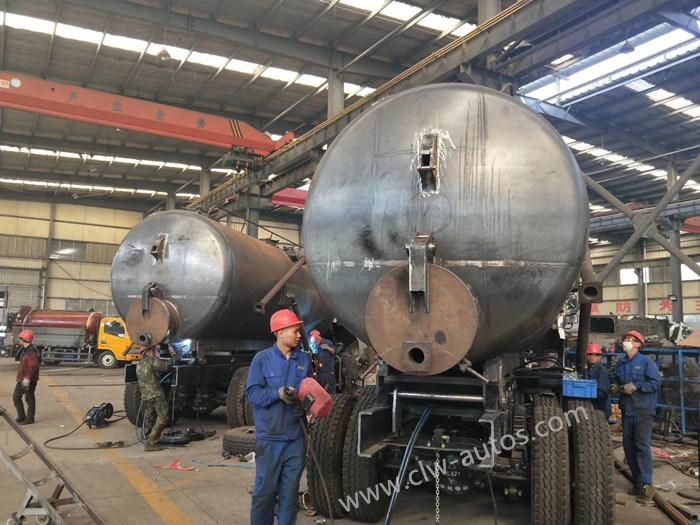

Production of 6X6 Sewage Suction Truck







The CLW group,which was appointed by the Development and Reform Committee of China is a professional company who has been productionof 800 kinds of different kinds of special vehicles, trailers and construction machineries for more than 15 years.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )








Contact Shirley for further information and special discount price~


Ms. Shirley Fu

Sales Director

Hubei Chengli Special Automobile Co., Ltd.
Hubei Weiyu Special Vehicles Co., Ltd.
Factory:Chengli Automobile Industry Park,Suizhou City,Hubei Province,China
Office:Room 2614-2615,Block B,Longyang Time Square,Hanyang District,Wuhan,China
Customized Trucks&Trailers to Meet Your Request!
