• Model NO.：CLW5040XYLNJ6
• Medical Equipment：Without Medical Equipment
• Horsepower：100-160hp
• Axle：Single
• Condition：New
• Transport Package：Container or RO-RO Ship
• Specification：5670X2011X2780, 2880
• Trademark：CLW
• Origin：China
• HS Code：8705904000
• Production Capacity：100 Set,Month

Overview Product ParametersTechnical specs of vehicleBasic
SpecificationWheelbase (mm)3300Wheel tread (mm):1742/1538 (front/rear)Minimum ground clearance (mm)148Turning diameter (m):12.9Approach Angle/Departure Angle(°)21 / 25Overall dimensions (mm): 5760×2011×2880Dimension of Patient's compartment (mm):2820×1725×1760Complete vehicle curb mass:(kg):3550GVW (kg):4000Number of seats:3 seatsNo. of Tires: 4Tire:195/75R16LTEngineEngine: F1AE8481D Fuel type: DieselWorking manner: in-line, 4 cylinders, inter-cooling, direct injection, gasoline engineDisplacement (ml.):2287Emission standard:GB18352.5-2013 China VIMaximum power:95kwGearboxGearbox:5 speed, manualChassisBrake System: front disc / rear drumChassis :NJ6536EYCMFront / Rear overhang:1002/1368Service Brake:front caliper disc / rear caliper discSuspension System: McPherson independent front suspension,
plate spring non-independent rear suspensionParking Brake: Manual MechanicalFuel tank capacity (L):80Max. speed (Km/h):130Standard
Configuration 1.Side sliding door
 2.Central control door lock
 3.Front power window
 4.Driver seat manual 6 adjustment
 5.Steel Hub+Hubcap
 6.Integrated side window
 7.Driver airbag+Seatbelt Warning
 8.Four wheel disc brake
 9.ABS+EBD
 10.High mounted stop lamp
 11.Stereo Radio
 12.Air Conditioner
 13.All-metal closed bearing body
 14.Power mirror (optional)
 15.Reverse sensor(optional)Options 1. LHD + Petrol Engine

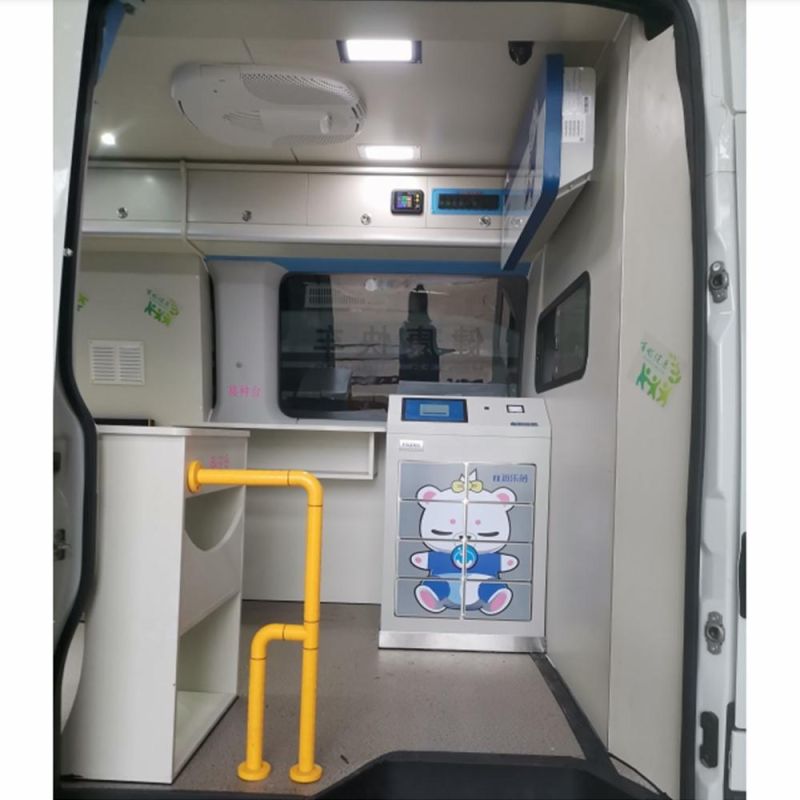

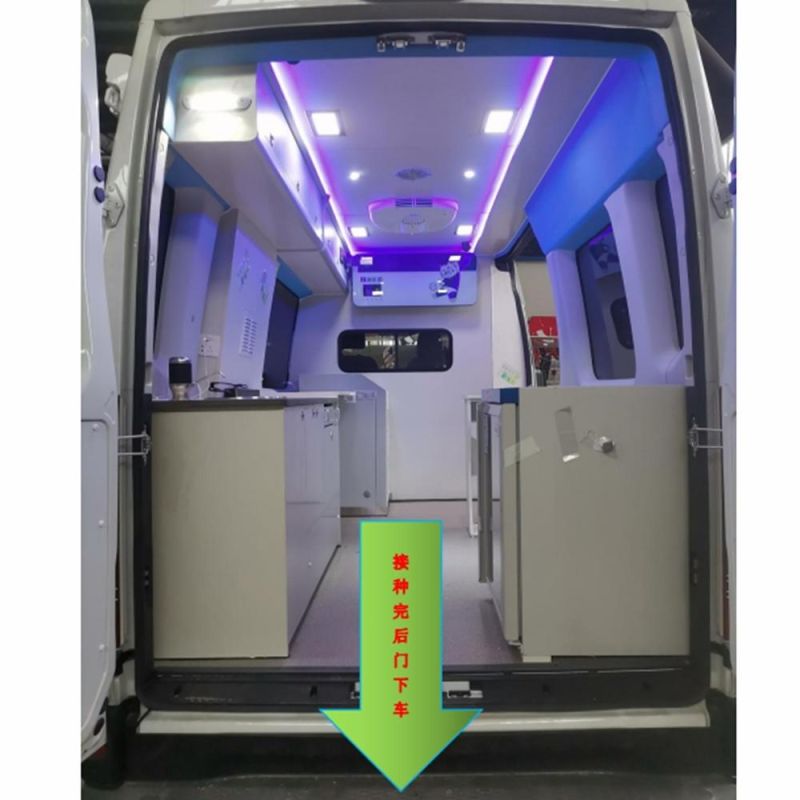

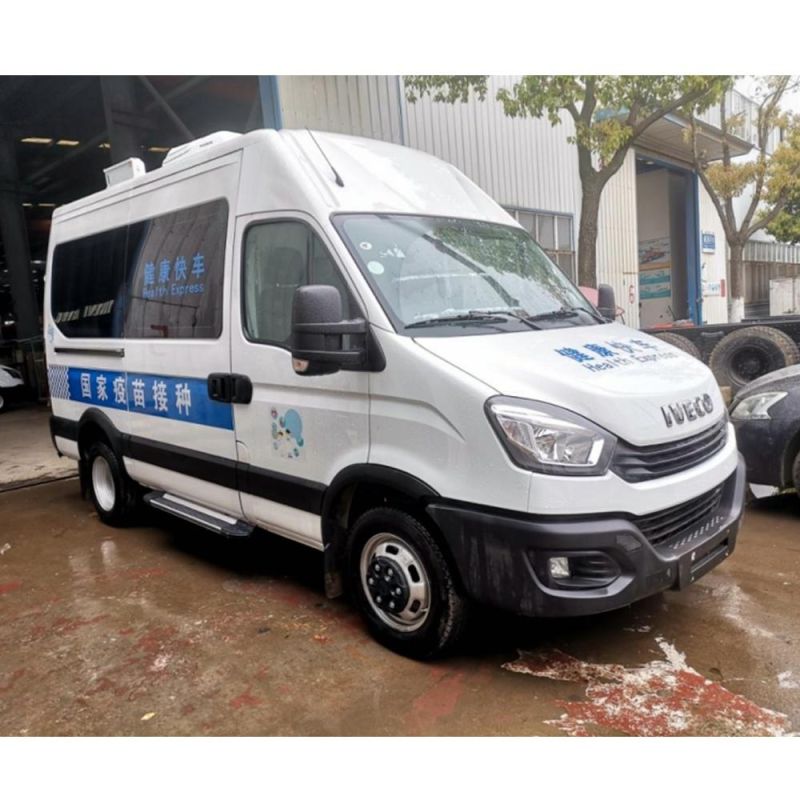

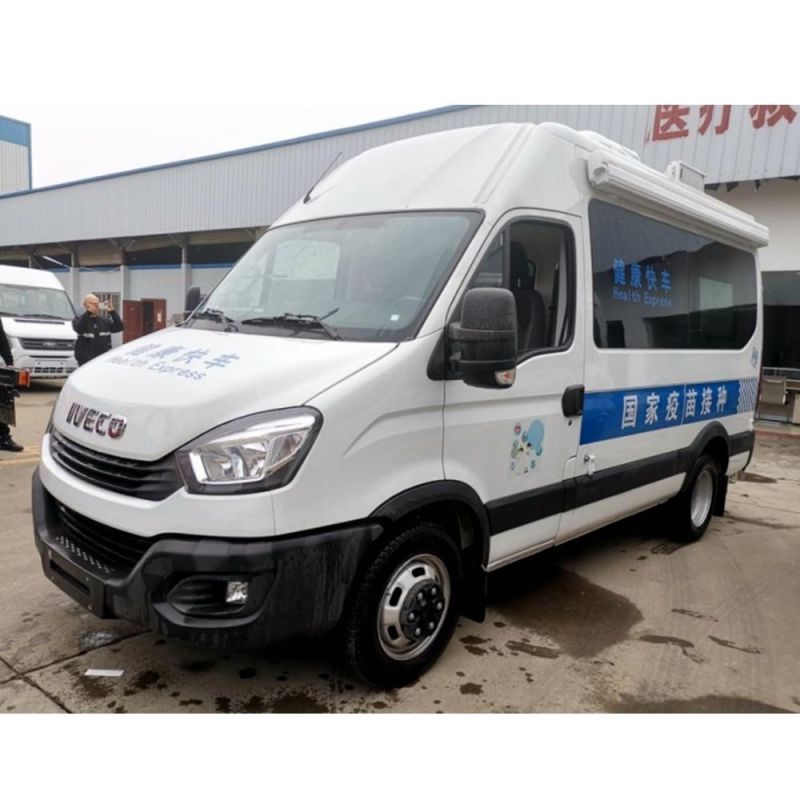

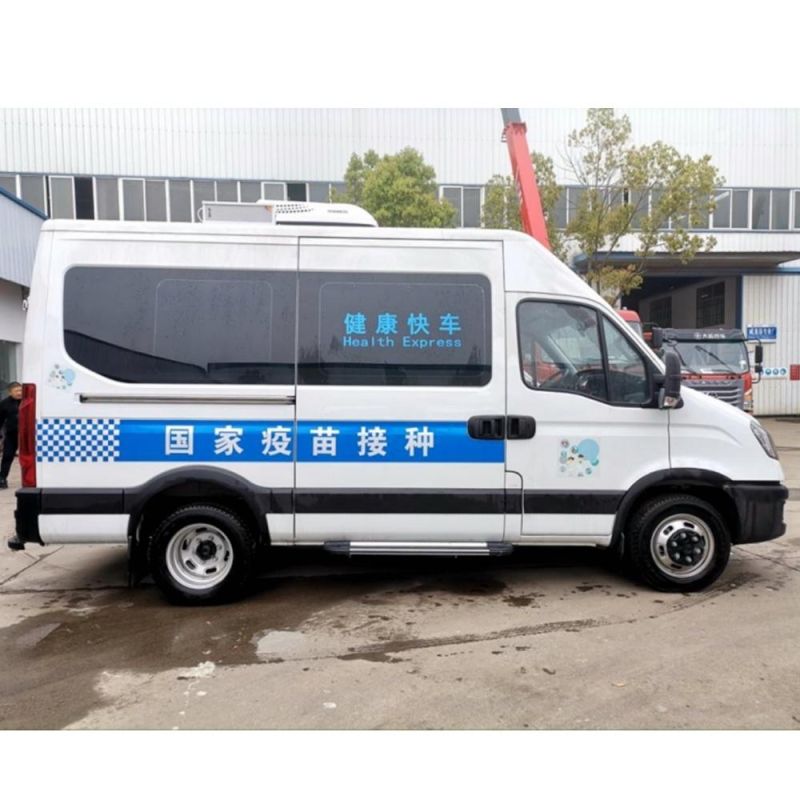

 2. LHD + Diesel EngineDetailed Photos
