• Model NO.：GMDG14
• Maximum Mileage：More Than 100km
• Weight：1290kg
• Wheel Base：2620mm
• Transport Package：Iron Frame & Carton
• Specification：4830× 1460× 2020mm
• Trademark：RARIRO
• Origin：China
• HS Code：8709119000
• Production Capacity：1000 Units Per Year

MOTOR72V/7.5KW high efficiency high speed AC motorCONTROLLERCMOS system of infinitely variable speed, with the function of automatic
pretection fall slippery, downhill speed limited, personalized program designBATTERYMF 12*6V large capacity deep cycle traction batteryCHARGERauto high-frequency high pulse charger, input voltage of AC 110V/220V 50hz, output DC 72V 25Ah, with CE certificateACCELERATOROriginal inductive, non-contract variable speed system non-contractCHASSICFrame type, high strength steel structure, thermal spraying Zinc and dual
antirust paint processingCOVERHight strength shock resistance composite material (PT+PBT)REAR AXLEMotor direct type integral rear axle, with the mail reduction and differentialBRAKE SYSTEMDouble circuit four-wheel hydraulic brake (front disc rear drum), and
mechanical parking (manual)FRONT SUSPENSION SYSTEMMuti-plate leaf spring and hydraulic damping cylinder typre independent suspensionREAR SUSPENSION SYSTEMMuti-plate leaf spring and hydraulic damping cylinder typre independent suspensionSTEERING SYSTEMSingle stage gear rack steering system, with the function of steering self-retureLIGHT SYSTEMLED Headlights, front turn signal lamp and rear combination lights, buzzerSEATING SYSTEMOne-piece seat system, confirm to the principle of ergonomics, comfortable seating, emulation leather seatsCELLINGHight strength shock resistance composite material (PT+PBT)TYREVacuum meridian mini car tyre, specification: 165/70 R13DASHBOARDWith the ignition switch, electricity meter, direction selector switch, turning signals, brake lights, horn meter, etcFRONT WINDSHIELDFoldable, high strength organic glassSELECTION FITTINGRain curtain, ECU electric power steering system, radio, luxury leather seatsMAIN TECHNICAL PARAMETERS AND PERFORMANCE INDEX OF THE VEHICLEWEIGHT1290KGCHARGING TIME8-12 hoursL*W*H (MM)4830×1460×2020mmMAXIMUM MILEAGE≥100kmWHEEL BASE2620mmMINIMUM GAP170mmFRONT TREAD1290mmMIN. BRAKING DISTANCE≤5mREAR TREAD1260mmGRADEABILITY25%MIN TRUNING RADIUS5500mmMAXIMUM SPEED24-30km/hSEATER14 SEATSMAXIMUM BACK SPEED9-13km/hCHARGING TIME8-12 hoursCONTAINER LOADING2/20GP, 4/40HQ
PRODUCT DETAILS
Royal grace presented in chrome plate front shades and headlingts in heroic style
Console easy for driving brings freedom for movement
Noble leather seats, comfortable in seating
Big famous vacuum tire fullybears the strong load, and make the dring steadly
Good confort suspension system
Electric prower steering system ECU

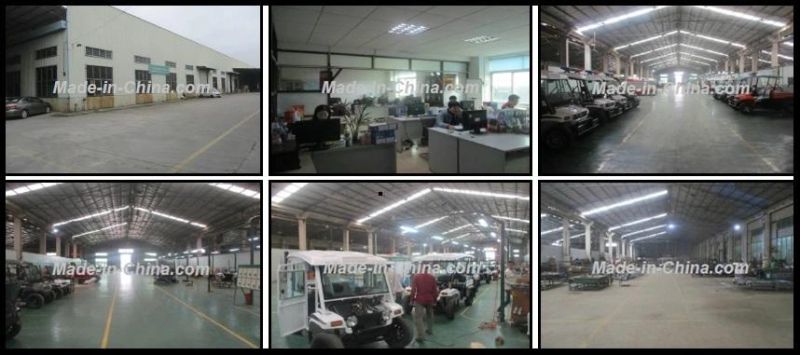

FACTORY
In the Nansha Free Trade Zone
20 minutes from Canton Fair
One hour from Guangzhou Baiyun International Airport


CERTIFICATE
ISO9001 Certificate
ISO14001 Certificate
OHSAS18001 Certificate
CE Certificate
Trademark Certificates
Patent Certificates


PACKING & DELIVERY
SKD package by Iron frame
Leatheroid package outside
20 days delivery time
30 minutes to Nansha Port and 40 minutes to Huangpu Port
