Specialized Vehicle

Home > Product > Garbage Truck

Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Type：Garbage Compactor Truck
  • Certification：ISO9000, CCC, CE
  • Volume：3001-6000L
  • Emission Standard：Euro 4

Base Info

  • Model NO.：CLW50O4
  • Transmission Type：Manual
  • Payload：5t
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Isuzu
  • Models：Small
  • Usage：Compression Type
  • Condition：New
  • Chassis Brand：Isuzu, Dongfeng, Foton, Sinotruk, JAC, etc.
  • Campacting Ratio：0.6-0.8 Ton,M3
  • Compression Cycle Time：No More Than 15s
  • Unload Garbage Time：No More Than 23 S
  • Hydraulic Pressure：16MPa
  • Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
  • Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
  • Garbage Box Capacity：4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
  • Dirty Water Tank Volume：0.2cbm
  • Hopper Volume：0.8cbm
  • Controlling Way：Manual and Electrical Control
  • Color：as Per Customer′s Request
  • Certificate：ISO,CCC,SGS,BV
  • Logo：Customized
  • Transport Package：Naked Pack with Wax
  • Specification：6CBM
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

 ** Back alarm and Camera can be equipped.** Italy mulit-valve can be choose.** 240L (single bin or double bin) or standard 660L, 1100L bins with bin lifter can be choose.

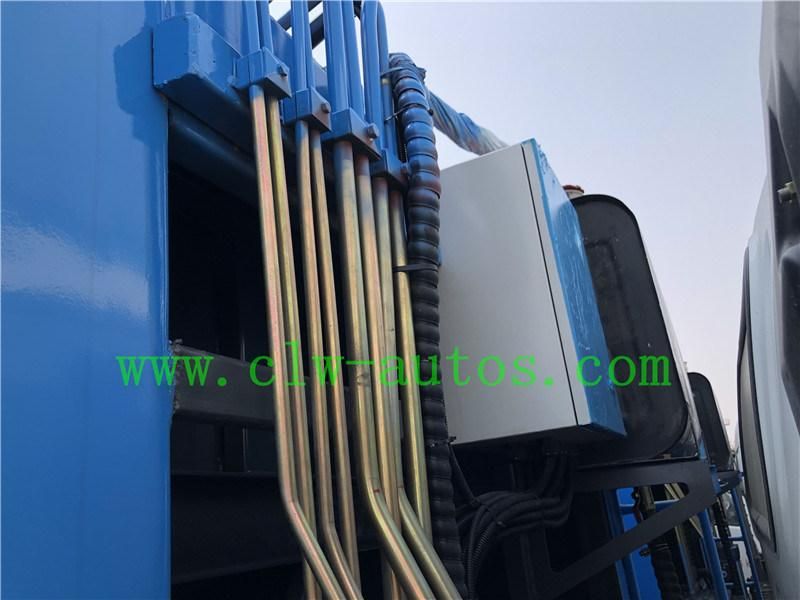

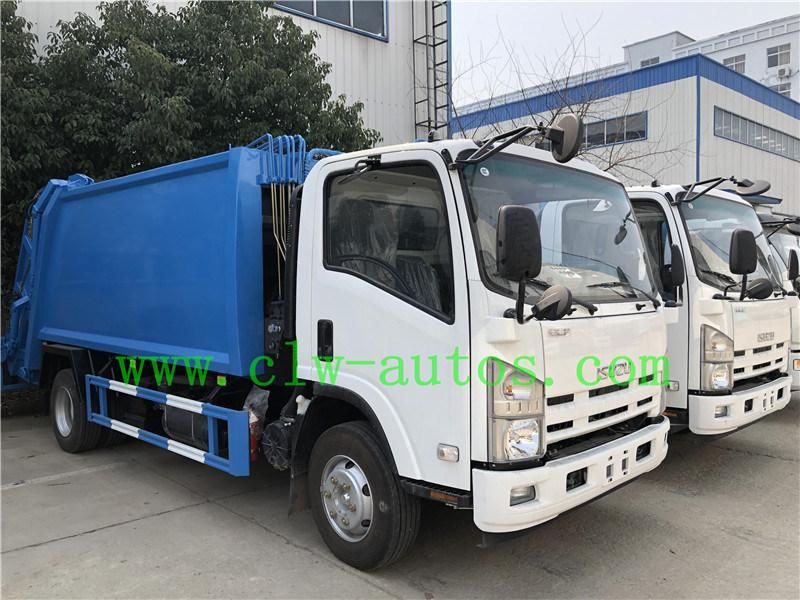

Reference photos
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage TruckIsuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage TruckIsuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage TruckIsuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck
Truck diagram
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck

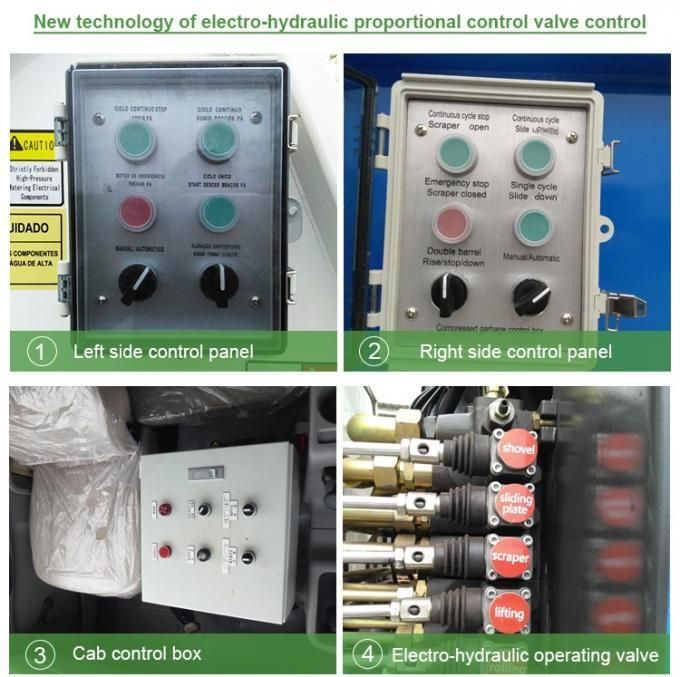

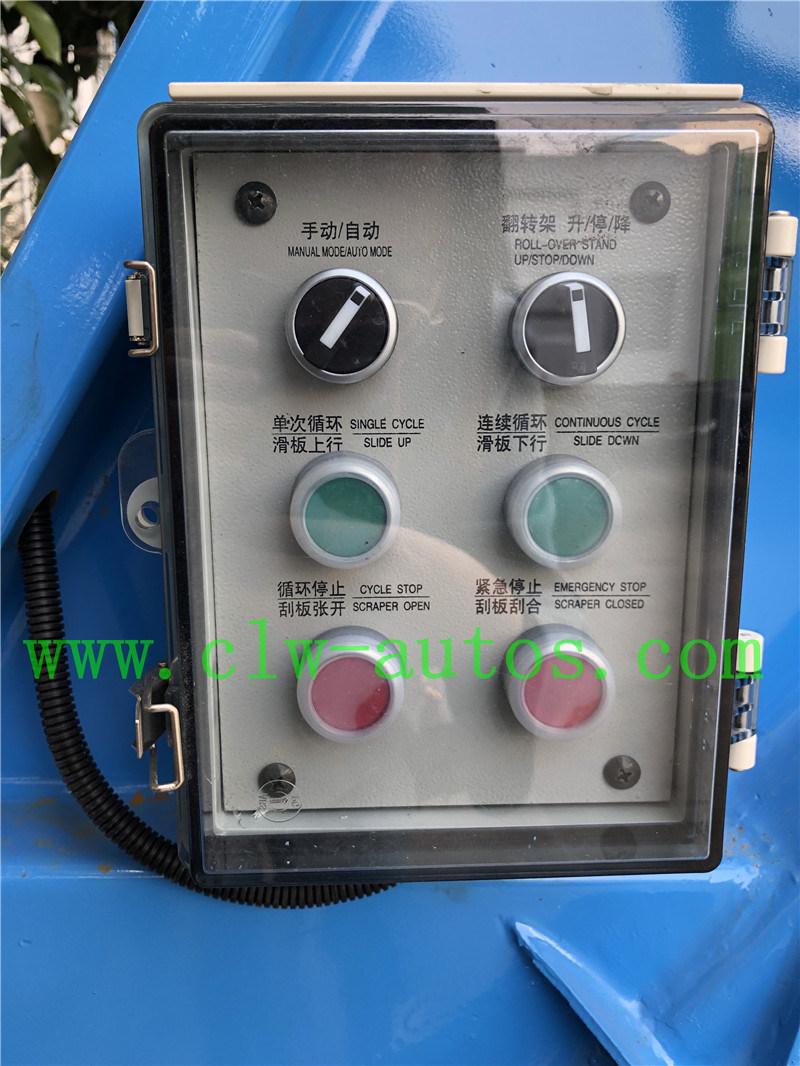

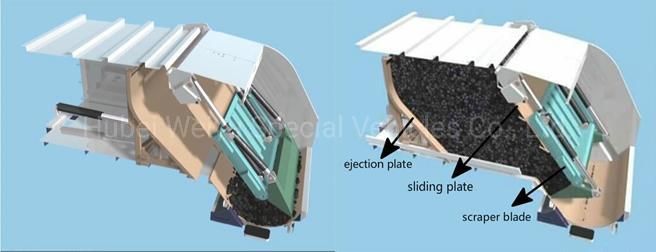

Main Working System
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck

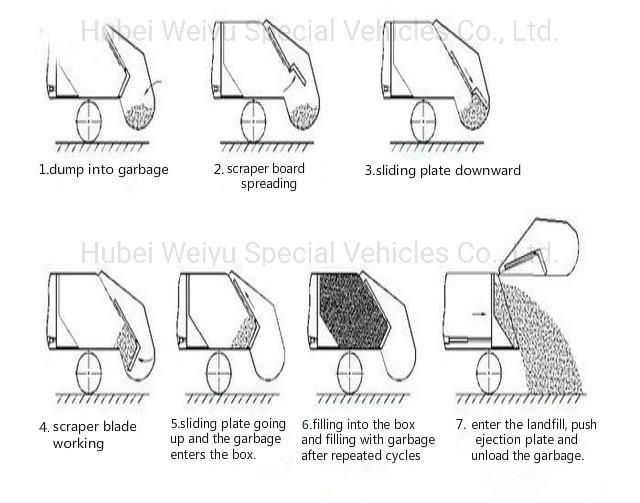

Garbage Loading and Unloading Process
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck
Various Kinds of Garbage Trucks
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck
Factory overview
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck
Successful Cases
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck
Customer Inspection
Isuzu 6cbm 4X2 Compactor Garbage Truck Compressed Garbage Truck

After-sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
