Specialized Vehicle

WAW 10 Cube Meter Sprinkler for Environmental Sanitation

Shandong Wuzheng Group Co., Ltd.
  • Volume:5001 - 10000L
  • Certification:ISO9000
  • Emission Standard:Euro 4
  • Sprinkling Area:>16m
  • Transmission Type:Manual
  • Payload:10ton

Base Info

  • Model NO.:Z116A3D3KDGT08
  • Fuel:Diesel
  • Drive Wheel:4×2
  • Engine Capacity:4 - 6L
  • Condition:New
  • Transport Package:Nude
  • Specification:7290*2310*2825(mm)
  • Trademark:WAW
  • Origin:China
  • Production Capacity:100000units,Year

Description

10 m³SprinklerModelZ116A3D3KDGT08cabinone and a half cabinEngine modelWP4.1Q150E50/110KW
EURO IV transmissionWAN LI YANG 655,ratio 6.158Rear axle1093 air-cut valve rear axle/5.286/ABSChassischannel steel riveted straight beam 800×200×65×7 Capacity10m³Wheelbase4200mmflow60m³/hHead of delivery90mMaterial of bodyQ235AWidth of body4mm Max.width of preshoot20mMax. width of sprinkle backward16mMax.range 35mColor(optional)Functional allocationA/C, Electric window
Overall dimension7290×2310×2825(mm)
Gross weight15800(Kg)
Curb weight 5940(Kg)
Rated capacity9665(Kg)
Perons in cabin3
ABS
Approach angle/departure angle16/15(°)
Front suspension/rear suspension 1250/1840(mm)
Max.speed95(km/h)
Oil consumption(L/100km)26.0
Spring number8/8+8
Tyre number6
Tyre size9.00R20 16PR,9.00-20 16PR
Front tread1750
Axle tread1720,1665

WAW 10 Cube Meter Sprinkler for Environmental Sanitation
Wuzheng Group is one of the key players of  machinery engineering in China, originated in 1961. It set up agricultural vehicle business in 1984 and in 2000 was restructured as private ownership.
Nowadays, a diversified industrial pattern of agricultural vehicles, automobiles, agricultural equipment, sanitation equipment and modern agriculture, boosts a coordinated development. 12,000 employees and total assets of 14 billion yuan ground it in reputation and honorable tittles of national, provincial, municipal and industrial levels.
WAW 10 Cube Meter Sprinkler for Environmental Sanitation


Diversified Industrial Pattern
Wuzheng is committed to innovation-driven industry and product upgrades.
WAW 10 Cube Meter Sprinkler for Environmental Sanitation
1 Wuzheng Tricycles -Wealth Creator
Since 2010, Multiple functions such as transportation, faming, mining, trading and etc. forge a fame of No.1 sales in agricultural vehicle industry and No.1 brand in the nationwide.
In addition, 3MX, developed by international R&D  team, dominates the industry with subversive styling, invention patents, 30 utility model patents, 12 appearance patents, 86 product innovations than in previous 40 years.
2  Feidi Motors- Light Truck Navigator
In 2005, Wuzheng set foot in automobile industry, having cultivated Feidi W, Feidi Q, Feidi WAW, Feidi DITO series
In 2016-2017, DITO family(logistic model, race model, double-row model, medium truck, RV, new-energy model)  was launched in succession to cater for diversified market demands.
3 Agricultural Equipment- Booster for Agricultural Modernization
In 2009, Wuzheng renovated it position in senior  market after M&A, providing products with high added values and strong competitiveness.  RENOMAN of 180~260hp, silage, corn, wheat, and peanut harvesters, tobacco machinery and  etc, enrich the product lineup.
4  Sanitation Equipment- Industry Pioneer
On the occasion of sanitation integration and rural reconstruction, Wuzheng has been devoted to providing solution package from collection, disposal to transportation such as hooking-arm model, dumping model, sprinkler, sweeper, waste transfer station and etc.
5  Modern Farming- Participant of international agricultural & livestock
WAW 10 Cube Meter Sprinkler for Environmental Sanitation



WAW 10 Cube Meter Sprinkler for Environmental Sanitation

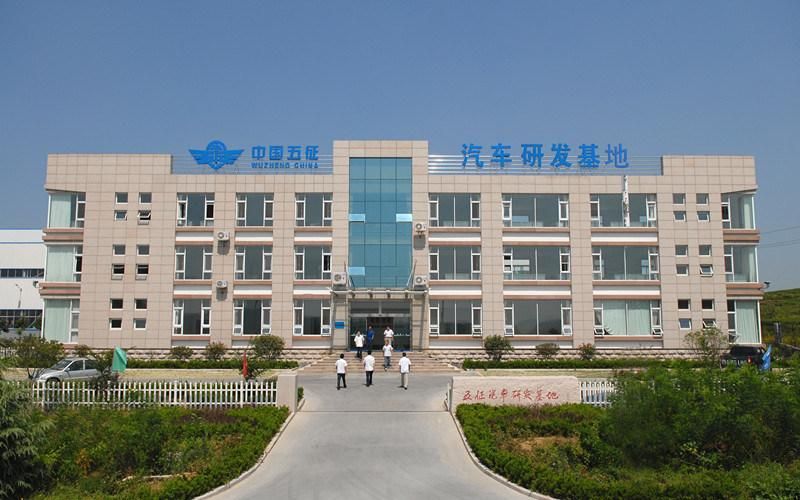

Advanced R & D Analysis and Tests
As a"Corporate technical center", "Industrial design center" "CNAS center"identified by the nation  and academician and postdoctoral workstation, Wuzheng undertakes and is engaged in 40+ nationwide technological supporting projects, 630 invention patents and utility model patents and formulation of 60 national and industrial standards and etc.
WAW 10 Cube Meter Sprinkler for Environmental Sanitation


Automation and  Intelligent Manufacturing

Modern Management
Wuzheng lays importance onto comprehensive information management such as SAP system, 6σ & lean management methodology, IATF16949 system and so on, in achieving so, Wuzheng  recruits HP,  Deloitte, Roland Berger consulting of theory, methodologies and tools.
Global Distribution Networks
Up so now, Wuzheng has established 1500+ sales and service channels and 8million+ loyal customers in the worldwide. By 2019, Wuzheng enables a brand value of 5.663 billion yuan. Wuzheng has paved distribution network in 60+ countries, along with the "Belt and Road", Wuzheng will speed up the pace of "Go Globa
