• Model NO.：CLW5080GKZYC
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Produce Name：High Altitude Operation Truck
• Lifting Height：14m, 16m, 18m, 20m, 22m
• Bucket Loading Weight：200kg
• Bucket Size：1000X650X1200mm
• Turning Angle：360 Degree
• Arm Type：Folded or Telescopic
• Max Working Height：16meters
• Front Legs：H Shape
• Rear Legs：H Shape
• Hook Weight：800kg
• Optional Brand：Dongfeng, Isuzu, Forland, Sinotruk FAW
• Color：Customized
• Logo：Customized
• Transport Package：Naked Package
• Specification：16meters
• Trademark：CLW WEIYU
• Origin：China
• HS Code：870590990
• Production Capacity：500unit,Month

Basic Info.

Model NO. CLW5080GKZYC Transmission Type Manual Drive Wheel 4x2 Condition New Produce Name High Altitude Operation Truck Lifting Height 14m, 16m, 18m, 20m, 22m Bucket Loading Weight 200kg Bucket Size 1000X650X1200mm Turning Angle 360 Degree Arm Type Folded or Telescopic Max Working Height 16meters Front Legs H Shape Rear Legs H Shape Hook Weight 800kg Optional Brand Dongfeng, Isuzu, Forland, Sinotruk FAW Color Customized Logo Customized Transport Package Naked Package Specification 16meters Trademark CLW WEIYU Origin China HS Code 870590990 Production Capacity 500unit/Month

Product Description

SINOTRUK HOWO 16m Bucket Truck 4x2 China Aerial Platform Truck High Altitude Operation Truck

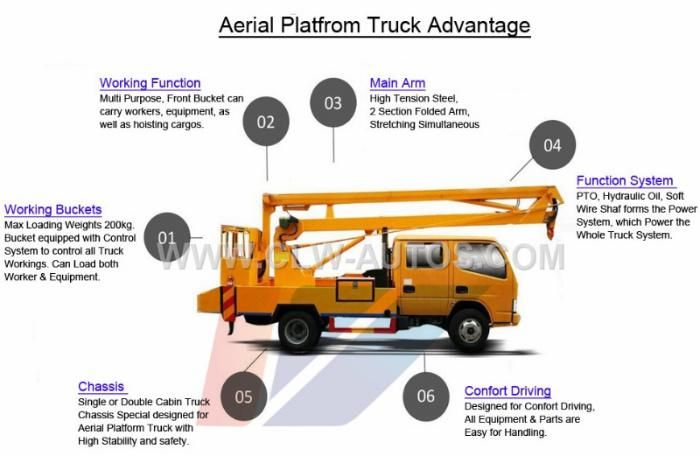

Product Description1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.3. Full Computer Control System with Danger Waring System.4. LCD Screen in Both the Bucket and Truck to Display the Working Status.5. Rectangular Shape Arms to Increase the Arm Strength.6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Product Specification

Overall dimensions	8450×2050×3100 mm
Wheel base	3800 mm
F/R track base	1015/2280mm
Approach/departure angle	24/10°
Cabin	Double Row, Left Hand Driving, with A/C, Radio
Engine Power	103 KW
Gearbox	5 foward &1 reverse
Steering Gear	Hydraulic Power Steering
Max speed	90 km/h
Tire specification	7.00-16, 6 Pieces
Traction system	4x2
Equipment	1. Max operation height:16m (including 1.7meter person height, net height is 14.3meter), 2. Max operation radius≤ 9.2m, 3. Max working platform height≤12.5m,  4. Working platform rating loading≤200kg, 5. Working platform rating allowable passengers=2,  6. Working platform dimension:1100*570*1000mm,  7. 360°turning(left or right), 4 H-shape legs.  8.The cage be operated both in the air and on the earth 9. Control System: Manually 10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg

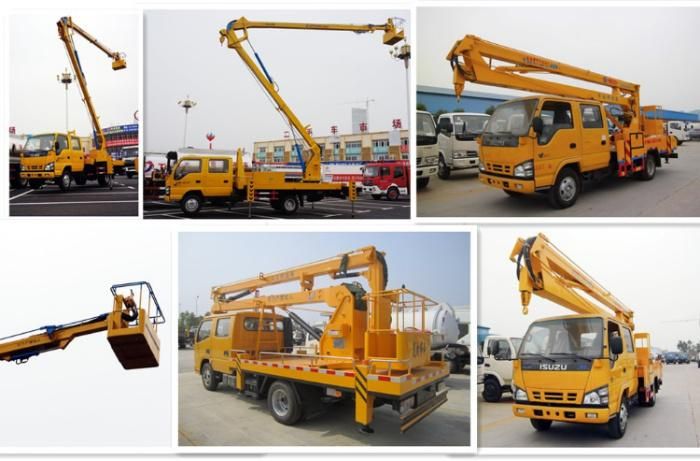

Reference Photos




Successful Case

Customer Inspection

Overseas Exhibition and After-sales Service
