• Model NO.：CLW
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Description：Foton 4*2 12-15m Aerial Platform High-Altitude
• Exhaust：2771ml, 3556ml
• Color：White, Yellow, Blue...as You Like
• Working Height：12m, 13m, 14m, 15m
• Working Platform Rating Allowable Passen：2
• Working Platform Dimension：1100*570*1000mmmm
• Max Speed：90km,H
• Warranty：12 Month for Three Key Parts( Engine Gear-Box Axle
• Brand：Foton
• Export Markets：Global
• Transport Package：Waxed or Naked Before on Board
• Specification：ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC
• Trademark：CLW BRAND
• Origin：Hubei Suizhou
• HS Code：87053010
• Production Capacity：200unit,Month

FOTON High Altitude Operation TruckDrive Model4X2ChassisBJ1053Vehicle Main DimensionsDimensions(L x W x H)mm6960*1990*3150Wheel base (mm)3360Overhang (front/rear) (mm)1150/1950Wheel track (front/rear) (mm)1545/1525Approach/Departure angle(°)21/13Weight in KGSGVW.5200Curb Weight4810Max. driving speed(km/h)95EngineModelCY4102Type4-stroke direct injection ,
 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)99HPEmission standardEuro IVGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)100Tire7.00-16, 6 pieces+1 spare tireBrakesdual circuit compressed air brakeEquipmentSuperstructure parameter1,max operation height>=16m,max operation radius>=7.5m
2,max working platform height>=14m, working platform rating
 loading=200kg,hook maximum lifting weight(kg):1000kg.
3,working platform rating allowable passengers=2, working platform
 imension:1100*570*1000mm,360°turning(left or right),4 H-shape legs.Standard equipment1. Four rotational alert lamps on the platform deck.
2. Four hydraulic outriggers which can be operated independently
or simultaneously
3. With an Insulated bucket for worker to operation and lifting hook
4. Three section Folded Arms, 360° rotation
5. Imported electro-hydraulic ratio control valve.
6. Operation Control on operation bucket or platform deck

Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

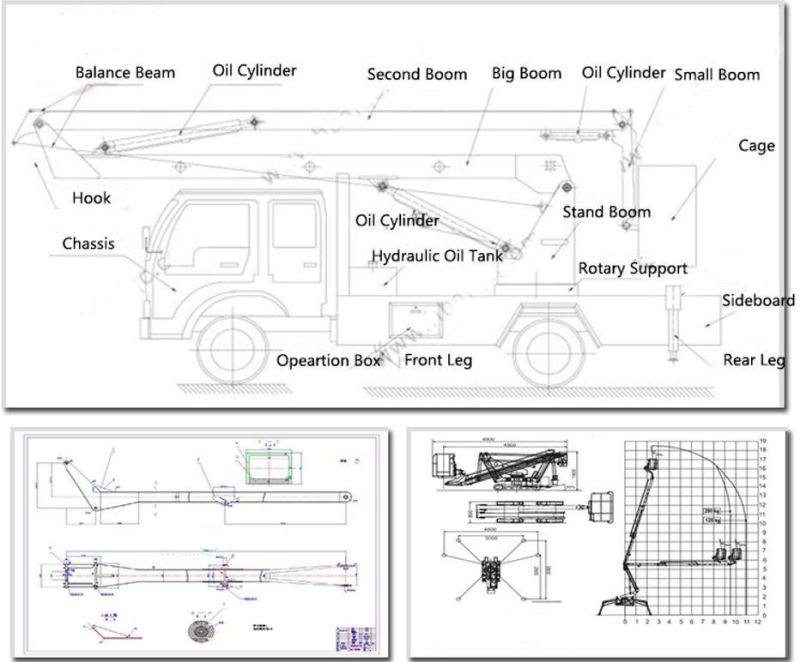

Main structure:

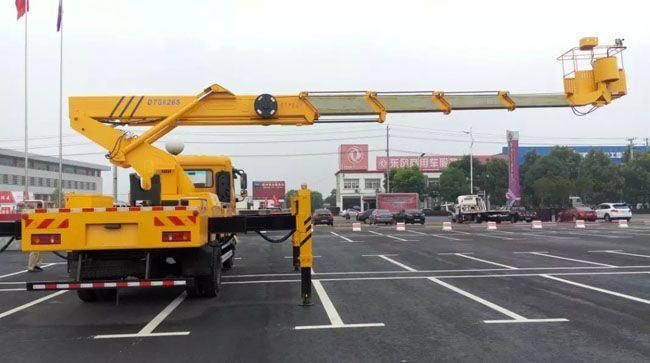

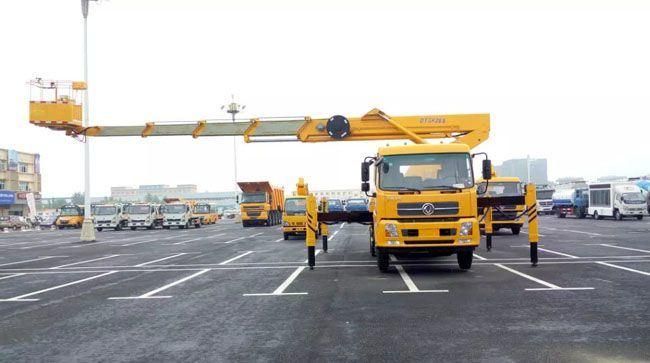

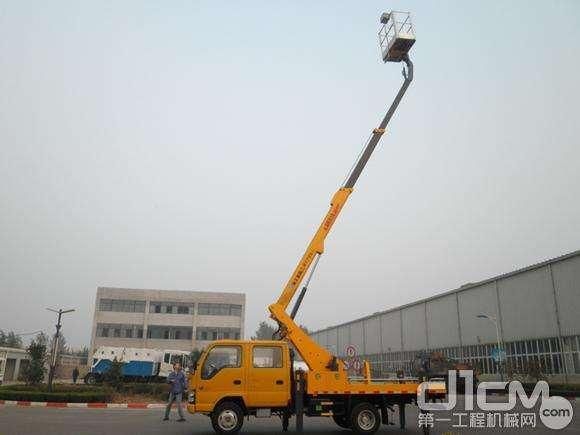

Detail pictures

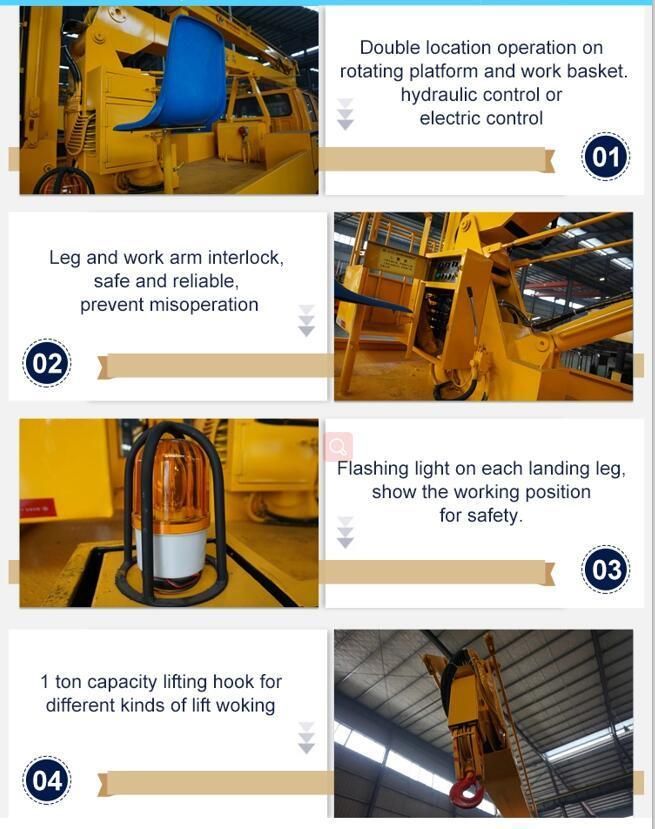

More details:





About us

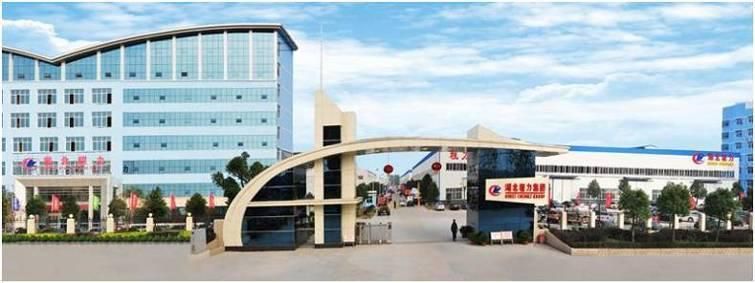

Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.



 1. CLW Heavy Industry Co., Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer having nearly 15 years wholesaler experience in producing truck.

  2.Our company has independent export right and has amount of clients overseas including Africa, North America, Middle East, Australia and so on. The export turnover has reached 25million dollars.

 3.Our company has good after-sales service, solid technology, flawless inspection for our dear customers.







Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )<o: P="">



FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery.   All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.


Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.




Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
