• LED Tube Core Type：III
• Self-powered：Self-powered
• LED Screen Type：P4,P5, P6
• Power Supply Mode：Own Generator-powered
• Truck Chassis Brand：Foton
• Hand Driving：LHD or Rhd
• Frame Body：Composite Steel
• LED Screen：Waterproof, Shake-Proof, High Brightness
• Floor：Aluminum Patterned Floor
• Control System：Computer,Electrical Distribution Box
• Power Supply：Silent Diesel Generator or Indoor Power Supply
• Sound System：Loudspeaker 4PCS, Amplifier 1PC
• Logo：as Customer′s Request
• Warranty：One Year
• Transport Package：Bulk Ship, RO-RO
• Specification：5995X2190x3300mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5995×2190×3300(mm)Gross Vehicle Weight4495(Kg)Curb Weight4250(Kg)Chassis SpecificationChassis parametersChassis BrandFOTONCabinSingle, Left Hand Driving, with A/CEngineModel4 CylindersPower72KW/98HPEmission standardEURO 3Displacement2.771LFuel typeDieselGearbox5 Forward & 1 Reverse GearFront and Rear Axle load2.2T/5TWheel base3360(mm)Overhang( Front/Rear)1095/1540(mm)Angle(Approach/departure)22/16 (°)Brake SystemOil brakeSteering GearPower AssistantTire700R16, 6 Pieces with 1 Spare TireMaximum speed90(km/h)SuperstructureLED ScreenPixel

Outdoor full colour display screen P6

Dimension(LxW)(mm)

Both side: 3840*1728

Rear:1280*1440

Description

Screen lift on both sides

Waterproof, shake-proof, high brightness, long life

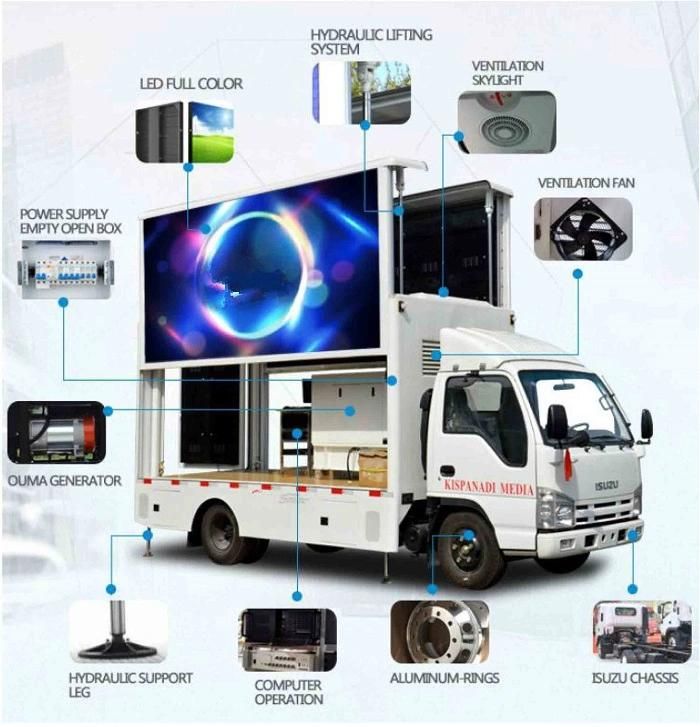

General configuration

1. OUMA brand,Silent diesel generator, 15KW

2. One set industrial computer with control system

3. Sound system: Loudspeaker 4pcs, amplifier 1pc

4. Internal and external electrical distribution box.

5. Circulating ventilation and cooling systems.

6. 5CM composite steel frame body

7. Aluminum patterned floor

Remarks

Equipped with Hydraulic stage

The color of the superstructure is oprional.

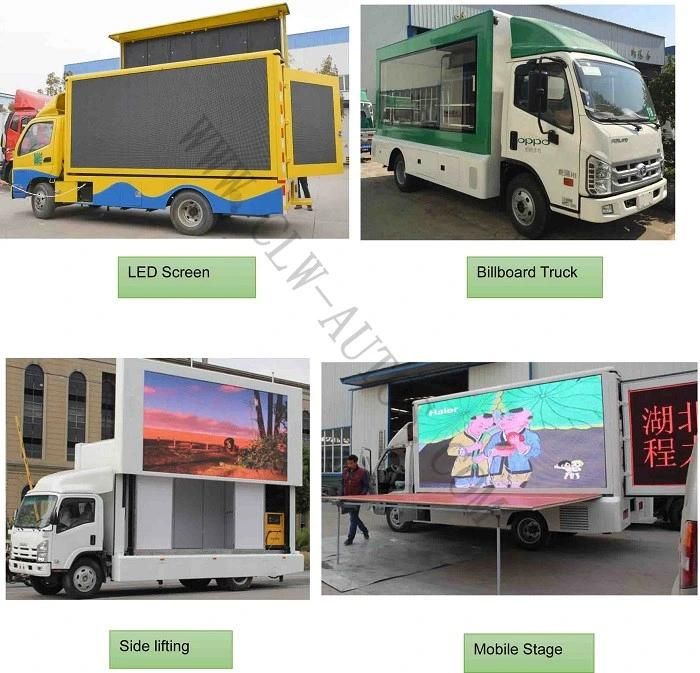

Product Diagram



Optional Parts





Production Process






Overseas Training

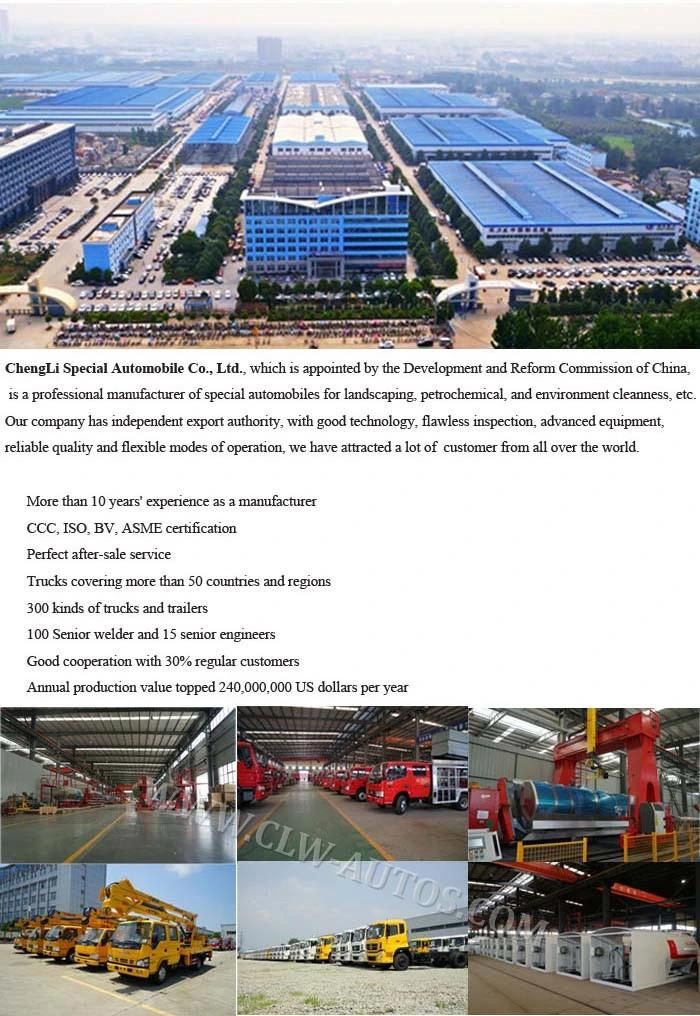

Company Introduction




Overseas Exhibition and Local Support



Cusomter Visiting and Inspection







Contactor Alice for more details (+86 180 7154 2196)
