• Transmission Type：Manual
• Payload：3-5tons
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：HOWO
• Models：Medium
• Usage：Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type
• Condition：New
• Hand Driving：LHD or Rhd
• Chassis Brand：HOWO, Dongfeng, Foton, Shacman, Isuzu
• Fuel Type：Diesel
• Material：Carbon Steel
• Thickness of Garbage Box：Side 4mm and Bottom 4mm
• Horsepower：140HP
• Campacting Ratio：0.72-0.8 Ton,Cbm
• Operating System：One in The Cabin, One on The Back of The Truck
• Logo：as Per Customer′s Request
• User Manual：Yes
• Operating Video：Yes
• Loading Capacity：3tons, 4tons, 5tons, 3 Tons, 4 Tons, 5 Tons
• Wheel Base：3800mm
• Garbage Box：4m3 5m3 6m3
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6640x2496x2670mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：800 Unit,Month

CabinDriving type 4x22080 Standard cab, with three seats, with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.Vehicle Main DimensionsOverall dimensions (L x W x H)mm6500x2150x2600Wheel base (mm)3800Wheel track (front/rear) (mm)1798/1764Approach/Departure angle(°)27/20Weight in KGSTare Weight6400Loading Capacity5000Front axles loading capacity1x3200Rear axles loading capacity1x8200Max. driving speed(km/h)90EngineBrandYUCHAIModelYC4E140-20Type4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)140 HPEmission standardEuro-IIGearboxWLY6T51 , 6 forwards &1 reverseClutchDiaphragm spring clutchSteering GearPower steeringFuel tank (L)120 LTire7.00R16 All radial tires with one spare, 7 piecesCompression garbage box body systemBody Volume6CBMCycle Time of Filling(S)≤40Lifting Time of Filler(S)8-10Time of Discharging≤60Working Pressure(MPA)16Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

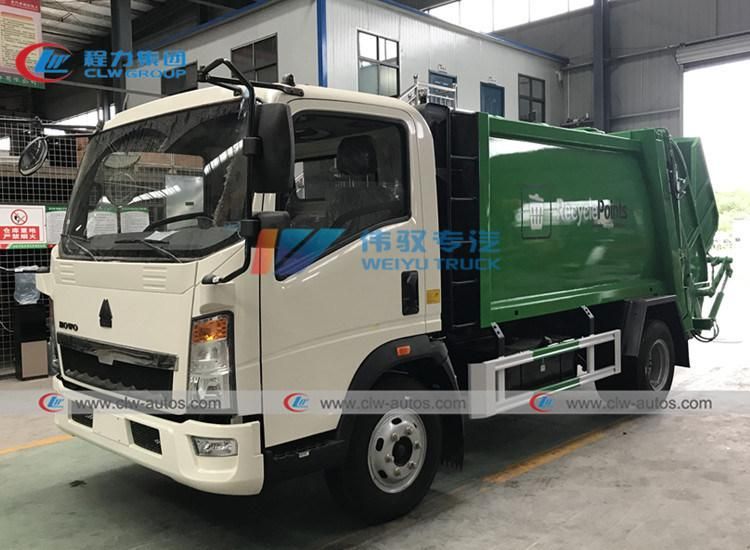

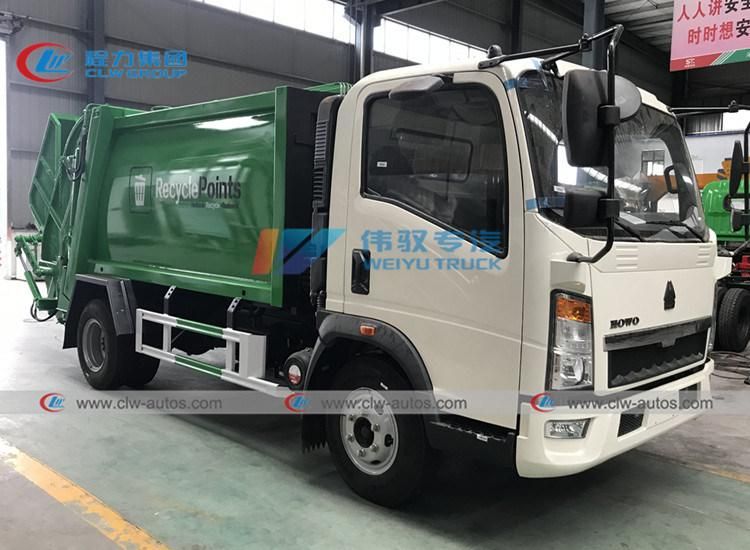

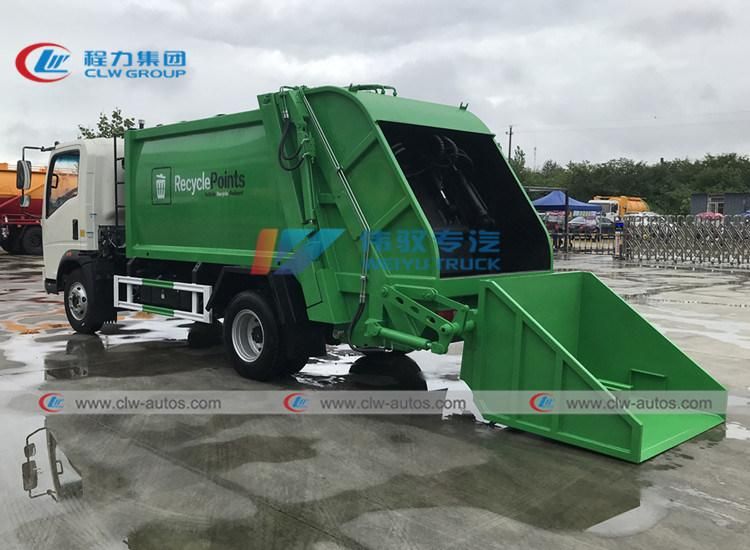

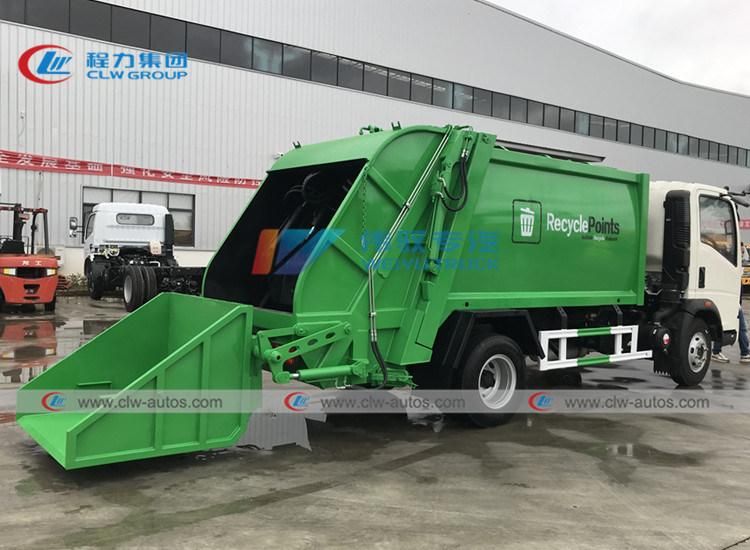

Pictures of HOWO Garbage compressor Truck

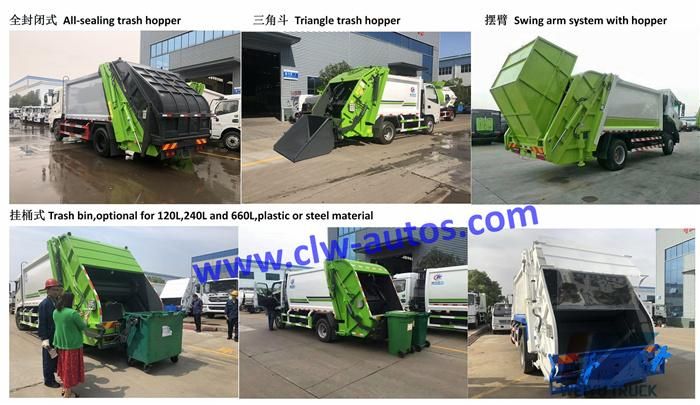

Different designs of Garbage compressor Truck

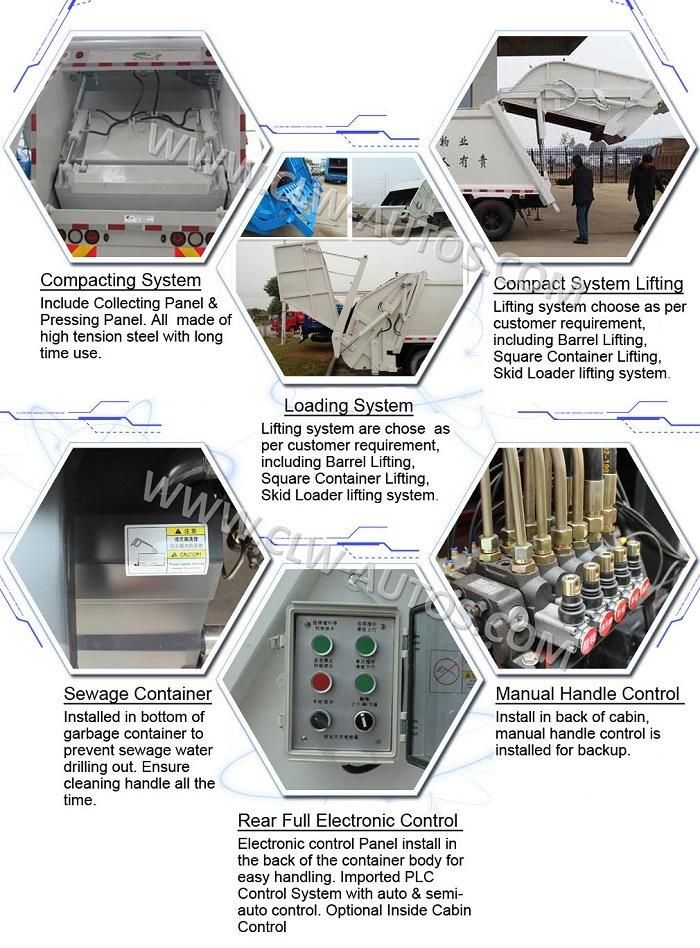

Truck Details of garbage compressor truck

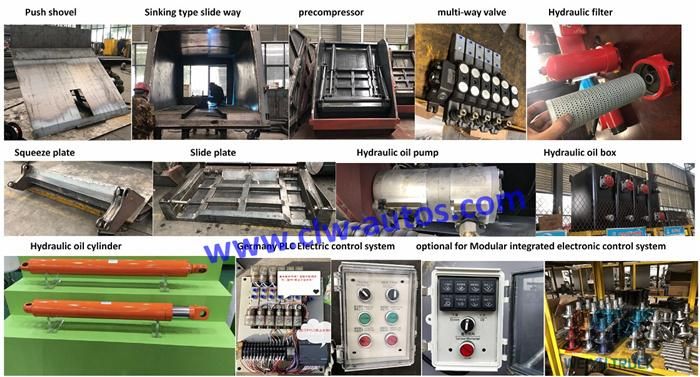

Import parts of garbage compressor truck

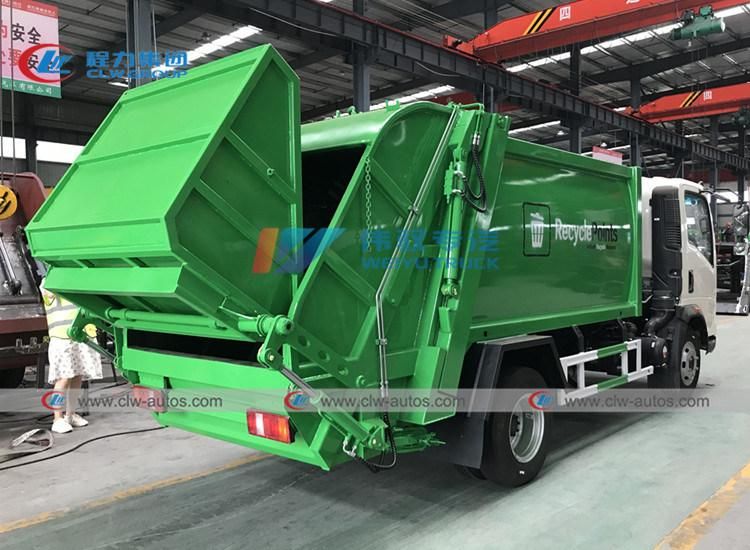

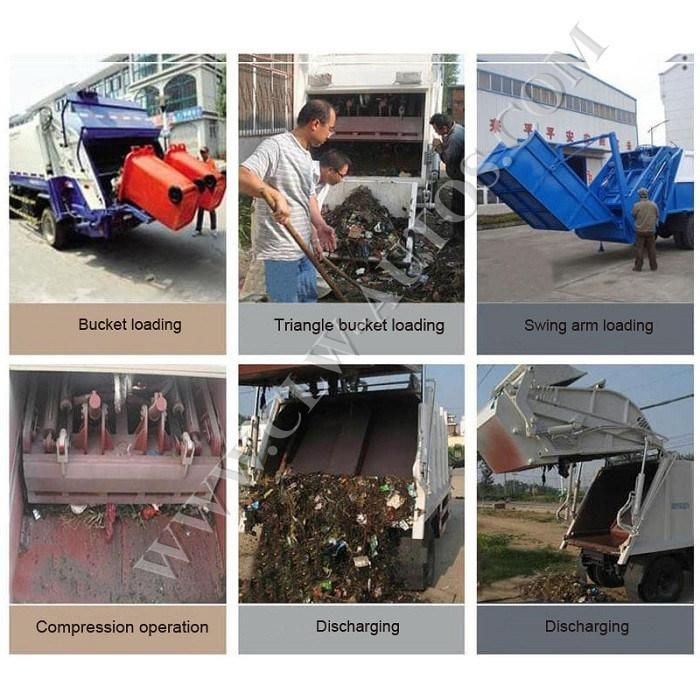

Working Show of garbage compressor truck

Overseas Exhibition and Local Support



Customer Visiting and Inspection
