• Model NO.：5.5CBM
• Drive Mode：6x4
• Maximum Horsepower：200-300hp
• Condition：New
• Transport Package：Container Shipment
• Specification：5080*2250*2280
• Trademark：Speedlane
• Origin：Hunan, China
• Production Capacity：50PCS Per Month

Basic Info.

Model NO. 5.5CBM Drive Mode 6x4 Maximum Horsepower 200-300hp Condition New Transport Package Container Shipment Specification 5080*2250*2280 Trademark Speedlane Origin Hunan, China Production Capacity 50PCS Per Month

Product Description

Mixer Truck Drum 5.5/6cbm

>>>>>Main Feature

1. Multi Types of Chassis Match

1. The upper can match with different Chassis of 2,3 or 4 axles
2. The upper can be designed to match with different Chassis as requirement.

1. Mixing Drum Structure

1. The drum body and blades are made by quality wearable exclusive steel plate with light weight of Baosteel Q345B. And the drum is suit for transport both dry and wet materials.
2. The surface welding adopt manipulator double welding enables the strength structure and long service life.
3. Double pitch special designed blades ensure the fully mixing inside and low discharge surplus rate.
4. Unique design of agitator inclined angle with the whole drum make the lower and stable center of gravity, this makes the driving more steady and discharging more smooth, and gains better traffic ability.

1. Hydraulic System

1. Closed circuit hydraulic system and constant hydraulic oil temperature controller
2. Adopt world famous brand hydraulic pump, hydraulic motor, reducer and radiator. Also provide muti options for different requirement.

1. Water Supply

1. Pneumatic water supply system with large water tank which can wash different points including agitator drum, charging hopper and discharging hopper respectively.
2. Rational layout and elegant appearance of washing pipes make the washing more convenient and rapid.

>>>>>Specification


	5.5CBM
Mixing Drum Parameter
Mixing drum material	5mm Q345B
Agitating capacity	5.5m3
Drum overall dimension(with frame)	5080*2250*2280
Discharging rate	≥2m³/min
Top feed hopper dimension	750x750
Discharging rate	≥1m³/min
Residual rate	≤1%
Water supply	Water Pipe
Water tank capacity	200L
Radiator	Chinese brand
Reduction gear	Chinese brand
Hydraulic pump	Interpump (Italy brand)
Hydraulic motor	Interpump (Italy brand)
Accessory	Radiator filter, Oil seal

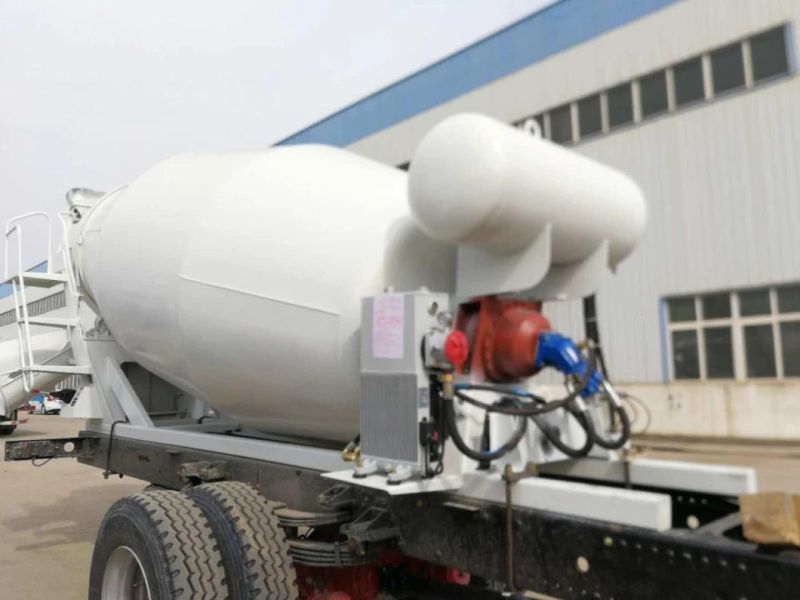

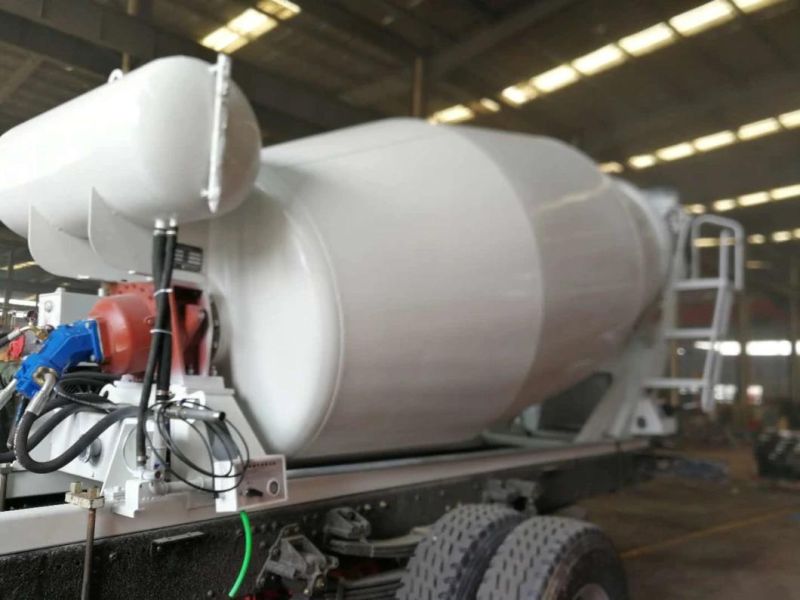

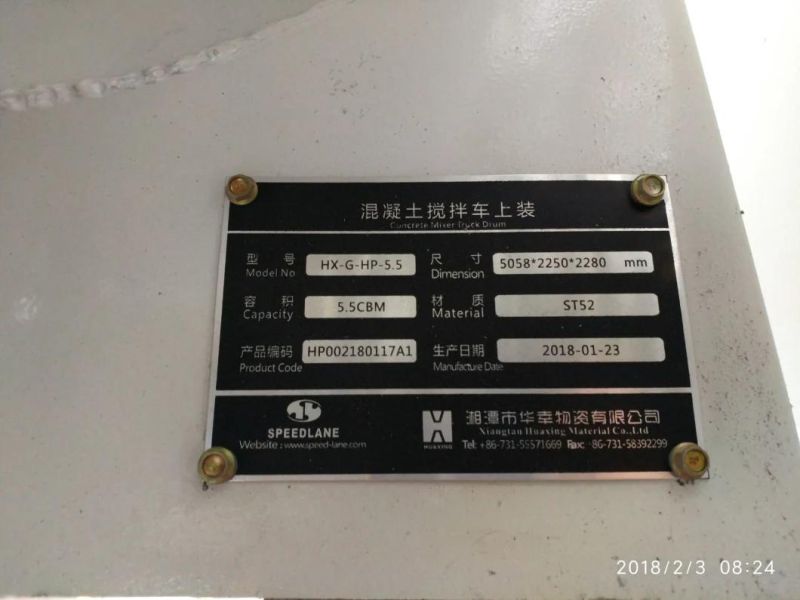

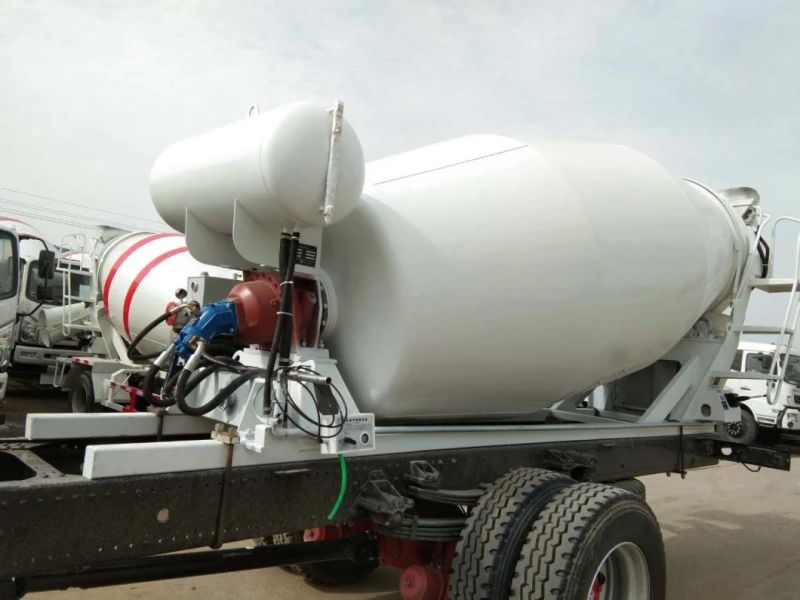

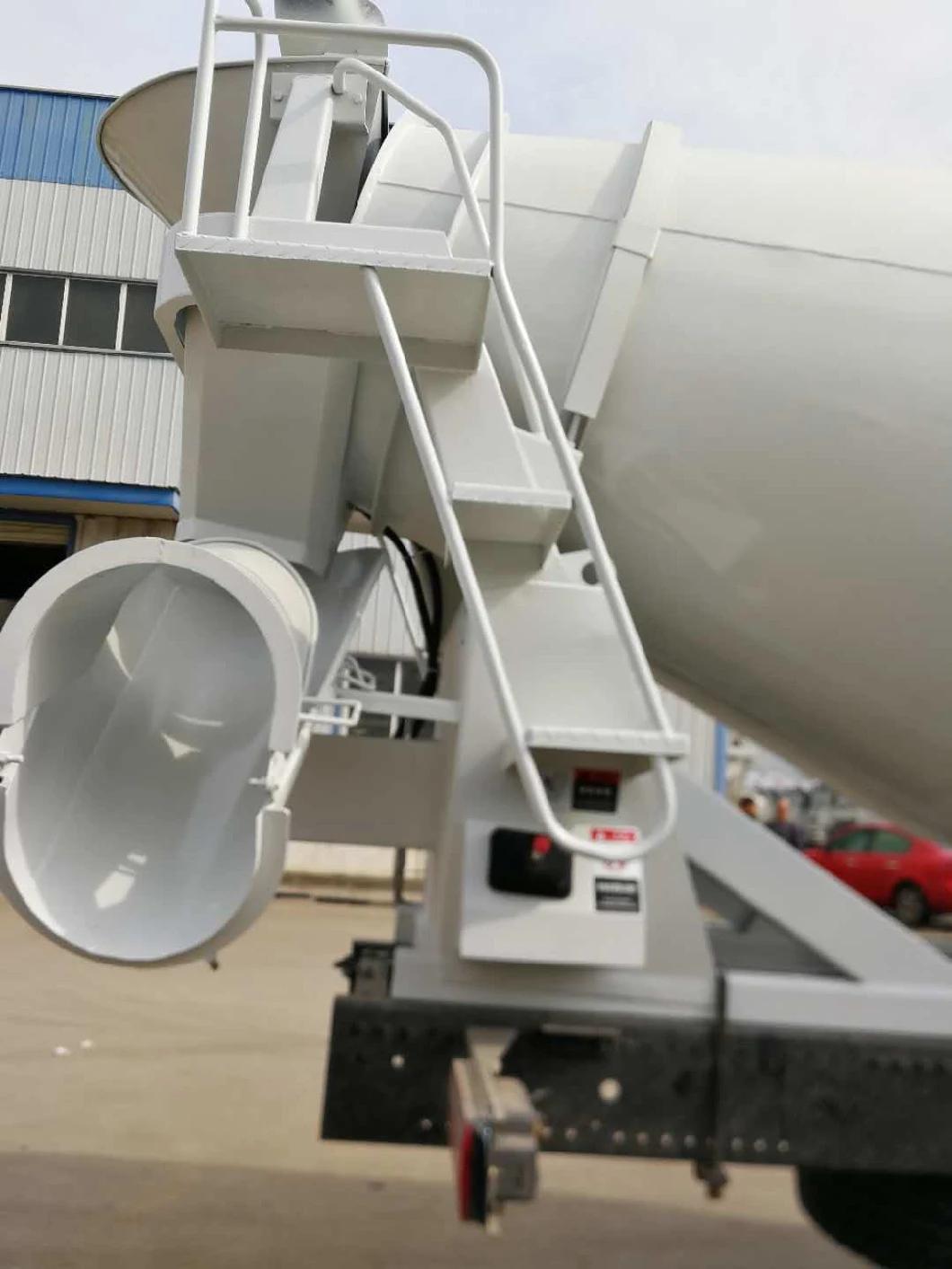

>>>>>Product Image

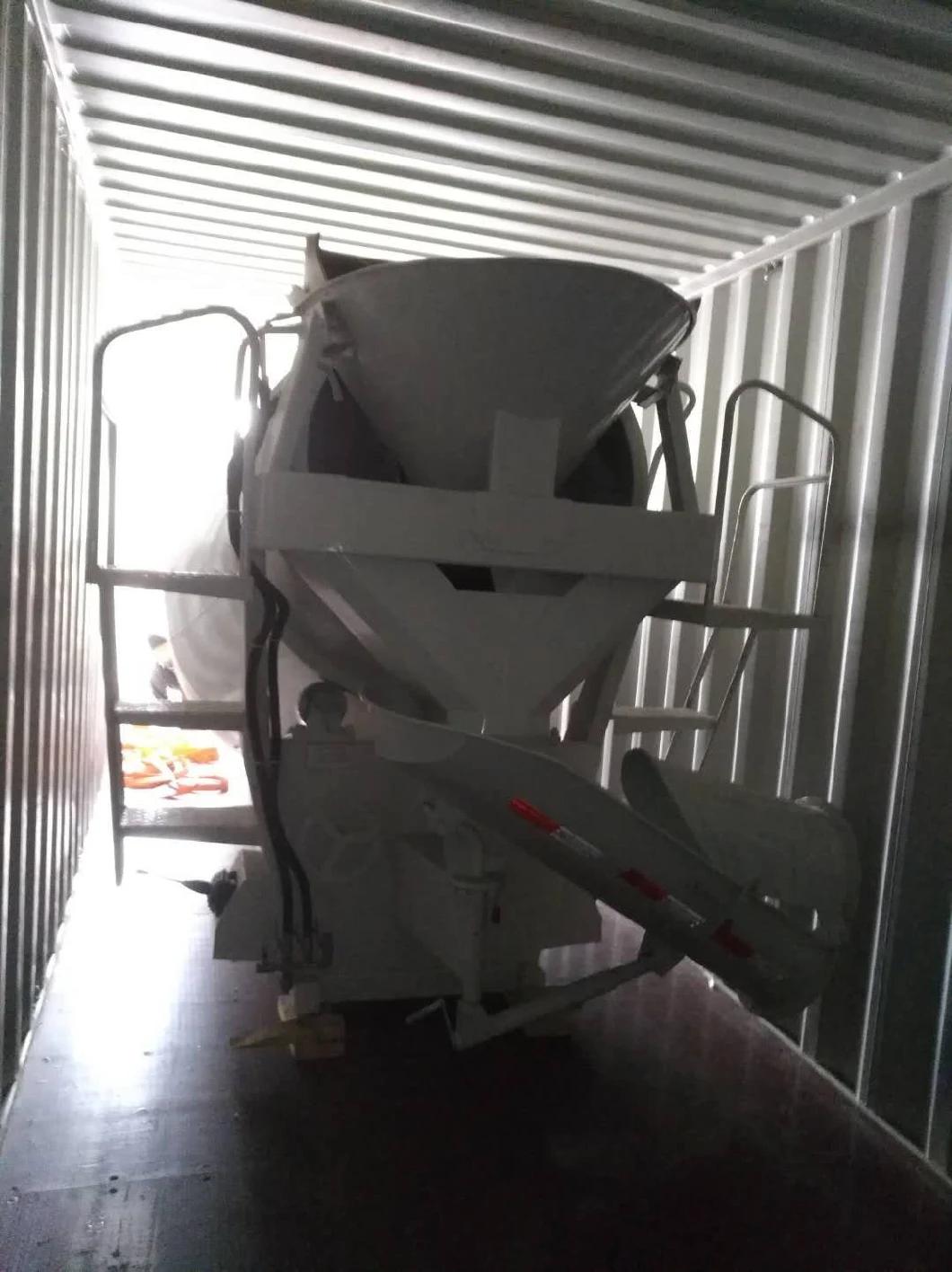

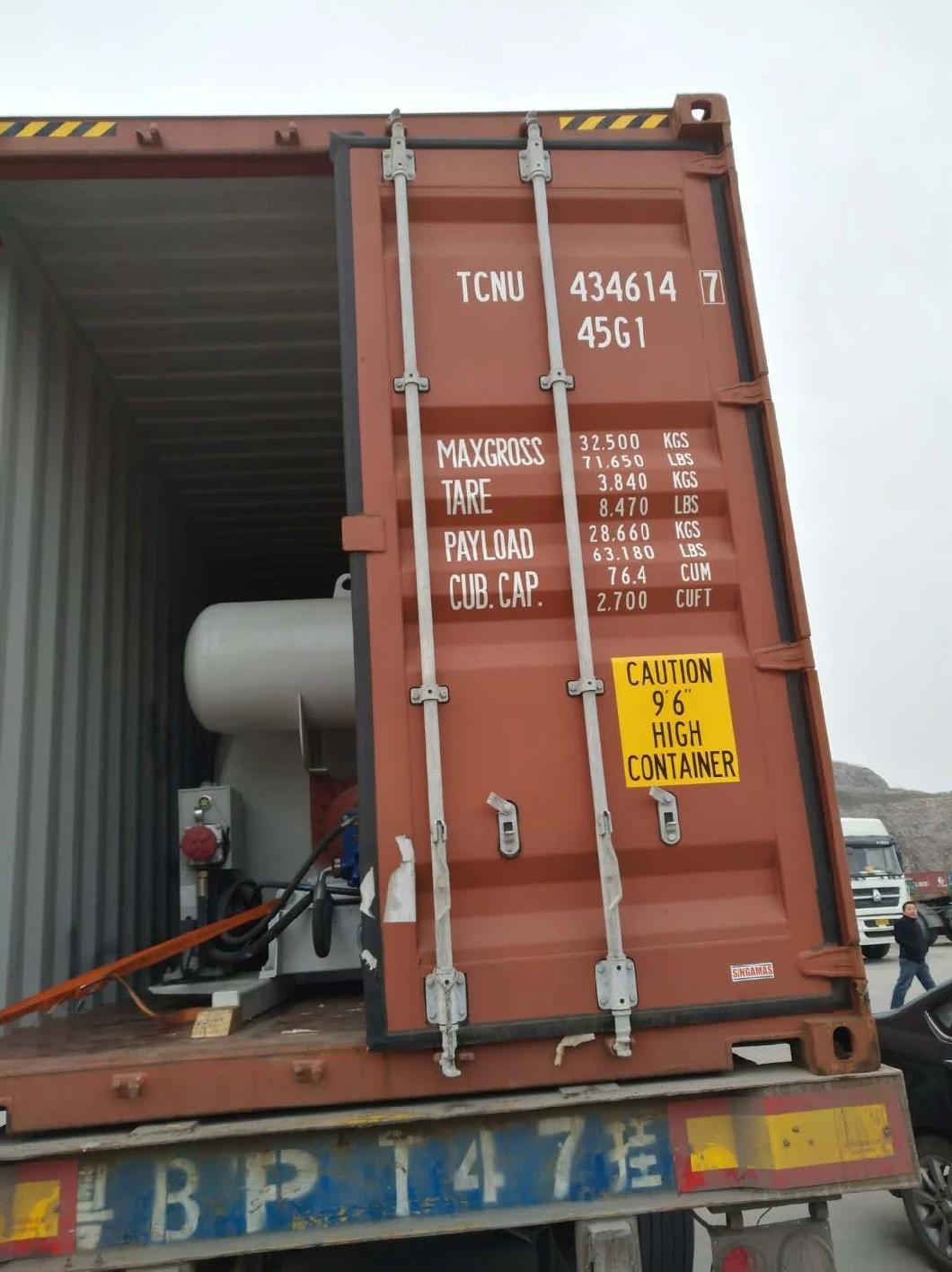

>>>>>Packing and Delivery




>>>>>Company Profile

Xiangtan Huaxing Material Co., Ltd, started business since 1991, and was formally established as a registered company in 2002, with 5.3million RMB registered capital.

Before 2015, Huaxing focused on the domestic market, and is a qualified supplier of Jianglu group and XEMC in the military and mechanical products.

In 2015, Huaxing set up the international marketing department, specializing in exporting concrete construction machinery, mining Roadheaders, and the related spare parts and accessories. With manufacturing bases in Shenyang, Suizhou and Changsha cities.

Huaxing owns branches "Cahi "in Kiev Ukraine, and "Speedlane Trade Limited" overseas company. Mainly export to Pakistan, Ukraine, Russia, and other EU countries and Southeast Asian countries under our own brands "Speedlane" and '' HUAXING''.

Huaxing has got the CE certificate, and Ukraine's Coal Mining Safety certificate and permission. Cooperated with Ukraine largest energy company, DTEK group, the world top 500, and established a long term and friendly partnership.

Huaxing's enterprise value: Striving, Loyalty, Honesty and Altruism;

Huaxing's work concept: Tomorrow never comes; Never slug; Deliver positive energy!

Huaxing's mission:

One Stop Shop in engineering construction machinery;

China Machinery, Global Services!
