Factory Price Aerial Platform Truck Manufacturer 22 Meters 26meters 28meters High Lifting Platform Truck
Hubei Weiyu Special Vehicles Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Type：H
- Certification：ISO9000, CCC, EPA, EEC
- Emission Standard：Euro3, Euro4, Euro5
- Hoesrpower：<150HP
Base Info
- Model NO.：CLW58HA23
- Payload：200kg
- Fuel：Diesel
- Transmission Type：Manual
- Drive Wheel：4x2
- Condition：New
- Max.Working Height：18m, 20m, 22m, etc.
- Boom Turn Around Angle：360 Degree
- Hook Loading：1000kg
- Platform Rated Load：200kg
- Max. Working Range：7m
- Chassis Brand：HOWO, FAW,JAC,Jmc, Dongfeng, Foton, etc.
- Warranty Time：1 Year
- Color and Logo：Customized
- Delivery Time：30 Days
- Transport Package：Naked
- Specification：10100*2500*3800 mm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8701909000
- Production Capacity：500 Units,Month
Description
ChassisCab HOWO Double row cabin / single row cabin / one and half row cabin , A/C
Right hand drive /Left hand drive Engine ISB180 50 -185hp Engine emission standard Euro 3, 4, 5 Fuel type Diesel Tire 7.00R16 Wheelbase 4700mm Gear box 6-speed, 6 forwards, 1 reverse 1 Working height 22M 2 Main technical parameters of operation The height of the platform from the ground ≥12m
Max operating range of the platform ≥10m
Operating height when the platform's max operating range is ≥14.3m
Max working angle of platform 80°
Rated load of working bucket: 200kg 3 Outrigger Mode: Front outrigger: V type,rear outrigger: H type, individually adjustable
Quantity: 4
Control: individually adjustable or linked
Inclination: 120° 4 Main operation Operating position: turntable, remote control operation.
Control form: ZYK bus control system, electro-hydraulic proportional control system to realize stepless speed regulation 5 Hoarding and stepping board Stainless steel fence and anti-skid stepping board 6 Boom structure Five-section working arm, synchronized telescopic 7 Slewing device Two-way 360-degree continuous rotation, 360-degree rotation of the hanging basket 8 Upper body main configuration A.Operating height 22 meters,
B.The whole truck has four hydraulic telescopic legs (up and down telescopic and horizontal telescopic), eight cylinders in total.
C.The outriggers are front V and rear H type,
D.Emergency pump, working bucket 360 degree rotation, wireless remote control, and others are factory standard configuration.

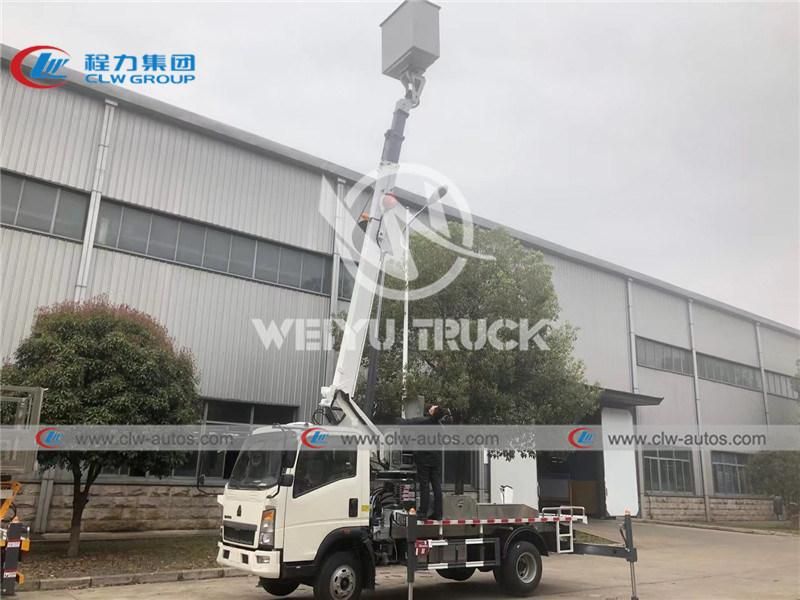

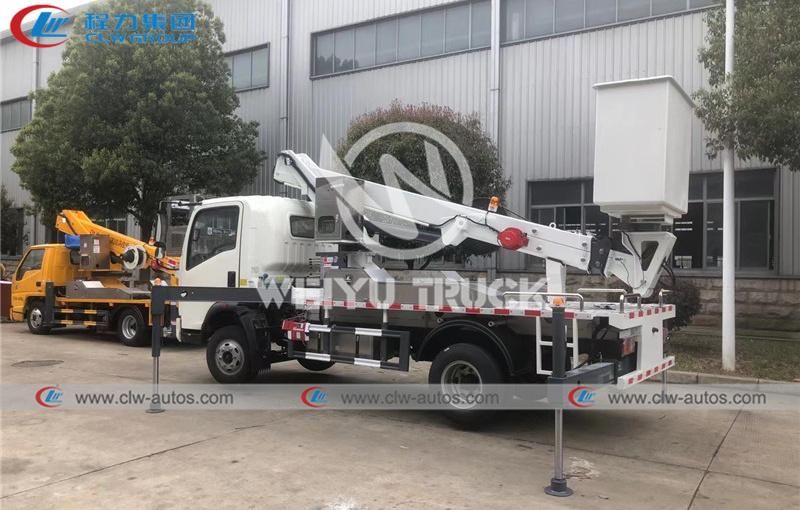

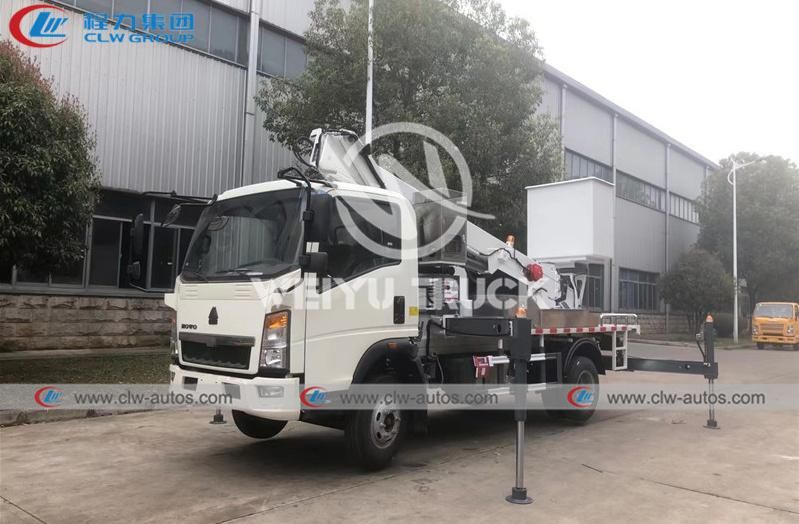

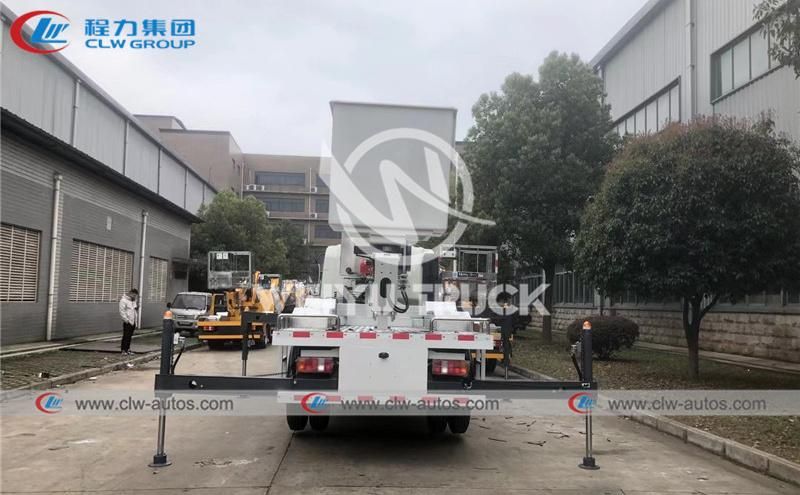

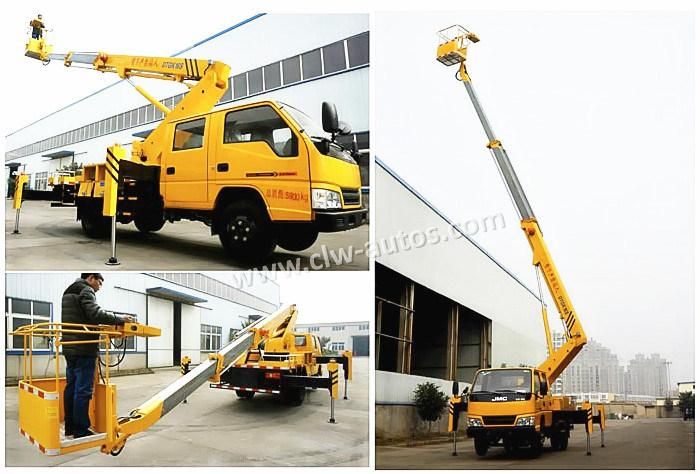

Reference photos

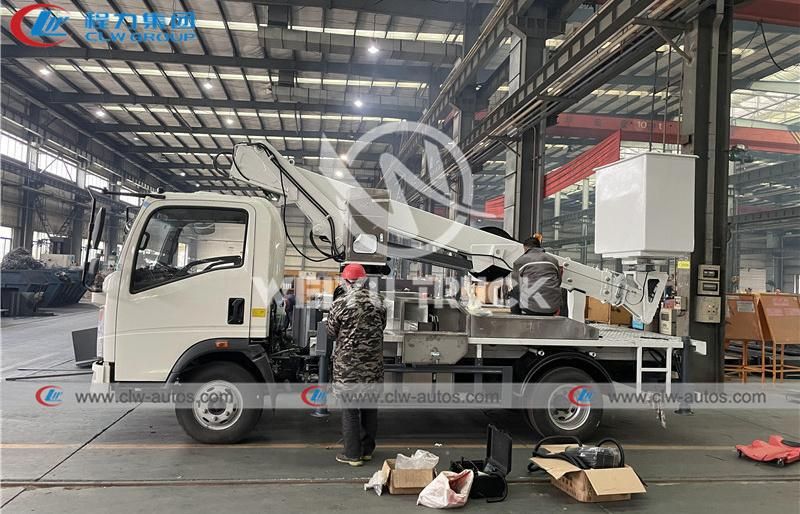

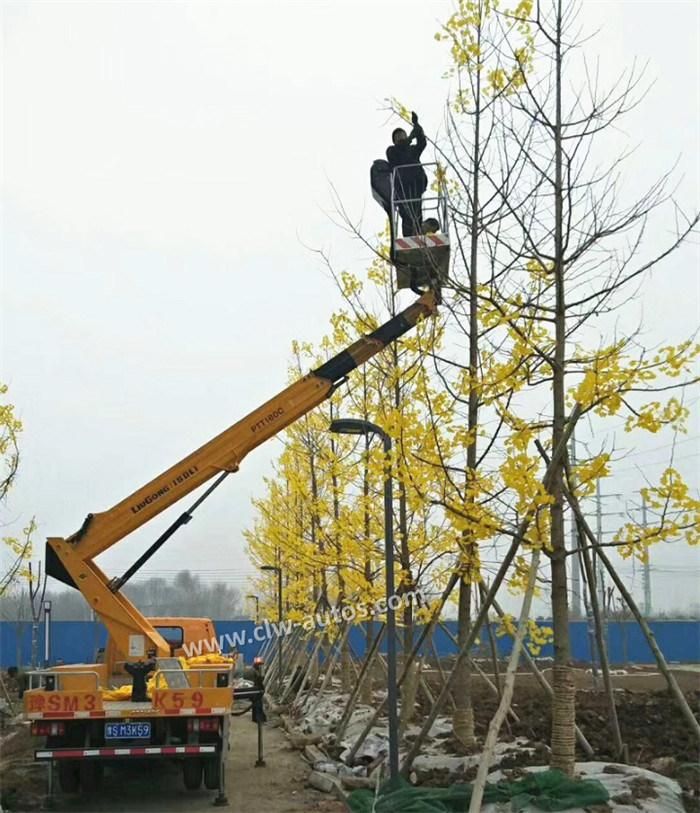

Working Scene:
Other Products:
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Right hand drive /Left hand drive
Max operating range of the platform ≥10m
Operating height when the platform's max operating range is ≥14.3m
Max working angle of platform 80°
Rated load of working bucket: 200kg
Quantity: 4
Control: individually adjustable or linked
Inclination: 120°
Control form: ZYK bus control system, electro-hydraulic proportional control system to realize stepless speed regulation
B.The whole truck has four hydraulic telescopic legs (up and down telescopic and horizontal telescopic), eight cylinders in total.
C.The outriggers are front V and rear H type,
D.Emergency pump, working bucket 360 degree rotation, wireless remote control, and others are factory standard configuration.
Reference photos
Working Scene:
Other Products:The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUK HOWO,JAC,FOTON,FAW,SHACMAN,ETC
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
