FAW 10 Wheel 6X4 Chassis Under Lift Wheel-Lift 16ton Intergrated Self Loader Breakdown Vehicle Towing Wrecker Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Certification:ISO9000, CCC, TS16949, EPA, EEC, CE
- Emission Standard:Euro 3
- Transmission Type:Manual
- Towing Tonnage:12 Ton
- Fuel:Diesel
- Bearing Capacity:Medium
Base Info
- Model NO.:CLW5250TQZC5
- Brand:SHACMAN
- Condition:New
- Wheel Base:6000 mm
- Gearbox:9 Forward & 1 Reverse
- Under Lift Capacity:18ton
- Max. Loading Weight:18000kg
- Winch Rating Pulling Capacity:16000 Kg
- Hydraulic Tailgate:1200 mm
- Wire Rope:35 Meters
- Warranty:One Year
- Logo:as Per Customer′s Request
- Towing Fork:4 Sets
- Too Box:1 Set
- Auxiliary Lamp:1 Set
- Yellow Warning Lamp:1 Set
- Working Video:Yes
- User Manual:Yes
- Transport Package:Bulk Ship, RO-RO
- Specification:9345x2500x3200 mm
- Trademark:CLW
- Origin:Suizhou, China
- HS Code:8705909090
- Production Capacity:500 Unit,Month
Description
General Technical SpecificationOverall Dimension 10475*2500*3800(mm) Gross Vehicle Weight 25000 (Kg) Curb Weight 21000 (Kg) Chassis Specification Chassis Brand FAW Drive model 6*4 Cabin Single, Left Hand Drive Engine Model 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling Power 209 KW/285HP Emission standard EURO2 or 3 Displacement 9726(ml) Fuel type Diesel Gearbox 10 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance Brake System Air Brake Wheel Base 5825+1350(mm) Front/Rear Axle Loading 10000/15000(Kg) Approach/Departure Angle 24/12(°) Tire 12.00R20, 6pcs + 1 spare tire Max Driving Speed 98(km/h) Superstructure Specification Winch Quantity 1 Rating towing capacity 20000(kg) Length of steel rope 45(m) Speed of winch 3.23~8 (m/min) Lifting Organ Rating Lifting Capacity 20000(kg) Other parts Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. Options Caution light, air condition,inlet valve.

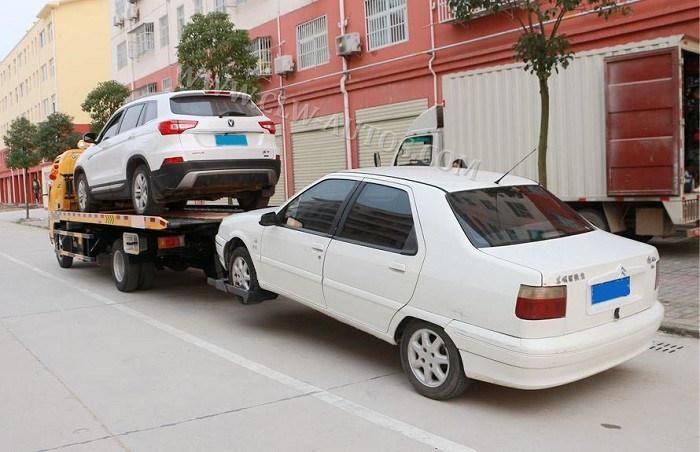

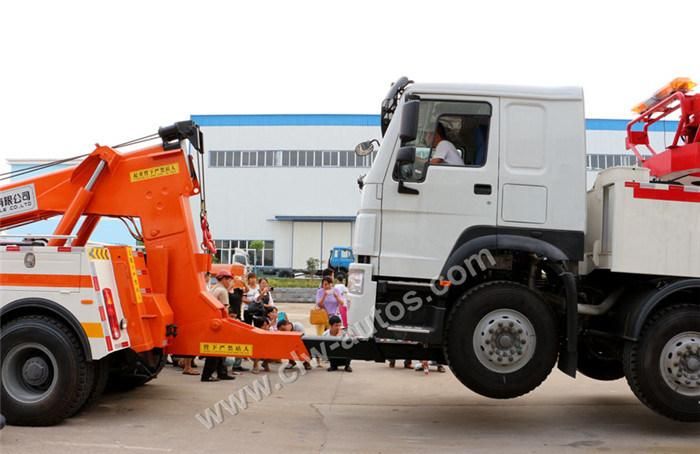

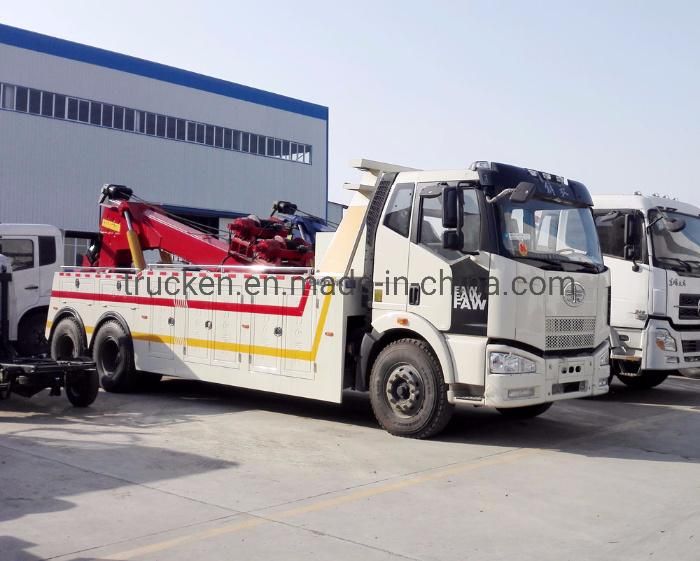

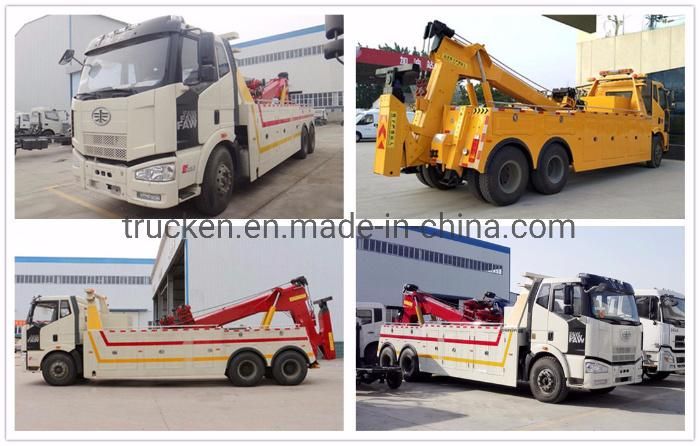

Truck Photos
Flatbed Wrecker Tow Truck
Factory Overview
Overseas Exhibition and Local Support
Customer Visiting
Contact Eric for more details (+86 186 0715 8551)
