• Transmission Type：Manual
• Payload：16-17ton
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：＜150hp
• Condition：New
• Name：Water Foam Fire Fighting Truck
• Brand：Dongfeng
• Material：Q235A
• Water Diversion Time：Less Than 35s
• Water Rated Flow：30L,S
• Fire Distance (Water)：>60m
• Model：CB20.10
• Water /Foam Tank Capacity：1500,500 L
• Allowable Passengers in Cab：5
• Transport Package：RO-RO Bulk Naked Container
• Specification：ISO, CCC, CE, ASME, ASTM, EEC
• Trademark：CLW
• Origin：Hubei China
• HS Code：8701909000
• Production Capacity：100000PCS,Year

DF XiaoBaWang Water-Foam  Fire Fighting Truck Drive Model4X2ChassisEQ1042CapacityWater tank:1500L
Foam tank:500LVehicle Main DimensionsDimensions(L x W x H)(mm)6310X1980X2400Water tank dimensions1000x1700x1000Foam tank dimensions500x1700x700Wheel base (mm)3300Overhang (front/rear) (mm)1032/1853Wheel track (front/rear) (mm)1508/1458Approach/Departure angle(°)23/15Weight in KGSGVW.4495Curb Weight2705Max. driving speed(km/h)90EngineModelCY4102Type4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)95 HPengine capacity(ml)3707Emission standardEuro IIIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)120Tire7.00-15tire , 6 + 1(spare)Brakesdual circuit compressed air brakeCabfour doors, double row EquipmentWater tanker: 1500L  Foam Tanker:500L

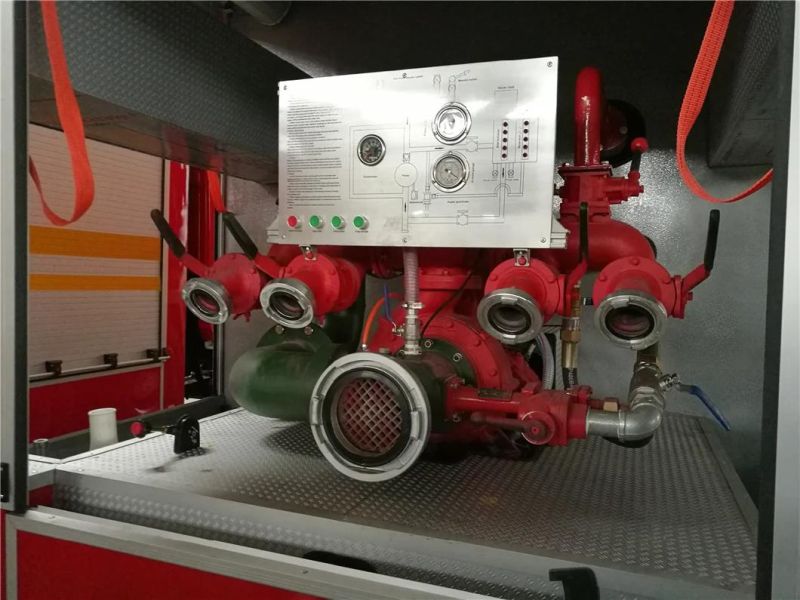

Middle and low pressure pump :CB20.10/15.30H
Flow:middle pressure 15L/S   low pressure 30L/S
Pressure: middle pressure 2.0MPa  low pressure 1.0MPa
PL30 Fire Pump  Flow: 30L/S
Pressure: 1.0~1.2MPa
Fire distance (water):≥45m

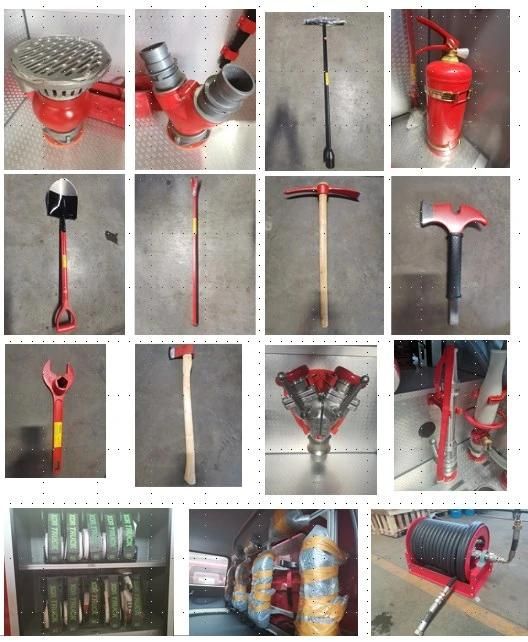

NO.	ITEM	Q.T.Y	UNIT
1	Suction Tube 100-125	4	Length of
2	Water Filter 100-125	1	unit
3	Suction Tube wrench	2	unit
4	Ground fire wrench	1	unit
5	Underground Fire wrench	1	unit
6	Water belt   65#	8	roll
7	Water belt    80#	4	roll
8	Outer-affusion water belt	2	roll
9	Different diameter interface 80-65	2	unit
10	DC water gun	1	unit
11	Flowering water gun	1	unit
12	DC switch water gun DC	1	unit
13	Foam gun	2	unit
14	Same diameter interface	1	unit
15	Tri-detaching water equipment 80-65	1	unit
16	Water collection	1	unit
17	Water belt guard bridge	1	Set of
18	Water belt Wrapper	4	unit
19	Water belt hook	4	unit
20	Foam barrel  25 Litre	2	unit
21	Fire Hammer	1	unit
22	Fire axe	1	unit
23	Fire xin	1	unit
24	Fire Ting	1	unit
25	Fire pickaxe	1	unit
26	Fire barrel	1	unit
27	Axe	1	unit
28	soft ladder	1	Set of
