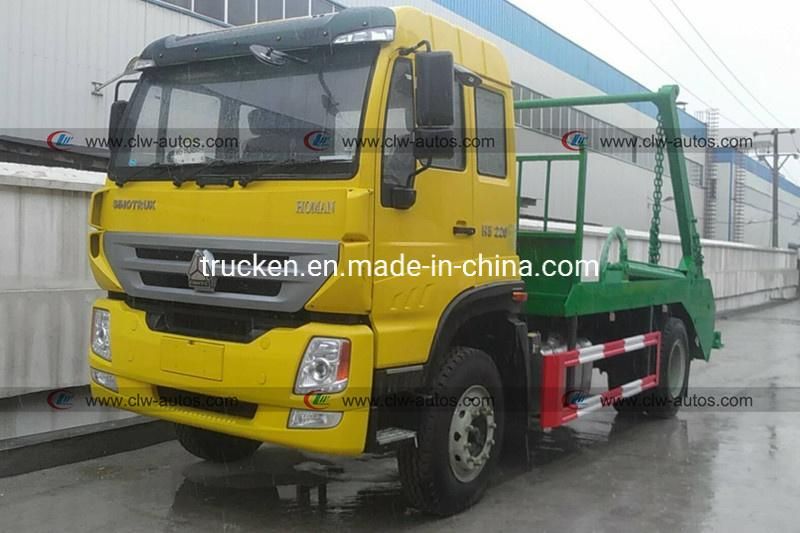

Sinotruck Homan 4X2 220HP 8cbm Swing Arm Refuse Truck Roll off Refuse Truck Skip Loader Container Refuse Box Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Recycling
  • Certification：ISO9000, CCC, CE
  • Volume：6001-10000L
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Payload：5ton

Base Info

  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Sinotruk Homan
  • Models：Medium
  • Usage：Swing Arm Type
  • Condition：New
  • Engine：220HP Cum Mins
  • Axle：5ton Front, 10ton Rear
  • Gearbox：8 Forward & 1 Reverse
  • Brake System：Air Brake
  • Tire：10.00-20, 10.00r20

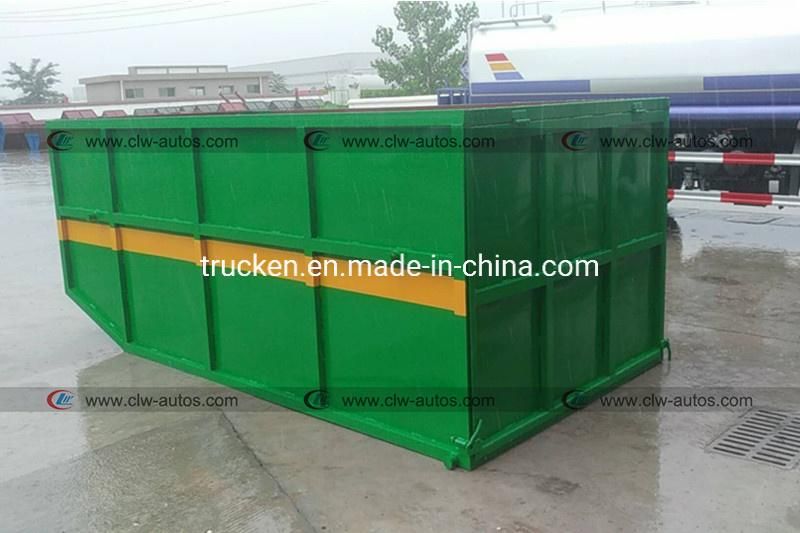

  • Container Box：10cbm, 8cbm.
  • Material：4mm Bottom, 3mm Side
  • Painting：Anti Corrosion Paint
  • Hydraulic System：Oil Tank & Cylinder
  • Swing Arm：2 Unit Steel
  • Valve：Multi-Valves
  • Skip Loader：5cbm, 6cbm, 8cbm
  • Landing Leg：2 Unit Landing Leg
  • Hopper Shape：Square, Triangular, etc
  • Hopper Connection：2 Strong Chain
  • Transport Package：Naked Pack with Wax
  • Specification：5Ton ~ 7Ton
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension7370X2470X3330 (mm)Gross Vehicle Weight12490(Kg)Curb Weight6295(Kg)Chassis SpecificationChassis BrandSinotruk HOMANDrive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModel220HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power220HPEmission standardEURO 3Displacement5900(ml)Fuel typeDieselGearboxFast 8JS85E, 6Forwards & 2Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3950mmFront/Rear Axle Loading4990/7500(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire9.00-20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 10CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration
  1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

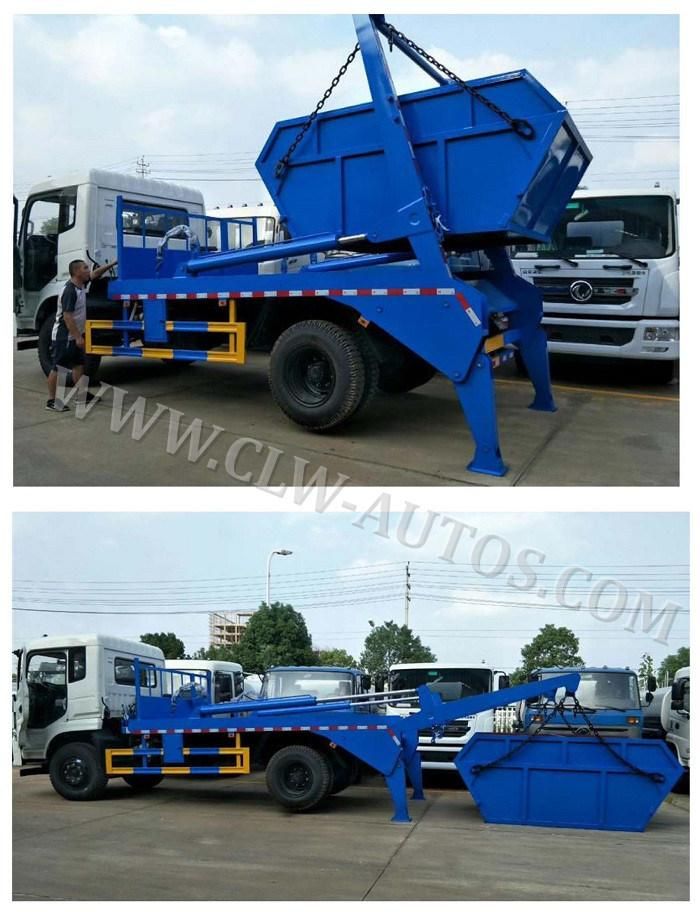

    Product Show for Sinotruck HOMAN 4x2 220hp 8cbm Swing Arm Refuse Truck Roll off Refuse Truck Skip Loader Container Refuse Box Truck
    Sinotruck Homan 4X2 220HP 8cbm Swing Arm Refuse Truck Roll off Refuse Truck Skip Loader Container Refuse Box TruckSinotruck Homan 4X2 220HP 8cbm Swing Arm Refuse Truck Roll off Refuse Truck Skip Loader Container Refuse Box TruckSinotruck Homan 4X2 220HP 8cbm Swing Arm Refuse Truck Roll off Refuse Truck Skip Loader Container Refuse Box Truck

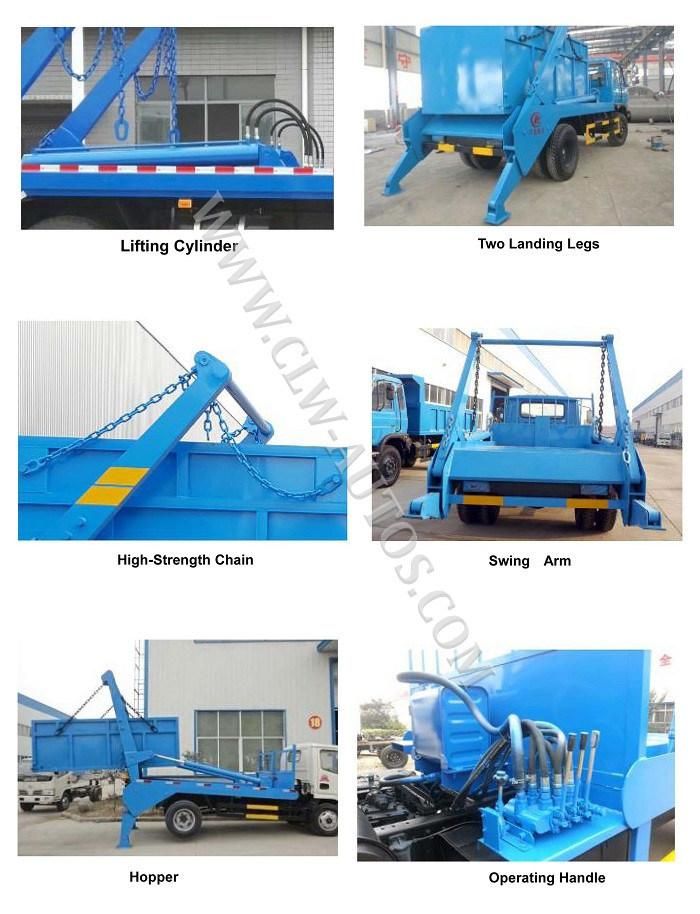

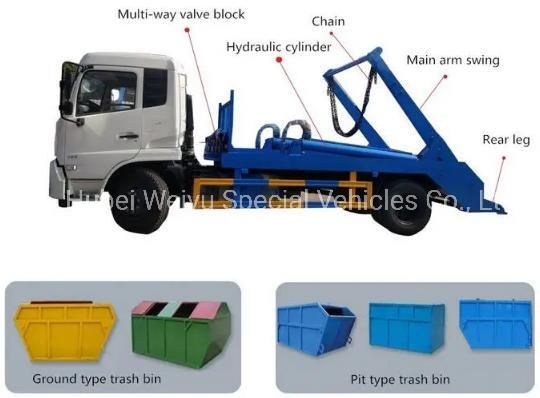

    More details for swing arm garbage truck
