• Model NO.：CLW59LK3
• Passenger Number：3
• Fuel Type：Diesel Oil
• LED Tube Core Type：SMD
• Self-powered：Self-powered
• LED Screen Type：P4 P5 P6 P8
• Power Supply Mode：Own Generator-powered
• Pixel Pitch(mm)：4.0mm; 5.0mm; 6.0mm
• Drive Model：4X2,6 Wheels,4*2
• Wheelbase(mm)：3300mm; 3306mm; 3360mm; 3400mm
• Screen Size：6m2; 6.5m2; 7m2; as Per Chassis Size
• Picture Tube Chip Color：Full Color and Monochrome
• Generator：8kw; 10kw; 12kw; 15kw; 18kw; 20kw
• Generator Fuel Type：Diesel,Gasoline
• Computer：China Local Brand
• Loudspeaker：40W; 60W; 80W; 100W
• Lifting System：Optional
• Hydraulic Unit：China Local Brand
• Landing Leg：Optional; 2 PCS or 4 Pics
• Fan：China Local Brand; 2 PCS
• Mobile Stage：Optional; 4.4m2 or as Per Customer
• Amplifiter：120W; 240W; 360W; 420W
• Transport Package：Naked with Wax
• Specification：Small Size
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：870509990
• Production Capacity：500 Unit,Month

ClassificationItemUnitParameterVehicleVehicle model HOWO LED Advertising Truck CLW5040Manufacturer ChengLi Special Automobile Co.,LtdOverall dimensionsmm5995×2030×3050Curb weightkg4300Traction system 4×2Max speedkm/h90ChassisChassis model ZZ1047Manufacturer SINOTRUK Jinan Commercial Vehicle Co., LtdNumber of axles 2Wheel basemm3360Tire specification 7.00R16Number of tires 6+1 spareF/R   track basemm1605/1520EngineEngine   model 4DW93-84Manufacturer FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine   FactoryFuel type dieselPowerkw66Engine horse powerhp90Displacementml2540Emission   standard Euro IIIDriver's   cabBrand SINOTRUK HOWOModel Flat head, single rowAllowable seats 3Steering LHD or RHDTransmission 5-speed  with over driveOperation  control system Electrically hydraulic controlAir-conditioning As your optionStandard   equipment1> One side waterproof P8 full   color led screen2> The other side advertising light box with   subtitle 3> The rear side monochrome screen4> 5cm composite steel box, wooden floor;5> Inside and outside the electric   distribution box;6> Loop ventilation cooling system;7> Ouma silent diesel generator;8> One industrial computer with control   system, 4 waterproof speakers, 1 amplifier, 1 console.

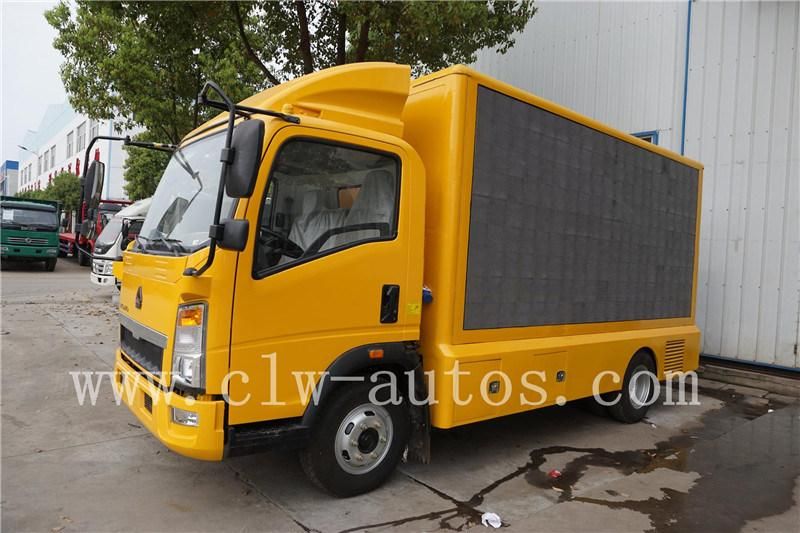

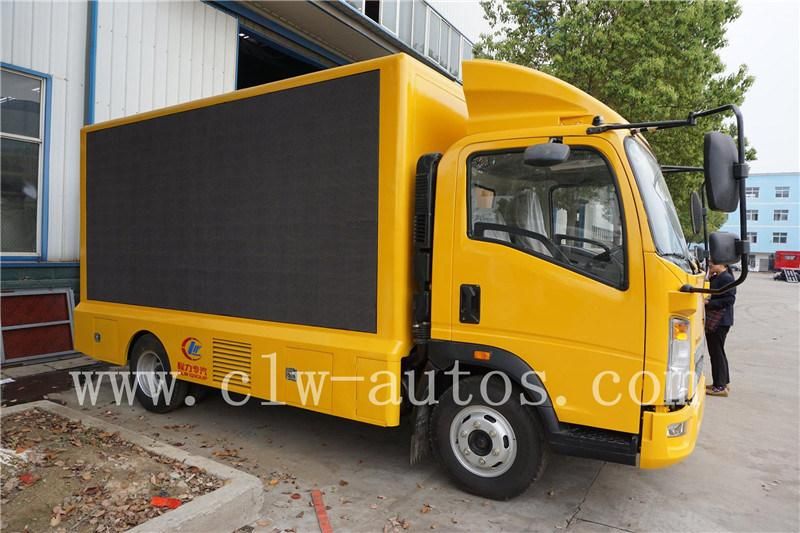

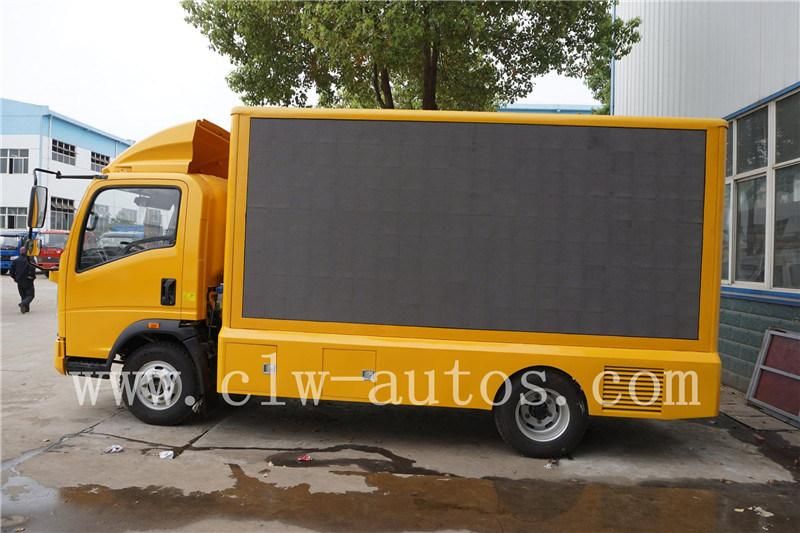

Reference Pictures

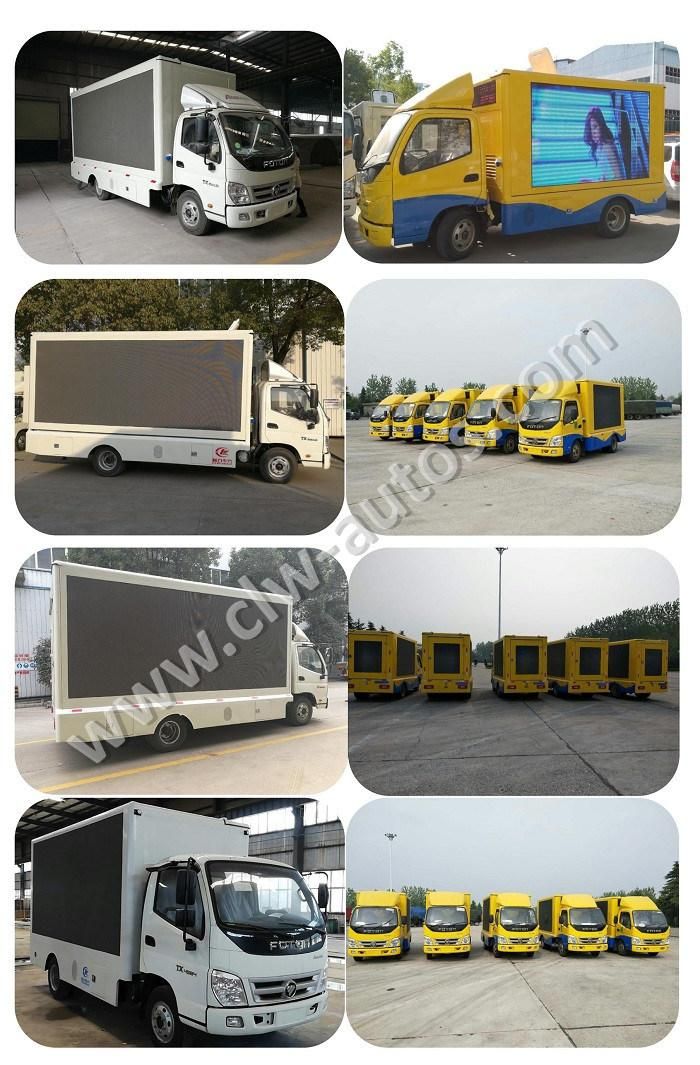

Bulk orders

LED Truck Drawing

Customer Inspection

Overseas Exhibition and After-sales Service
