• Model NO.：clw5160qxxwc
• Drive Wheel：6x4
• Hoesrpower：251-350hp
• Condition：New
• Description：4*2 Suction Truck with Jetting
• Loading Capacity of Sewage：12m3
• Water Tank：1-4 M3
• Vacuum Pump：Jurop, Mec, Moro, Weilong, Yifeng
• High Pressure Water Pump：Italy Hpp, Weilong, Yifeng
• Vacuum Pump Model：Water Cooling, Air Cooled, Water Circulation Vacuum
• Working Pressure：0.5-1bar
• Truck Brand：Dongfeng, Camc, FAW, HOWO, JAC, Shacman, Foton
• Engine Brand：Cummins, Yuchai, Chaoyang
• Working Temperature：-40~+50 Degree

Basic Info.

Model NO. clw5160qxxwc Drive Wheel 6x4 Hoesrpower 251-350hp Condition New Description 4*2 Suction Truck with Jetting Loading Capacity of Sewage 12m3 Water Tank 1-4 M3 Vacuum Pump Jurop, Mec, Moro, Weilong, Yifeng High Pressure Water Pump Italy Hpp, Weilong, Yifeng Vacuum Pump Model Water Cooling, Air Cooled, Water Circulation Vacuum Working Pressure 0.5-1bar Truck Brand Dongfeng, Camc, FAW, HOWO, JAC, Shacman, Foton Engine Brand Cummins, Yuchai, Chaoyang Working Temperature -40~+50 Degree

Product Description

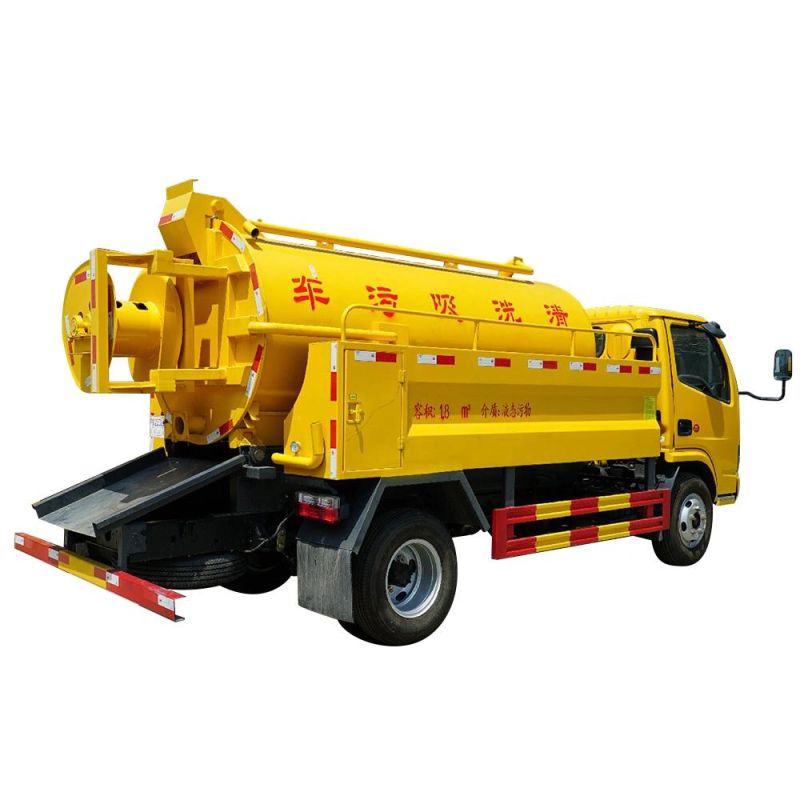

Dongfeng 4*2 Suction Truck(CLW5161)

Technical Parameters
Product Model: CLW5161GXW3
Chassis Model: EQ1167
Emission Standard: EuroIII
Engine Model: B190 33  Cummins
House  Power: 190hp
Dimmension(mm): 7700*2470*3250
Operation control system:Electrically hydraulic control
100mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 K pa, dump angle ≥45

Item	Unit	Parameter
Description		Suction truck
Model		CLW5161GXW3
Drive type		4*2
Chassis type		EQ1167
Overall dimension	mm	7700*2470*3250
GVW	kg	15990
Curb weight	kg	6795
Fact cabbage	kg	10000
Wheel base	mm	4700
Front/ rear track base	mm	1910/1800
Approach/departure angle	°	34/13
Engine model		B190 33  Cummins
Displacement of the engine	ml	5900
Horsepower	hp	190
Max. speed	Km/h	80
Engine type		4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Emission standard		Euro III
Gearbox		5 forwards&1 reverse
Tire specification		9.00-20; 7pc including 1 spare tire
Suspension		Steel suspension
ABS system		Available
Operation control system		Electrically hydraulic control
Electric system		24v
Cabin seats		3 person available
Dimension of the body	mm	4500*1600mm
Material of the body		Q235A
Others equipment		100mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 K pa, dump angle ≥45
Delivery time		30days
Warranty		12 month for three key parts(gearbox, axle,engine) from the date of shipment.



No.	Description	Type/size	Quantity
1	Cylinder	XWZX-90/50-1050×670	2
2	Cylinder	XWZX-100/70-1050×670	2
3	Tank	/	1
4	Inspection window	/	1
5	Pressure gauge	/	1
6	Φ65 ball valve	/	1
7	Φ150 ball valve	/	1
8	Rear lock door device	/	2
9	Φ100 ball valve	/	1
10	Oil-gas separator	/	1
11	Vacuum pump(800rpm, hydraulic, air cooled)	50QZDH-68/7000	1
12	Moisture separator	/	1
13	Fence	/	2
14	4-port valve	/	1
15	Plastic valve	/	1
16	Safety valve	/	1
17	Anti-overfill device	/	1

Five characteristic:
1) High pressure dredging: large flow of high pressure water to burst through the blocked pipe, and flush the sludge to the mouth of the well. Using different nozzles can solve corresponding dredging problem in different working situation. Visible nozzle can test pipe while dredging.
2) Vacuum suction: roots vacuum pump with strong suction ability, suction hose can be put into the bottom of the well to suck the sludge. Suction is above 15m.
3) Sludge recycling: introduce from Europe new purification technology to purify sludge, then us purified water to dredge pipe, thus save energy, save time, enhance the working efficiency.
4) Separate mud from water: traditional combi jetting truck dewater the sludge by means of rosebox, this truck adopts screw extrusion of mud water separation device to separate mud from water, which has two advantages:reuse the water and save the space of sludge discharging.
5) Screw discharge: use advanced screw discharge, dewatered sludge can be transported by low cost sewage truck.

Six advantages:
1) high quality sewer hose.
2) servo sewer hose reel, servo close control.
3) Titanium ceramic nozzle, patent high pressure jetting technology, cleaning nozzle.
4) Conroller Area Network, intelligent control, 32 humanization design.
5) Stainless steel shell.
6) Dredging, suction, sewage recycling and screw extrusion can be operated simultaneously.

Company Information
ClW Heavy Industry Co., Ltd  which is appointed by Ministry of Industry and Information Technology of China, is a manufacturer producing all kinds of special trucks and semi-trailer.
We serve the best service for each client.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria, Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our Factory Is Getting Better And Better.

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.

Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer' order or requirement

If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Contact person

Sale Manager: Albert Du

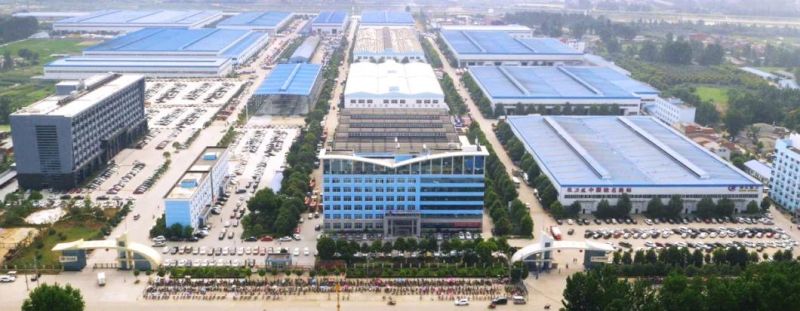

WELCOME TO OUR FACTORY  Equipment
