• Transmission Type：Manual
• Payload：5tons. 5t, 5 Tons
• Fuel：Diesel
• Drive Wheel：4X2 or 4X4
• Horsepower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng,Sinotruk HOWO,Foton,Shacman
• Extinguishing Agents：Water, Foam
• Key Parts：Pump and Fire Gun
• Accessories：Standard Configure
• Purpose：Fire Fighting Truck, Emergency Rescue
• Flow Rate of Fire Monitor：60L,S 1.0MPa
• Water Pump：Chinese or International Brand
• Material：Carbon Steel,Stainless Steel
• Fire Fighting Pump：Chinese or International Brand
• Fire Fighting Monge：Chinese or International Brand
• Throw Range：Water 55m, Foam 50m
• Water Tanker：4000L, 4cbm, 4m3, 4000 Liters
• Foam Tanker：1000L, 1cbm, 1m3, 1000 Liters
• Capacity：5000liters, 5 Tons, 5tons.
• Transport Package：Bulk Ship, RO-RO
• Specification：5cbm, 5000liters, 5000L
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909990
• Production Capacity：300 Units Per Month

NameWater tank fire fighting truckChassis Model/ manufacturerEQ1070 / DONGFENGCabcabin With Air-condition,Overall dimension (L*W*H)7500*2400*3000mmTotal mass(KG)9400KgRated payload3050KgKerb weight5900KgFront /rear suspension1180/1840mmFuel typeDiesel oilEngineModelCY4102E3C, Water coolingmanufacturerDongfeng chaoyang diesel engine Co., LTDRated power91kw/ 120HPDisplacement3856mlFuel TypeDiesel oilDriving type4*2Wheel base3800mmFront/ rear tread1831/1640mmType & size of tyre7.50-16The number of tyre6+1(spare tire)Max speed95Km/hTechnical parameter of fire fighting bodyLiquid tankerVolume3000L water tankMaterialhigh quality carbon steel plate,
anti-rust treatment inside.Fire fighting pumpModelCB10/30Pressure:1.0MpaFlux:30L/sSuction depth:≥ 7mSuction time≤35sFire fighting nozzleModel:SP30Range≥ 55mHorizontal rotation angle360 ºColorThe whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truckSpare parts listNo.Nameunits1Electric siren12Emergency lamp13Fire axe14Fire hook15Fireman ladder16Medium pressure water gun17Fire fighting Nozzle18Fire hoses(B/S System) (65mm, 20m)49Suction pipe(100mm-2m)410Water Filter(100mm) and guide rope411Suction pipe wrench(100mm)412Fire hydrant wrench2

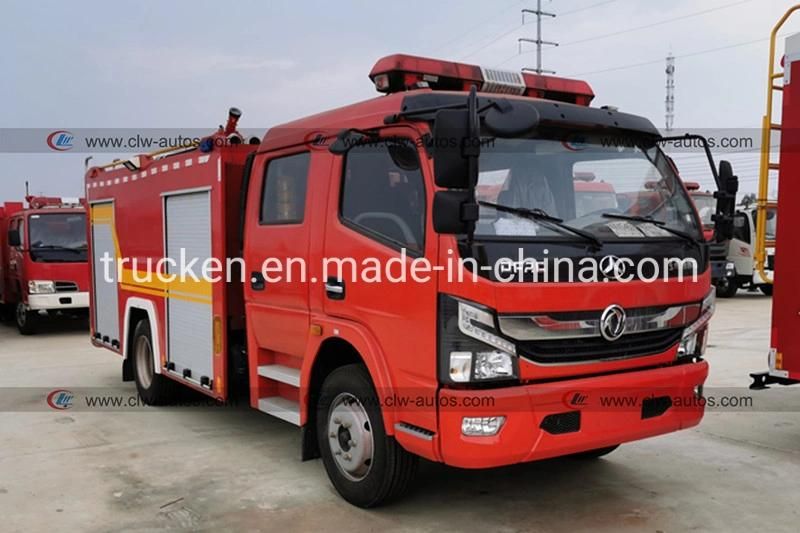

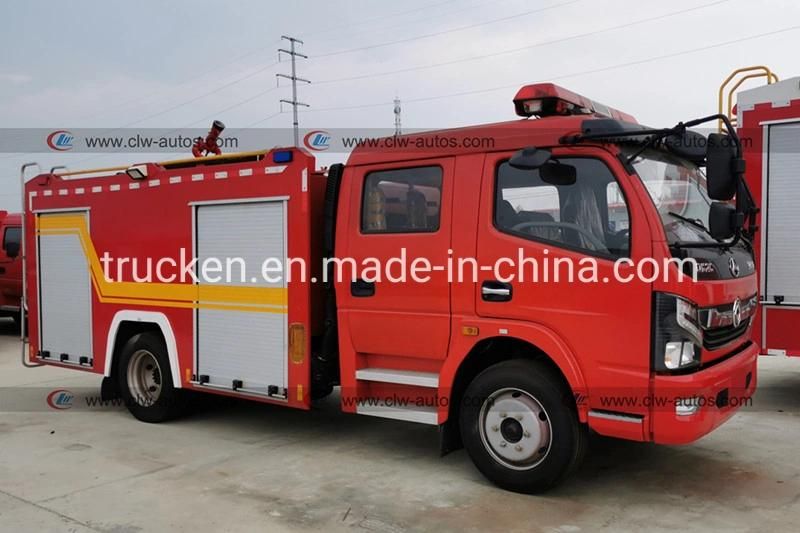

Reference Picture for Dongfeng 4x2 6 wheels wheeler 5000L Rescue Emergency Fire Engine Fighting Truck


Equipment come with fire trucks

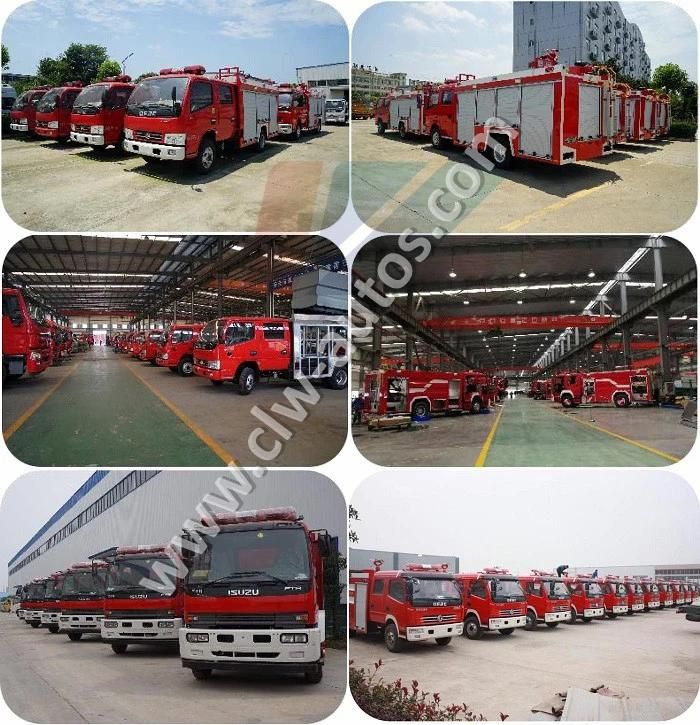

Production Procedure



Successful Case






Customer Inspection

Overseas Exhibition and After-sales Service
