• Model NO.：CLW5849
• Payload：4t 5t 6t
• Fuel：Diesel
• Drive Mode：4x2
• Maximum Horsepower：<200hp
• Condition：New
• Chassis Brand：Forland, Foton, Dongfeng etc
• Cabin：Left,Right Hand Drive, with Air Conditioner
• Mixer Drum Capacity：3cbm, 4cbm, 5cbm, 6cbm
• Drum Material：High Strength Steel Q345
• Hydraulic Pump：Eaton, Sauer or Chinese Famous Brand
• Hydraulic Motor：Eaton, Sauer or Chinese Famous Brand
• Reducer：Zf, Bonfiglioli or Chinese Famous Brand
• Logo or Pattern：as Per Customer′s Request
• Color：Customized
• Logo：Customized
• Transport Package：RO-RO Ship, Bulk Ship, Container
• Specification：7385*2490*3650mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500unit,Month

CHASSISBrandFOTONChassis Model (Model No. )BJ1162Drive Mode4х2Tire10.00-20BrakeAir brakeEngineModelYC6J180-33Horsepower (Hp)180Dispalcement(ml)/Power(kw)6494/132EmissionEuro VIMain ParameterOverall dimension (MM)L*W*H(mm)7385× 2490× 3650wheelbase(mm)3900Axles No.2Weight (KG)Gross weight15965Payload weight7900Kerb weight7870Leaf spring No.10/12+9Approaching/Deparature Angle(° )24/31Front/Rear Trace(mm)1940/1870Front/Rear Suspension(mm)1420/2065Max speed(km/h)80Gear Box8 speed gearboxHydraulic Drive ParametersStirring Volume(M³)5---6Filling Rate(%)63%Rate of Feeding(M³/min)≥ 3Rate of Delivery(M³/min)≥ 2.0The Remaining Rate(M³/min)≤ 1.0Tube Service Speed(r/min)0-12Tube Dip(° )11-15Oil PumpImport from ItalyHydraulic MotorsDecelerator

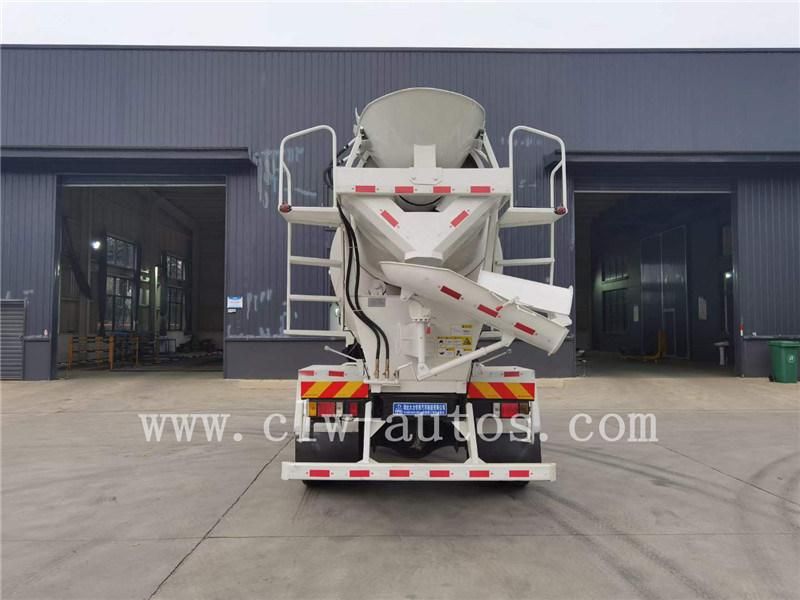

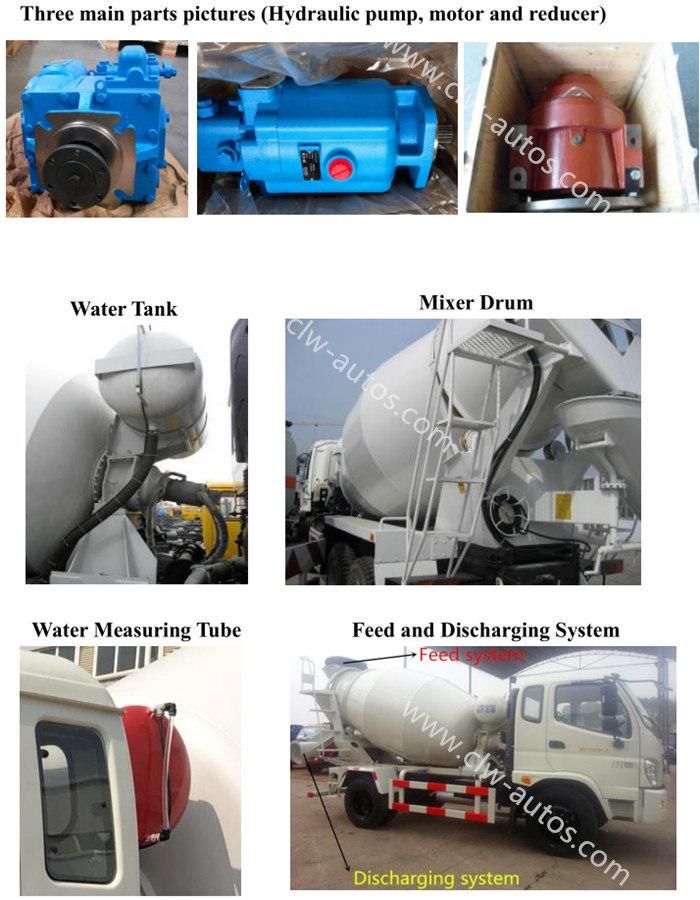

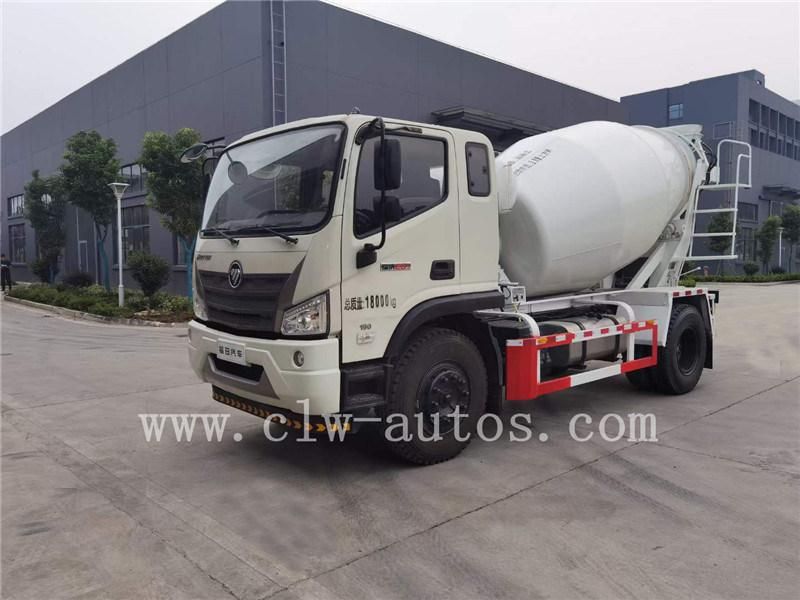

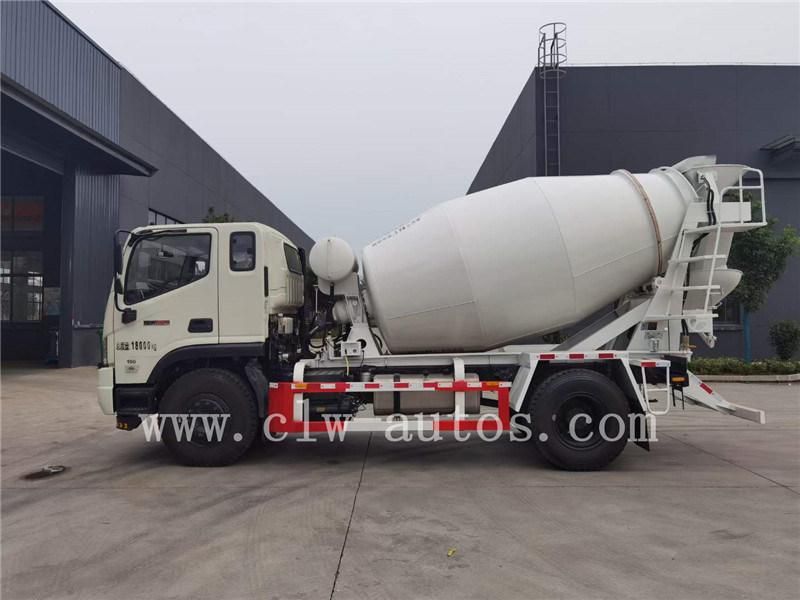

Reference Photos

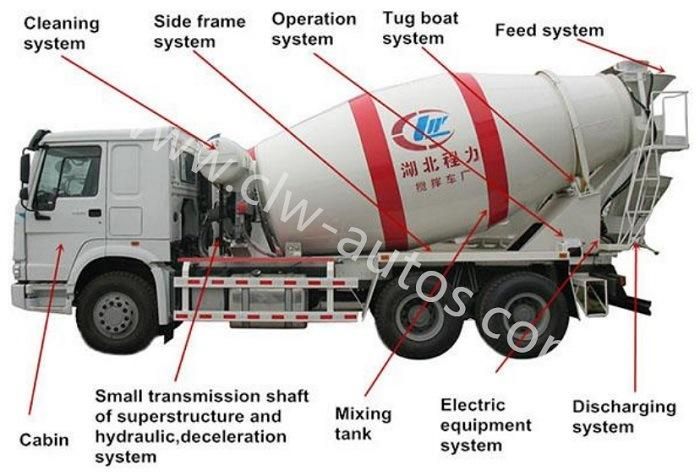

Main Structure Diagram

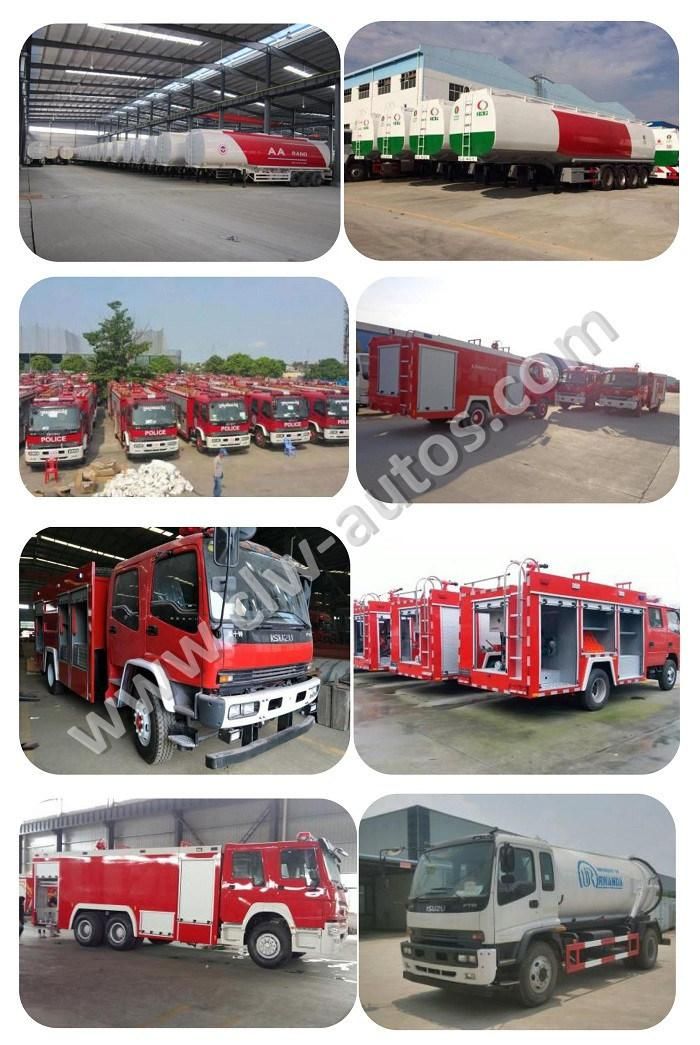

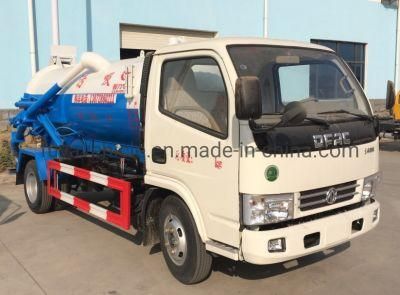

Other trucks delivery


Customer Inspection

Overseas Exhibition and After-sales Service

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
