Hot Sale 4cm Concrete Mixer Truck Self Loading Concrete Mixer Machine Self Feed

Shandong Lehman Construction Machinery Co., Ltd.
  • Certification：ISO9000, CE
  • Transmission Type：Hydraulic
  • Emission Standard：State 2
  • Fuel：Diesel
  • Drive Mode：4*4
  • Maximum Horsepower：125

Base Info

  • Model NO.：SYC-4
  • Condition：New
  • Transport Package：No Packing
  • Specification：7220*2380*3460mm
  • Trademark：Shanyi
  • Origin：Shandong, China
  • HS Code：8474310000
  • Production Capacity：3000sets,Year

Description

ModelLM5800BridgeMIxer dedicated bridgeOveral  weight8500KgEngineYCD4P22T-130Rated power95KwMinimum turning radius5mOverall dimension7220*2380*3460mmDiesel Engine
Type: YCD4J22-110
Total displacement, cylinders: 4330cc, four-in-line
Injection: direct injection and mechanical control.
Cooling system: water-cooling, dry air filter
Maximum power: 85Kw
Maximum torque: 390Nm, 2400r/min
Steering
Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering.
4*4 Four-Wheel Drive
Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.

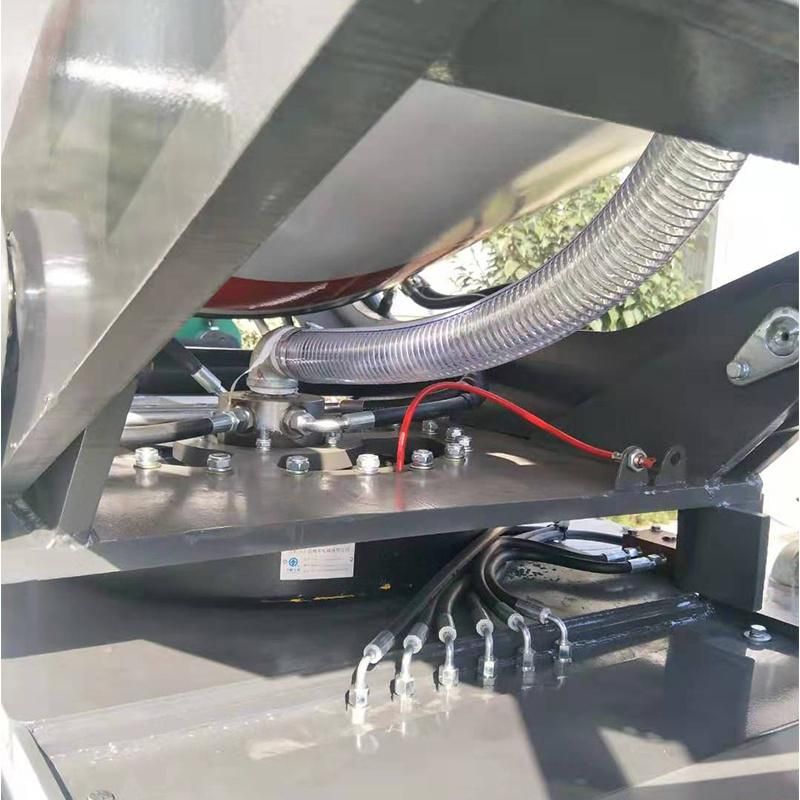

Water system
Two water supply system, from external water feeding, can be directly into the drum or water tank.
The total capacity of two connected water tanks positioned opposite is 532L
Visual flowmeter, the water intake of the roller by hand-control.

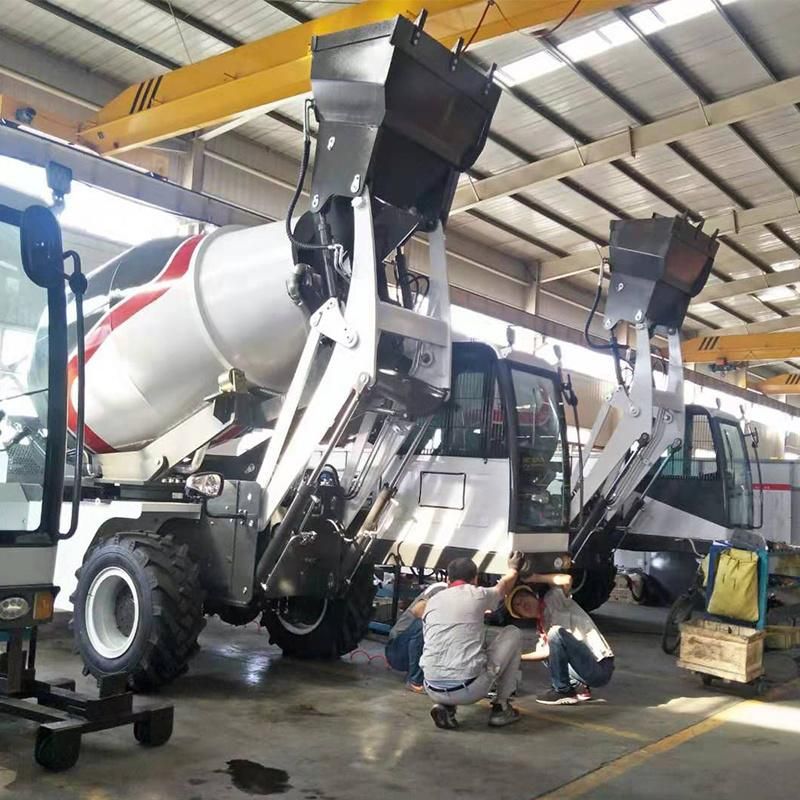

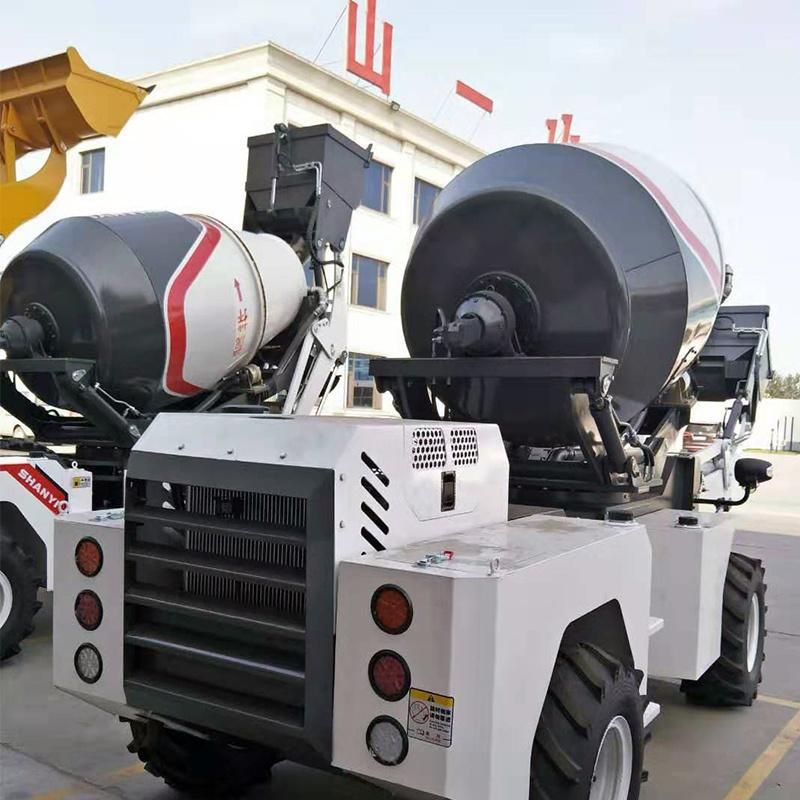

Product Show
Hot Sale 4cm Concrete Mixer Truck Self Loading Concrete Mixer Machine Self Feed
Hot Sale 4cm Concrete Mixer Truck Self Loading Concrete Mixer Machine Self Feed
Hot Sale 4cm Concrete Mixer Truck Self Loading Concrete Mixer Machine Self Feed
Hot Sale 4cm Concrete Mixer Truck Self Loading Concrete Mixer Machine Self Feed

Our Advantage
Hot Sale 4cm Concrete Mixer Truck Self Loading Concrete Mixer Machine Self Feed
