Specialized Vehicle

12 Meters 14m Vertical Lift Aerial Paltform Working Truck

CLW Heavy Industry Co., Ltd
  • Type:Z
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Emission Standard:Euro 3
  • Hoesrpower:150-250hp
  • Payload:200kg-800 Kg
  • Fuel:Diesel

Base Info

  • Model NO.:CLW5055
  • Transmission Type:Manual
  • Drive Wheel:4x2
  • Condition:New
  • Manufacturer:Chengli Special Automobile Co., Ltd
  • Dimension:8495*2450*3310
  • Wheel Base:4500
  • Operation Height:6m, 8m, 9m, 10m, 12m, 14m, 16m, 18m, 20m, 22m...
  • Material of The Protection:Q235 Carbon Steel
  • Engine Number:Eqb180-20
  • Engine Brand Name:Dongfeng
  • Curb Weight:12180
  • Max Speed:90km,H
  • Chasis:EQ1141
  • Transport Package:Naked, Nade, Bulk, Container, Waxing, RO-RO
  • Specification:CE,BV,ISO,CCC
  • Trademark:CLW
  • Origin:Suizhou, Hubei, China
  • HS Code:8705909090
  • Production Capacity:200 Sets,Per Months


DescriptionDONGFENG 153 high platform truckDrive Model4X2ChassisEQ1141Vehicle Main DimensionsDimensions(L x W x H)mm8495×2450×3310Wheel base (mm)4500Overhang (front/rear) (mm)1580/2410Wheel track (front/rear) (mm)1940/1860Approach/Departure angle(°)34/20Weight in KGSGVW.11750Curb Weight12180Max. driving speed(km/h)88EngineModelEQB180-20Type4-stroke direct injection , 6 -cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)180Emission standardEuro IIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)200LTire10.00R20, 6pieces+1 spare tireBrakesService brake: dual circuit compressed air brake                                                                                     cab:3UPPERStandard Equipment1.Equipped with working bucket, hook, 4 H-type hydraulic
2.Equipped with three folded arms, 360 slewing, hydraulic
control, on the truck/under the truck operatingTechnical
 1.Max operation: height>=14m
2.Max operation radius>=6m
3.Max working platform height>=12.5m,
4.Working platform rating loading=300kg,
5.Working platform rating allowable passengers=2
6.Working platform dimension:1100*570*1000mm,
7.Degree of the overturn:360°turning(left or right)
8 Standing Legs: H model , 4pcs, controlled by hydraulic systemTHE PRICE IS AVAILABLE FOR 30 DAYS.

Our advantage:
· Competitive Price and Excellent Quality,
· More than 10 years' experience as a manufacturer,
· CCC,ISO,BV certification,
· Perfect after-sale service,
· Customized products available with us,
· Export covering More than 50 countries and regions ,
· Annual production value topped 1500,000,000 RMB (240,000,000 US dollars) per year.

 CLW Heavy Industry Co.,Ltd is the branch company of Chengli Special Automobile Co.,Ltd.Chengli Special Automobile Co., Ltd, as the professional manufacturer in the special vehicle circle,  has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
 Chengli Special Automobile Co., Ltd Factory Supply:
a.special truck manufacturers in Suizhou city,HuBei province, china,

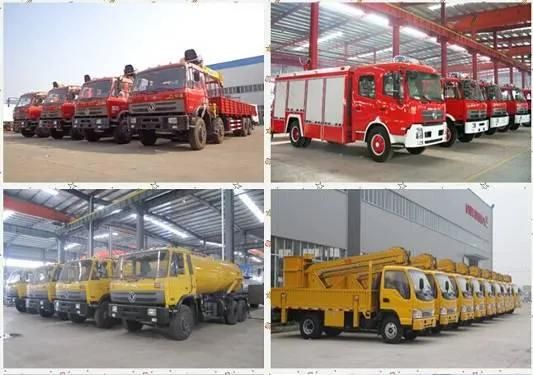

b.more than 300 kinds of special truck for your needing.such as garbage truck,LPG truck ,fuel truck  , water truck ,high platform truck , dump truck , concrete mixer truck ,truck mounted crane ,chemical tank truck , fire fighting truck ,bulk cement truck ,flat bed trailers , low bed trailer , cargo trailer tipper trailer ,fuel trailer ,LPG trailer and more
c.Nearly 15 years experience in produce truck and truck parts field.
d. export turnover has reached 25million dollars and our products have been sold to more than 50 countries, including Africa ,Europe,Southeast Asia, Middle East, North Asia and so on.
Owing to our rich industrial experience,we are offering a wide range of products to the customers, such as LPG tank, fuel tank, water truck, refrigerator truck,garbage truck and so on. We ensure to deliver those products at industry leading price range to meet the financial constraints of our clients.
Our main products:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

More information of  lpg truck, lpg tank truck, liquid petrol gas tank truck, please feel free to contact with MrAlbert DU.
We will customize the truck according to your requirement.   sincerely welcome you to visit our factory and provide your precious suggestion for us!
1.Q:How about quality of your factory quality ?
A:All our trucks 100% new .All our trucks got ISO 9001:2008 and CCC and B&V certificate ,and many truck passed SGS inspection .All our chassis and spare parts are from the original manufacturers with original part number and and anti-fake label, all our suppliers have passed the SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.
2.Q:How many years of your company's service, especially after-sale service?
A: Chengli special automobile Co.,Ltd has been in this field for nearly 15 years and has strong production and distribution capability,we can produce your products in 15 working days.We offer 1 year service after -sale.
3.Q:Is there any advantages of your price?
A: ChengLi Special automobile Co.Ltd is one of the important up date suppliers of Sinotruk and Shacman,Dongfeng , FOTON , FAW ,which provides guarantees for reasonable price and good quality. Meanwhile, other products are procured from our long time business partners, we also can be sure to provide competitive prices.
4. Price term: FOB, CIF
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform  us, will make special order for you.
Any question please contact me without hesitation!!!
