• Model NO.：FY5060JHC
• Length：3-8m
• Medical Equipment：With Medical Equipment
• Horsepower：160-210hp
• Axle：Micro
• Condition：New
• Goods Name：4X2 Ford Emergency Playmobil Rescue Ambulance
• Brand：Foton, Dongfeng, Ford, Jinglong, etc
• Fuel Type：Diesel, Petrol
• Dimension：5380*1920*2480 mm
• Gross Weight：3400 Kg
• Wheelbase：3110 mm
• Patient Compartment：3300*1750*1600 mm
• Tire：6+1 Pics
• Medical Devices：Available
• Transport Package：RO RO
• Specification：Complete set
• Trademark：CLW,FUYA
• Origin：Suizhou, China
• Production Capacity：5000 Units

Normal ICU/ DELIVERY/MONITOR/Negative prssure ambulance truck for Patients delivery/ Transfer

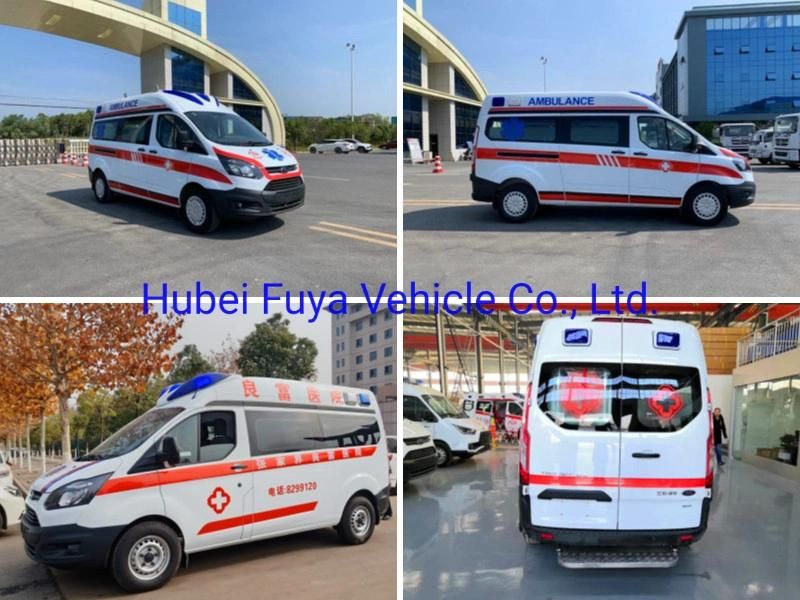

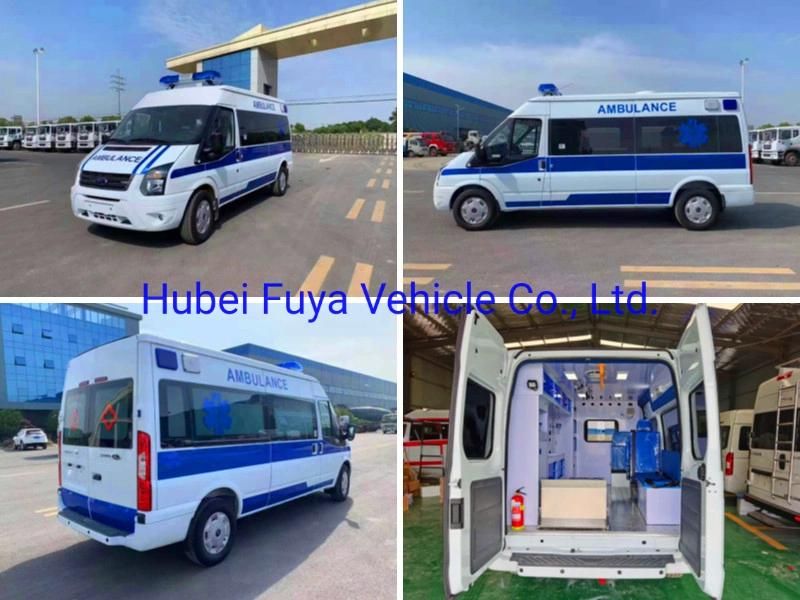

PRODUCT DISPLAY

A	Technical parameters
1	wheelbase (mm):3110
2	Overall dimensions (mm):5380×1920×2480
3	Patient compartment(mm):3300 X 1750 X 1600
4	Complete vehicle curb mass:(kg):2140
5	GVW (kg):3400
6	Engine:ISF2.8s4129P Cummins engine
7	Fuel type: diesel
8	Fuel consumption:9.5L/100km



B	Standard configuration of vehicle
1	Electric side mirrors
2	Power window for front doors
3	radio +AUX+USB(with CD)
4	Hand-free Intercom system between driver's cab and Patient's compartment
5	2 seats in driver's cab
6	Single upward opening rear door
7	Foot pedal in rear door
8	Remote central lock

Air conditioning and lighting system
1 Original cab system
2 Medical cabin heating system
3 Medical cabin modified independent in-line air conditioning system
4 Medical cabin exhaust ventilation system (two-way ventilation)
Power system

1 UV light sterilization lamp 1
2 Vehicle (12V / 220V) inverter power supply system 1
3 Second power supply 80AH maintenance-free battery and safe voltage display 1
4 Battery protection and isolation device 1
5 Cab emergency start device, emergency start with the second power supply when the main battery is dead 1
6 Medical circuit integrated control protection box 1
7 Medical cabin electrical overload protection system 1
8 12V socket installed in the medical cabin 2
9 Install a 220V socket in the medical cabin, add a 220V socket at the reverse seat 2
10 12V infusion spotlight 2
11 Ultra-thin LED lighting at the top of the medical cabin 4
Emergency alert system
1 100W alarm set 1
2 Built-in warning lights 1
3 Blue strobe lights on the front of the roof 2
4 Blue strobe light on roof side tail 2
5 White strobe lights on both sides of the vehicle 2
Medical cabin device
1 Special-shaped closed partition walls are installed in the cab and the medical cabin to properly protect the driving space and medical cabin space 1
2 Install transparent sliding window glass with lock on special-shaped partition wall 1
3 Integrated medical cabinet on the left side of the medical cabin 1
4 Long walk-in cabinet with composite Walker flame retardant board and medical accessories installed on the top left side of the medical cabin 1
5 Oxygen cabinet for easy removal of the oxygen screen on the left side of the medical compartment 2 10-liter oxygen cylinders 1
6 The top and sides of the medical cabin are made of white renewable environmentally friendly materials for safe sealing, easy to disinfect and clean, and do not hide dirt 1
7 Medical cabin full blue bumper soft bag 1
8 Embedding of concealed fixtures in medical cabins 1
9 Environmental protection waterproof, non-slip, anti-static, anti-corrosion floor (with coating) 1
Seat system
1 Long seat on the right rear side of the medical compartment 1
2 An independent backrest adjustable doctor seat is installed on the right side of the medical compartment 1
Oxygen system
1 10-liter steel oxygen cylinder (with pressure reducing valve) for medical cabin 2
2 Concealed installation of medical cabin oxygen pipes 1
3 The medical cabin is installed as the oxygen end column to install the national standard oxygen interface 2
4 Medical cabin with oxygen humidifier 1
5 Vehicle-mounted oxygen socket in the medical cabin (for ventilator and humidifier) 1
First aid system
1 Medical cabin intercom system 1
2 Medical cabin adjustable top infusion slide with infusion stand (can fix 2 infusion bottles) 1
3 Automatic loading stretcher 1
4 Stainless steel backing plate and guide under the stretcher 1
Other
1 fire extinguisher 1
2 Trash can 1
3 Strong reflective ribbons and first aid standard emblems attached to the body 1
4 Transparent glass on the back door, 2/3 milky opaque explosion-proof film on the window 1
5 Closed glass on the left with black solar film 1
Negative pressure system
1 Negative pressure purification device 1




Chengli Special Automobile Corporation Limited, which was appointed by the Development and Reform Committee of China. Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Established from 2004.
12 independents workshops.
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians. About 8000 workers.
800kinds of LPG, trucks and semi-trailers.
20 years wholesale experience.
Turnover 250 million and Export 20million annually.
Turnover 2 billion trucks and semi-trailers annually.
LPG/Truck sold to 90 countries.
Cooperates with DONGFENG,SINOTRUCK HOWO,SHACMAN,FOTON,FAW,BEIBEN,JAC ETC.
We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life. What's more, the service can be dealt with in 48 hours. ChengLi is willing to serve for you, and is looking forward to your coming to visit our company.
