• Fuel：Diesel
• Tank Volume：16000L
• Drive Wheel：4x2
• Hoesrpower：240
• Condition：New
• Transport Package：RO-RO Ship
• Specification：11000*2100*2600
• Trademark：CLW
• Origin：China
• HS Code：8704210000
• Production Capacity：100 Set,Month

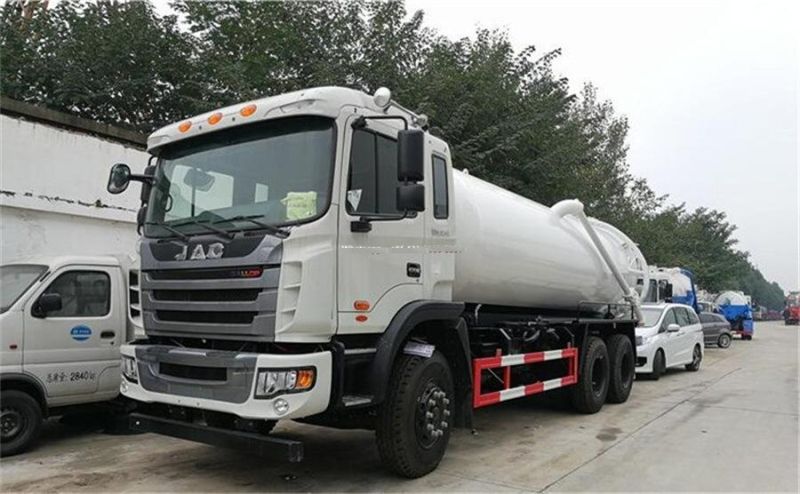

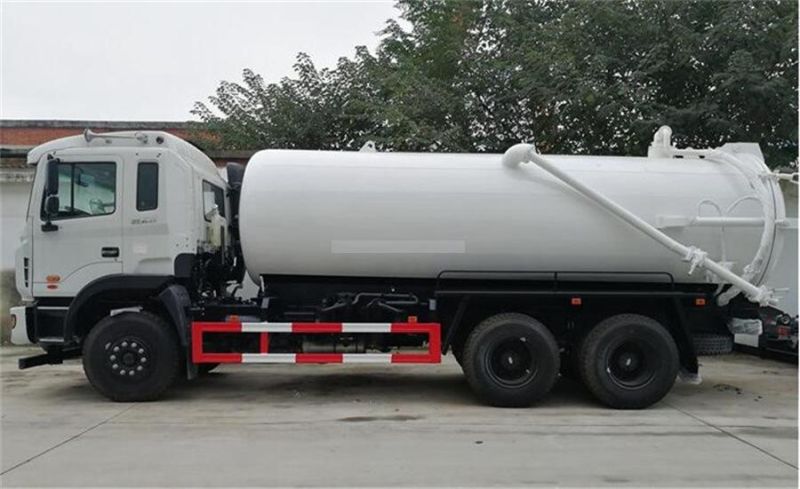

Product ParametersVehicle DescriptionOverall dimensions 11000*2100*2600mmGVW 14300kgMass in working order9000kgChassis brandJACTraction type6*4TankerCapacity16cbmMaterial5mm thickness, high quality carbon steelStructureWelding, vacuum tank, CylindricalPumpTypeVacuum pumpFlux45(L/S)Rating speed500~800(r/min)Shaft power4(kw)FeaturesLow speed, low fuel consumption, low noise, high vacuum, high efficiencyManufactureHangzhou WEILONG Pump Co., Ltd.PipeSuction and discharge pipeSpecial functionSuction time ≤ 5min,
Effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45Standard configurationEquipped with Inspect window,discharge valve,cleaning  apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.

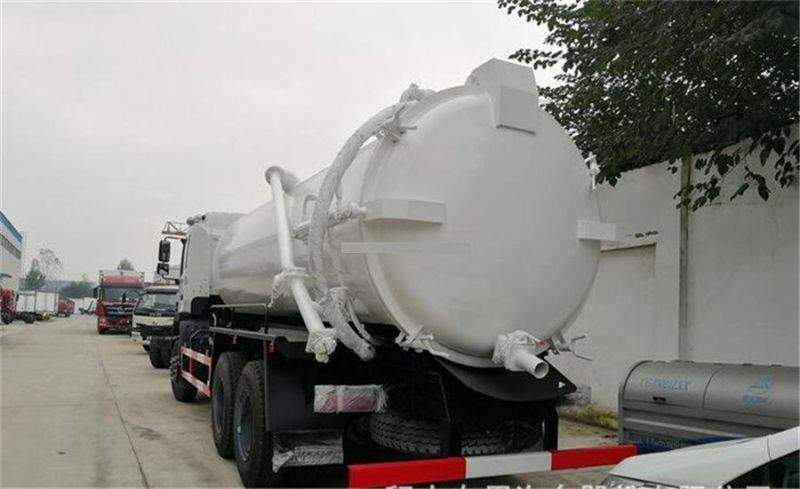

Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically.
               Optional configurationTanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tankDetailed Photos
