• Model NO.：CLW
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：4 - 6L
• Condition：New
• Description：Factory Supply HOWO 4X2 10cbm Water Sprinkle Truck
• Drive Mode：4X2
• Tank Material：Q235 Carbon Steel
• Steering System：Left Hand Drive, Right Hand Drive
• Tire：9.00-20 10.00-20
• Warranty：3 Key Parts for 1 Year.(Engine, Chassis, Transmiss
• Engine Brand：Yuchai Engine for Water Tank Truck
• Design：OEM, ODM
• Color：White, Red, Green Yellow Black Blue Camo
• Horse Power：90
• Transport Package：Bulk, RO-RO, Container, Naked, Waxed
• Specification：ISO, CCC and others
• Trademark：CLW
• Origin：Hubei. China
• HS Code：8705909090
• Production Capacity：500sets,Month

Factory Supply HOWO 4X2 10cbm Water Sprinkle Truck Price
Chassis type
4X2Volume
10cbm
Parameters
Overall dimension length/width/height (mm)
7390×2470×2710
Total Mass(kg)
10810
Kerb Mass(kg)
6115
Approach angle/ Departure angle(mm)
27/13
Front suspension/rear suspension(mm)
1250/2300
Fuel Type
diesel
Fuel Consumption/100 km
18
Max Speed
90
Engine
Type
Sinotruk, WD615.62, 266HP.
Displacement/Power(kw)
5880 /4257/ 118/105160(ps)145(ps)
Manufacturer
Sinotruk
Type
Water-cooling,6-in-line four-stroke supercharged diesel engine
Chassis
Drive type
4×2
Wheelbase(mm)
3950
Tread(front/rear)
1900 / 1800
Front axle
2.8T
Rear axle
8T
Steering gear
Duel-armed steering wheel,power steering
Transmission
6 gear mechanical drive transmission
Clutch
Diaphragm clutch,hydraulic remote control,pneumatic servo
Braking system
Split air braking systemspring brakingexhaust braking
Cab
Non-longheaded, one and a half row cab,whole metal-enclosed
Number of spring axle(front/rear)
8/10+7
Tire Type
9.00-20
Air-condition
Choose to fix
Watering system
Watering pump
Self-priming centrifugal pump
Special performance parameters
Watering width
≥ 15
Watering gun range
≥ 28
Vertical suction range
≥ 7
Watering pressure
250-450KPa
Watering
0.2-2l/
Pump lift
90m
Suction time
<5min
Flow rate
60 m3&sol;h

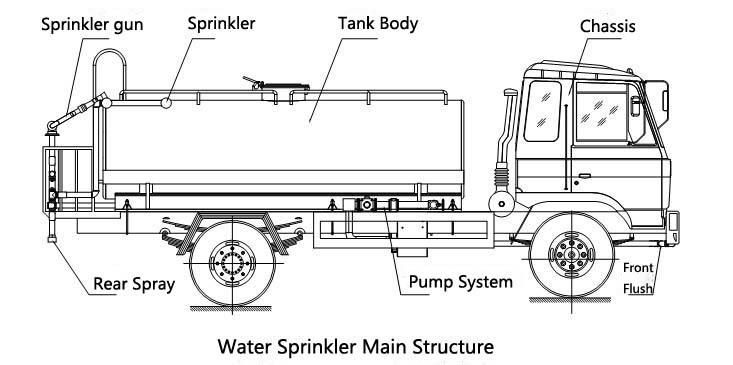

Main structure

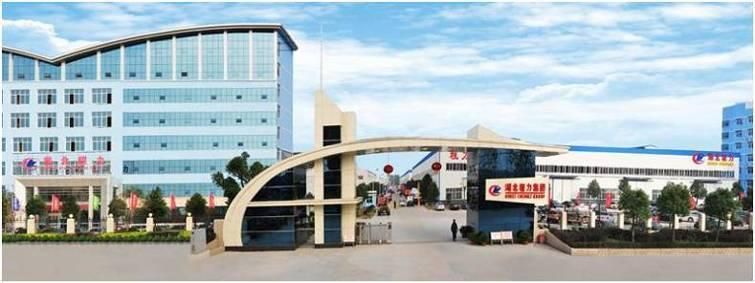

About us
We CLW Heavy Industry Co., Ltd are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks.  We also provide spare parts for the products separately.

All of our products comply can reach the international quality standards and are greatly appreciated in a variety of markets around the world.

 1. CLW Heavy Industry Co., Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer having nearly 15 years wholesaler experience in producing truck.

  2.Our company has independent export right and has amount of clients overseas including Africa, North America, Middle East, Australia and so on. The export turnover has reached 25million dollars.

 3.Our company has good after-sales service, solid technology, flawless inspection for our dear customers.

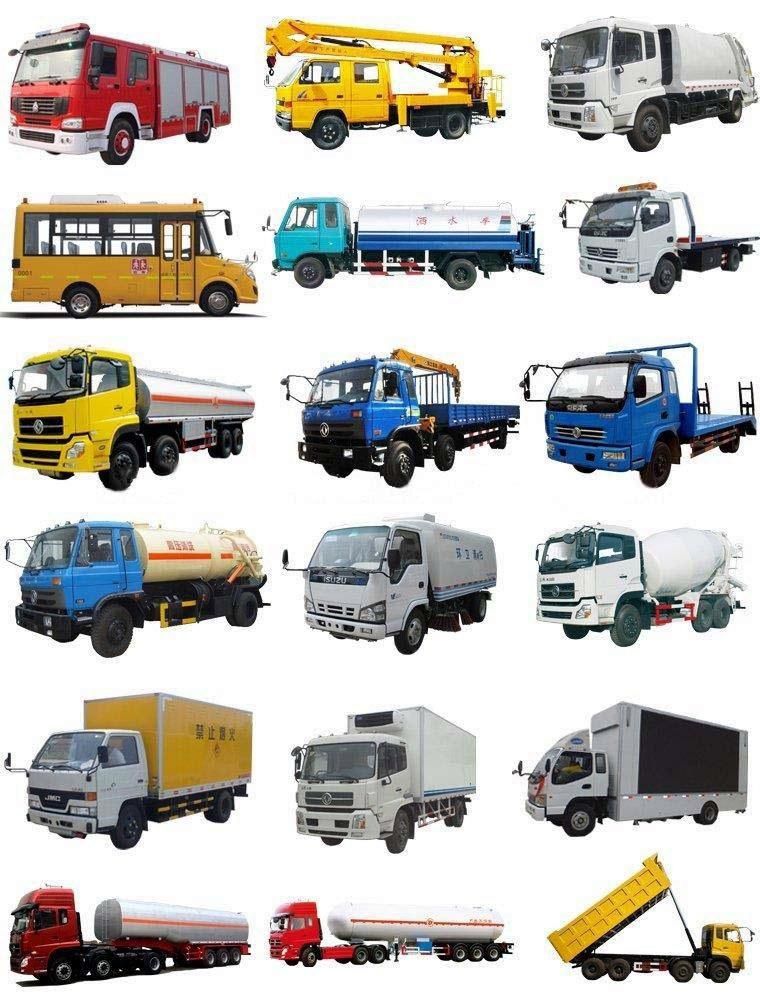

CLW Heavy Industry Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck/ Water Tank Truck/ Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Selfloading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer/ skeleton trailer/ dump semi trailer/ side wall trailer/ low bed trailer/ van container trailer/ warehouse trailer, etc.)
16. Spare parts/Accessory for above products




FAQ
1. Q: How about the quality of trucks of your factory?
   A: Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q:How many years of your company's service, especially after-sale service?
   A: CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.

3. Q:Is there any advantages of your price?
    A: CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good  quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.

7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.


Packaging and shipping



Any question please contact me without hesitation!!!
