• Model NO.：CLW50773
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Arm Type
• Condition：New
• Hopper Size：10 Cbm
• Hopper Number：for Choice
• Material：Carbon Steel
• Wheel Base：4500 mm
• Engine：Cummins
• Horsepower：190 HP
• Tire：9.00-25
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：7560x2500x3350mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Drive type4*2, New condition, LHDVehicle Main Dimensions(L x W x H)mm7560×2500×3350Wheel base (mm)4500F/R Axle-Load5000/10000 kg,Approach/departure angle21/18 Curb weight6645 kgGVW15800 kgMax. driving speed(km/h)90EngineBrandCummins ,Diesel ENGINEType6 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling;Horse Power(HP)190Emission standardEuro IIIGearbox6 forwards& 1 reverseClutchReinforced diaphragm clutchTire9.00-20,7 pc including 1 spare tireSteering Gearpower steering, hydraulic steering with power assistanceUpper BodyGarbage Box MaterialCarbon Steel Q235 Thickness Side 3mm ,buttom 4mm
 Garbage Box Volume10 CBM

Remarks

1. Color is optional

2.Customized LOGO painting as per customer request

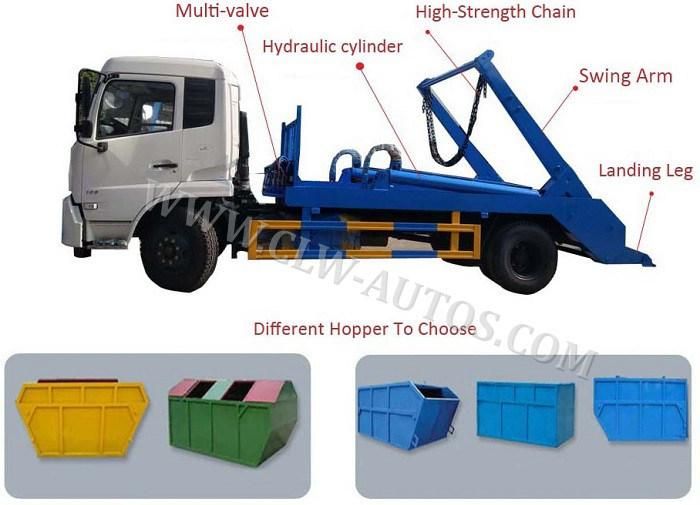

Product Diagram

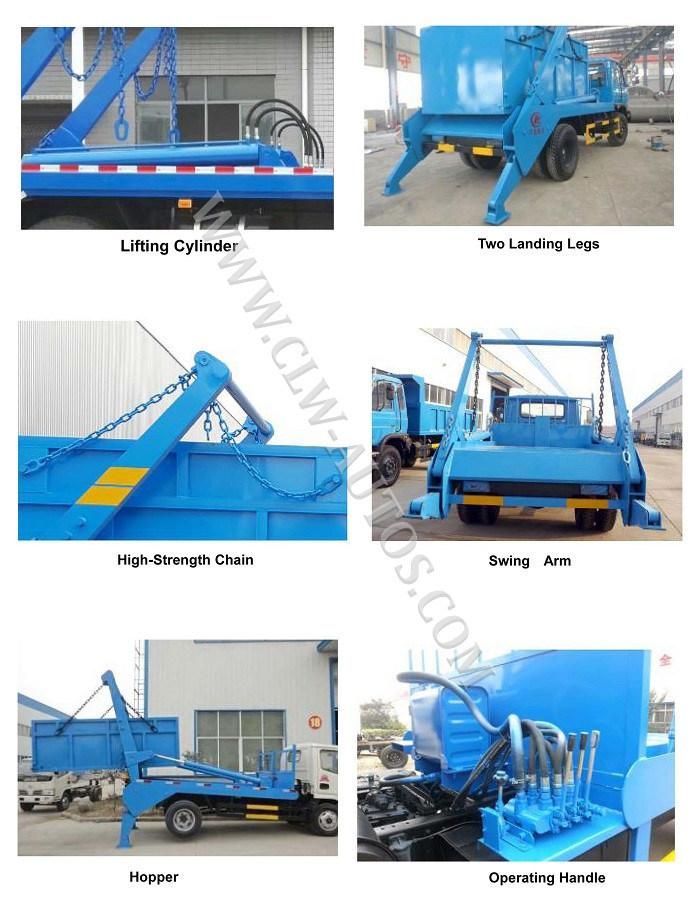

Product Details

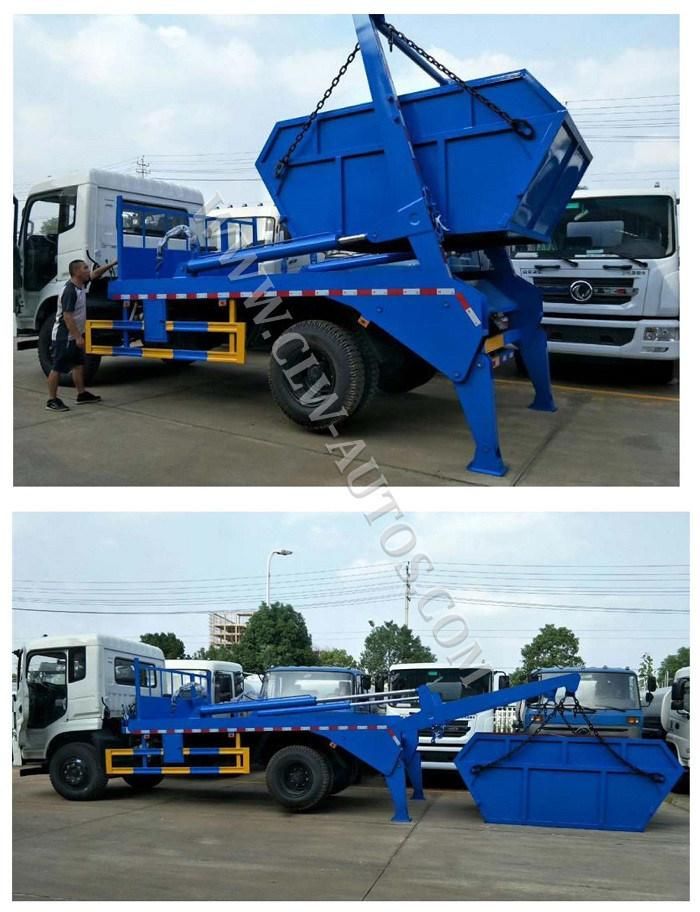

Working Show
