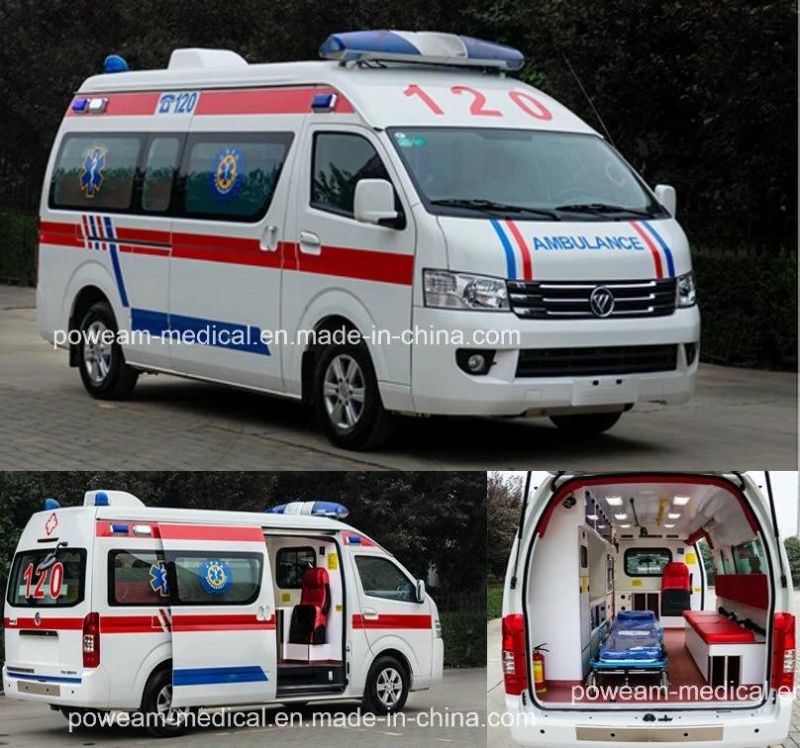

ISO, CE Approval Foton First Aid Ambulance Hospital Car (BJ6549B1)
Nanjing Poweam Medical Co., Ltd.- Certification：ISO9000, CCC, TS16949, EPA, EEC, CE
- Transmission Type：Automatic
- Fuel：Gasoline
- Emission Standard：Euro 4
- Length：3-8m
- Medical Equipment：With Medical Equipment
Base Info
- Model NO.：BJ6549B1
- Condition：New
- Fuel Type：Petrol
- Size：5382*1923*2286mm
- Fuel Consumption：10.8L
- Drive：2WD,Right Hand Drive
- Transport Package：Pallet
- Specification：CE,ISO,SGS
- Trademark：FOTON
- Origin：Nanjing
- HS Code：9402900000
- Production Capacity：300PCS,Month
Description
Basic Info.
Model NO. BJ6549B1 Condition New Fuel Type Petrol Size 5382*1923*2286mm Fuel Consumption 10.8L Drive 2WD,Right Hand Drive Transport Package Pallet Specification CE/ISO/SGS Trademark FOTON Origin Nanjing HS Code 9402900000 Production Capacity 300PCS/MonthProduct Description
Poweam Medical Ambulance are ISO,CE approval.We have Left Hand drive models,right hand drive models,2WD and 4 WD items for hopsitals to option,Besides of ambulance,Poweam can also offer relvant ambulance equipments including,portable ventilator,AED defibrillator etc.| A | Technical parameters | |
| wheelbase (mm):3112 | ||
| Overall dimensions (mm):5382×1923×2286 (No including alarm lights height) | ||
| Complete vehicle curb mass:(kg):2165 | ||
| GW (kg):3420 | ||
| Engine:4G69S4N Mitsubishi engine | ||
| Fuel type: Petrol | ||
| Fuel consumption:10.8L | ||
| Working manner: in-line, 4 cylinders, water-cooled, direct Injection inter-cooled petrol engine | ||
| Displacement (L):2.378 | ||
| Emission standard:GB18352.3-2005 CHINA IV,GB3847-2005 | ||
| Maximum power (kw):100 | ||
| Clutch: single plate, dry type, diaphragm spring, pull type clutch, mechanical inhaul cable | ||
| Transmission: mechanical type, forward gear with synchronizer | ||
| Front overhang/ Rear overhang: 1190/1080(mm) | ||
| Front wheel tread/ Rear wheel tread: 1655/1650 | ||
| Brake system: 4 wheels disc brake | ||
| Max. speed (Km/h):160 | ||
| Steering system: power-assisted steering | ||
| Tire:195R15C | ||
| B | Standard configuration of vehicle | |
| 1 | Electric side mirrors | |
| 2 | Power window | |
| 3 | radio (with CD) | |
| 4 | Hand-free Intercom system between driver's cab and Patient's compartment | |
| 5 | 2 seats in driver's cab | |
| 6 | Single upward opening rear door | |
| 7 | Foot pedal in rear door | |
| C | Air conditioner and lighting system | |
| 1 | Vehicle-mounted air conditioner in driver's cab | 1 |
| 2 | Vehicle-mounted air conditioner in Patient's compartment | 1 |
| 3 | Ventilation fan mounted on the roof of Patient's compartment | 1 |
| 4 | 1 illumination light s left and right side of vehicle outside | 2 |
| 7 | Illumination lights in Patient's compartment | 6 |
| 8 | Spotlight lights in the roof of Patient's compartment | 1 |
| 9 | Ultraviolet radiation disinfector light | 1 |
| D | Central power supply distribution system | |
| 1 | Automatic charging system | 1 |
| 2 | 10m mobile cable | 1 |
| 3 | 12V outlets in Patient's compartment | 3 |
| 4 | 220V outlets in Patient's compartment | 3 |
| 5 | 230V/16A waterproof outside outlet with protection cover | 1 |
| 6 | 12V DC power-supply system | 1 |
| 7 | Intelligent inverted power supply system(12V -220V) | 1 |
| 8 | Central control system | 1 |
| E | Emergency alarm system | |
| 1 | Control plate of siren and alarm lamp mounted in driver's cab | 1 |
| 2 | 100W loud speaker | 1 |
| 3 | Blue Flashing alarm light bar mounted on the front roof of vehicle | 1 |
| 4 | 2 Blue Flashing alarm lights mounted on left and right side of vehicle | 4 |
| 5 | Round cylinder alarm lights on the rear roof of vehicle | 2 |
| F | Patient's compartment | |
| 1 | Compartment wall mounted between driver's cab and Patient's compartment , a glass window in wall to make observation | |
| 2 | One foldable doctor's seat mounted to floor near to compartment wall | 1 |
| 3 | Long bench one piece, mounted in right side of patient's compartment | 1 |
| 4 | Oxygen bottle (10L×2) ,mounted in left side of vehicle | |
| 5 | Oxygen reducing valve | 1 |
| 6 | Instruments and medicine cabinet mounted to the the left side of patient's compartment | |
| 7 | Wall, door, and vehicle roof adopts aluminum-plastic Composite materials | |
| 8 | Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static. | |
| 9 | Raised edge of patient's compartment, dust-proof, anti-skidding, washable | |
| 10 | Ventilation fan mounted in the interior roof of Patient's compartment | 1 |
| 11 | Illuminating lights mounted to the interior roof of patient's compartment | 6 |
| 12 | Red color reflective strip in waist of body | |
| 13 | Mobile Self-lifting stretcher mounted to patient's compartment | 1 |
| 14 | Adjustable shovel Stretcher mounted to the interior left side of rear door. | |
| 15 | 220V outside power supply | 1 |
Configuration:
1) FOTON BJ6549B1PXA-EE Chassis: 1unit
2) Anti-skidding floor in Patient's compartment: 1set
3) Integrated interior decoration: 1set
4) Partition wall: 1 set
5) Illuminating Light in Patient's compartment: 1set
6) Transfusion bracket: 1set
7) Medicine and instrument cabinet in Patient's compartment: 1set
8) Long bench:1set
9) Supply system of oxygen: 1set
10) Inverted power supply: 1set
11) External power supply: 1set
12) Ultraviolet radiation disinfector light:1pc
13) Outside identifying light: 1set
14) Flash alarm light bar: 1set
15) Ventilation system: 1set
16) Doctor chair: 1set
17) Self-lifting stretcher (Primary Stretcher): 1set
18) Adjustable scoop stretcher (Secondary Stretcher): 1set
19) Multifunctional operation panel: 1set
20) Fire Extinguisher: 2pcs
21) Crashworthy head restraint: 1set
22) Garbage bin: 1pc
23) Non-contact Interphone system: 1set
24) Special cabinet for stupefacient: 1set
25)ambulance relevant equipments made by Poweam are option:
| Patient Monitor | Vital Sign Monitor | Pulse Oximeter | Portable Ventilator | ECG Machine |
| Infusion Pump | Syringe Pump | AED Defibrillator | cylinder | patient stretcher |
Head Immobilization | Spine Board with Spider Straps | Scoop Stretcher |
