Air Suspended Seats 336HP HOWO 6X4 8 Cbm Concrete Mixer Truck
QINGTE GROUP SPECIAL VEHICLES CO., LIMITED- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Transmission Type：Manual
- Emission Standard：Euro II
- Displacement：9.726
- Payload：30T
- Fuel：Diesel
Base Info
- Model NO.：ZZ5257GJBN3847
- Drive Mode：6x4
- Maximum Horsepower：300-400hp
- Condition：New
- Color：Green,Yellow,White,Red,Black.etc
- Driver Seat：Air Seat
- Warranty：One Year or 100000km Which Comes First
- Usage：for Construction, Transportation and Mining
- Transport Package：Nude Packing After Painted Wax
- Specification：9335x2496x3980
- Trademark：SINOTRUK-HOWO
- Origin：China
- HS Code：8705400000
- Production Capacity：3000units,Month
Description
Type
8cubic meters concrete /cement mixer truck
Chassis model
ZZ1257N3847
Dimension
9335×2496×3980mm
Rated loading capacity
11850kg
Wheel base
3800+1350mm
Tire specification
12.00-20(11pcs)
Engine model
WD615.69(sino truck brand)
Power
336HP
Emmission standard
Euro 2
Fuel material
Diesel
Max speed
90km/h
Feeding speed
≥3m3/min
Output speed
≥2m3/min
Speed reducer
Import from italy
Water box capacity
300L
8m3concrete mixer
Italy PV089 pump,MF089motor,6SP Gearbox,China 12R radiator
9m3concrete mixer
Italy PV089 pump,MF089motor,TOP P68 Gearbox,China
12L radiator
10m3concreter mixer
Italy PV089 pump,MF089motor,TOP P68 Gearbox,China 12L Radiator
11-12m3concrete mixer
Italy PV089 pump,MF089motor,TOP P75 Gearbox,China 12L Radiator
14m3 concrete mixer
Italy PVA090 pump,MF090motor,TOP P75R or P80 Gearbox,China 25L or 26L Radiator
16m3 concrete mixer
Italy PVA090 pump,MF090motor,TOP P80 Gearbox,China 25L or 26L Radiator
Mixer body material
5mm or 6mm steel plate

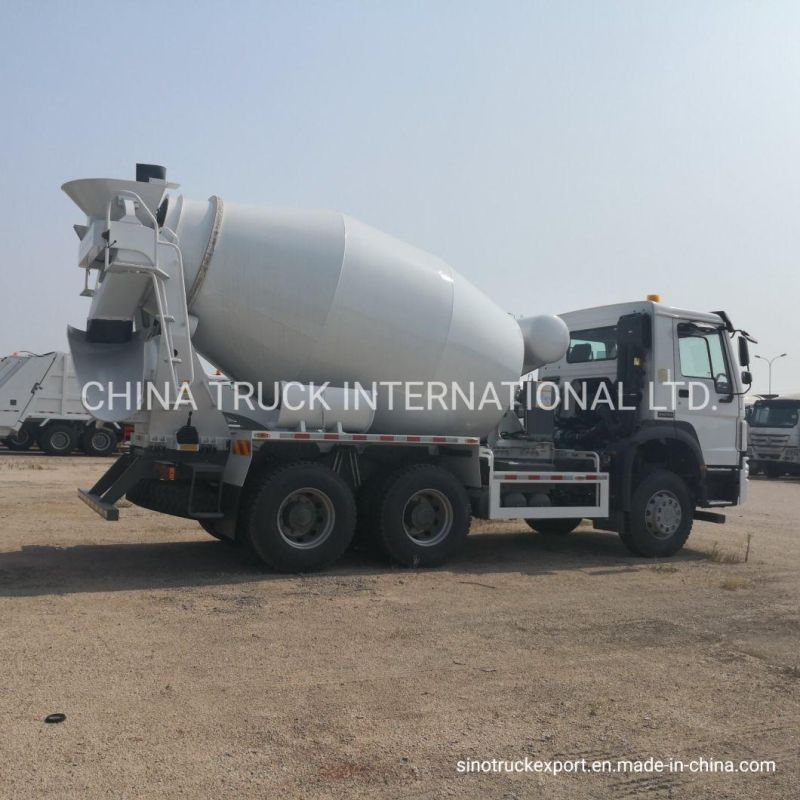

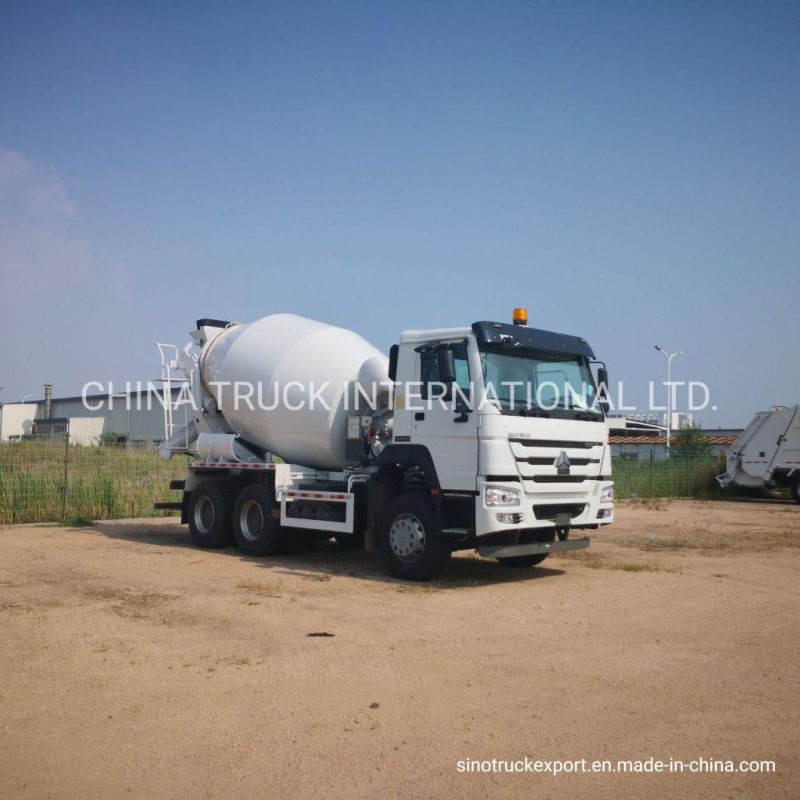

3. Concrete Mixer Truck Photos

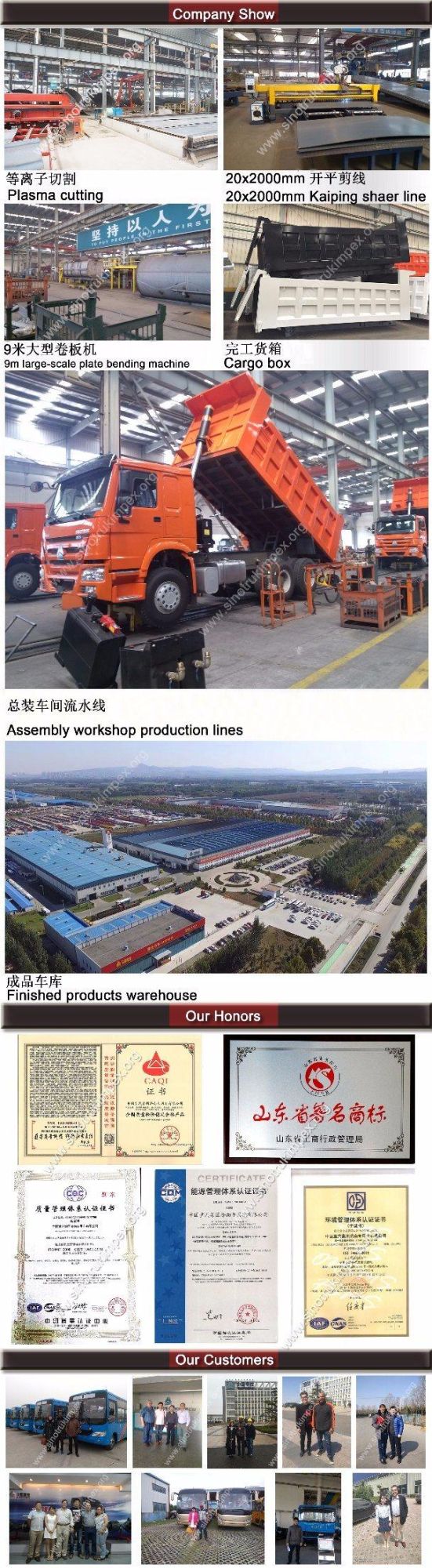

4. Our Factory
5. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
6.FAQ
| Q1: I don't want this configuration |
| A: The configuration can be changed according to your needs |
| Q2: Minimum order quantity? |
| A: MOQ is 1 unit. |
| Q3: Production period? |
| A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment |
| Q4: Payment term? |
| A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery |
| Q5: Shipping? |
| A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea |
| Q6: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
Contact Person: Rita(Ms)
