• Model NO.：CLW5648
• Horsepower：＜150hp
• Fuel：Gasoline
• Bearing Capacity：Small
• Car Type：Van
• Condition：New
• Gearbox：5 Forward & 1 Reverse
• Rear Platform：Optional
• Box Size：2600*1460*1470mm
• Material：Fiberglass

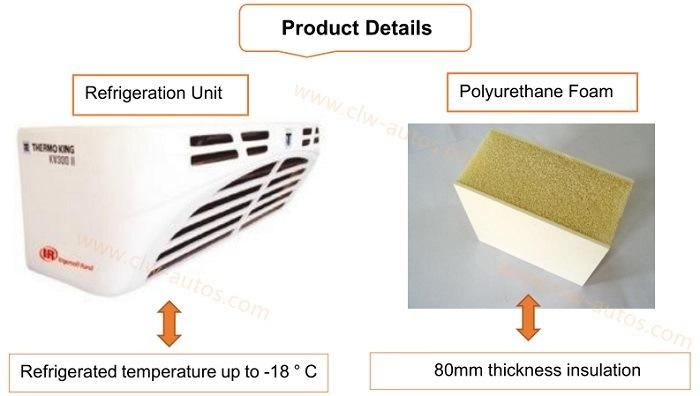

• Insulating Layer：8cm Polyurethane Foam
• Truck Refrigeration Unit：Thermoking, Carrier or Chinese Alternative
• Applicable Temperature：-18~0
• Delivery Time：25 Days
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：5350*1690*2425mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Units Per Month

Basic Info.

Model NO. CLW5648 Horsepower ＜150hp Fuel Gasoline Bearing Capacity Small Car Type Van Condition New Gearbox 5 Forward & 1 Reverse Rear Platform Optional Box Size 2600*1460*1470mm Material Fiberglass Insulating Layer 8cm Polyurethane Foam Truck Refrigeration Unit Thermoking, Carrier or Chinese Alternative Applicable Temperature -18~0 Delivery Time 25 Days Transport Package Bulk Ship, RO-RO, Container Specification 5350*1690*2425mm Trademark CLW Origin Suizhou, China HS Code 87059099 Production Capacity 500 Units Per Month

Product Description

China brand Jinbei 4x2 gasoline engine Mini Refrigerated Truck with refrigerator Unit


Description

1. Purpose: It is used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Specifications

Name	Jinbei mini refrigerated truck
Overall dimension	5350×1690×2425mm
Van dimension	2600×1460×1470mm
Van volume	7cbm
Curb weight	1800kg
Max payload	640kg
Drive type	Left hand drive
Drive wheel	4X2
Tire	175/70R14LT  4pcs
Front/rear tread	1360mm/1360mm
Front/rear suspension	560/1250mm
Wheelbase	2920mm
Leaf spring number	-/6
Engine	SWC15M
Emission	Euro 6
Displacement	1450ml
Horse power	102hp
Braking system	With ABS system
Max speed	130km/h
Fuel type	gasoline
Painting	With shot blasting and 4 layers painting,color is optional.

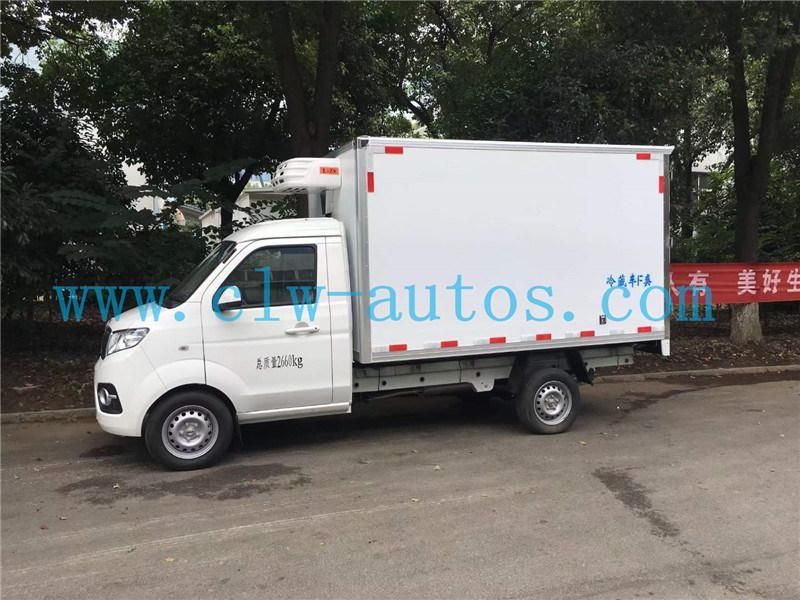

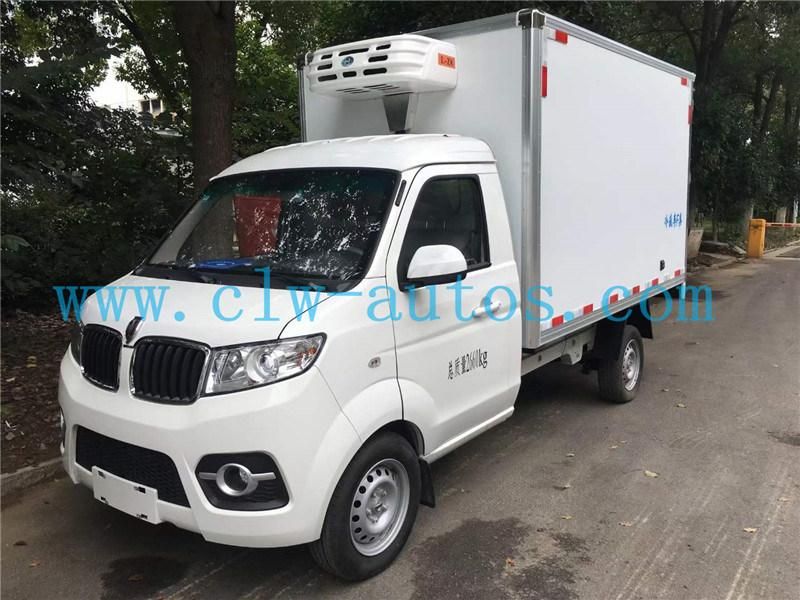

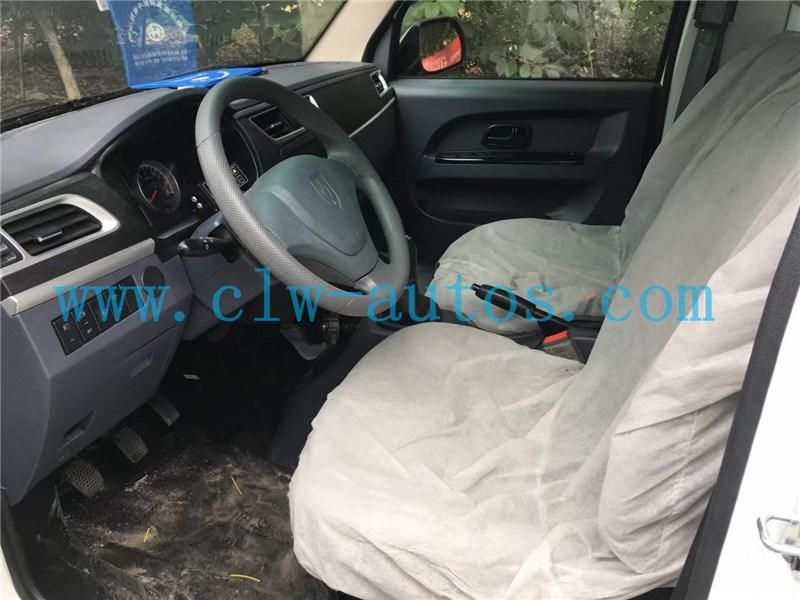

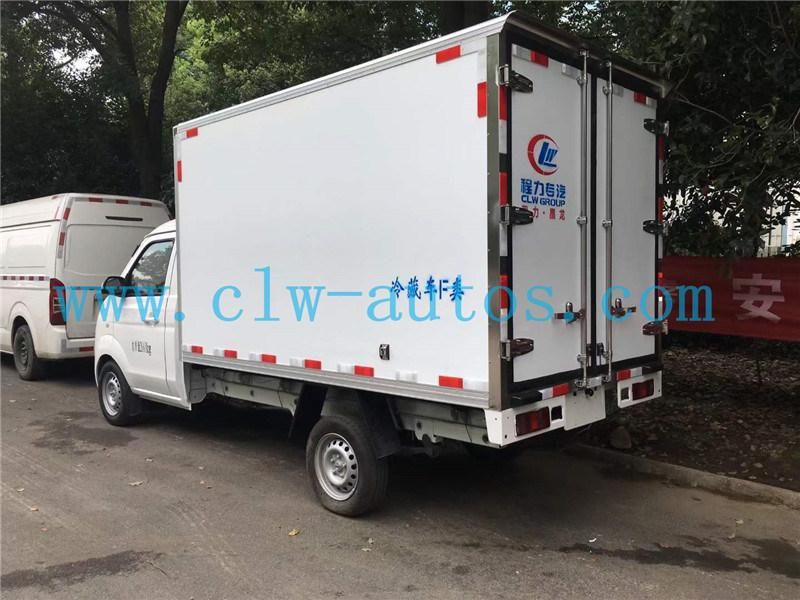

Reference photos









Factory overview

ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

• Certificate: ASM, ISO, BV, SGS, CCC etc.
• 12 independents workshops.
• 1000 sets of equipment, 25 assemble lines.
• 300 senior engineers and technicians. About 8000 workers.
• 800kinds of LPG, trucks and semi-trailers.
• 20 years wholesale experience
• Turnover 250 million and Export 20million annually
• Turnover 2 billion trucks and semi-trailers annually.
• LPG/Truck Sold to 90 countries
• Cooperates DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC

Overseas Exhibition and Local Support


Customer Visiting and inspection


Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
