• Model NO.：CLW garbage truck
• Payload：20T
• Fuel：Diesel
• Drive Wheel：6×4
• Brand：Sinotruk
• Models：Large
• Usage：Compression Type
• Condition：New
• Description：Factory Direct Selling Garbage Compressed Truck
• Driving Model：4X2, 6X6, 6X4, 6X2, 8X4, 8X2, 4X4
• Engine Brand：Dongfeng, Deutz Ranault, Yc Sc Wd, Cummins
• Chassis Brand：Dongfeng Sinotruk HOWO FAW Foton JAC Shaman Japan
• Exhaust/Power(Kw)：160, 170, 190, 220, 260 290HP Compctor Garbage Truck
• After-Sales Service Provided：Overseas Third-Party Support Available
• Alxes Brand：BPW Fuwa or L1 for Compactor Garbage Brand
• Tire：11.00r20 12.00r20 for Garbage Compressed Truck
• Capacity Load：5t, 10t, 15t, 20t, 25t, 30tcompactor Garbage Truck
• Transport Package：Naked with Wax for Compactor Garbage Truck
• Specification：ASME Standard, ISO,SGS,BV,CCC,SONCAP AND OTHERS
• Trademark：CLW compactor garbage truck
• Origin：Hubei, China Made Compactor Garbage Truck
• HS Code：8701909000
• Production Capacity：10000sets ,Year

Main Technical ParametersTotal weight25000kgsWhole truck dimension9800x2496x3048mmRated capacity13870kgsGarbage box dimension 7100x2326x2050mmKerb weight11000kgsGarbage box volume 16 m3 (16000L)Passengers2 peopleFillter volume2m3Approach/departure angle16/15Front/rear overhang1500/2625mmAxle no.3Wheel base4325+1350mmPressure of 20MpaCycle Time of Filling≤25sHydraulic SystemLifting Time of Filler8~10sTime of Discharging≤40sMax.Compression Force >25000kgsFront / rear sewage 250+150Ltank volumeChassis ParametersChassis brandSinotruckTyre nos.10Chassis dimension9800x2496x1050mmTyre model11.00-20 , bias tyresFront axleHF7 (7t)Rear axleHW1697 (speed ratio:3.93)Steering ZF8098 hydraulic steering with power assistance (18MPa steering oil pump)TransmissionHW15710 , 10 forward and 2 reverse (manual)Fuel typeDieselFuel tank300LEngine modelEmission standardEngine powerMax. speedWD615.87EuroII290hp90km/h 1. Bore x stroke : 126x130mmOthers of engine2. Displacement : 9.726L 3. Rated power & revolving speed : 266hp & 2200r/min. 4. Max. Torque & revolving speed : 1100N.m & 1100-1600r/min.
PACKAGING & SHIPPING

1, Naked or waxed .
2, Delivery time: 30 days after official order.
3. By RORO or Bulk ship.

 Service
The extremely considerate and sincerely service would be provided to our customers  immediately . This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support.

FAQ

Q:What is your payment term?
A:We accept payment by T/T,L/C.

Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets

Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.

Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!

 Company Information

Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON and etc.

Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

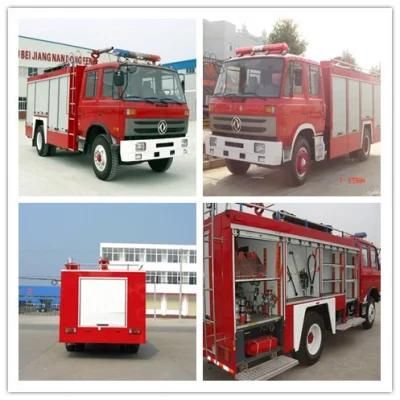

5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck

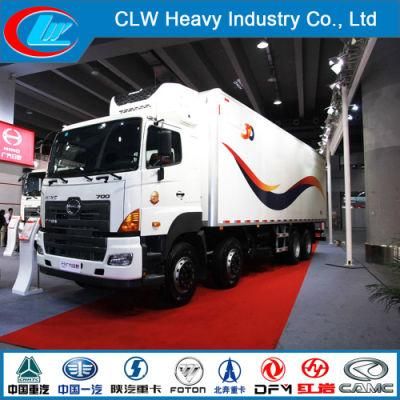

7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck

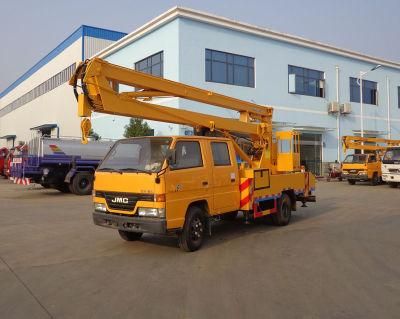

10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

                                                EXPORT
Chengli take customer's  satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.


Factory  direct selling HOWO garbage truck 6X4 rubbish truck
