• Model NO.：GML-G06 CSA
• Type：Electric Bus
• Specification：3175*1219*1828mm ,Carlisle 18*8.5-8 6 layers
• Trademark：RARIRO
• Origin：China
• HS Code：8703101900
• Production Capacity：50000,Year

MOTOR48V/5KW high efficiency high speed AC motorCONTROLLERCMOS system of infinitely variable speed, with the function of automatic
pretection fall slippery, downhill speed limited, personalized program designBATTERYMF 6*8V large capacity deep cycle traction batteryCHARGERauto high-frequency high pulse charger, input voltage of AC 110V/220V 50hz, output DC 48V 25Ah, with CE certificateACCELERATOROriginal inductive, non-contract variable speed system non-contractCHASSICFrame type, high strength steel structure, thermal spraying Zinc and dual
antirust paint processingCOVER PANELA high qualified steel plate staming molding, automotive sheet metal
standard coating process, with impact resistance functionREAR AXLEMotor direct type integral rear axle, with the mail reduction and differentialBRAKE SYSTEMDouble circuit four-wheel hydraulic brake (front disc rear drum), and
mechanical parking (manual)FRONT SUSPENSION SYSTEMMuti-plate leaf spring and hydraulic damping cylinder typre independent suspensionREAR SUSPENSION SYSTEMMuti-plate leaf spring and hydraulic damping cylinder typre independent suspensionSTEERING SYSTEMSingle stage gear rack steering system, with the function of steering self-retureLIGHT SYSTEMHeadlights, front turn signal lamp and rear combination lights, buzzer, electric hornSEATING SYSTEMOne-piece seat system, confirm to the principle of ergonomics, comfortable seating, emulation leather seatsCELLINGBlack canvas, with light weight, waterproof, UV protection etc.TYREVacuum meridian mini car tyre, specification: 6.00-13TDASHBOARDWith the ignition switch, electricity meter, direction selector switch, turning signals, brake lights, horn meter, etcFRONT WINDSHIELDFoldable, high strength organic glassSELECTION FITTINGRain curtain, ECU electric power steering system, radio, luxury leather seatsMAIN TECHNICAL PARAMETERS AND PERFORMANCE INDEX OF THE VEHICLEWEIGHT770KGCHARGING TIME8-12 hoursL*W*H (MM)4020×1520×1950MAXIMUM MILEAGE≥100kmWHEEL BASE3260mmMINIMUM GAP170mmFRONT TREAD1290mmMIN. BRAKING DISTANCE≤5mREAR TREAD1220mmGRADEABILITY30%MIN TRUNING RADIUS5500mmMAXIMUM SPEED24-30km/hSEATER8 SEATSMAXIMUM BACK SPEED9-13km/hCHARGING TIME8-12 hoursCONTAINER LOADING2/20GP, 9/40HQ

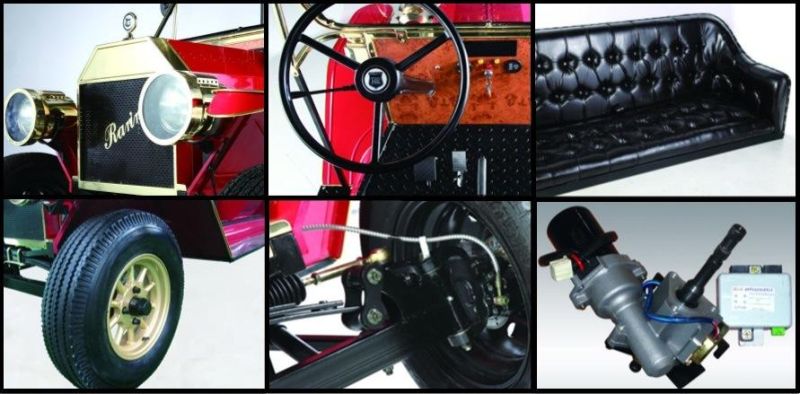

PRODUCTION DETAILS
Royal grace presented in chrome plate front shades and headlingts in heroic style
Console easy for driving brings freedom for movement
Noble leather seats, comfortable in seating
Big famous vacuum tire fullybears the strong load, and make the dring steadly
Good confort suspension system
Electric prower steering system ECU


FACTORY
In the Nansha Free Trade Zone
20 minutes from Canton Fair
One hour from Guangzhou Baiyun International Airport

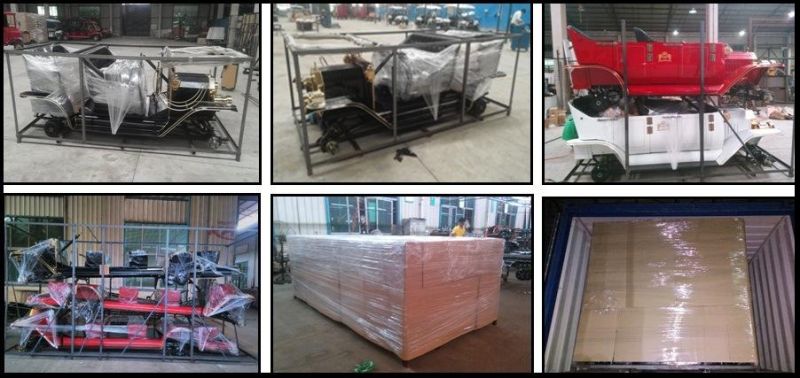

PACKAGE & DELIVERY
SKD package by Iron frame
Leatheroid package outside
20 days delivery time
30 minutes to Nansha Port and 40 minutes to Huangpu Port



CETIFCATE
ISO9001 Certificate
ISO14001 Certificate
OHSAS18001 Certificate
CE Certificate
Trademark Certificates
Patent Certificates
