• Model NO.：CLW
• Drive Wheel：4x2
• Hoesrpower：160HP
• Condition：New

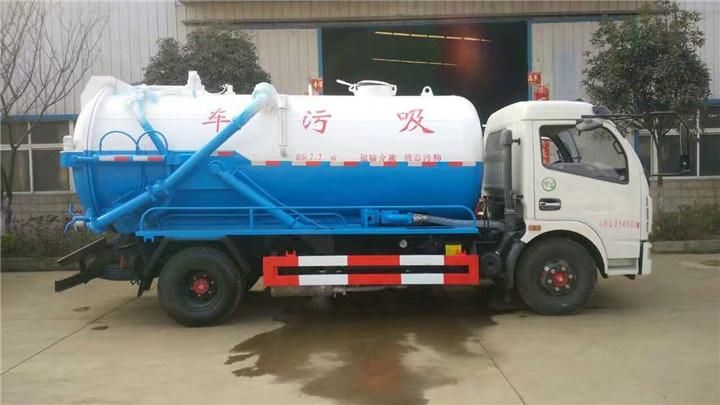

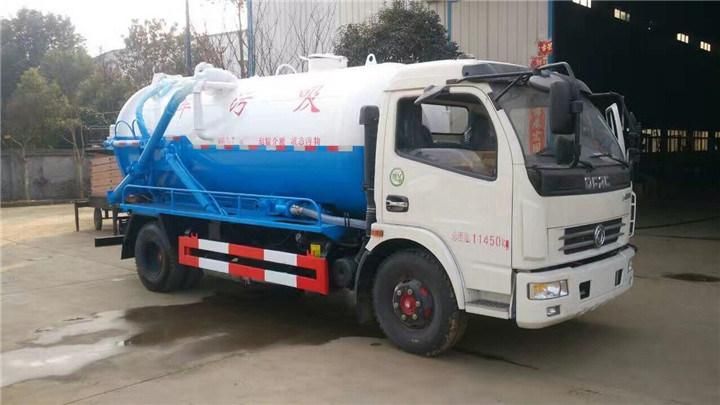

• Description：Dongfeng Mini 4cbm 5cbm Vacuum Sewage Truck
• Truck Brand：Dongfeng, Isuz, Sinotruk HOWO, Foton, JAC, Jmc
• Driving Model：4X2, 6X4, 8X4
• Driving Type：LHD or Rhd
• Volume of Body：3cbm-16cbm
• Material：Q235,345 Carbon Steel
• Color：White, Blue, Green, Customized
• Tire：6.50r16, 4 Pieces+1 Spare Tire
• Warranty：One Year
• Shipping Time：35 Days
• Transport Package：RO-RO Bulk
• Specification：3cbm-16cbm
• Trademark：CLW
• Origin：Hubei China
• Production Capacity：500 Set Per Year

Dongfeng New Vacuum Tank Truck Fecal Sewage Suction TruckDrive Model4X2ChassisEQ1060Number of axles2Vehicle Main DimensionsDimensions(L x W x H)(mm)5995×2000×2550Wheel base (mm)3300Overhang (front/rear) (mm)1032/1663Wheel track (front/rear) (mm)1506/1466Approach/Departure angle(°)19/14Weight in KGSGVW.6495kgCurb Weight4200kgMax. driving speed(km/h)90EngineModelCY4102-C3FType4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)99HPengine capacity(ml)3856Emission standardEuro IIIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)100Tire7.00-16 tire , 6 + 1(spare)Brakesdual circuit compressed air brakeTankMaterialQ235A Carbon steelMedium Density800kg/m³Loading Capacity (m³)4Overall dimensions(mm)3200×1100×1100Thickness(mm)5Standard
Equipment
 Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min




About us

CLW Heavy Industry Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Selfloading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer/ skeleton trailer/ dump semi trailer / side wall trailer/ low bed trailer/ van container trailer/ warehouse trailer, etc.)



FAQ

1. Q: How about the quality of trucks of your factory?
    A:  Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q:How many years of your company's service, especially after-sale service?
   A: CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 25 working days. We offer 1 year after-sale service.

3. Q:Is there any advantages of your price?
    A: CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.


Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.



Contact information:Cathy Chen
Mobile): +8615972043829
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Customised Truck & Trailer Solutions to Meet Your Requirements
