Sinotruk HOWO 4X2 Capacity 5tons 8tons 10tons Tow Crane Truck
CLW Heavy Industry Co., Ltd- After-sales Service:Lifetime Technical Support, Parts Supply etc
- Warranty:1 Year
- Certification:ISO9000, CCC, TS16949
- Emission Standard:Euro 3
- Transmission Type:Manual
- Towing Tonnage:15T
Base Info
- Model NO.:CLW5208
- Fuel:Diesel
- Bearing Capacity:Medium
- Brand:Sinotruk HOWO
- Condition:New
- Description:Tow Crane Truck
- Capacity:5tons, 8tons, 10tons, 15tons
- Design:OEM, ODM
- Certificate:CCC, ISO and Others
- Payment Term:T,T
- After-Sales Service Provided:Overseas Third-Party Support Available
- Tire:Radial Tire 9.00r20
- Overall Dimensions(mm):Customized Designs
- Wheel Track (Front, Rear) (mm):1960,1860
- Transport Package:Bulk, RO-RO, Container, Naked, Waxed
- Specification:ISO, CCC and others
- Trademark:CLW
- Origin:Hubei. China
- HS Code:8705909090
- Production Capacity:80 Sets,Month
Description
Specification
Drive model
4x2,LHD
Max. Driving Speed(km/h)
90
Cabin
Passengers Allowed in front row
3
Vehicle
Curb Weight(kg)
2805
Overall Dimensions(L x W x H)(mm)
5995*2250*3200
Approach/Departure angle(°)
20/17
Wheel Base(mm)
3360
Overhang (front/rear) (mm)
1160/1475
Wheel Track (front/rear) (mm)
1825/1540
Engine
Model
4DW93-84
Air-in Type
Inline four cylinder, supercharged intercooler
Fuel
diesel
MAX Power(HP)
90HP
Emission standard
Euro II
Cylinder Number
4
Rated Speed(RPM)
3000RPM
MAX Torque(N.M)
220N.m
MAX Torque Speed(RPM)
2100rpm
Displacement(L)
2.54
Gear Box
Shift
5
Running system
Leaf Spring
8/9+6
Tire
6+1
Brake
Oil-Cut

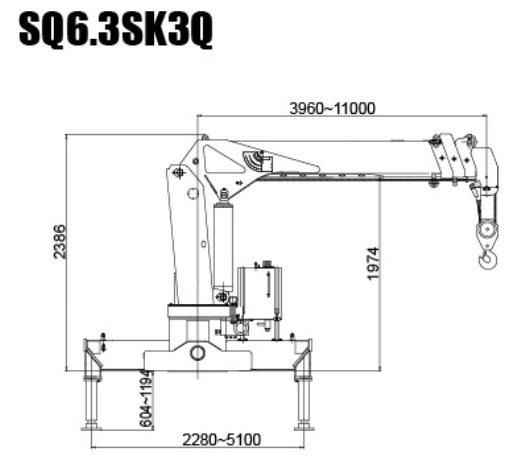

Equipment for 5tons Crane Mounted Parts
Working Platform
360°turning(left or right), H-shape legs 360°
Cargo Box Dimension
3400×2160×600mm
Material of box body
Carbon steel
Extendable boom section
2
Boom Type
Straight
Lifting Max. Weight
5000KG
Lifting Max. Height
10500 mm
Working Radius
8700 mm

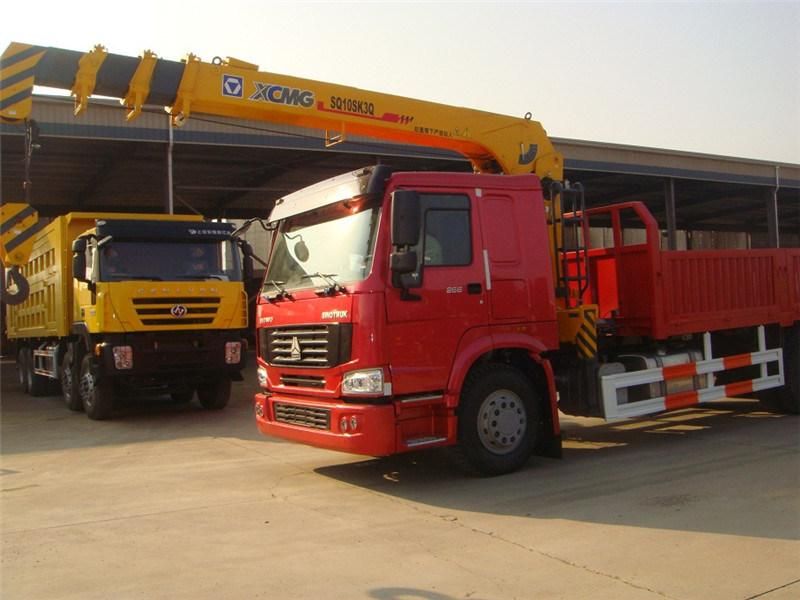

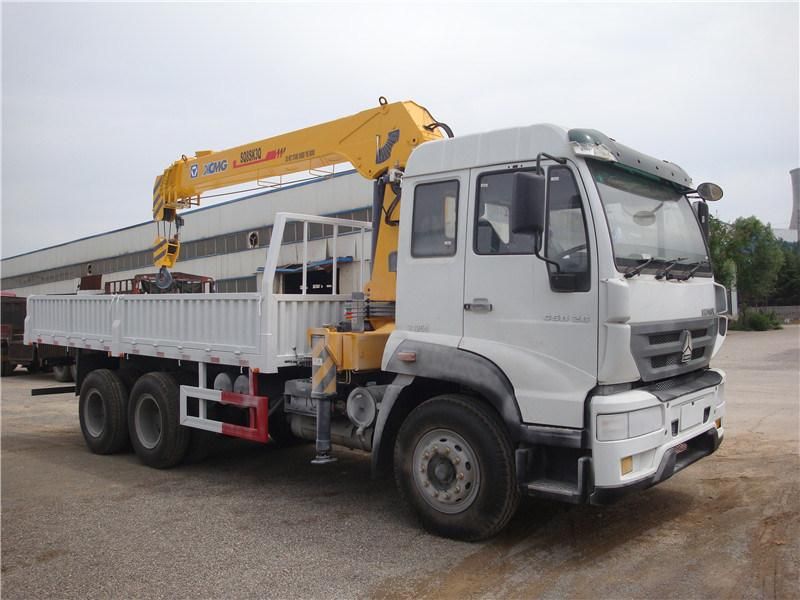

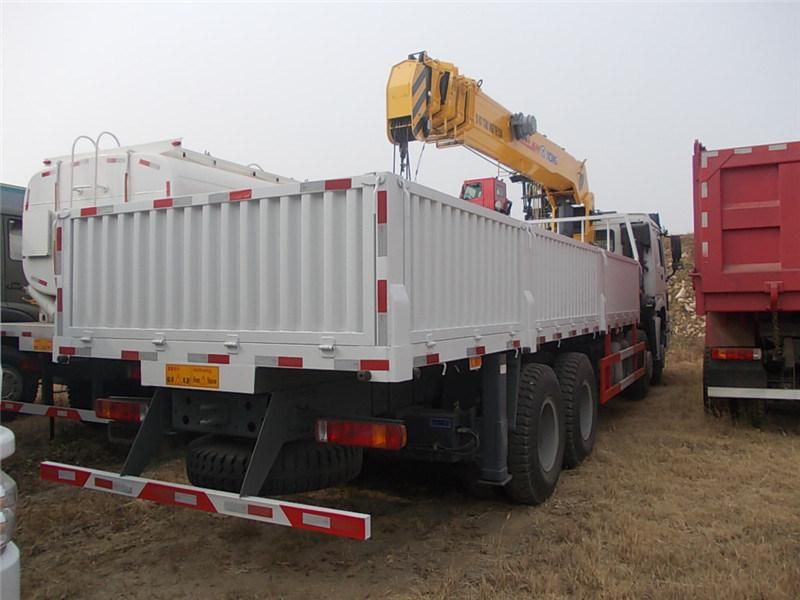

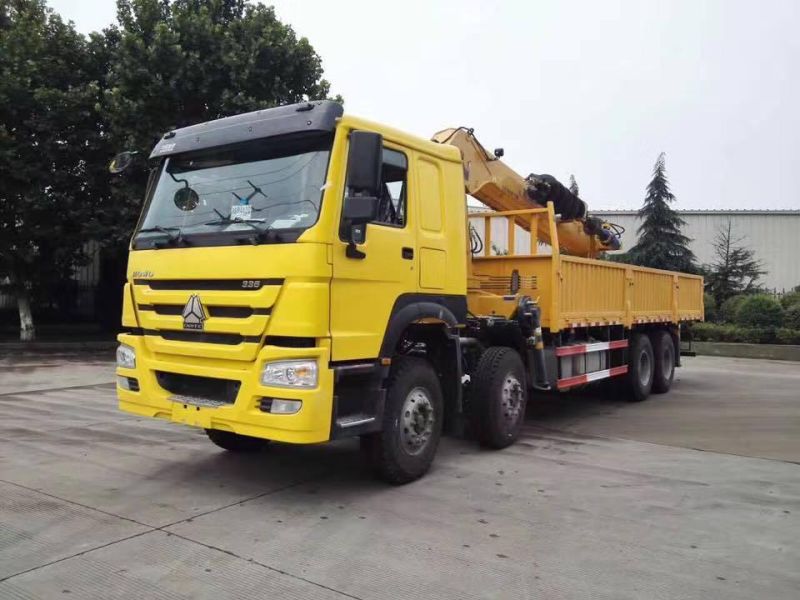

More pictures for reference
USD 800 for All Spare Parts Below:
No.
Parts Name
Quantity
1
Fuel Filter
3
2
Lubricating Oil Filter
3
3
Air Cleaner
3
4
Clutch Plate
1
5
Brake Disk Set(Front)
2
Brake Disk Set(Rear)
2
6
Fan Belt
1
7
Air Condition Belt
1
8
Relay
1
9
Release Bearing(Inner And Outer)
1
10
Seal Kit For Hub(Rear And Front)
1
11
Seal Kit For Differential Pinion(Front And Rear)
1
12
Cross Joint For Transmission-Front Differential
1
