• Passenger Number：3
• Fuel Type：Diesel Oil
• LED Tube Core Type：III
• Self-powered：Self-powered
• LED Screen Type：PH16
• Power Supply Mode：380V Industry Electricity
• Product：Mobile LED Stage Truck
• Chassis：Dongfeng, HOWO, JAC, Foton, Others
• Wheelbase(mm)：1900+5400mm
• Hand Driving：Left or Right
• LED Screen Wall：Single or Both Side
• Pixel Density：10000 12000
• Weight：19500kg
• Engine：95HP
• Display：Picture, Video, Roll Screen
• Tire：10.00-20
• Transport Package：Container, RO-RO, Bulk
• Specification：P4 P5 P6
• Trademark：CLW
• Origin：China
• HS Code：8705909090
• Production Capacity：100 Unit Per Month

Truck ModelCLW5200XWTH5Vehicle main dimensionOverall dimension(LxWxH)mm11950*2500*3950wheel base(mm)1900+5400Overhang(front/rear)(mm)1495/3155Approach/Departure angle17/20Weight in KGSGVW19500Curb weight17370Loading capacity            4000Chassis modelHFC1251P2K3D54S1VMax driving speed(km/h)98EngineBrandWuxi Diesel engineModel    CA6DLD-22E5Displacement/power6600/164Emission standardEurope 3Transmission8gear box ,8 forward ,2 reservebrakeAirbrakeTire10.00-20 Power steeringBodyCargo bodyDimensionLxWxH*Open methodSided start the car on both sides of the plate can be expanded, with the top stage of the formation of the vehicle roof, side panels for folding box, after the show through the hydraulic system and the vehicle compartment floor forming stage mesa, chassis frame section has a supporting deviceAccessoryHydraulic outrigger, power distribution box ,step ladderSide plate open methodOne side open,two side open, three side open for option

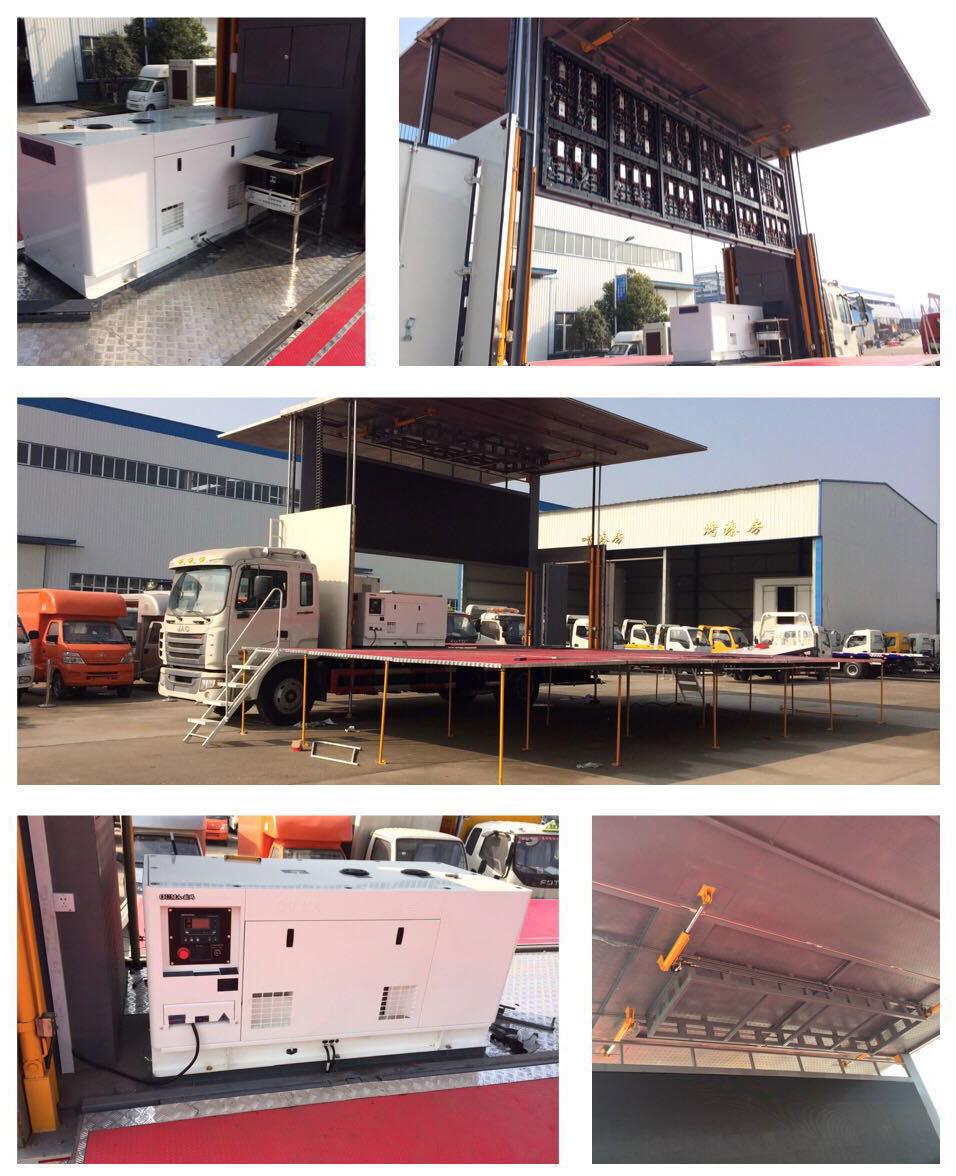

Detailed Images

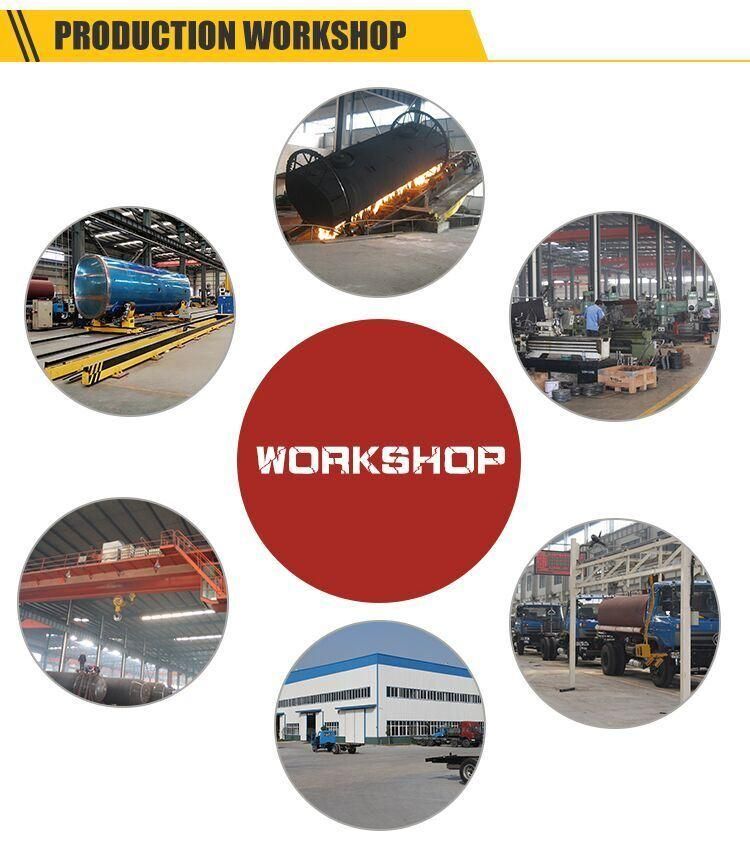

Production Process


The way of Shipping



Related products

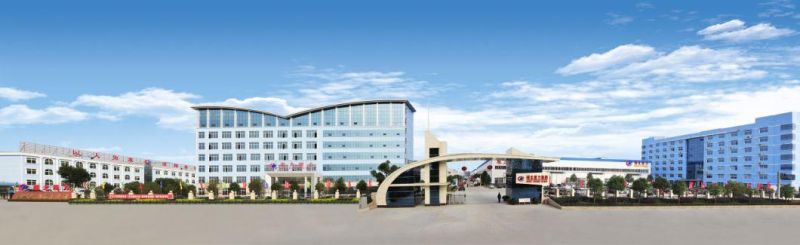

Company Introduction

ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of  customer from all over the world.




l  More than 10 years' experience as a manufacturer
l  CCC, ISO, BV, ASME certification
l  Perfect after-sale service
l  Trucks covering more than 50 countries and regions
l  300 kinds of trucks and trailers
l  100 Senior welder and 15 senior engineers
l  Good cooperation with 30% regular customers
l  Annual production value topped 240,000,000 US dollars per year

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck / Pump Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Garbage truck, garbage compactor truck, Hook Lift Garbage Truck
12. High Pressure Cleaning Truck
13. Sweeper Truck / Vacuum Sweeper Truck
14. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


Contact Information

Ms. Janie Chen
Sales Representative
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China

Web: http://cltruck.en.made-in-china.com
